V2 rocket

[fledermaus]

Hi my friends, here is the first model on the recently made hobby room, the V2 rocket from Takom. the first one I did many many years ago was the vacumm form kit from schmith in 1/35, the meillerwagen was mostly scratch built just using a few of the original kit parts. this kit from Takom is excellent with tons of details and parts, but of course I needed to add more to it.

The Kit

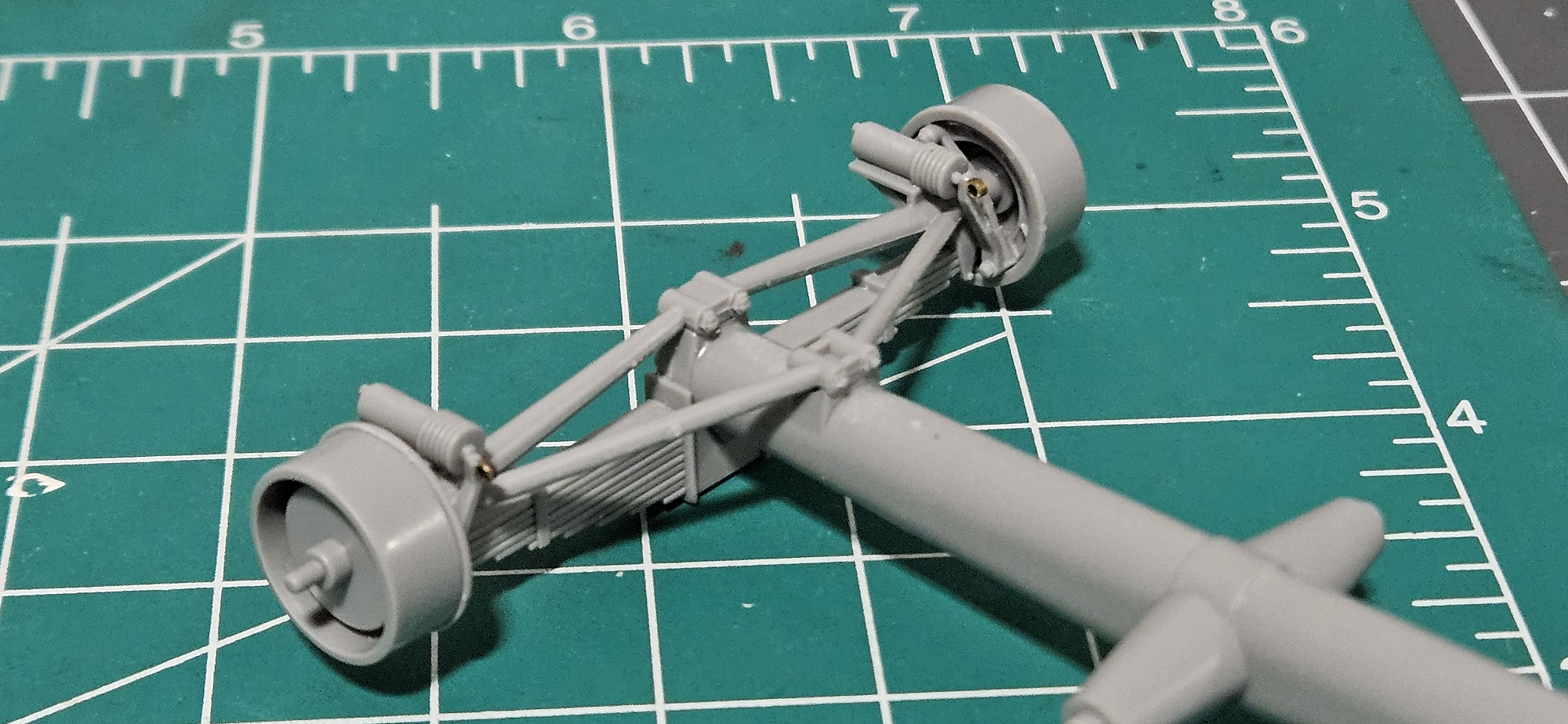

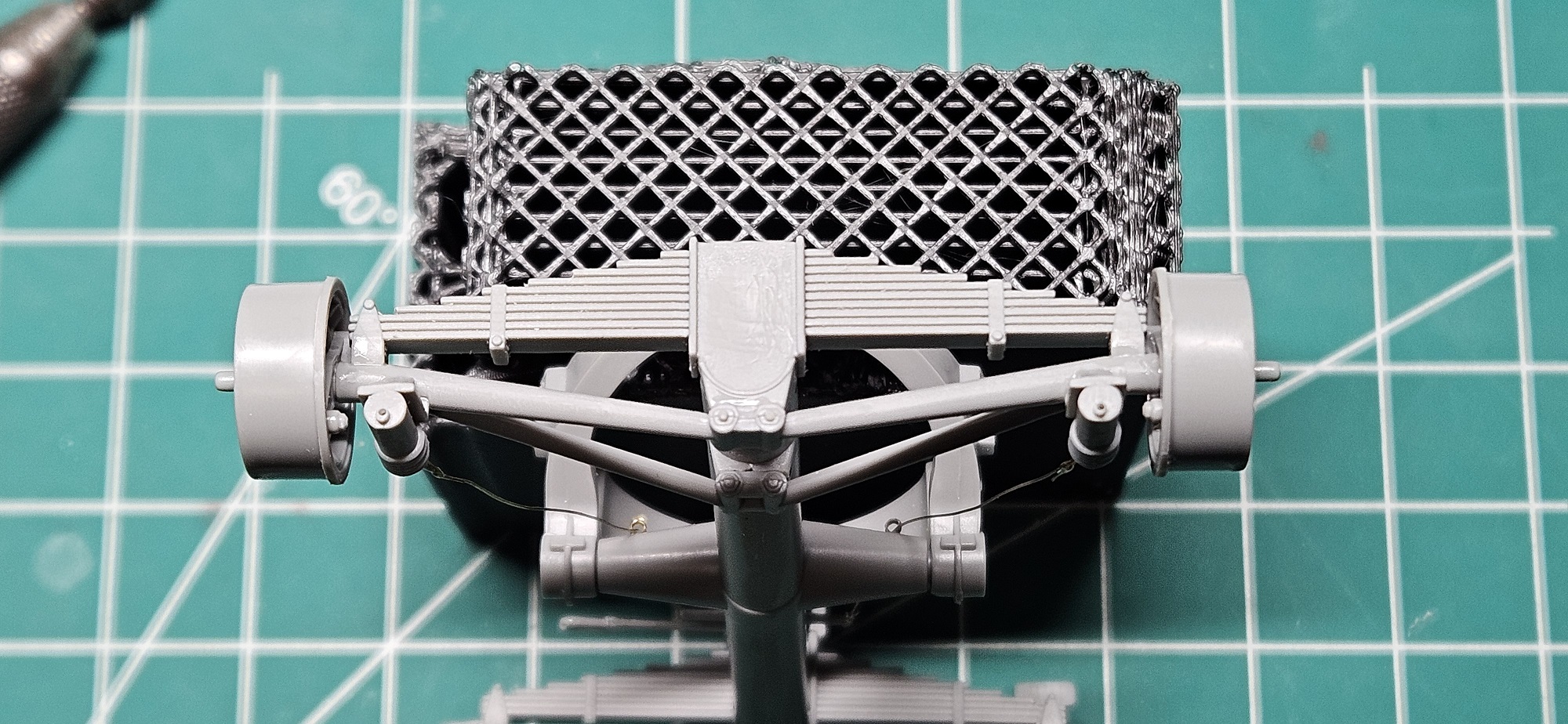

I started by assembling the front bogie

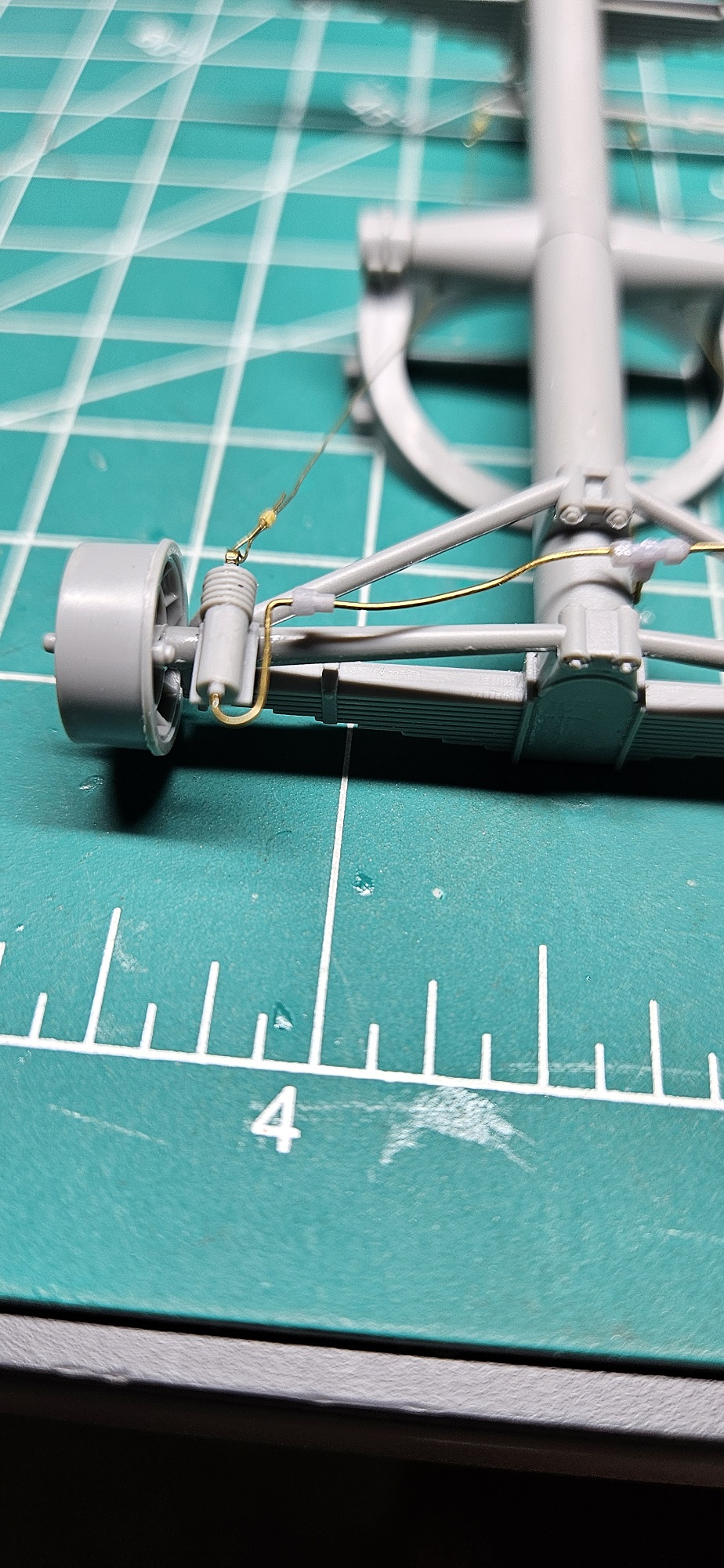

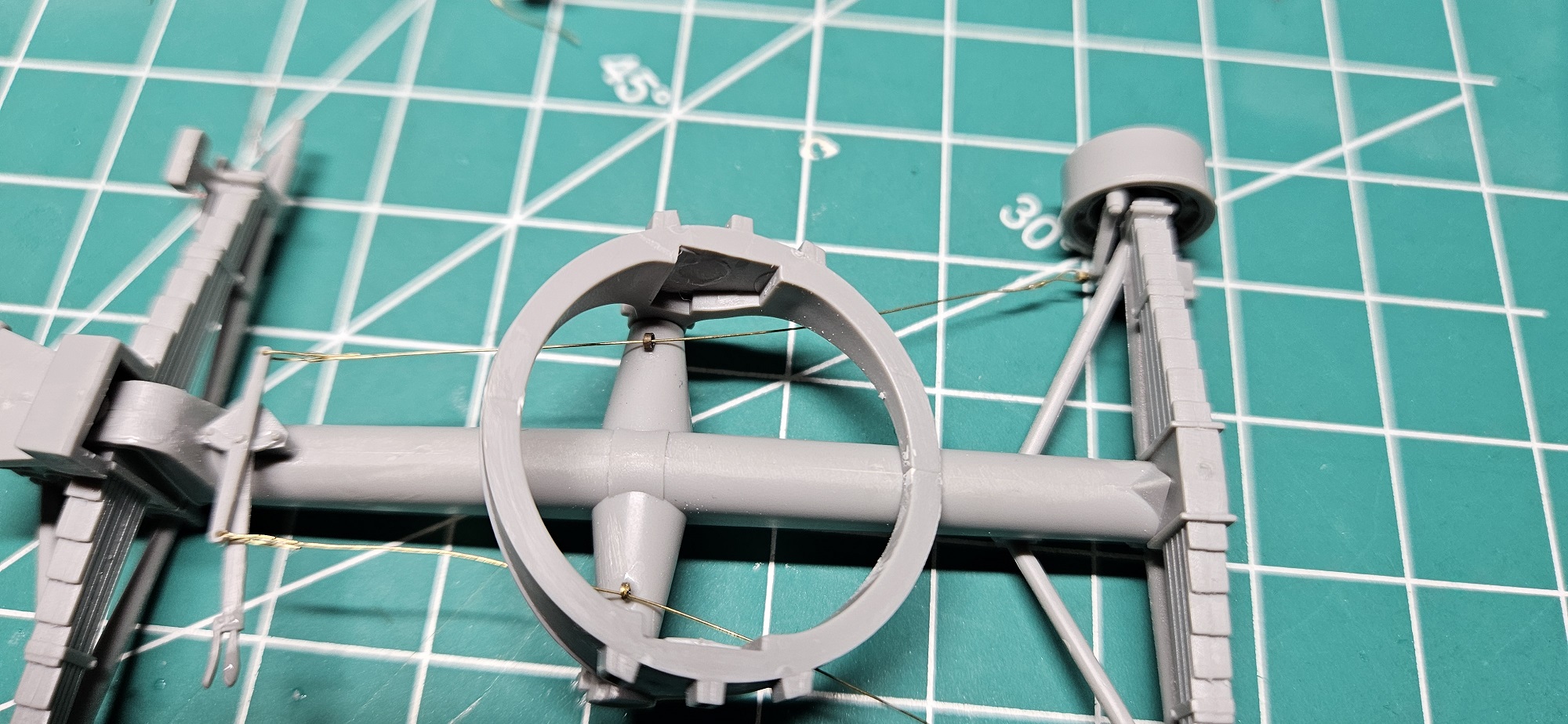

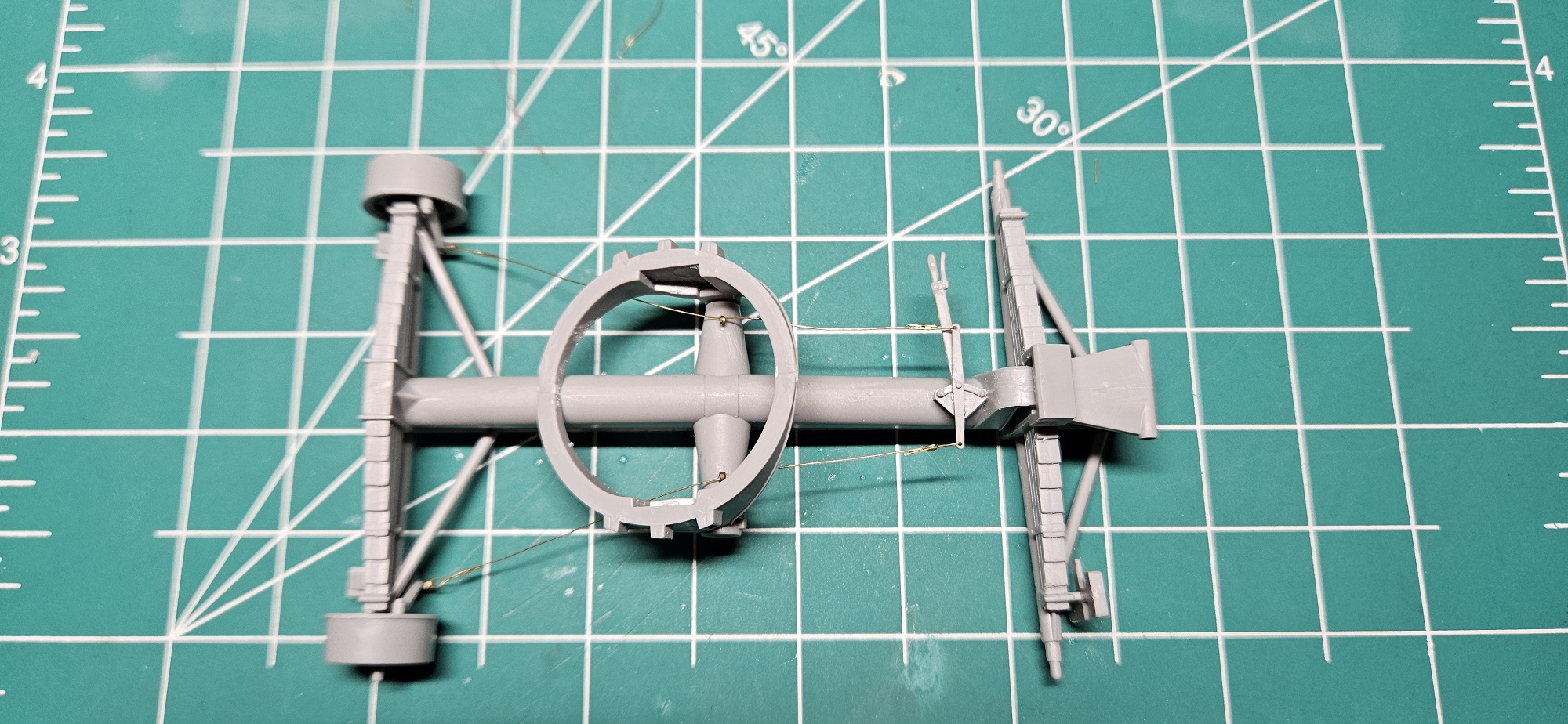

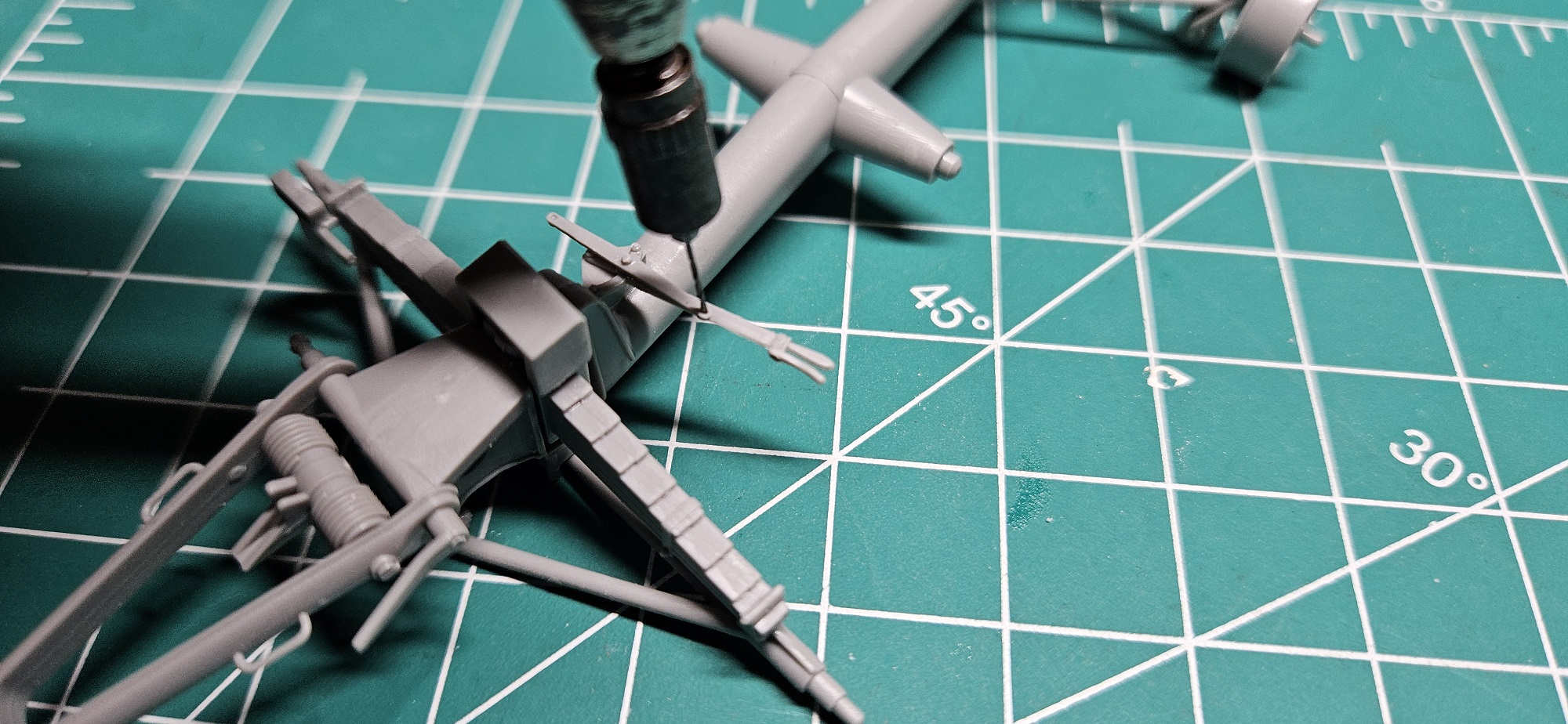

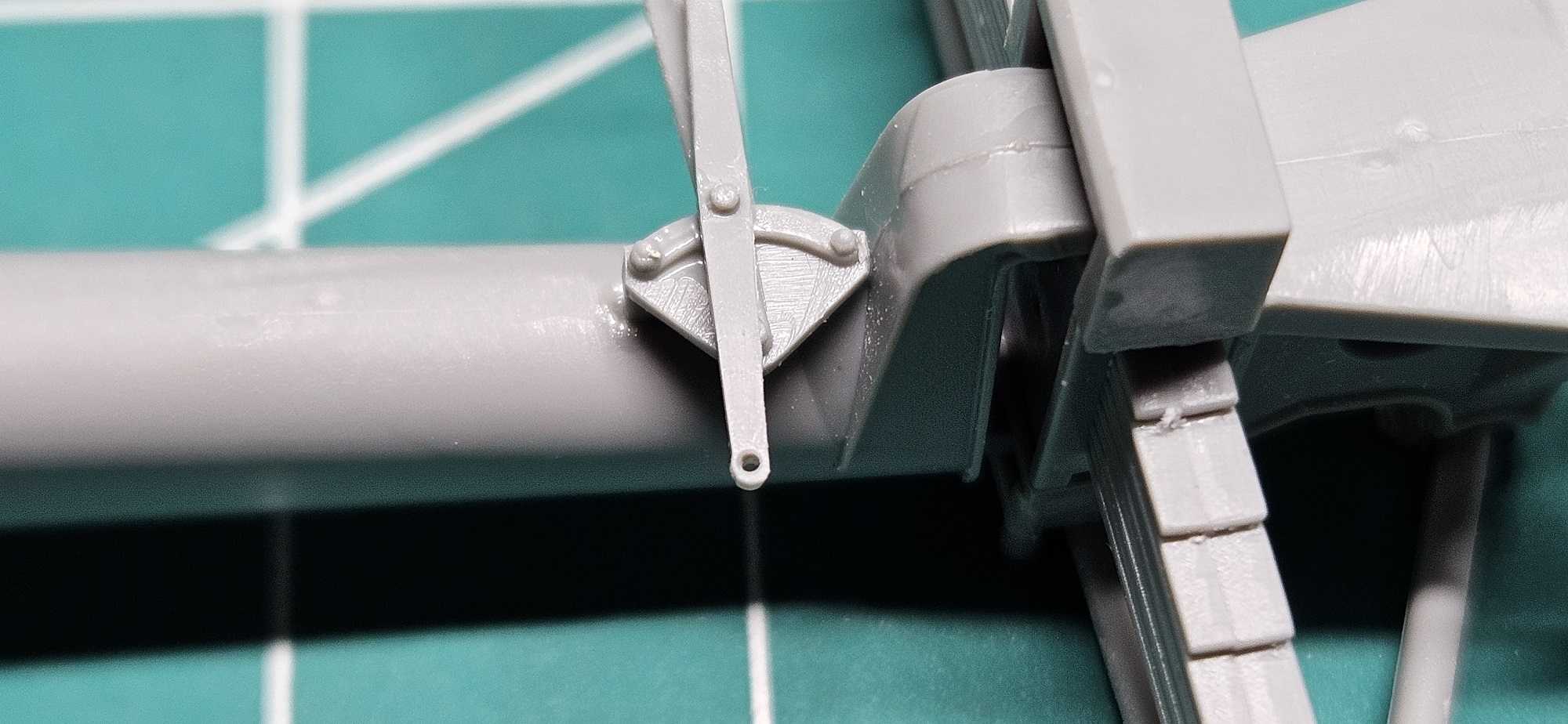

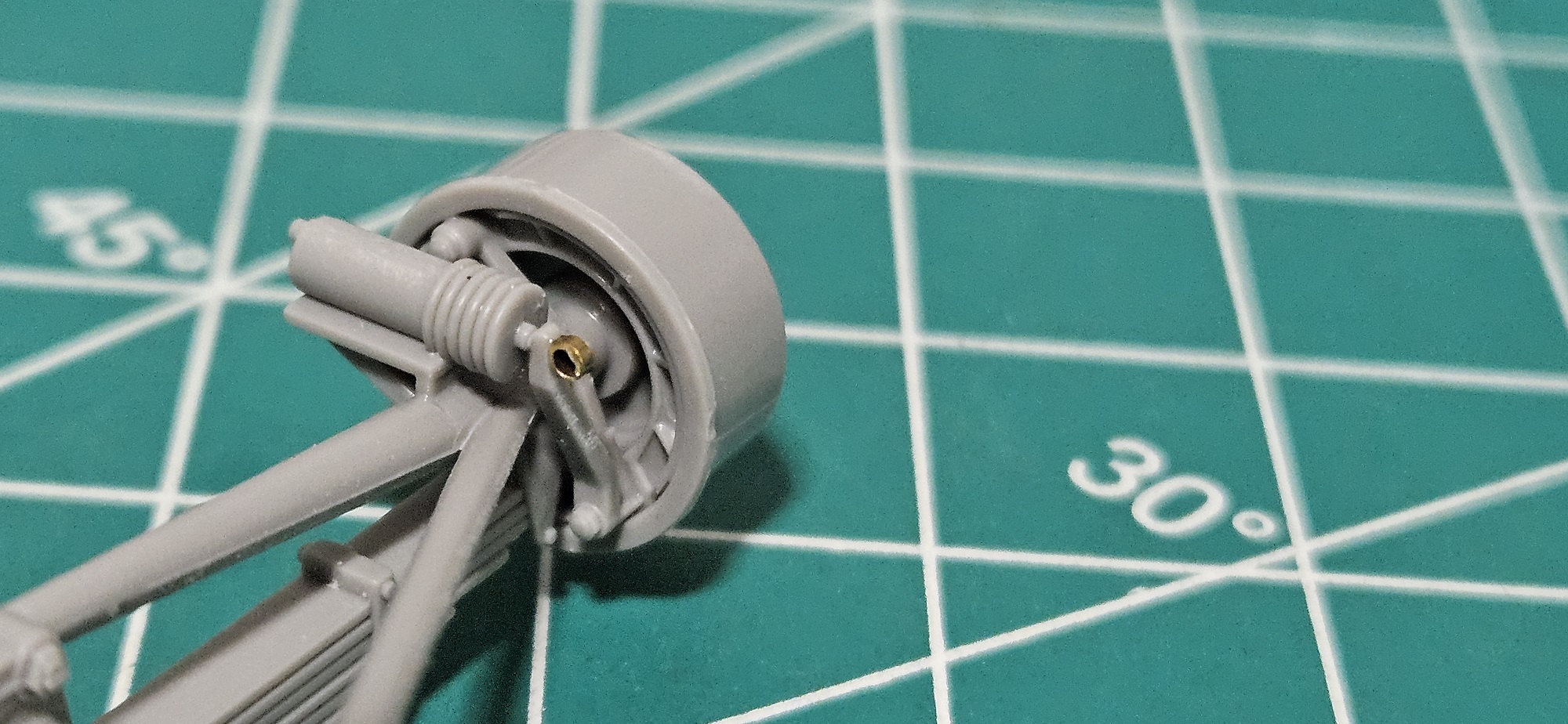

I wanted to detail the hand brake system so I started by drilling the holes for the cables

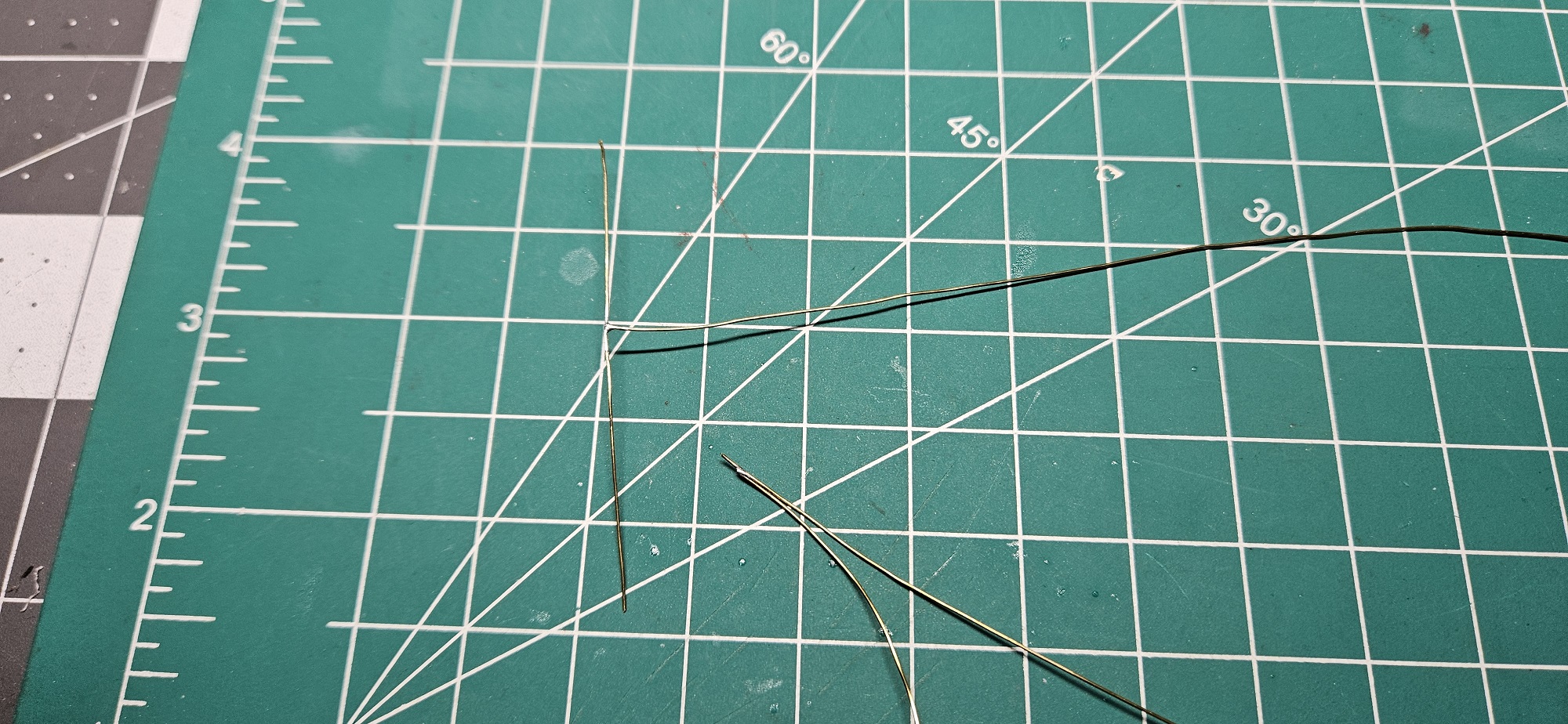

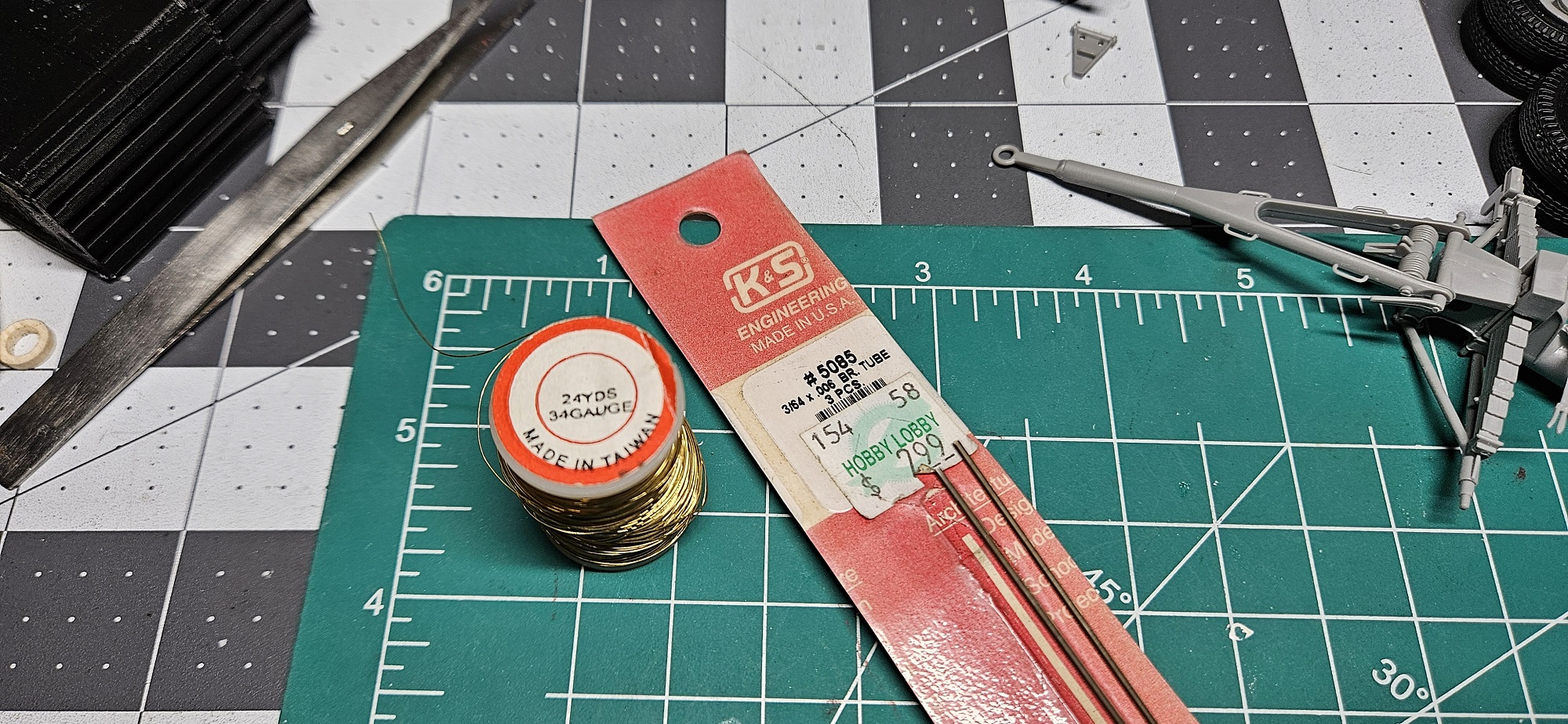

for the cables I used .45 dia. (34 gauge) brass wire and 3/64 brass tube for the cable guides.

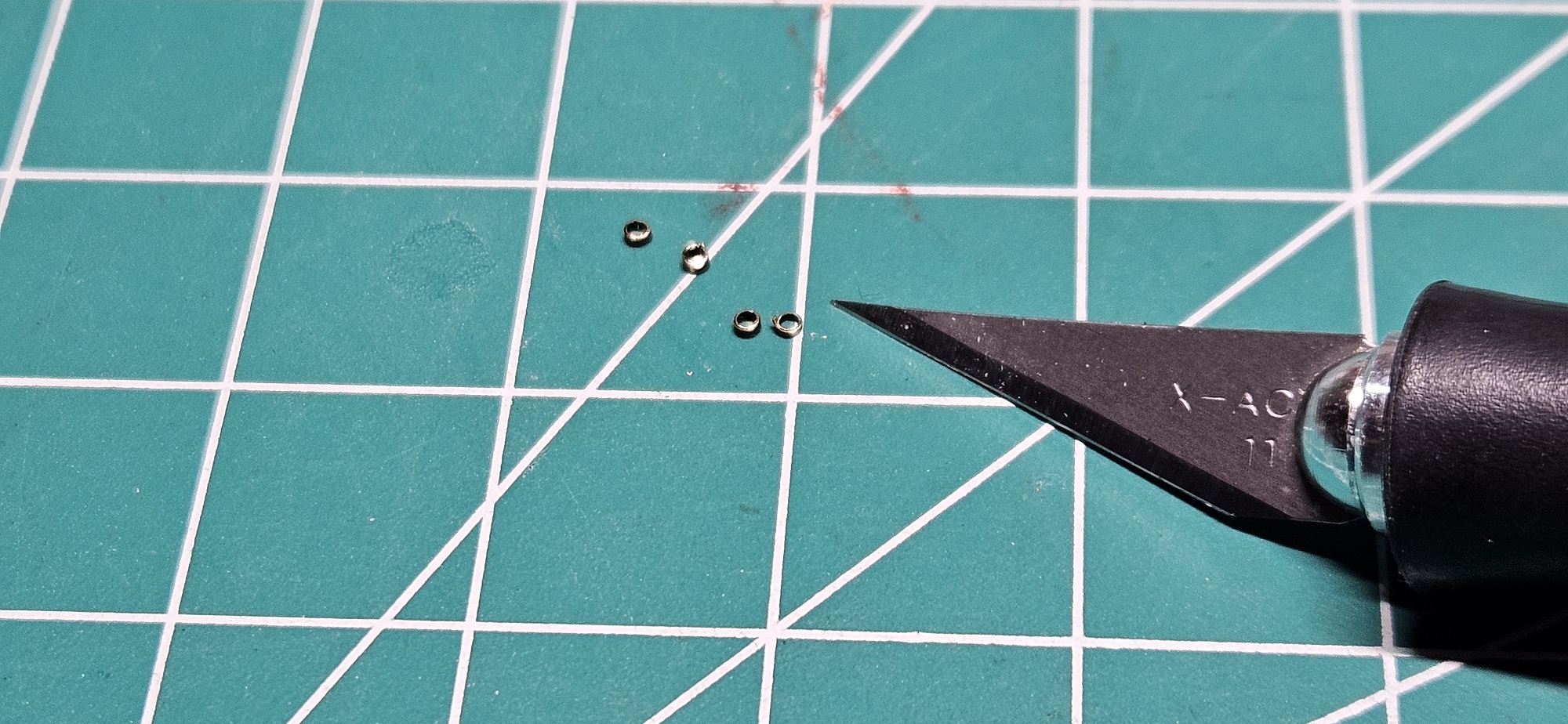

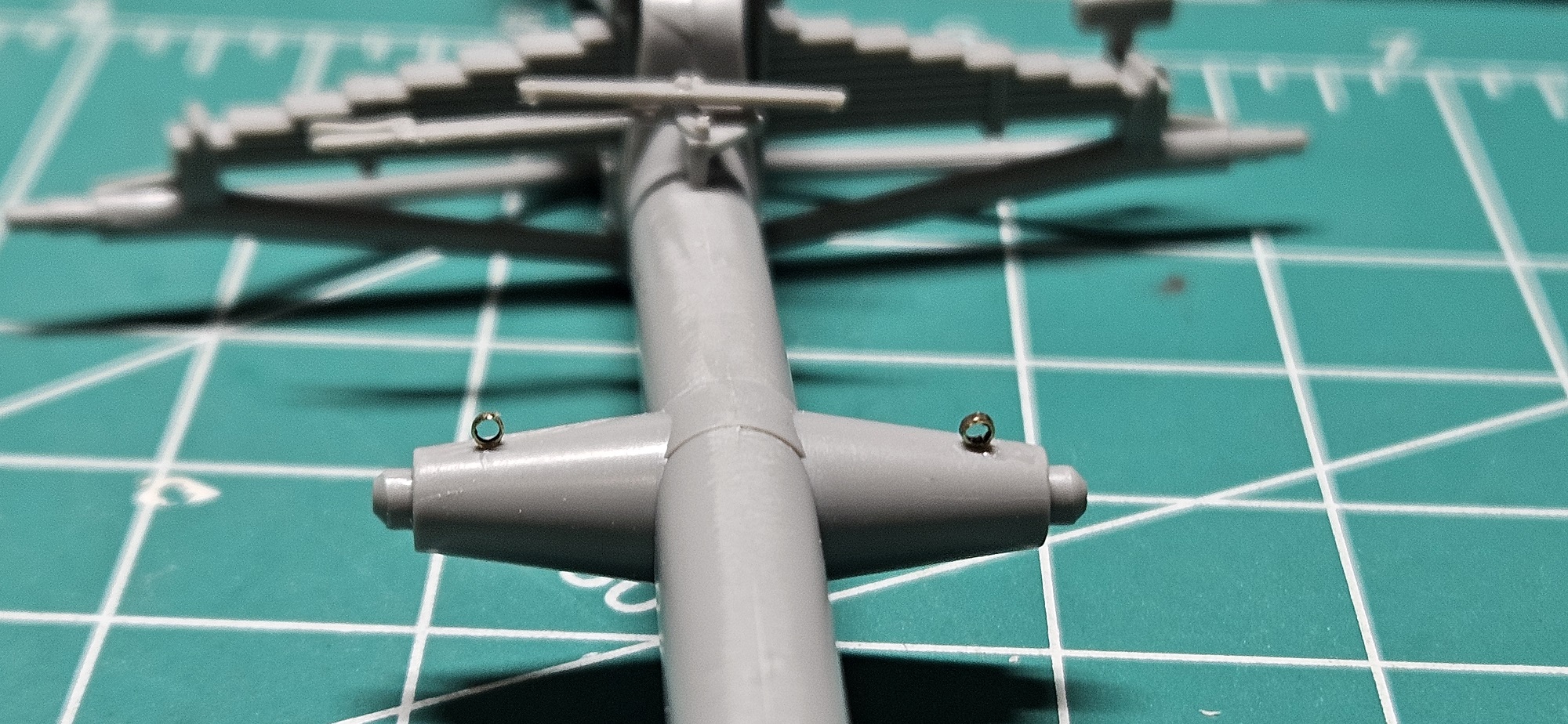

4 small rings cut from the brass tube are used for the cable guides.

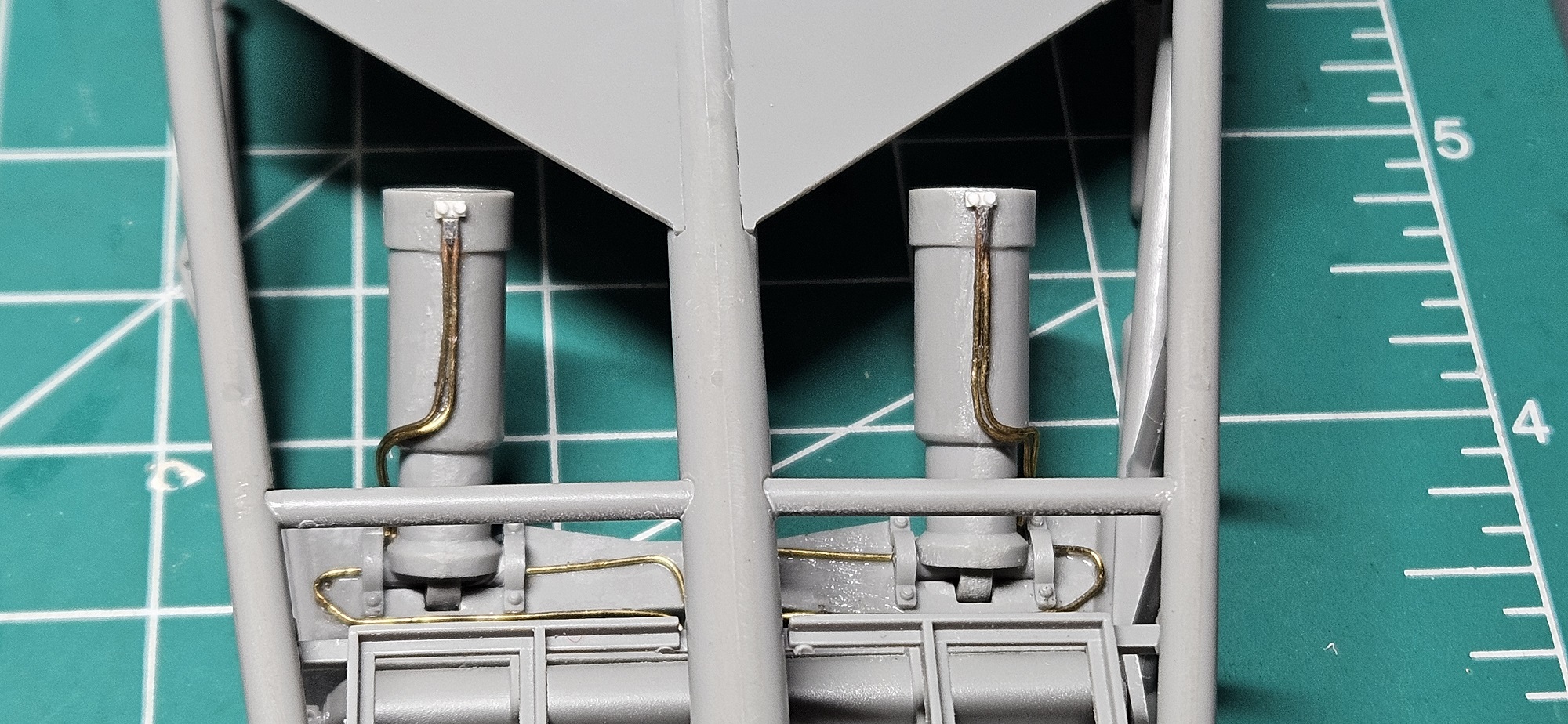

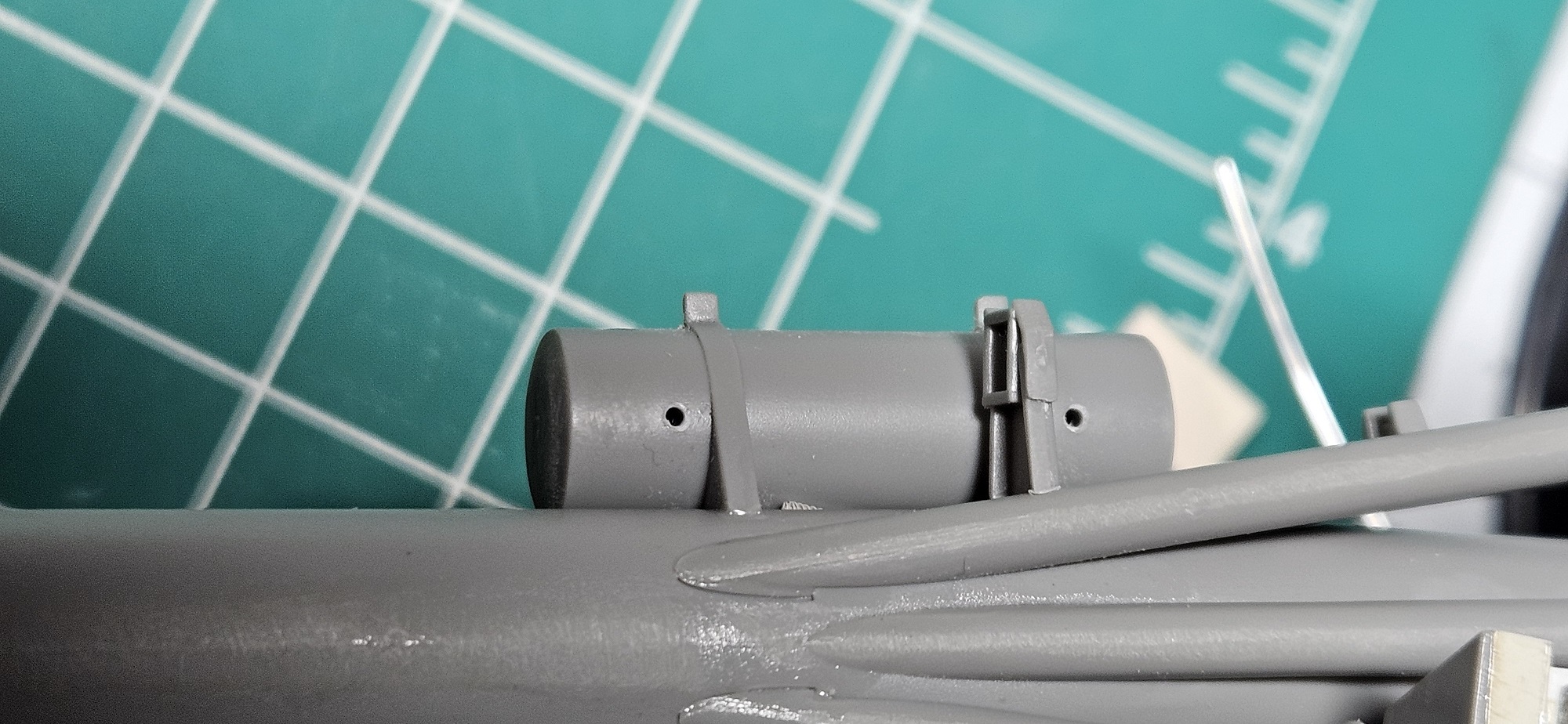

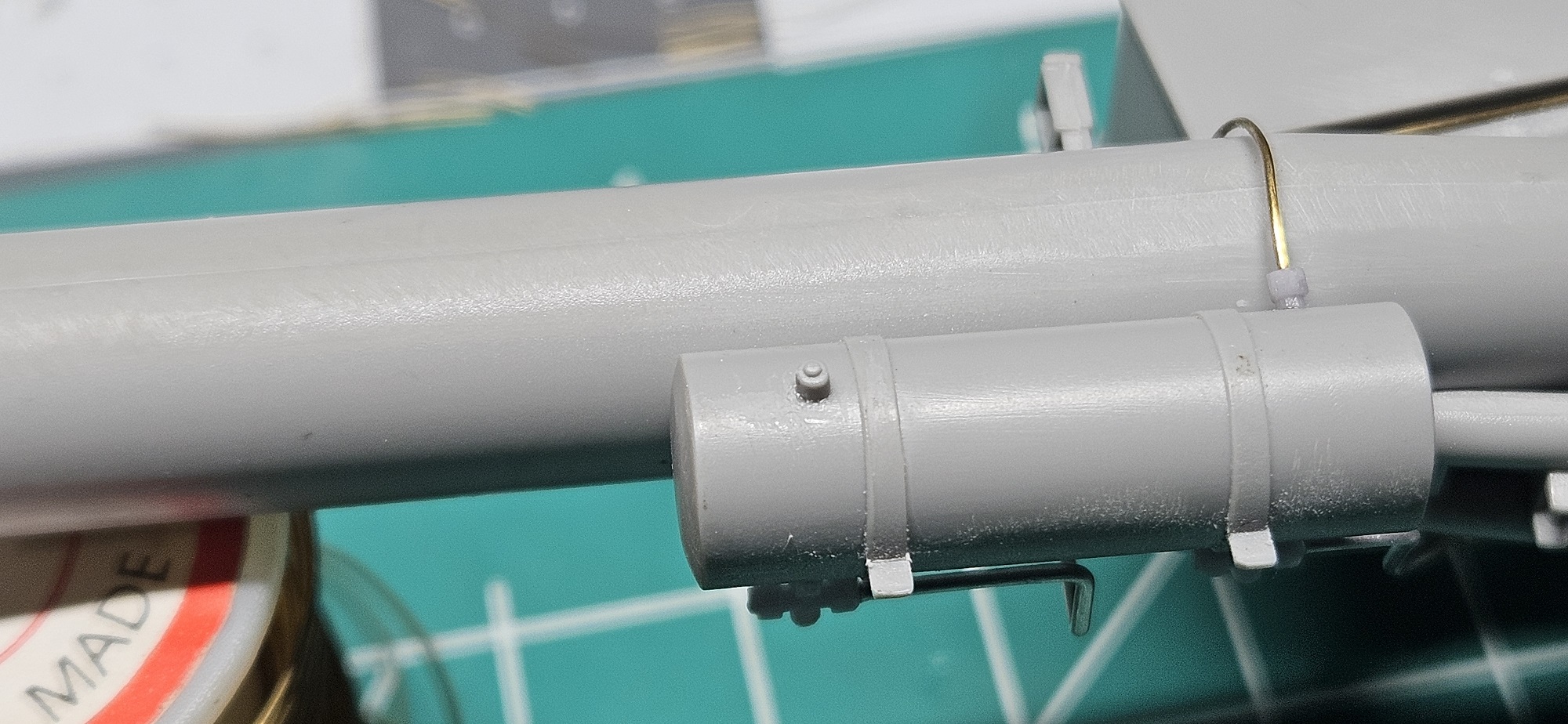

two rings used on the brake cylinders

and two used as cable guides

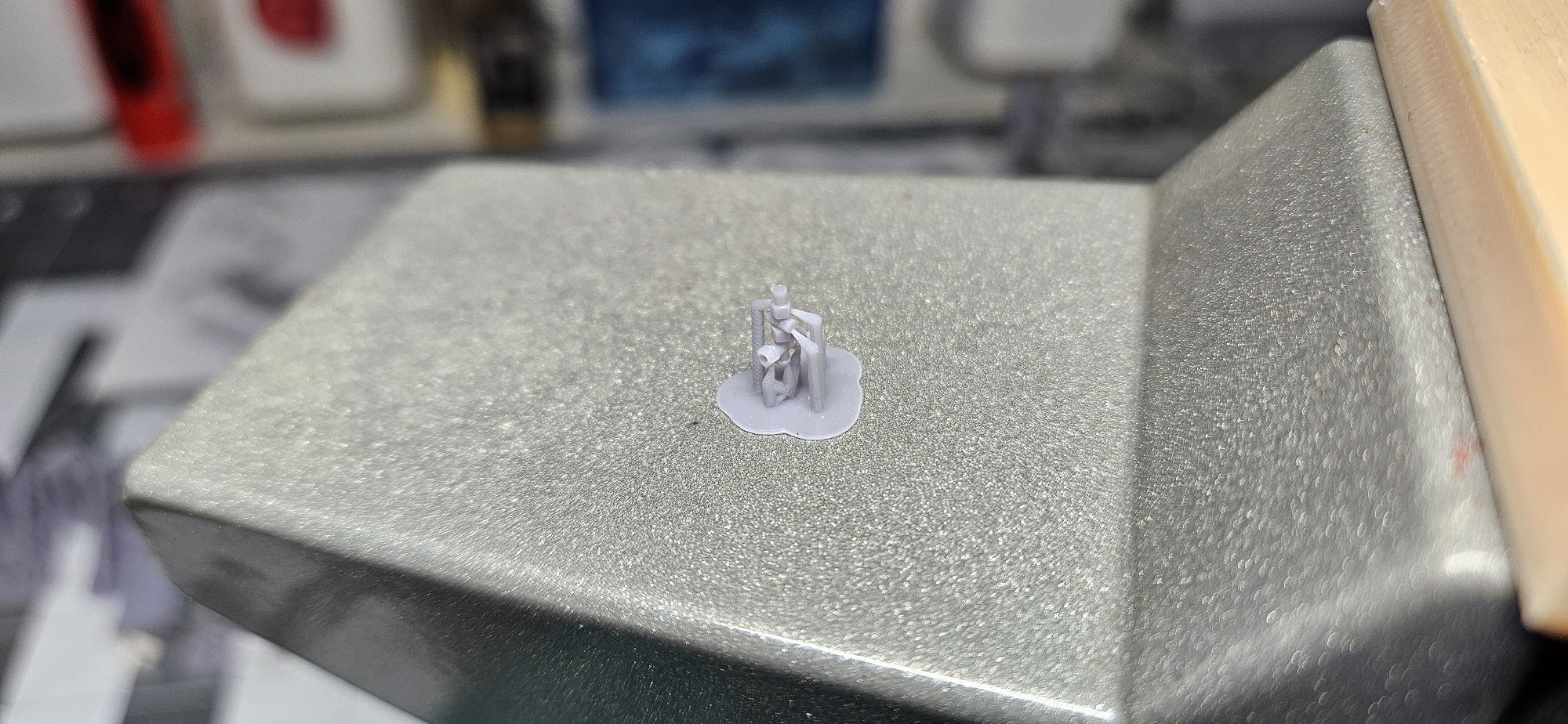

next I 3d printed the brake lines connections.

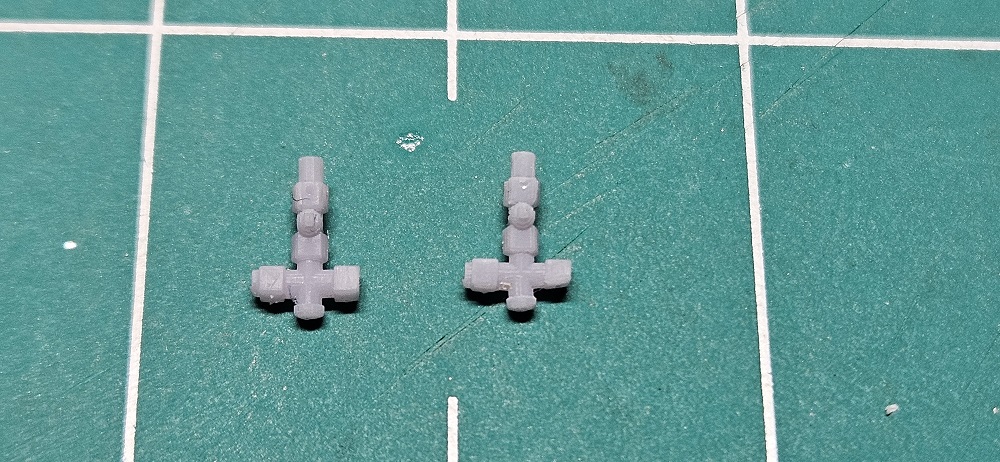

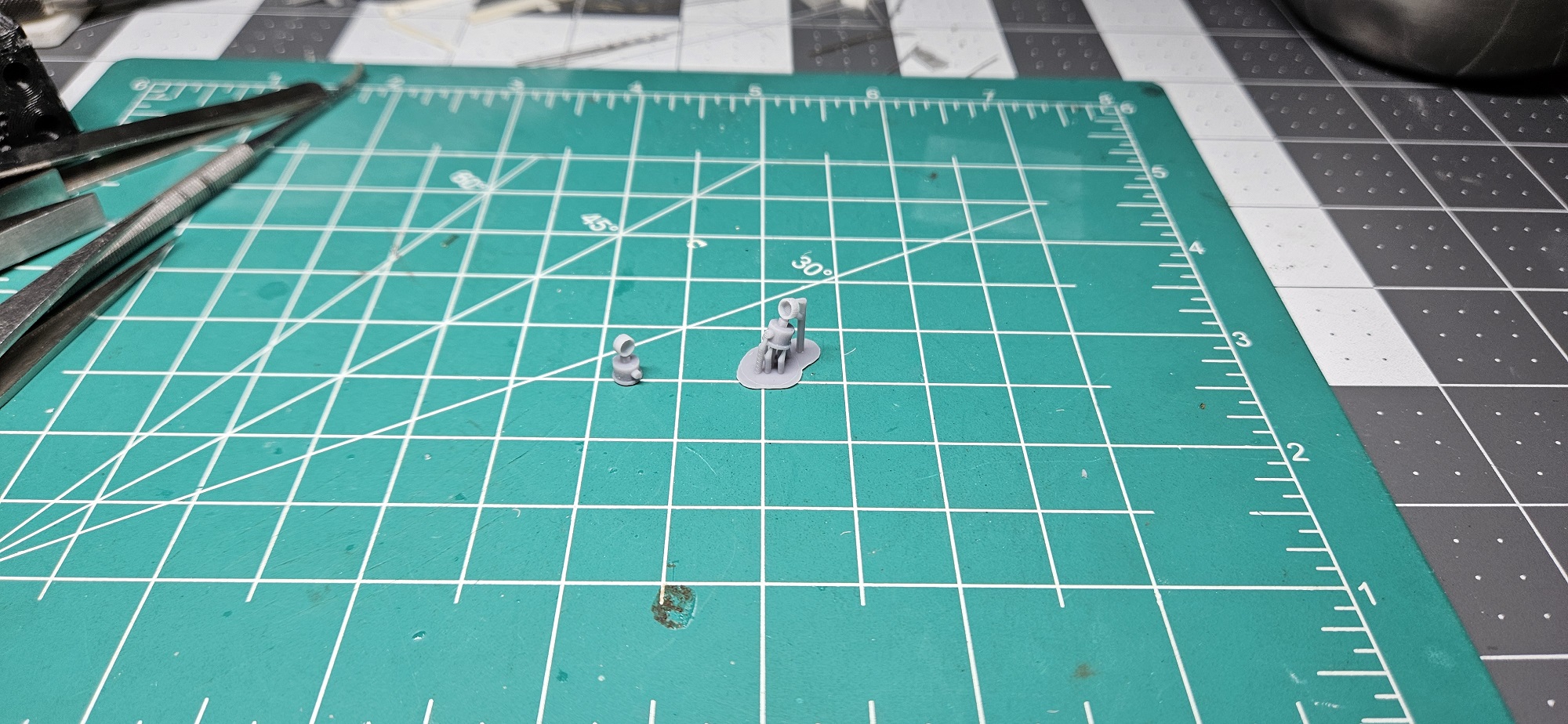

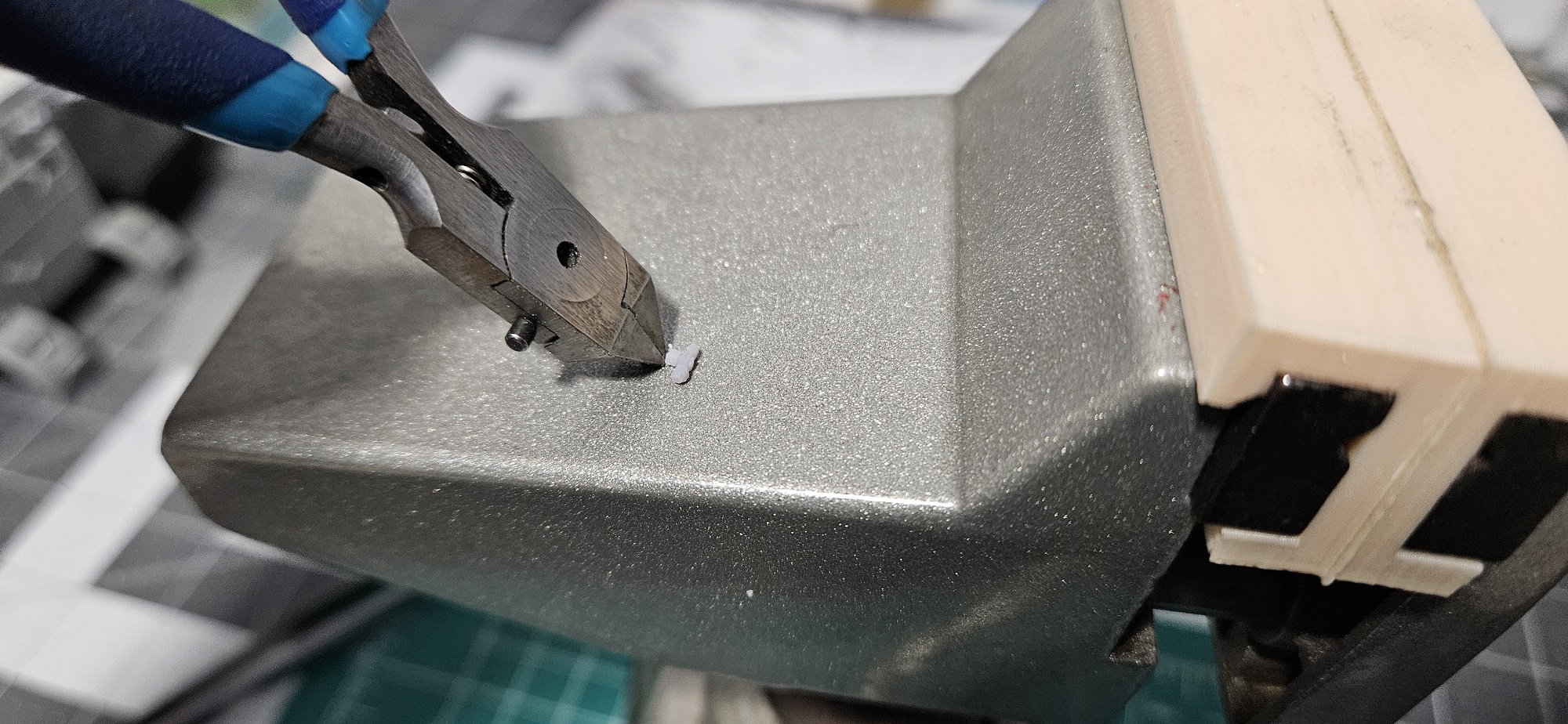

the valves are printed in a T shape as these are used in various places of the kit. the valve is cut to shape.

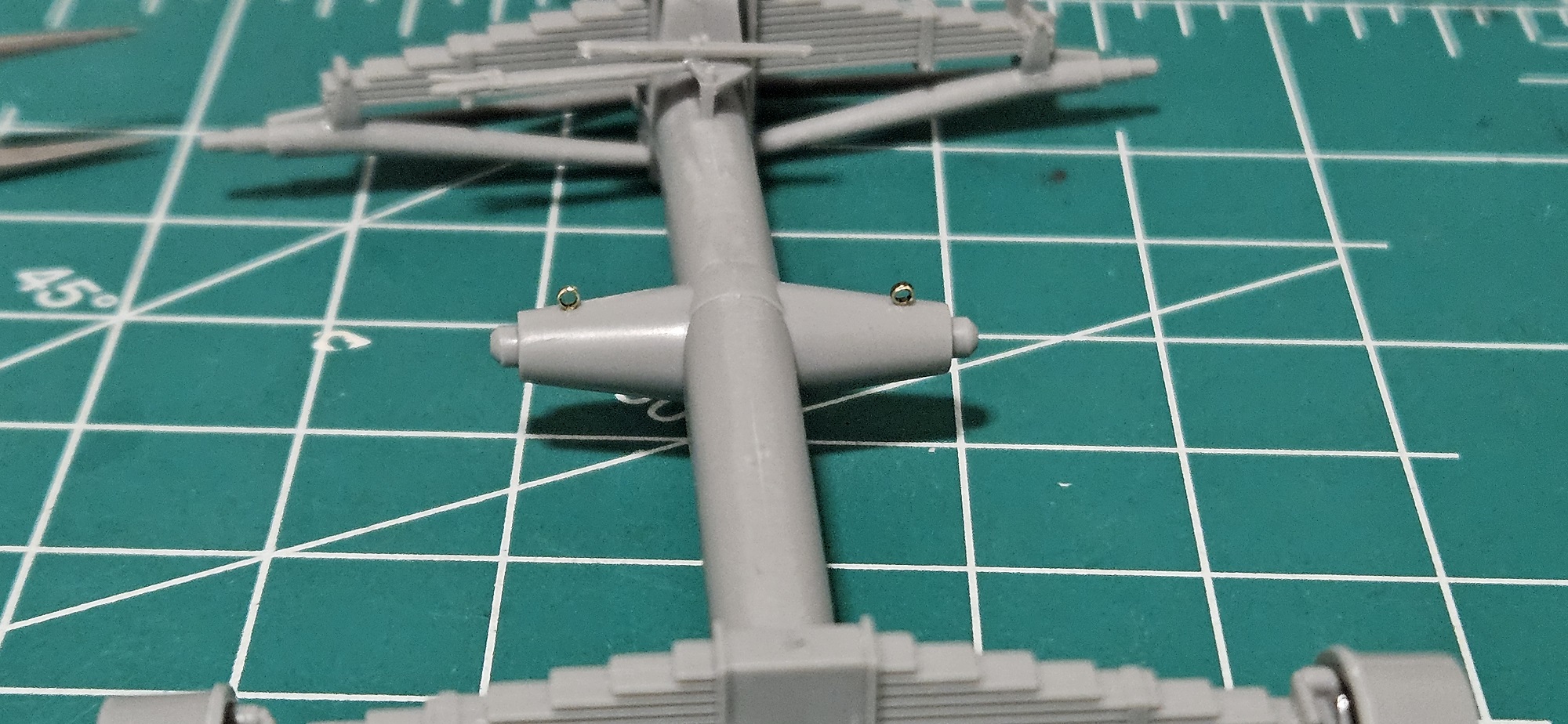

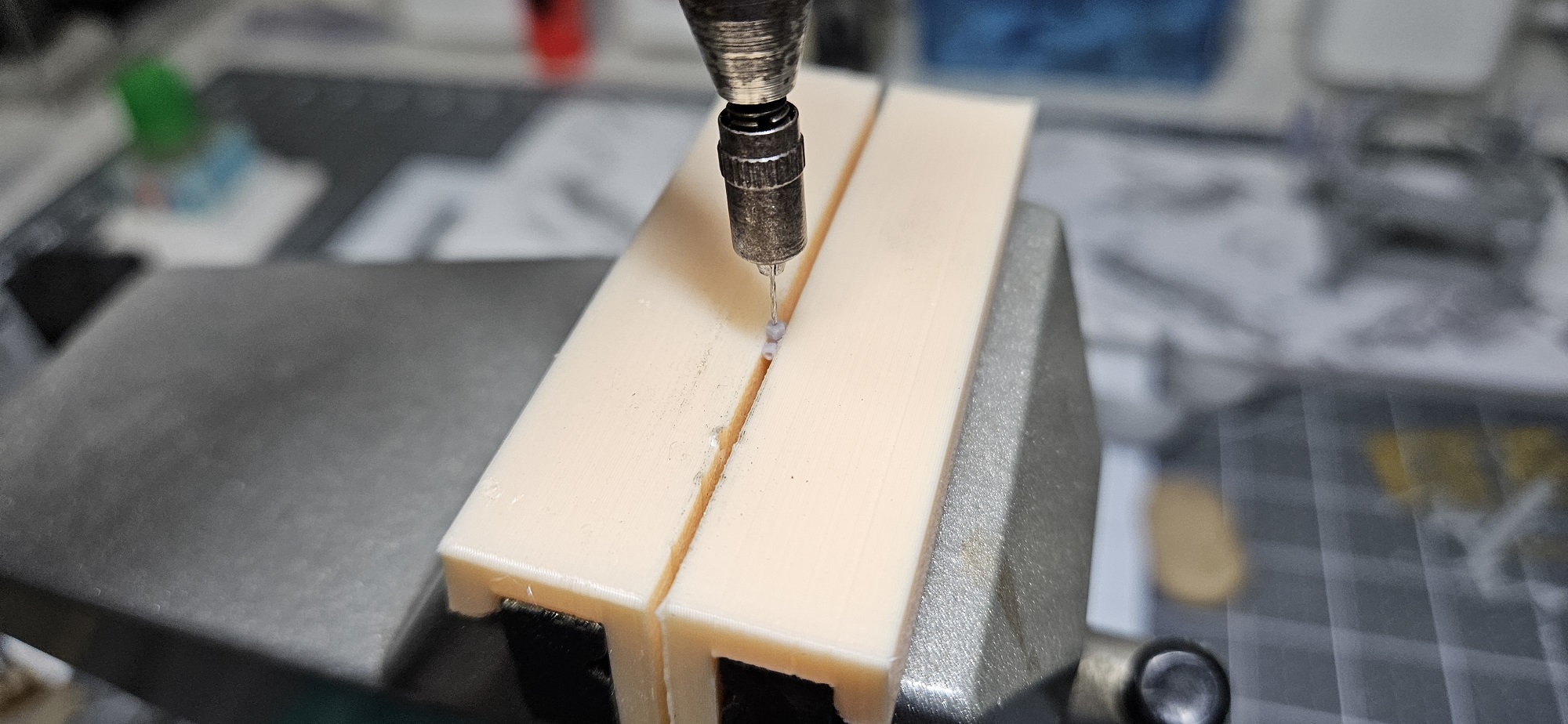

next the holes for the houses are drilled

also drilled the holes on the brake cylinders

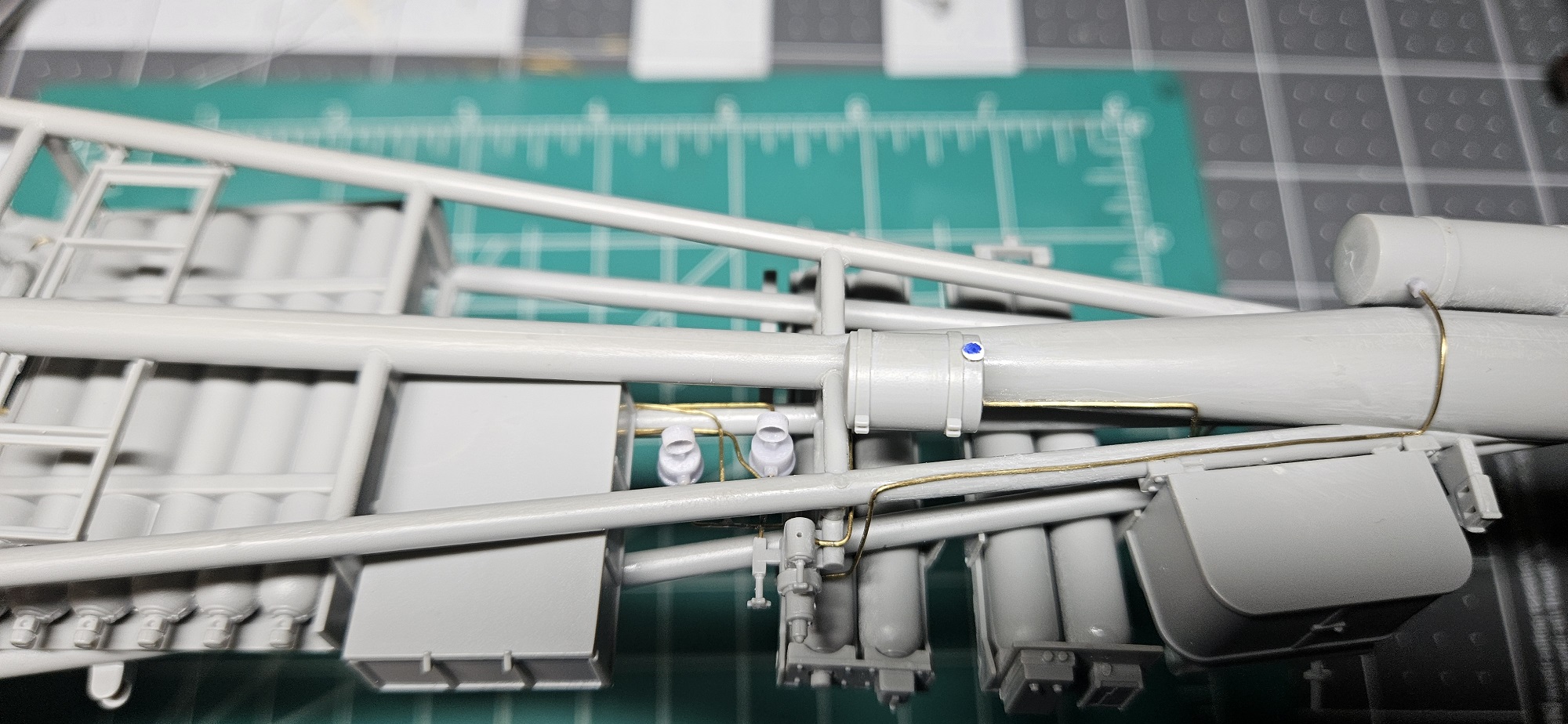

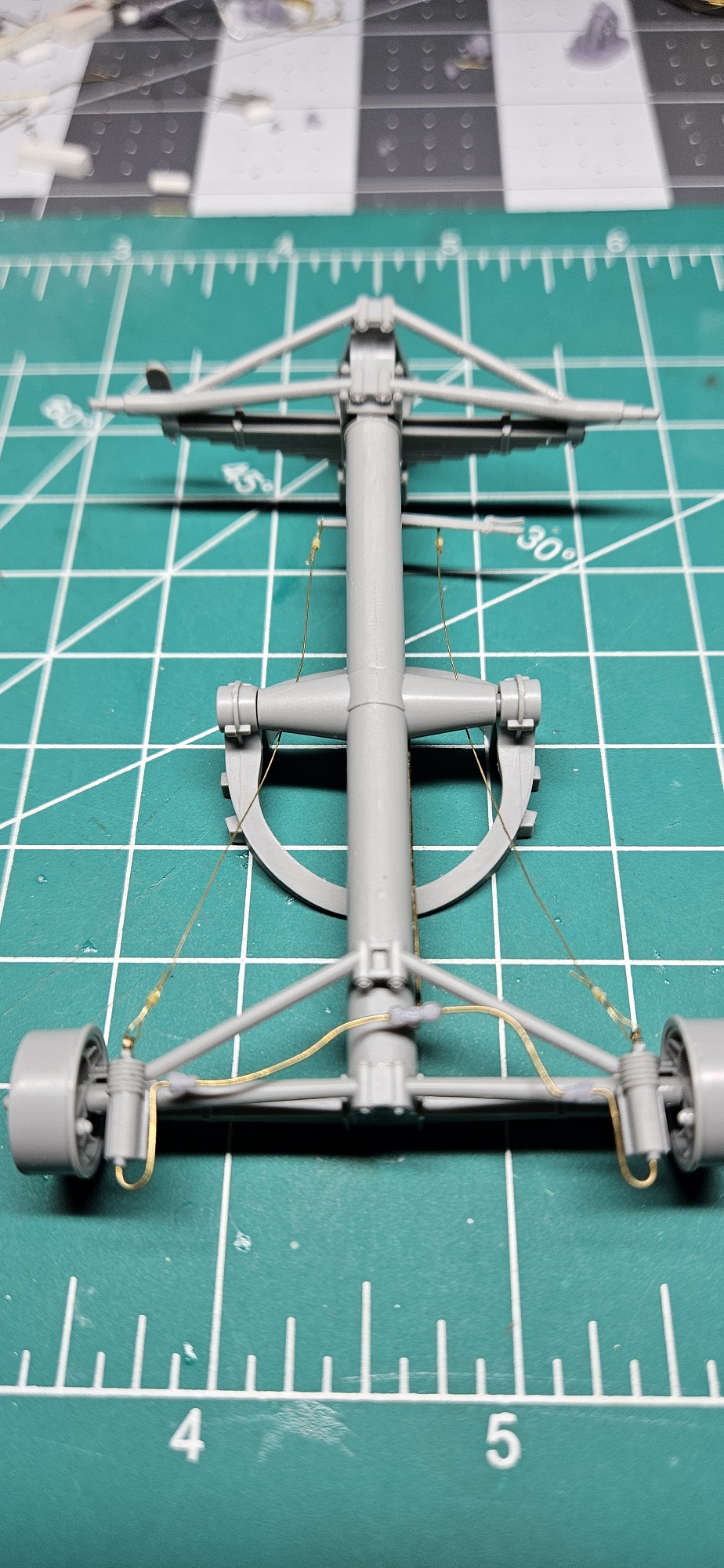

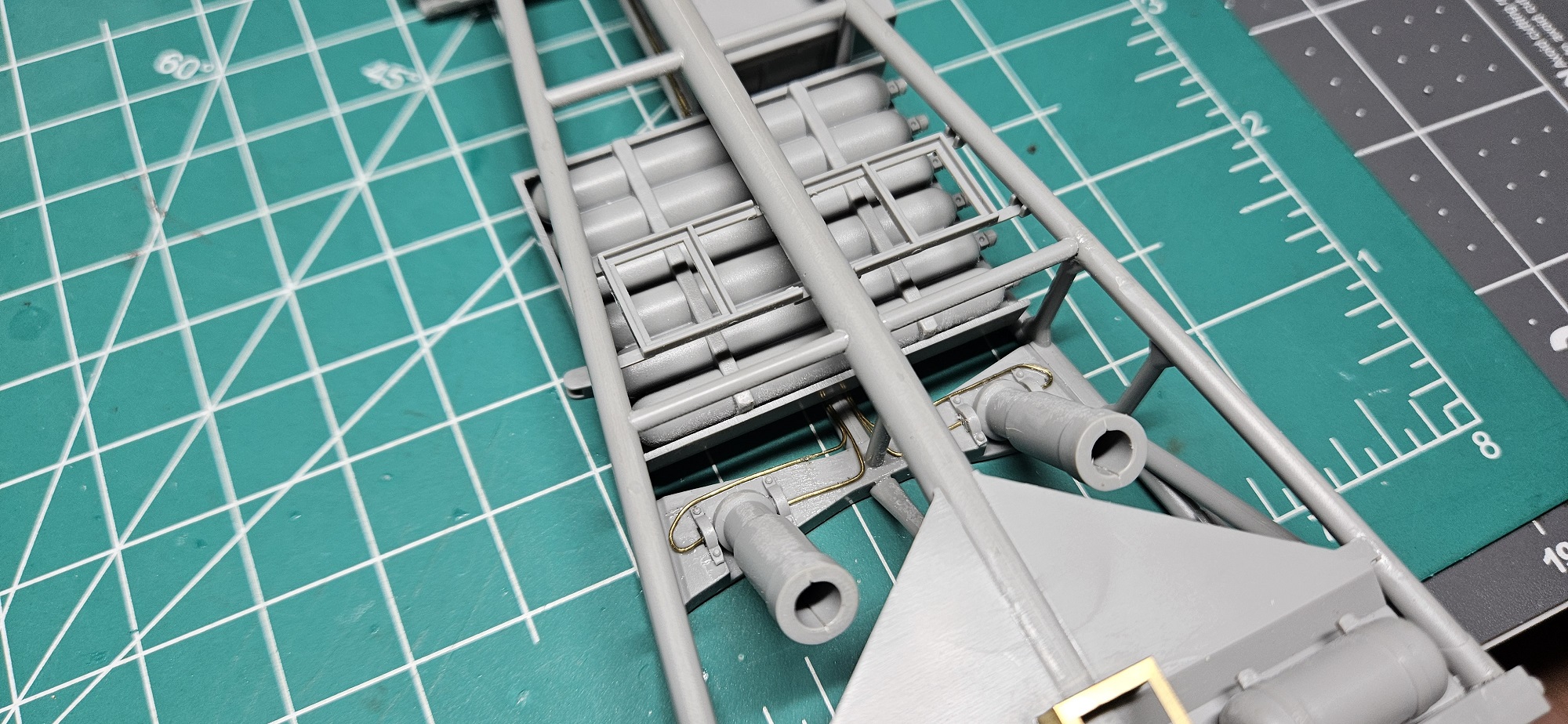

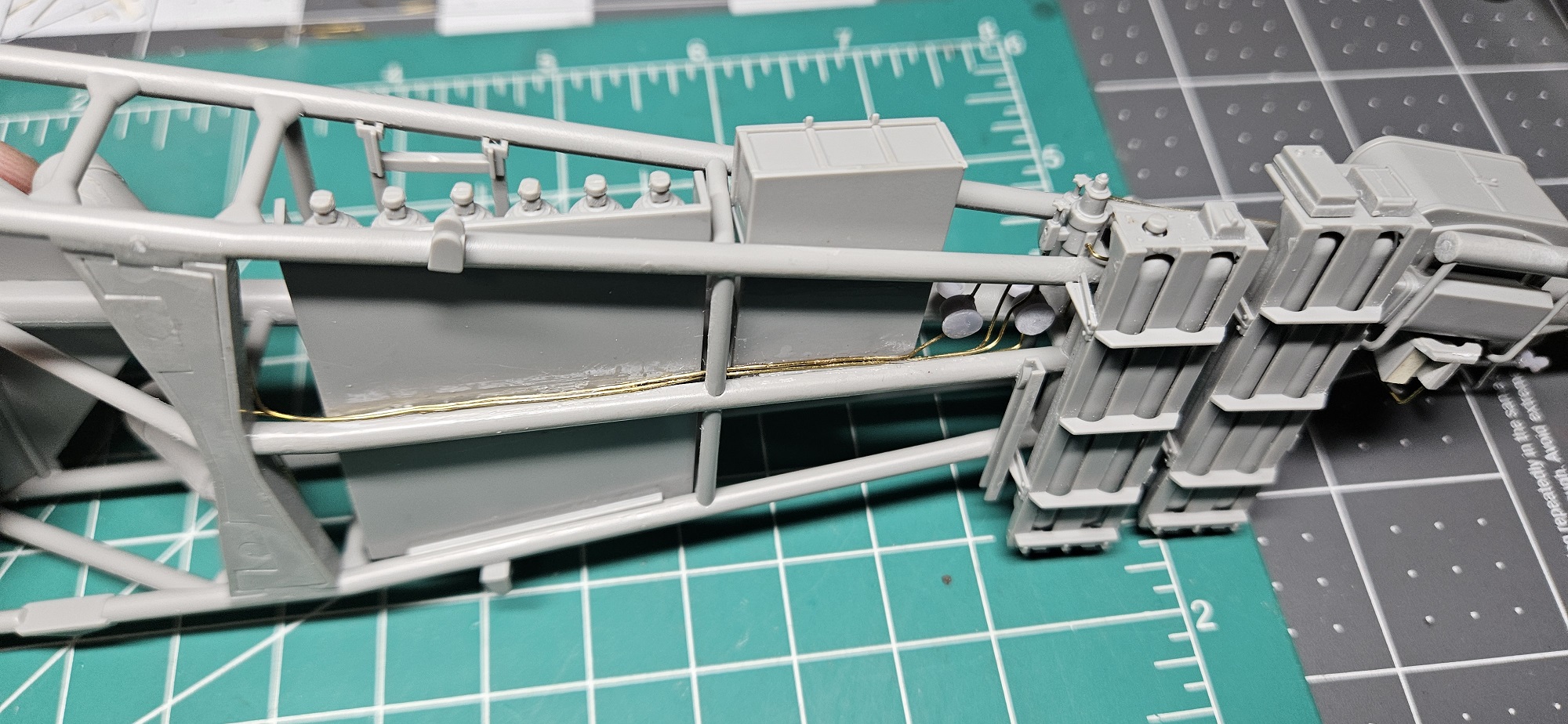

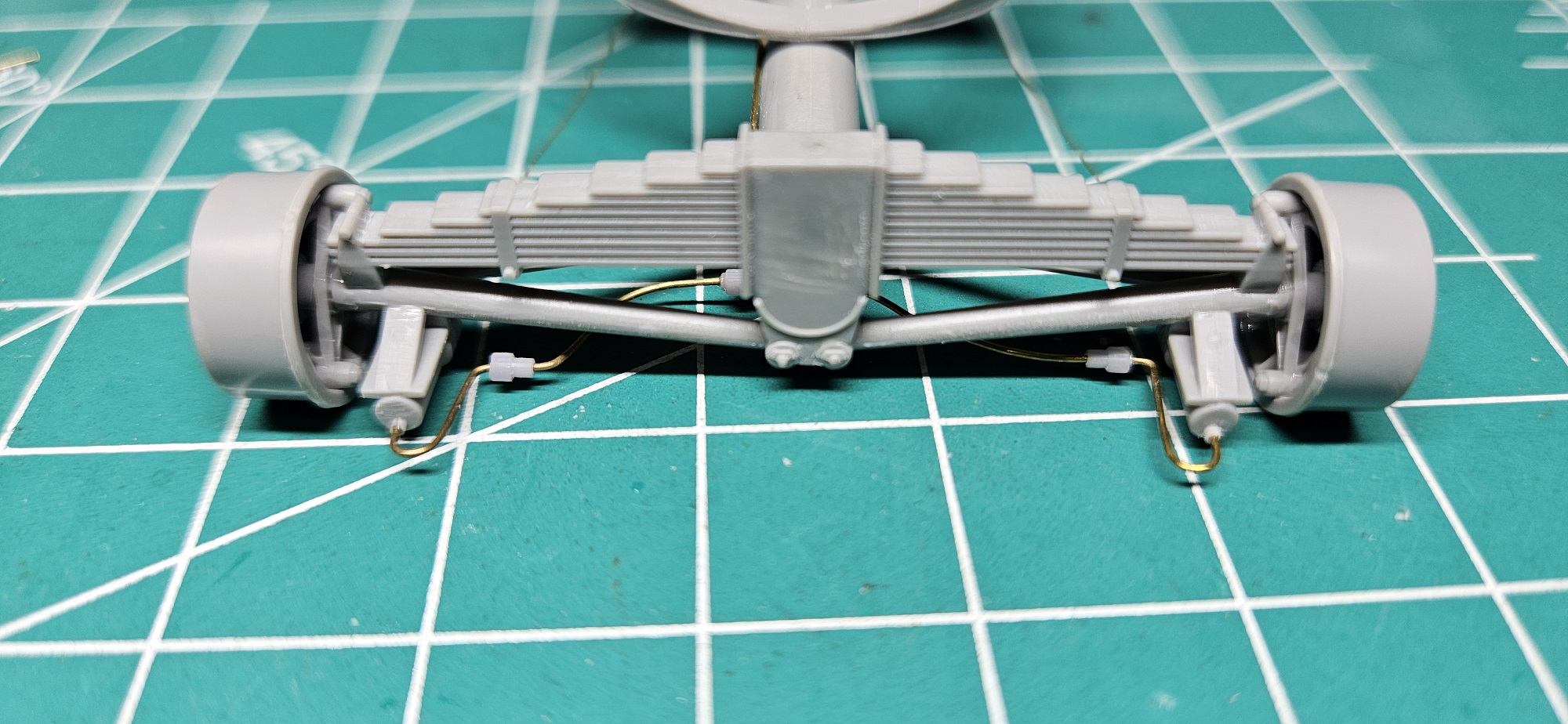

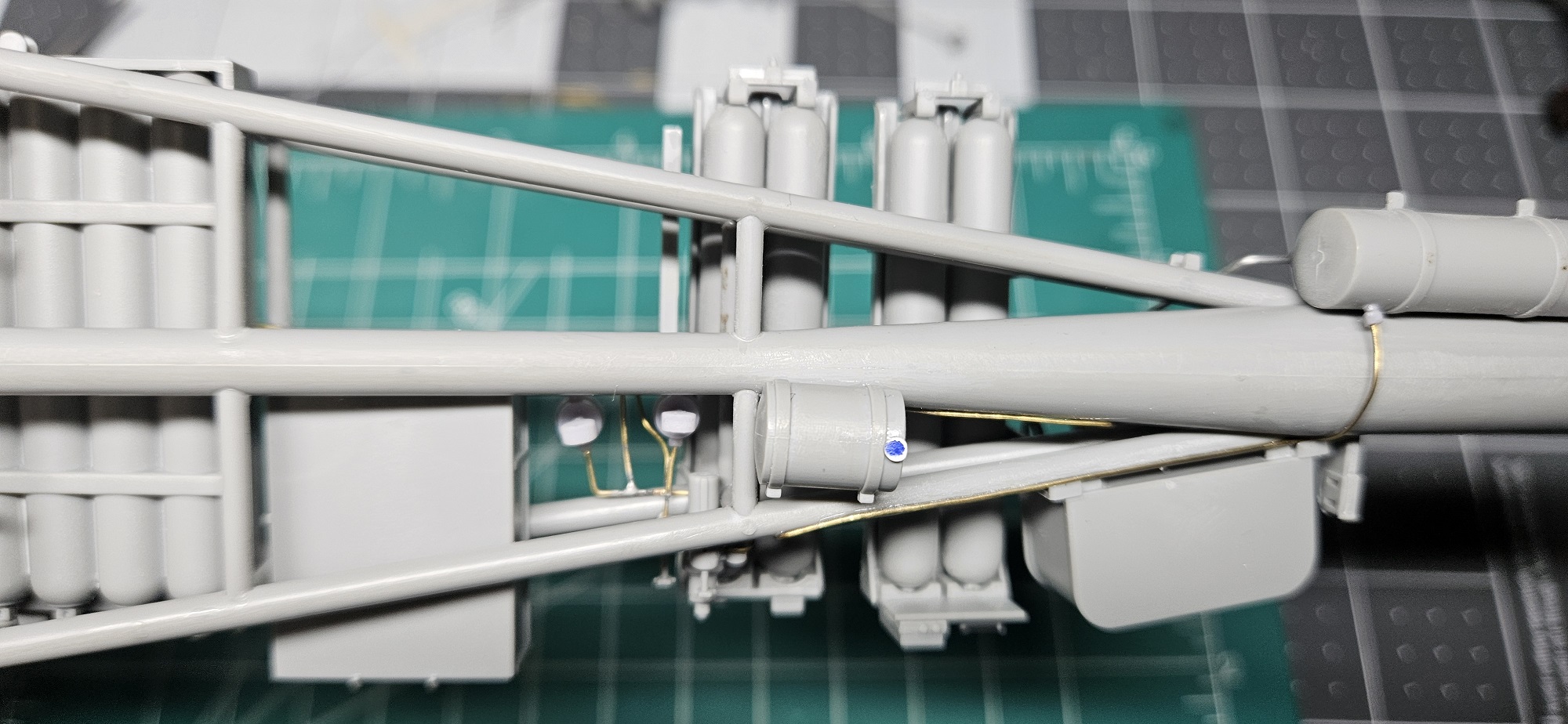

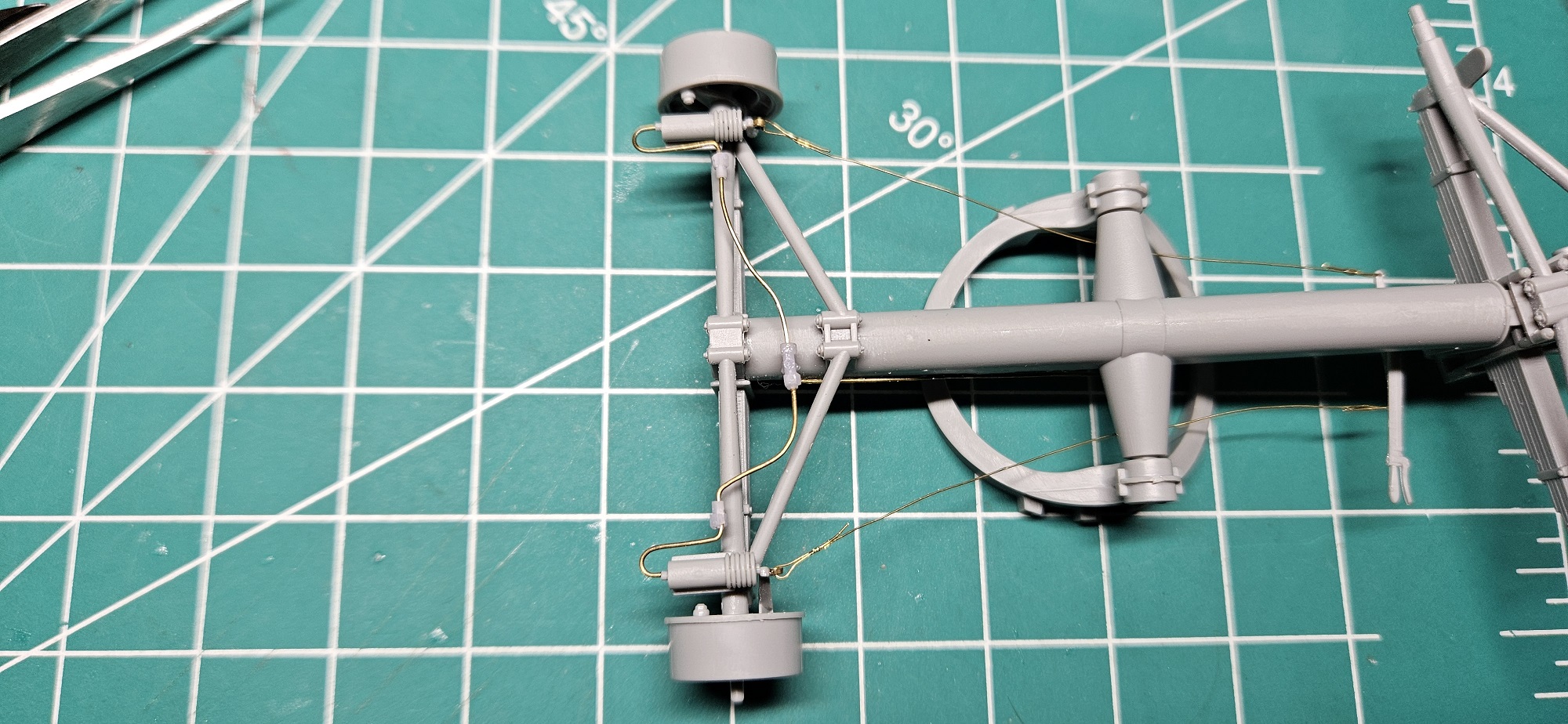

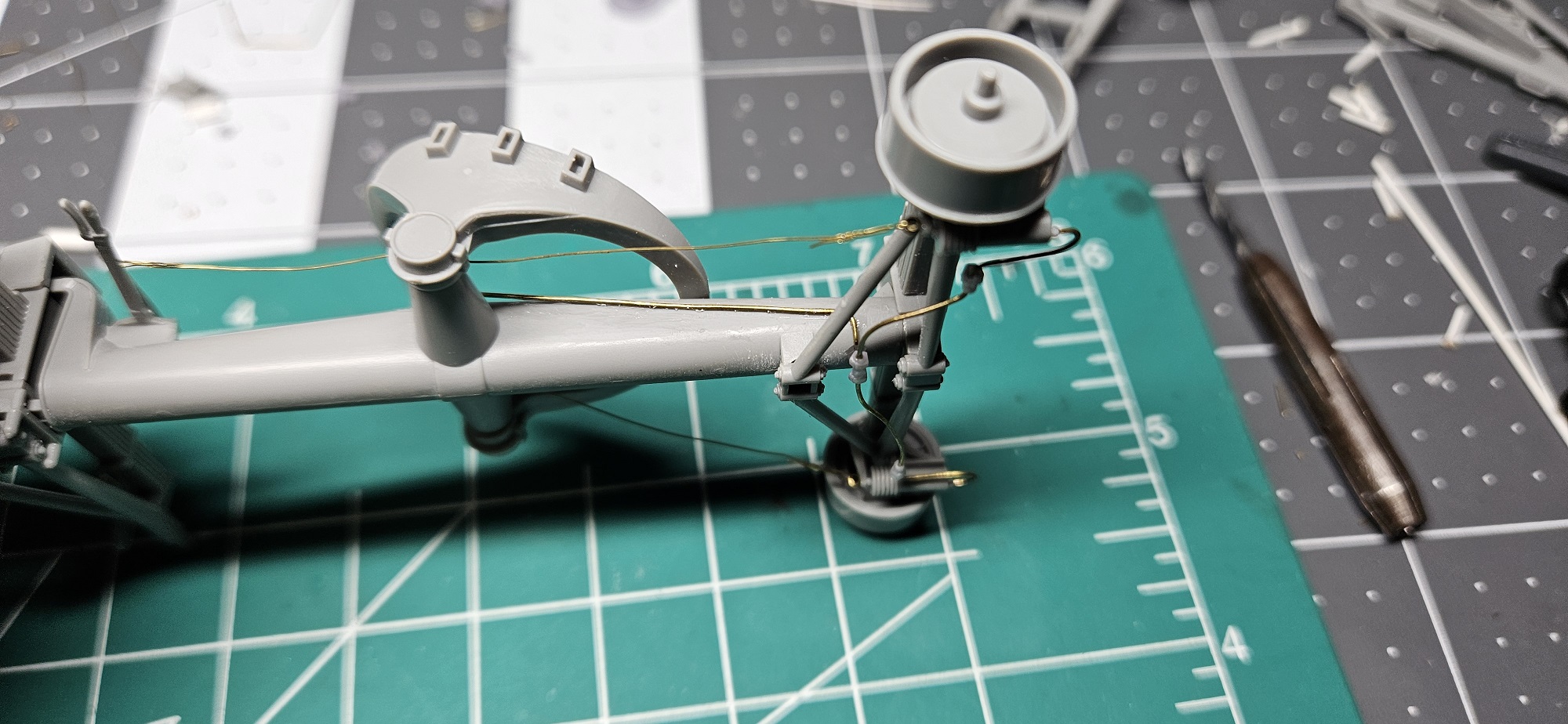

here the houses and printed connections are installed

thas it for now, next is the trailer hydraulic system, so stay tuned

thanks!



[moon puppy]

Oh my what a start!



[Rhino]

My eyes are standing here beside themselves!



[Heavens Eagle]

Interesting Abdin! What are you using for reference? I might want to do this as well when I get around to this kit.



[jknaus]

Love it. Will have to copy when I build mine sometime in the future. Very nice start.
James



[fledermaus]

Thanks guys!



[fledermaus]

Paul Im using reference fotos from the excellent V2rocket.com site, here are some links to the fotos.

V2ROCKET.COM / A-4/V-2 Display, Deutsches Museum, Munich, Germany

V2ROCKET.COM V-2 rocket with Meillerwagen RAF Museum Cosford, England

V2ROCKET.COM / USAFM V-2 and Meillerwagen Restoration

I have many photos that can share with you and anybody that can use it.

Thanks!

Abdin



[Brokeneagle]

Fabulous detail Abdin, excited to see you back on a new project!



[Piet]

Nice detailing very keen following your progress

Bought the same kit the day it came out (8 years now ? )

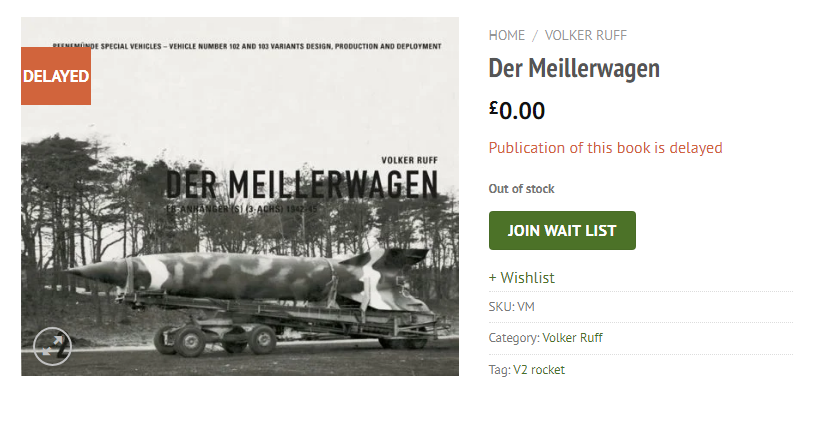

With in mind buying this book when it was published , but it is still hasn't been published so this kit is still untouched.

Have been to most of the launching sites ......where these actual setups were used in the Netherlands ,
Nothing to see to be honest , streets and small sections of woodland,
but it was from here the first V2's where launched against Belgium and England

There are V1 launch site leftovers to be found (concrete slabs )

Here a good Dutch site ....you could use the auto translator if your Dutch is a bit rusty

V2platform: Tweede wereldoorlog V2-raketten in Den Haag e.o. en bombardement Bezuidenhout 3 maart 1945

www.v2platform.nl



[fledermaus]

Fabulous detail Abdin, excited to see you back on a new project!

Thanks Ian, have a couple of projects going on at the same time that will be posting soon.



[fledermaus]

Nice detailing very keen following your progress

Bought the same kit the day it came out (8 years now ! )

With in mind buying this book when it was published , but it is still hasn't been published so this kit is still untouched.
View attachment 170856

Have been to most of the launching sites ......where these actual setups were used in the Netherlands ,
Nothing to see to be honest , streets and small sections of woodland,
but it was from here the first V2's where launched against Belgium and England

There are V1 launch site leftovers to be found (concrete slabs )

Here a good Dutch site ....you could use the auto translator if your Dutch is a bit rusty

V2platform: Tweede wereldoorlog V2-raketten in Den Haag e.o. en bombardement Bezuidenhout 3 maart 1945

www.v2platform.nl

Piet, nice site with lots of info, the book looks very interesting too, any idea when will it be finally available?



[Piet]

Piet, nice site with lots of info, the book looks very interesting too, any idea when will it be finally available?

I don't know (i am on the list )
All three books V2 related are delayed for some years now ,
One has a price already so fingers crossed it will be published soon



[sharkman]

Nice work on the additions!



[fledermaus]

Thanks Warren, now working on the trailer details, more soon.



[fledermaus]

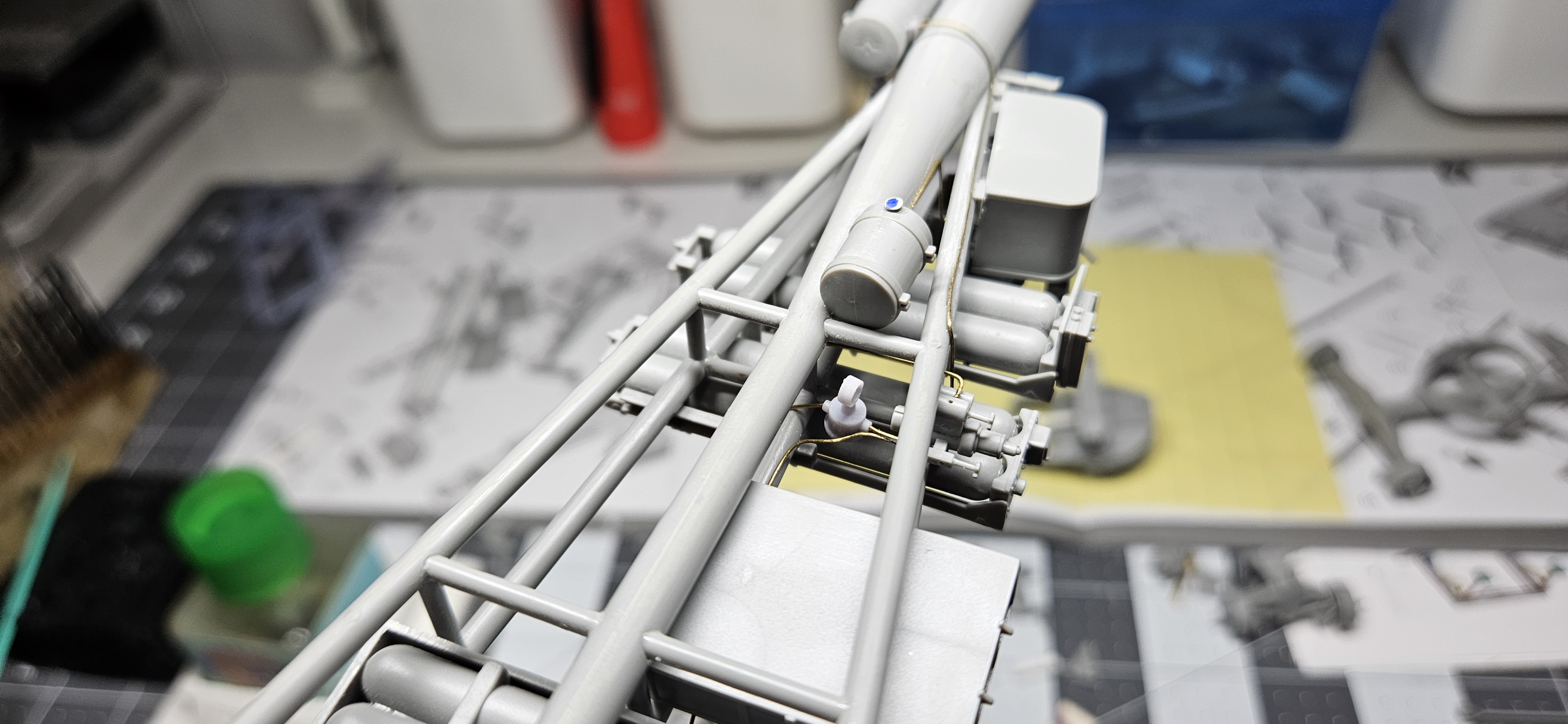

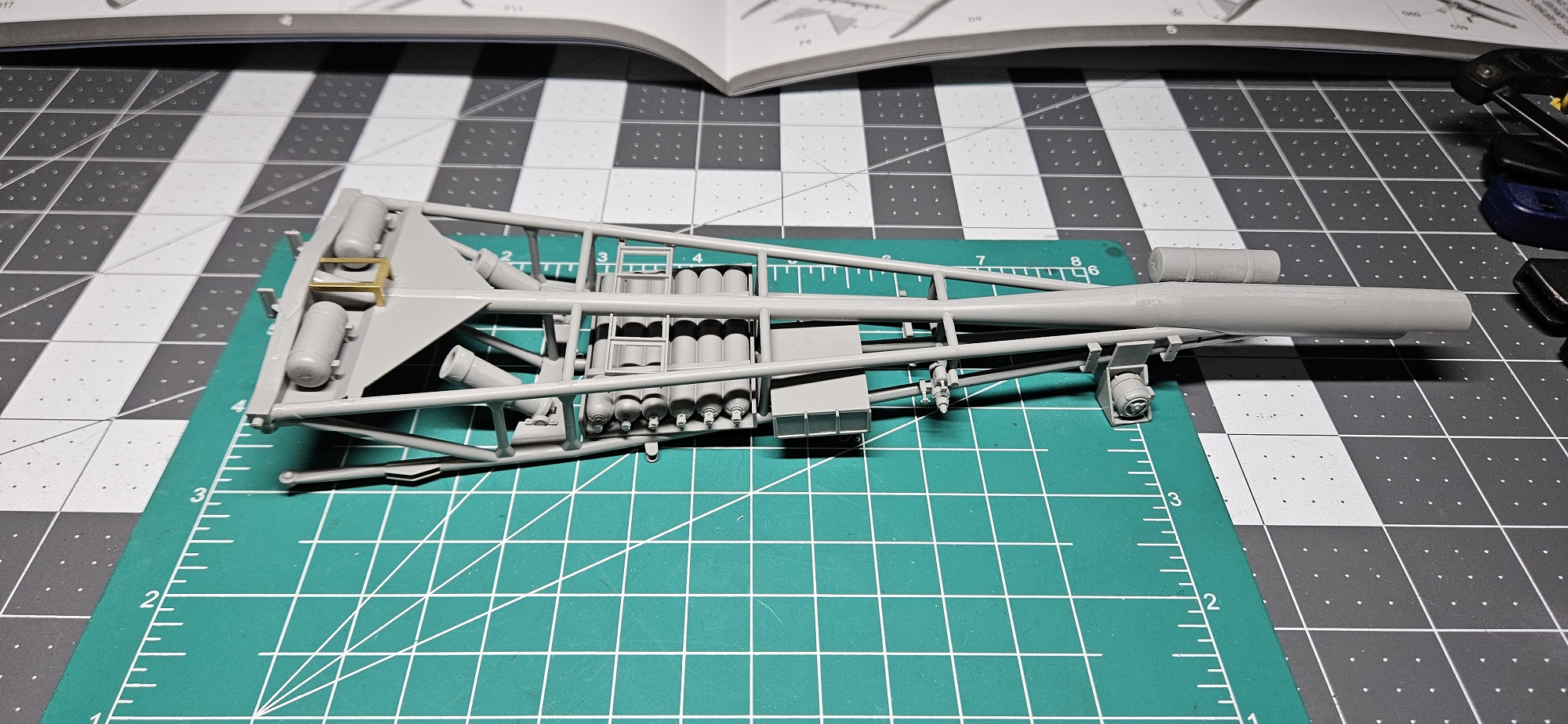

Hi to all, time for another update on the V2 build. the work continues with the assembly of the trailer tubular chassis and the addition of
the hydraulic system lines.

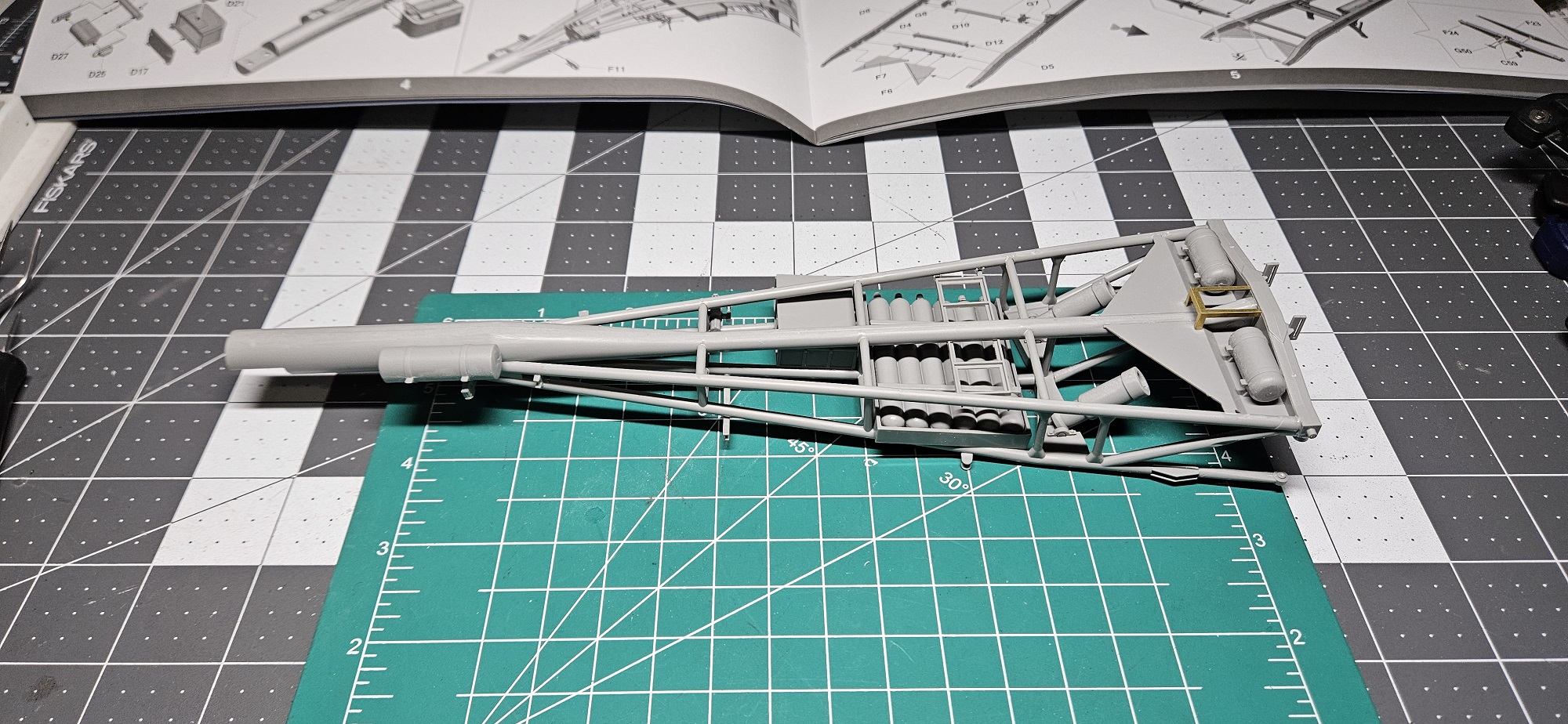

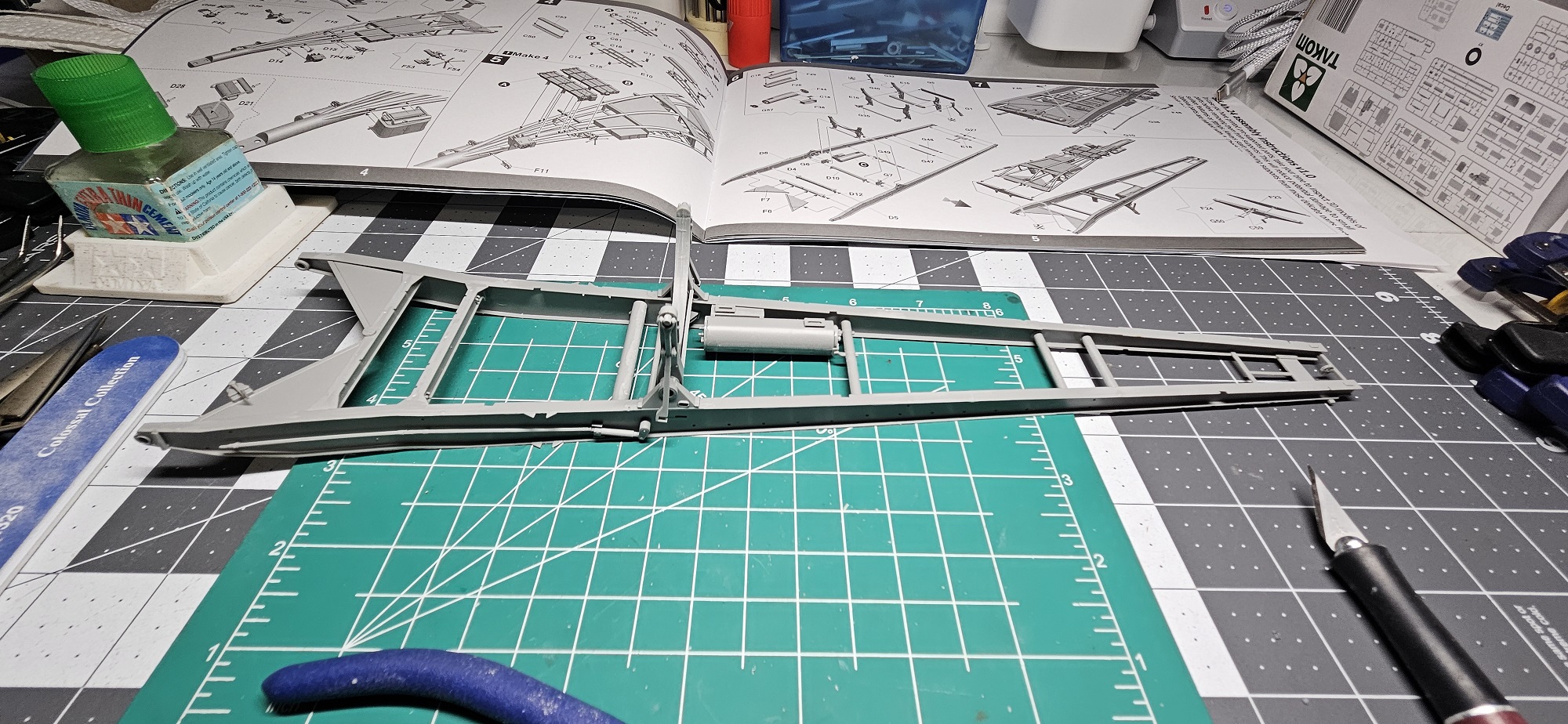

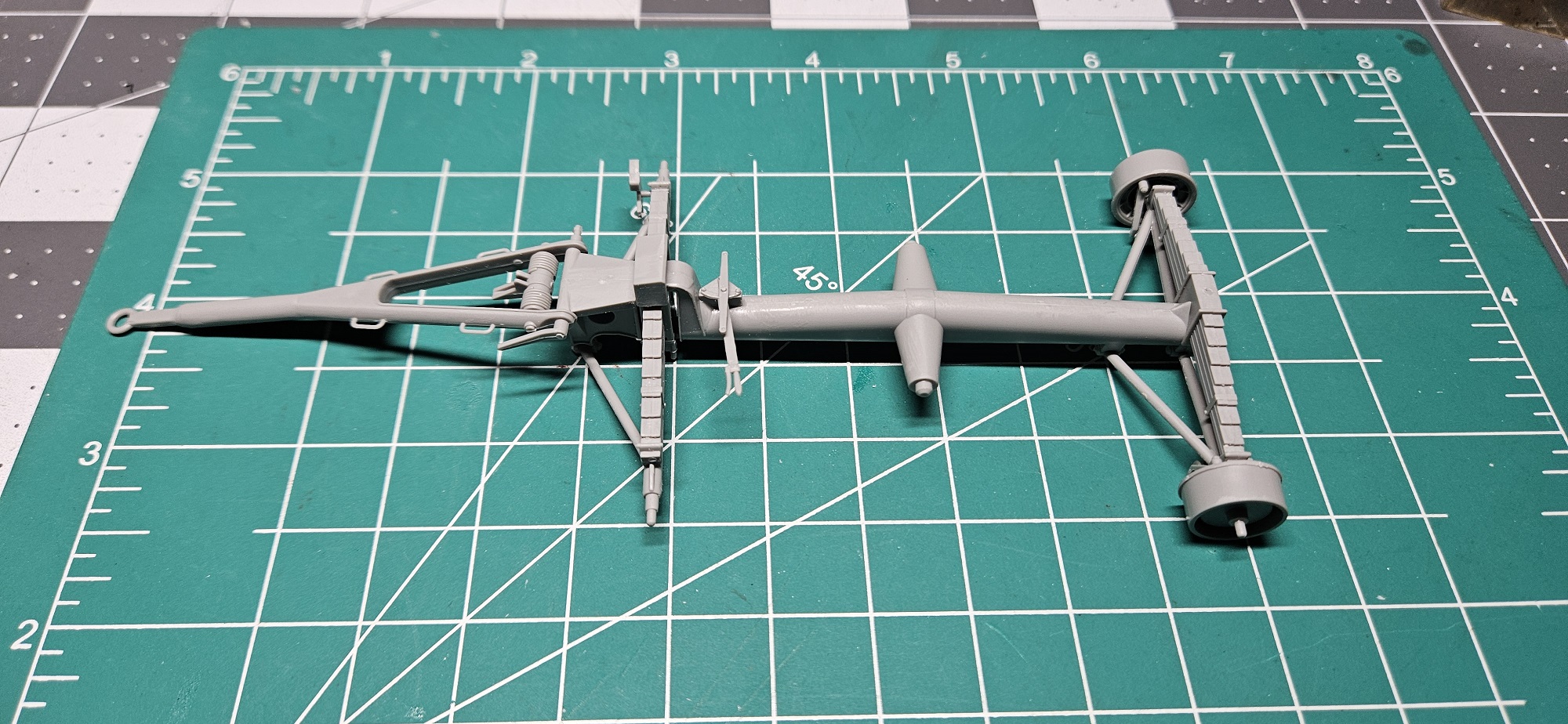

the tubular chassis is started

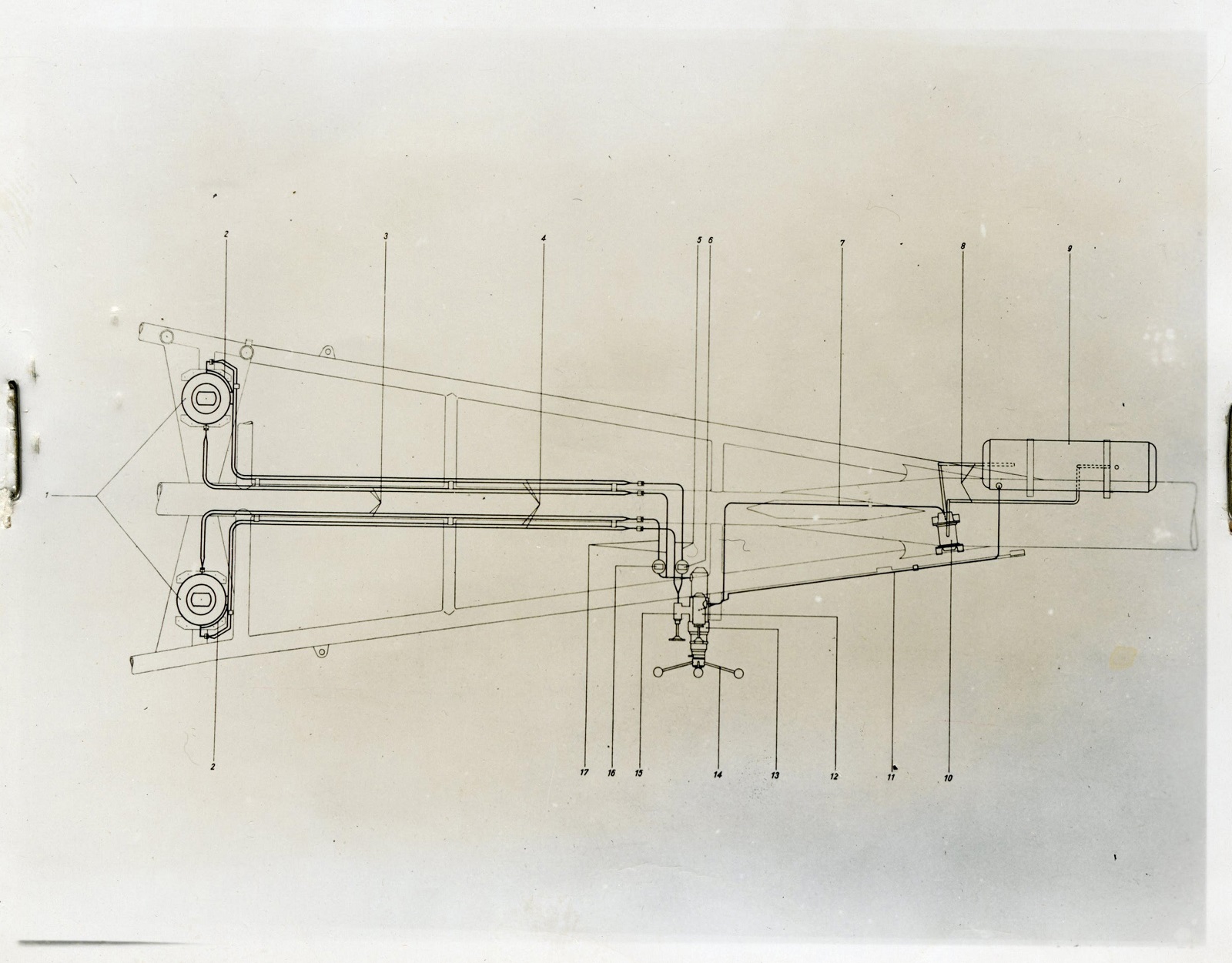

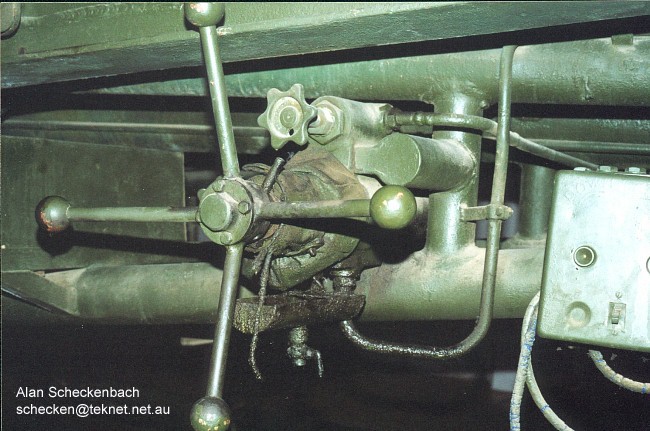

this is the reference I have for the hydraulic system, this photos were provided to me by the V2rocket.com site, thanks for the help with this info. The kit comes with the option of a electric pump or the VW engine with pump conected on the back, I went for the VW engine set up.

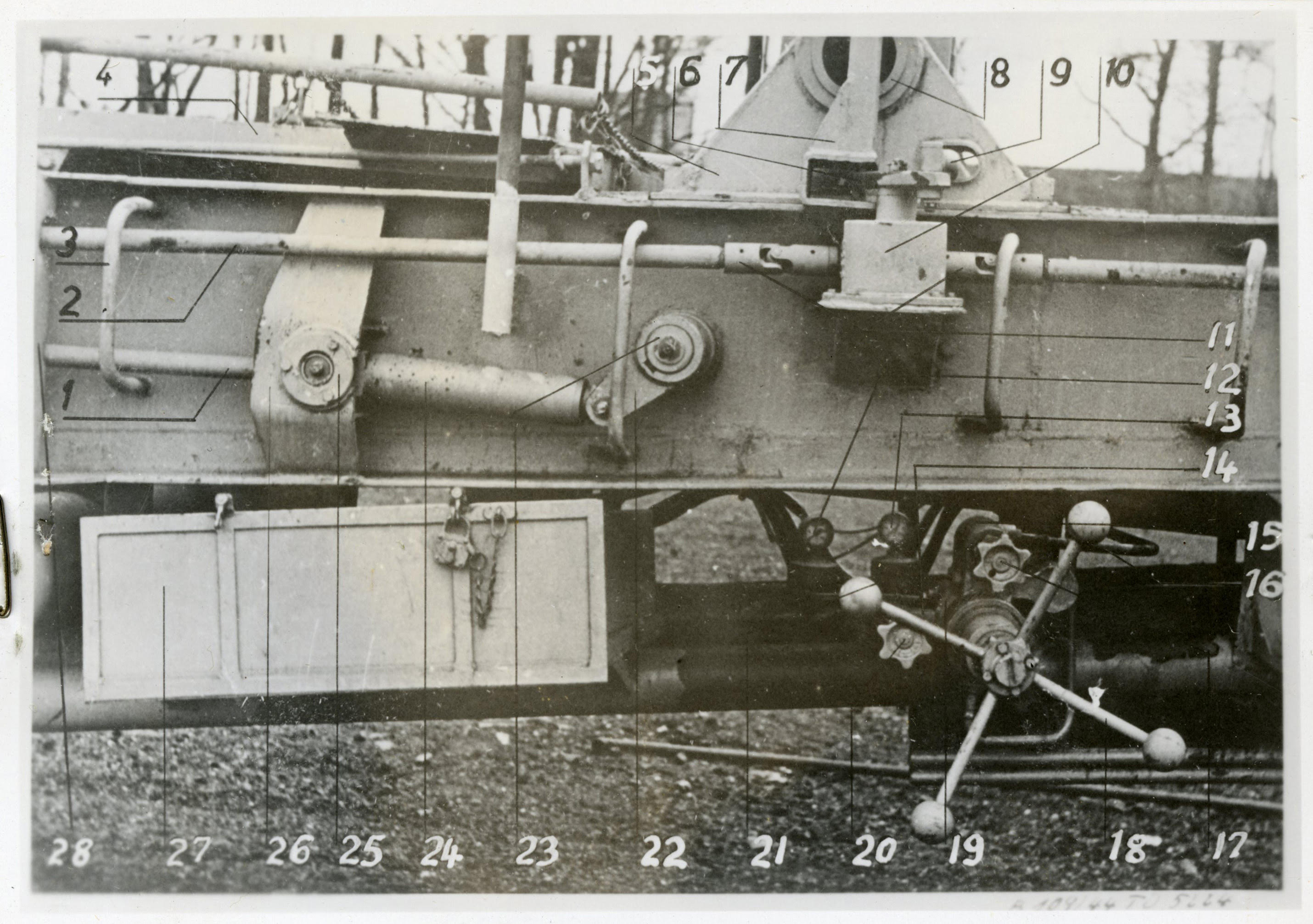

hydraulic system diagram

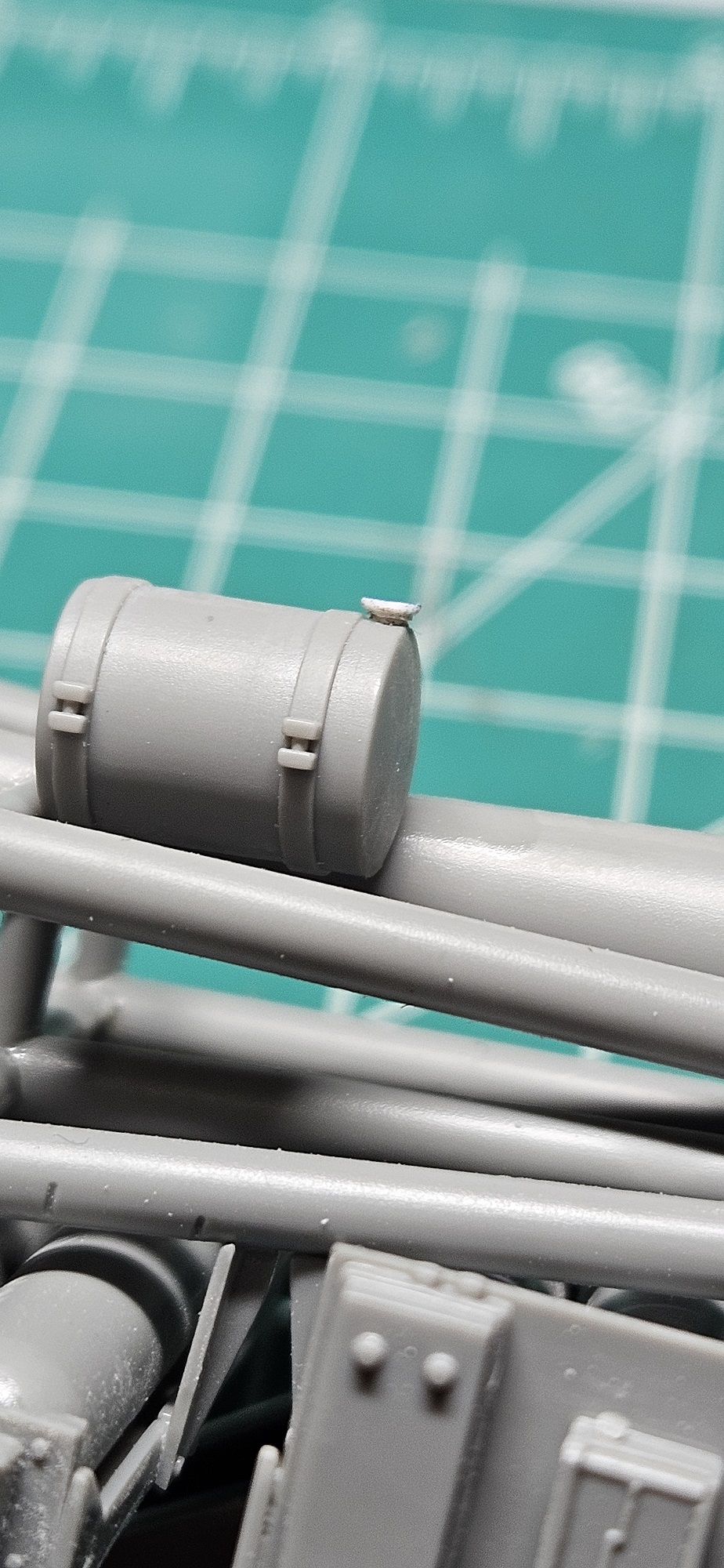

I started by adding a cap to the VW engine gas tank, just a simple styrene disk

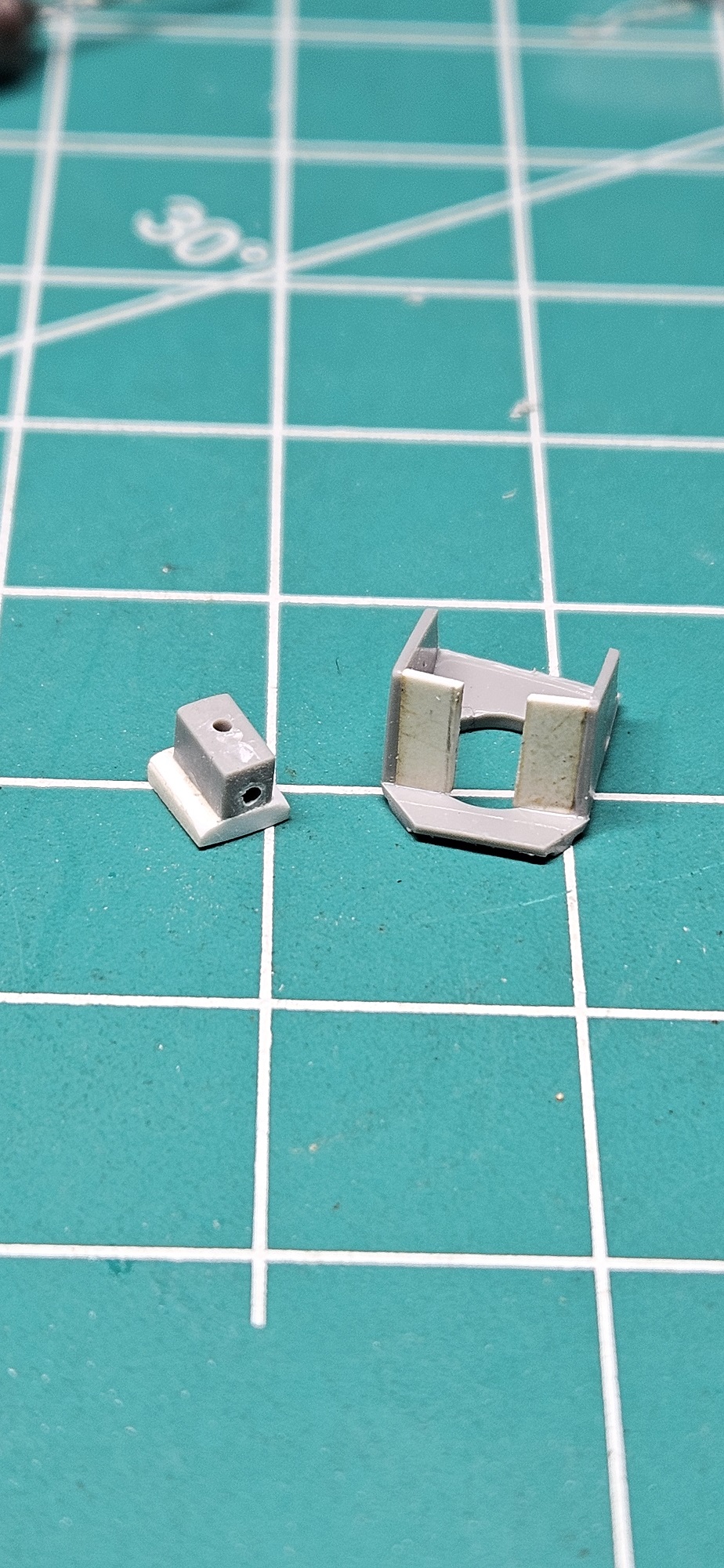

next I modified this parts from the back of the VW engine to make the lines connections

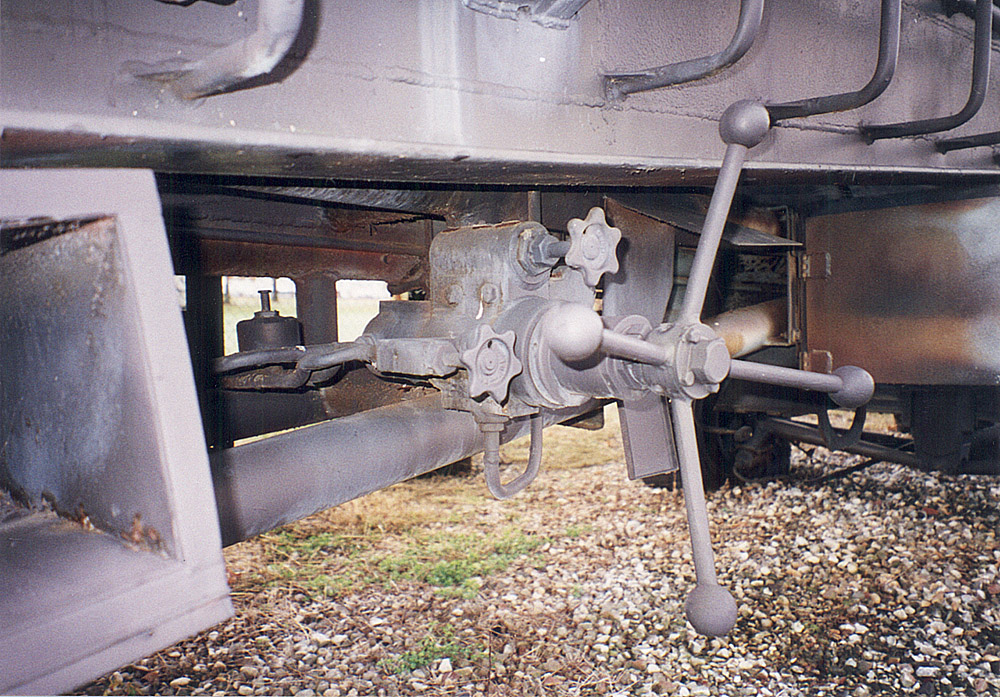

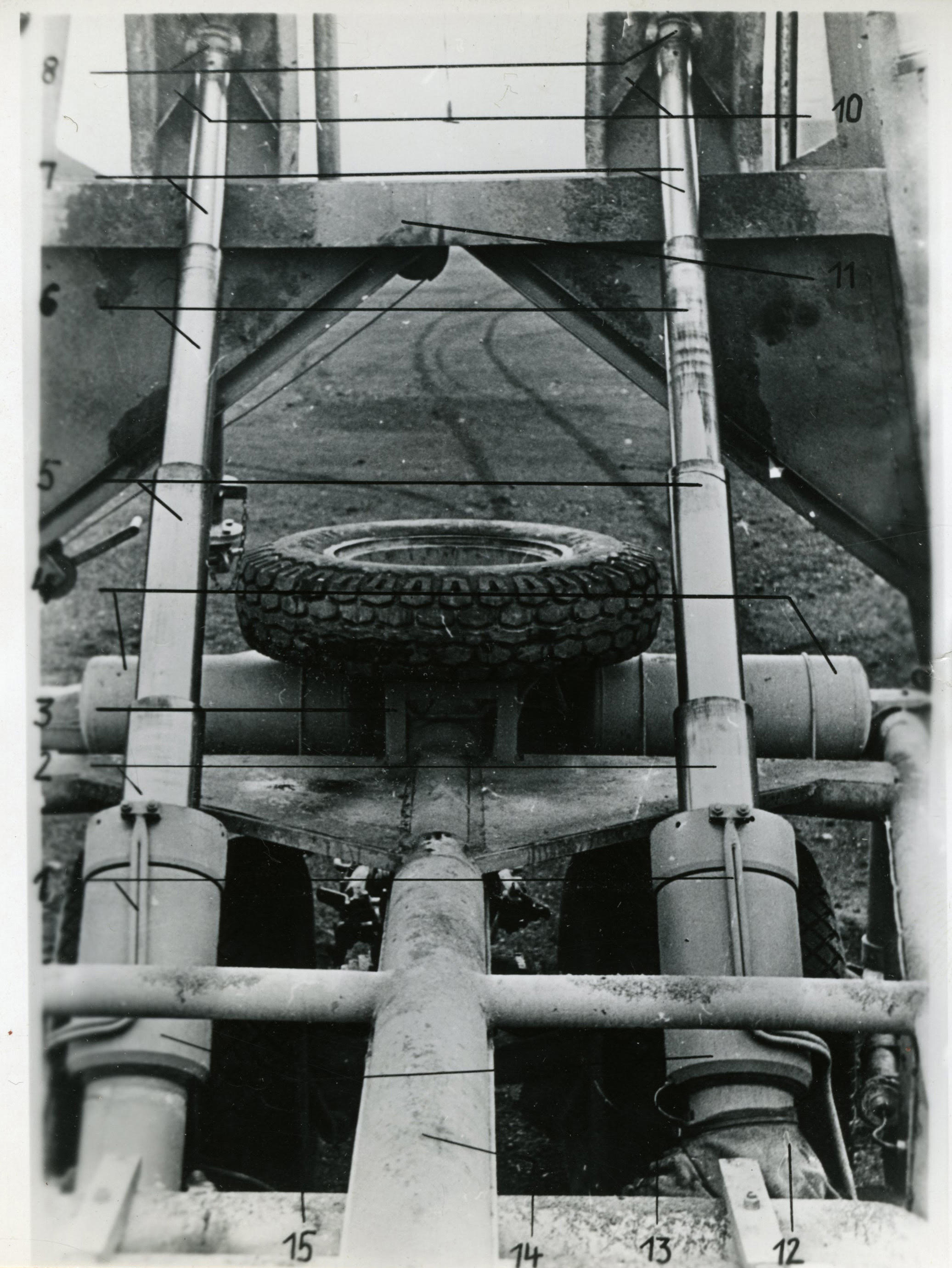

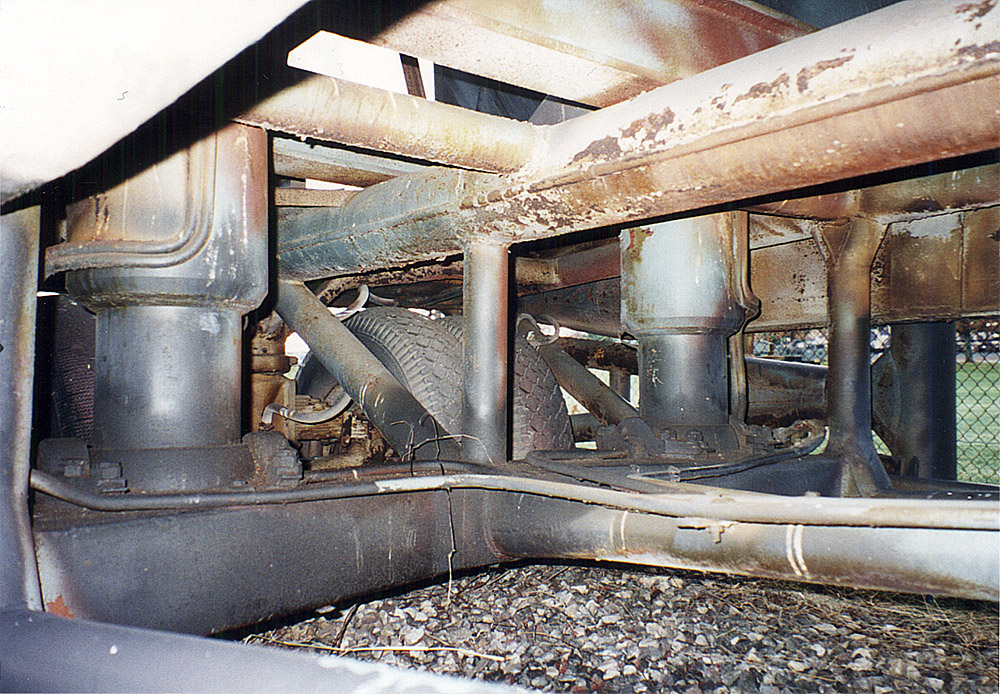

the reference photo

the back of the VW engine now looks like this

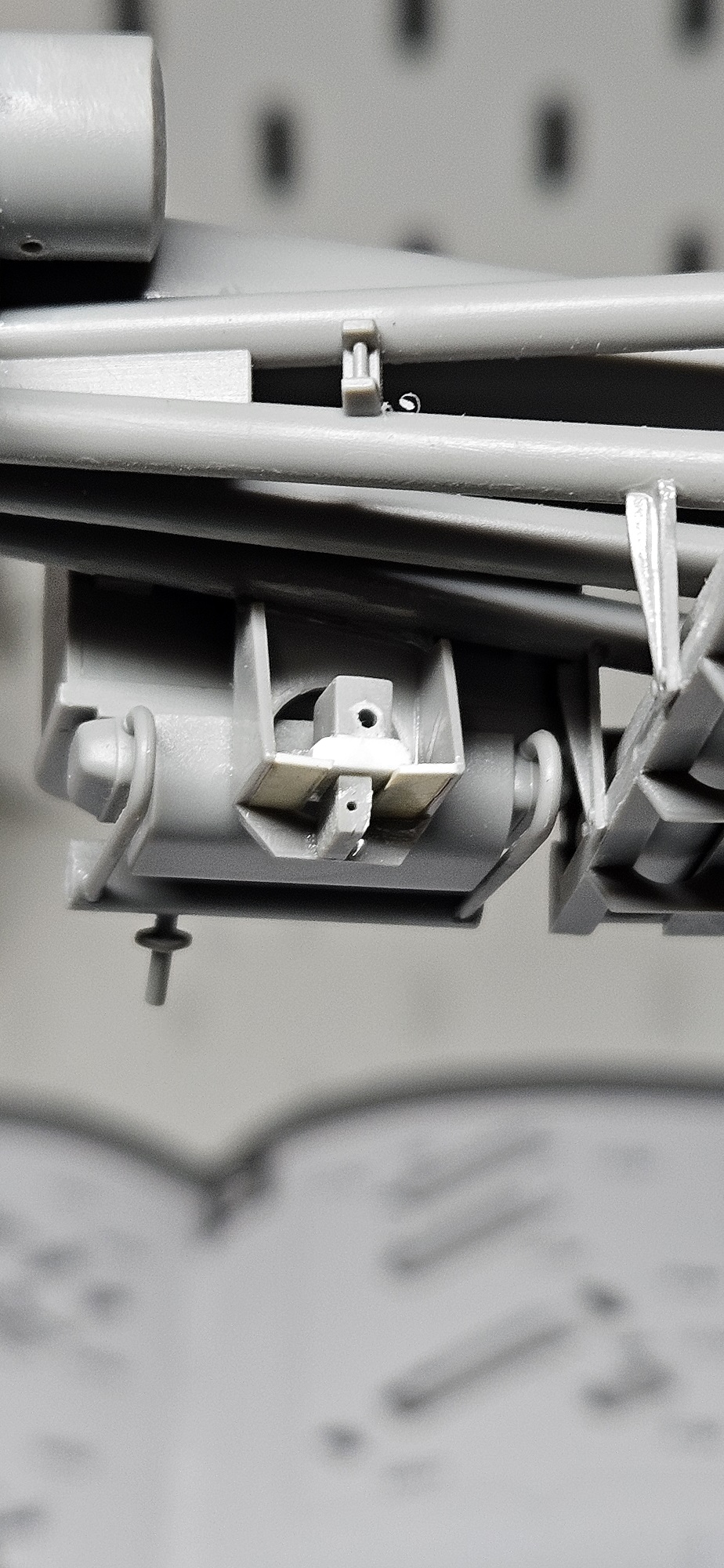

now I drilled the holes for the oil valves under the hydraulic oil tank

the tank valves are 3D printed

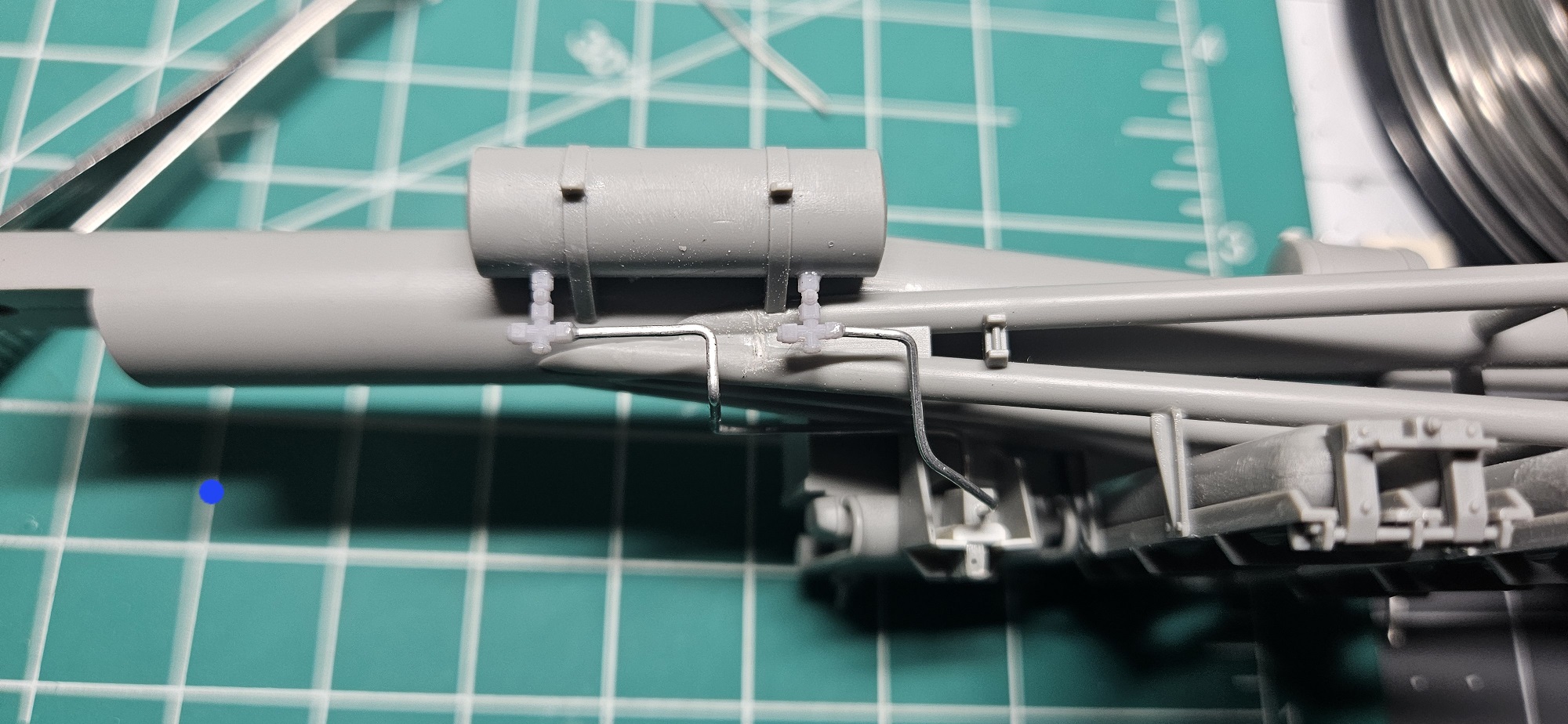

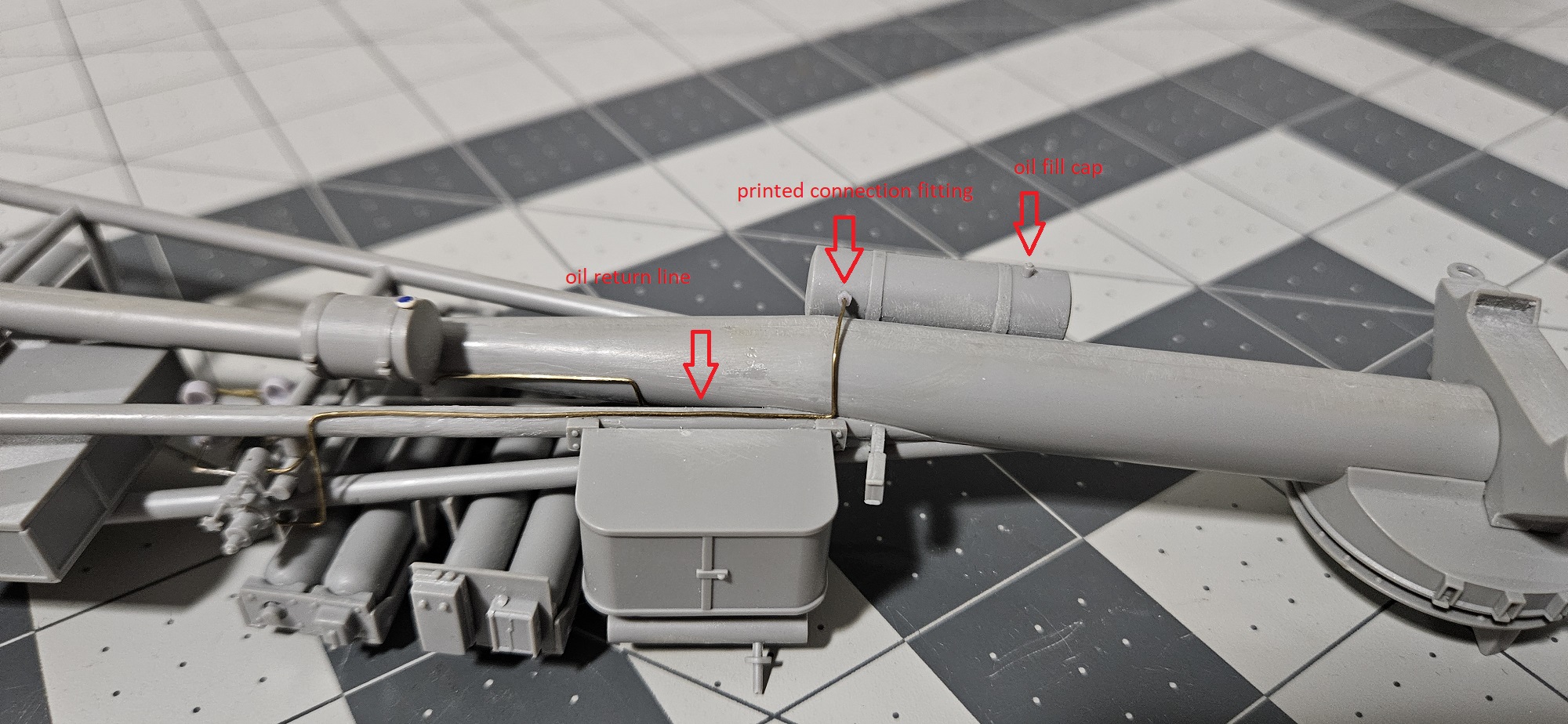

the valves and pipes installed, this lines supply the hydraulic oil to the oil pump connected to the back of the VW engine

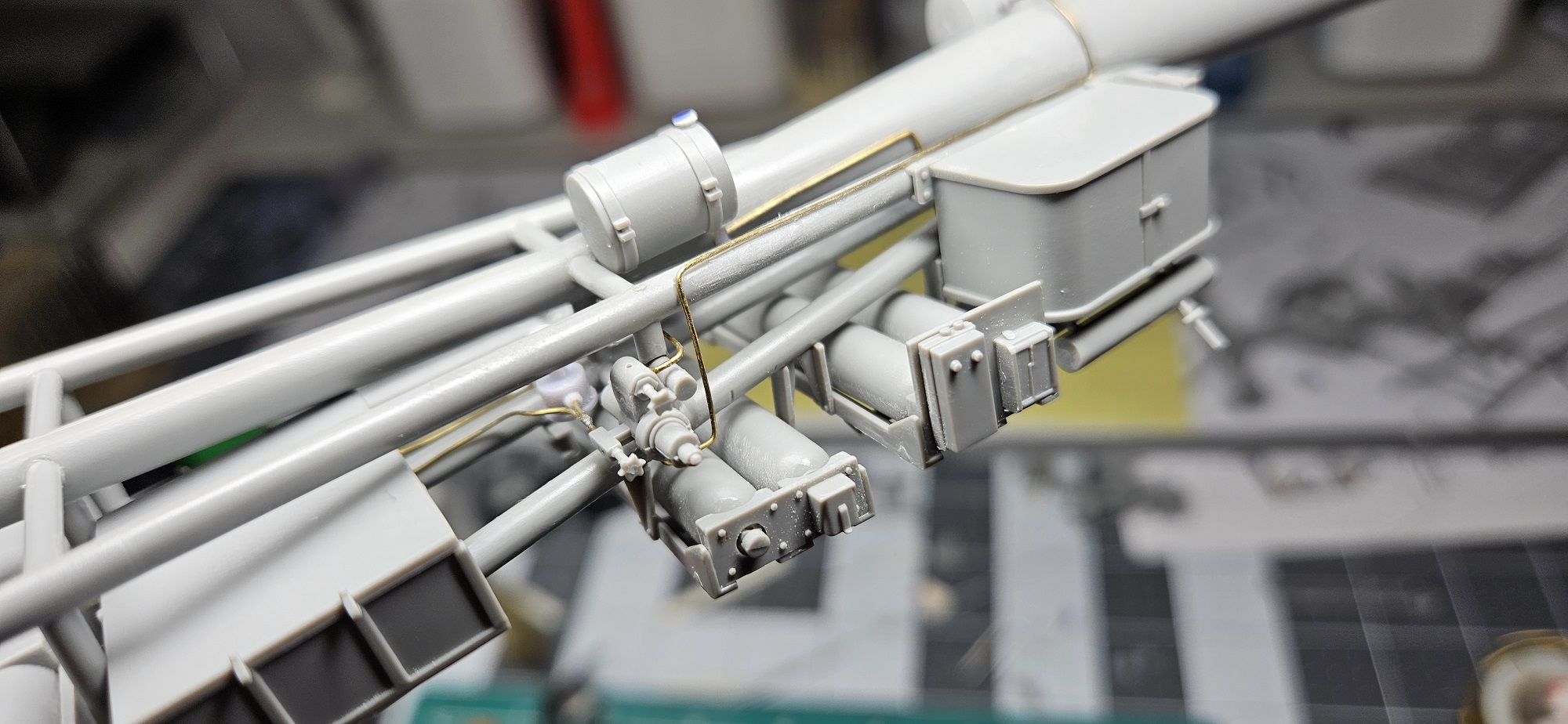

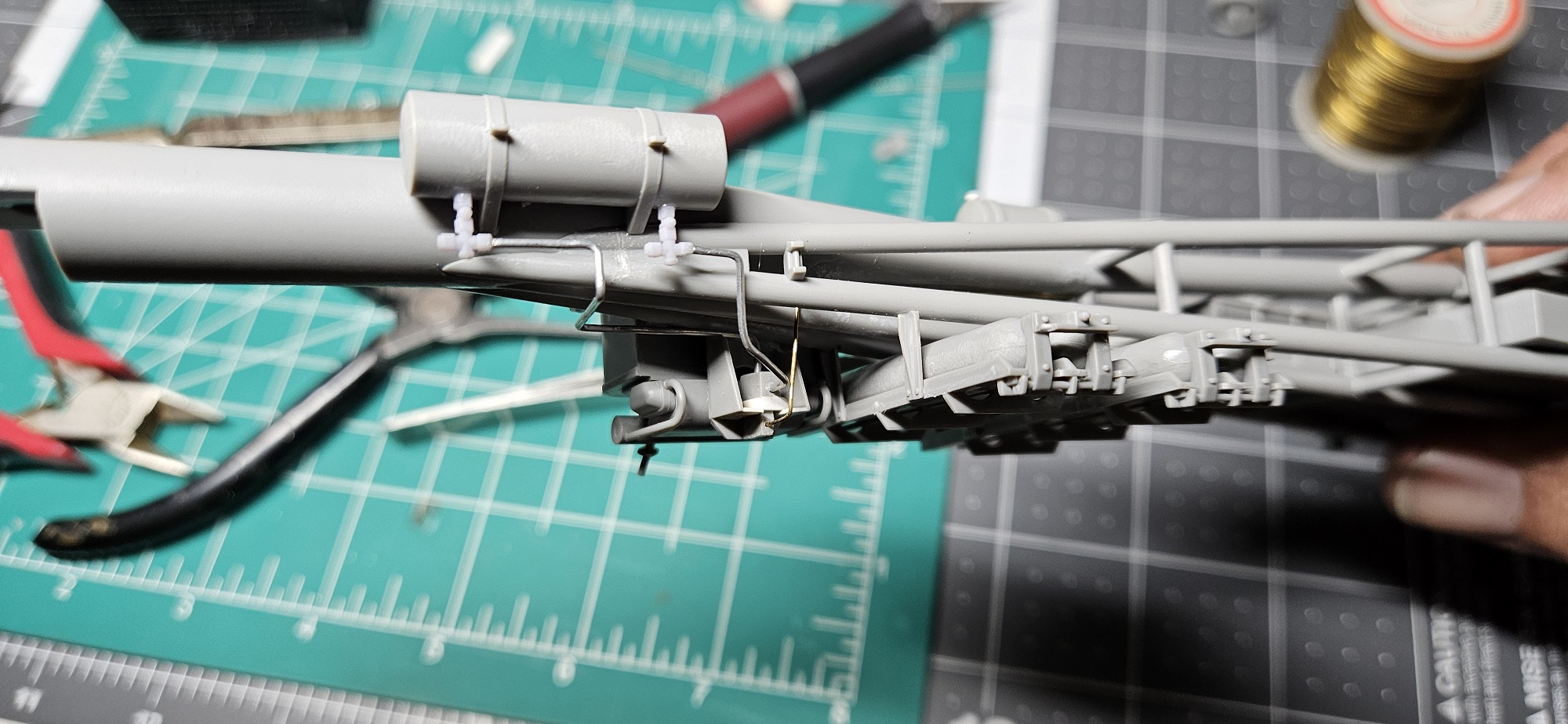

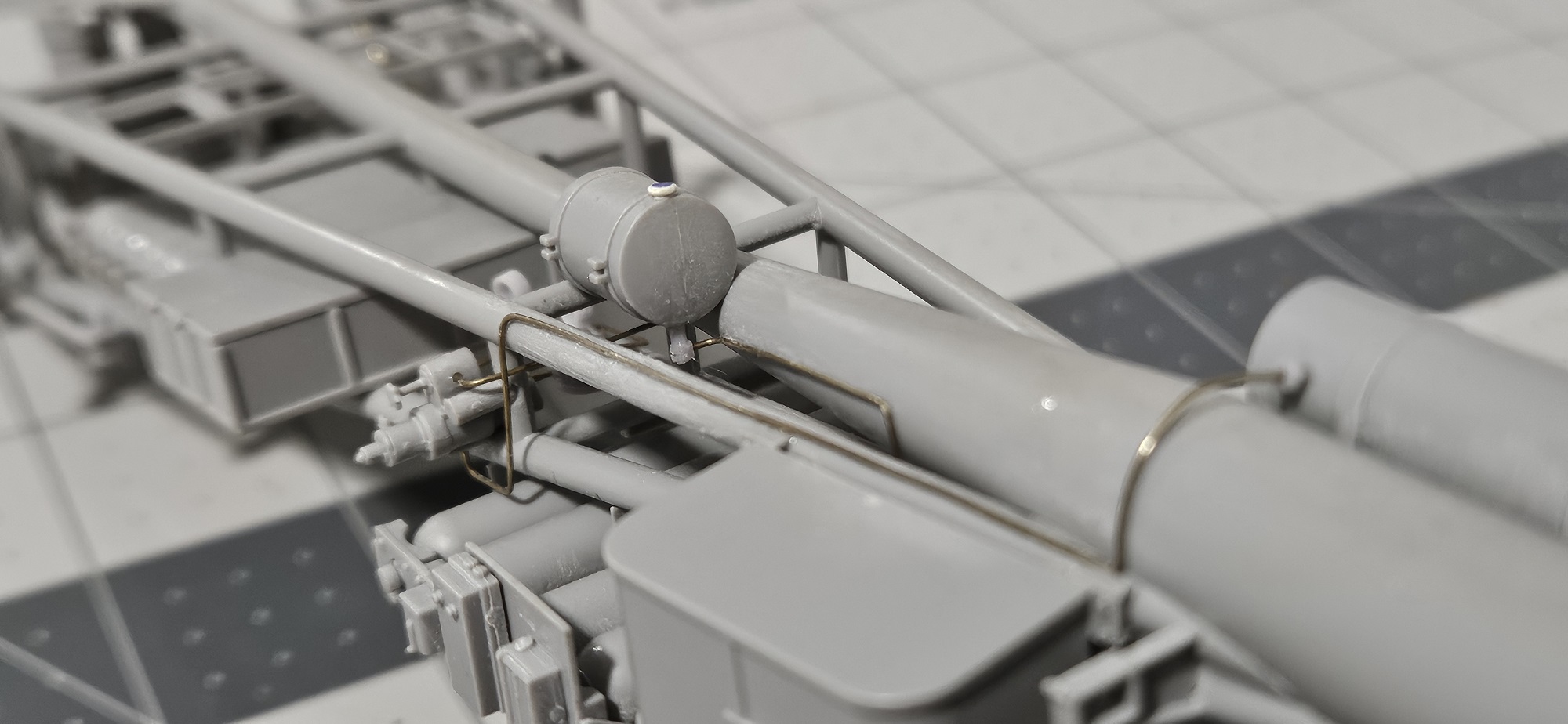

the VW engine gas tank printed valve and line are installed, its the small tank in the picture

it connects to the back of the VW engine, also visible is the line from the oil pump to the oil valve

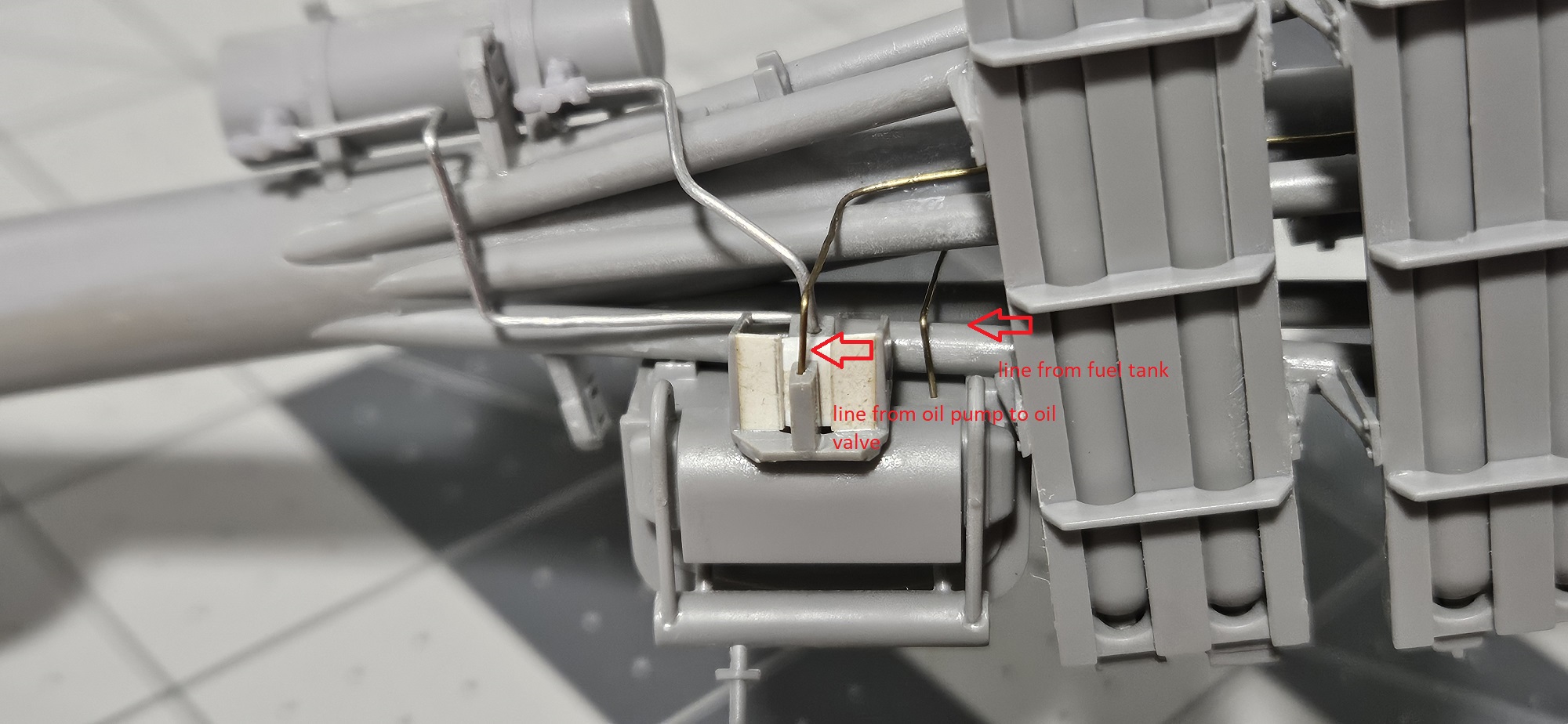

here the hydraulic oil return line can be seen, also added a filler cap

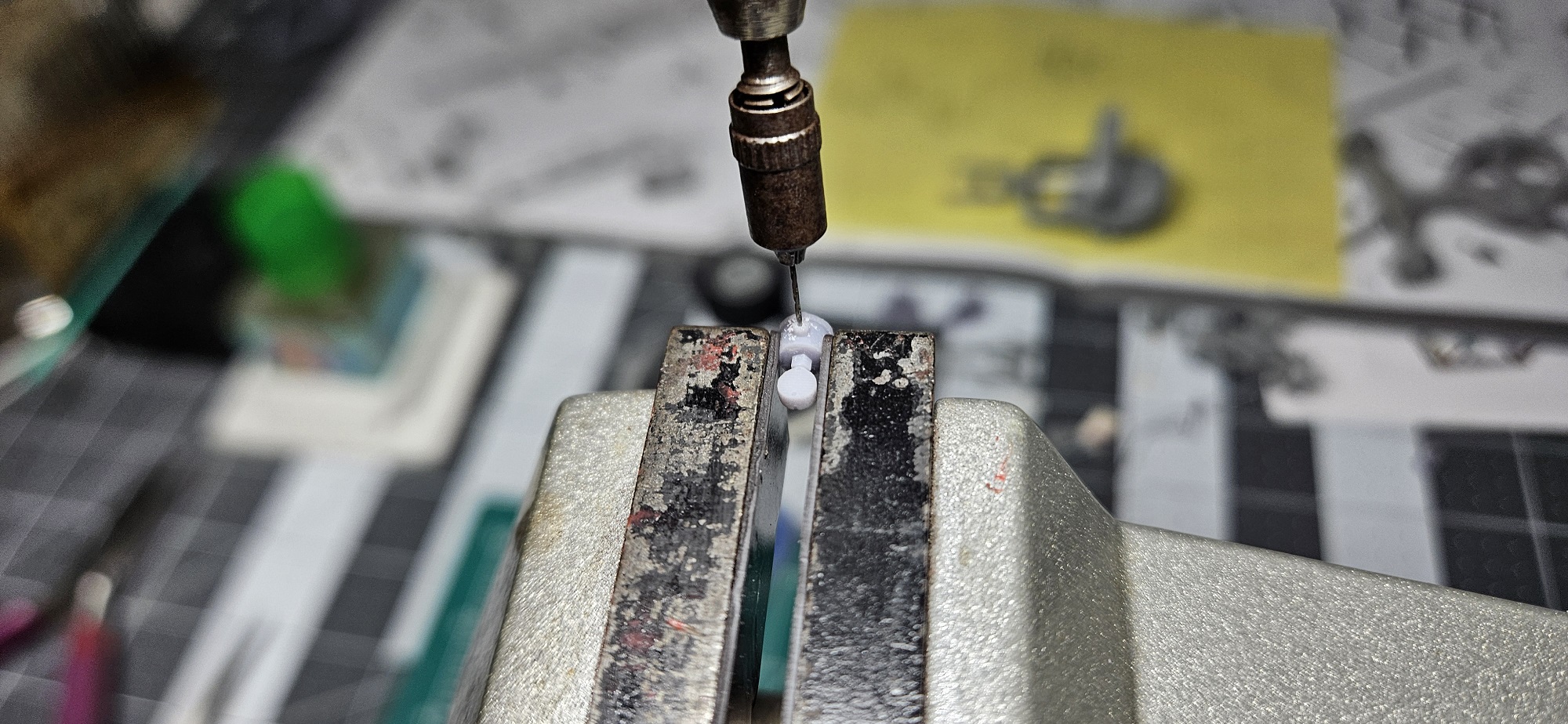

behind the oil valve are two gauges one for each of the lifting jacks on the rear, this are 3D printed and drilled to connect the lines, each gauge has two lines out and return

the lines are made for the gauges

first gauge is installed, the line runs to one of the lifting jacks on the back

the second gauge is installed

view of part of the connection

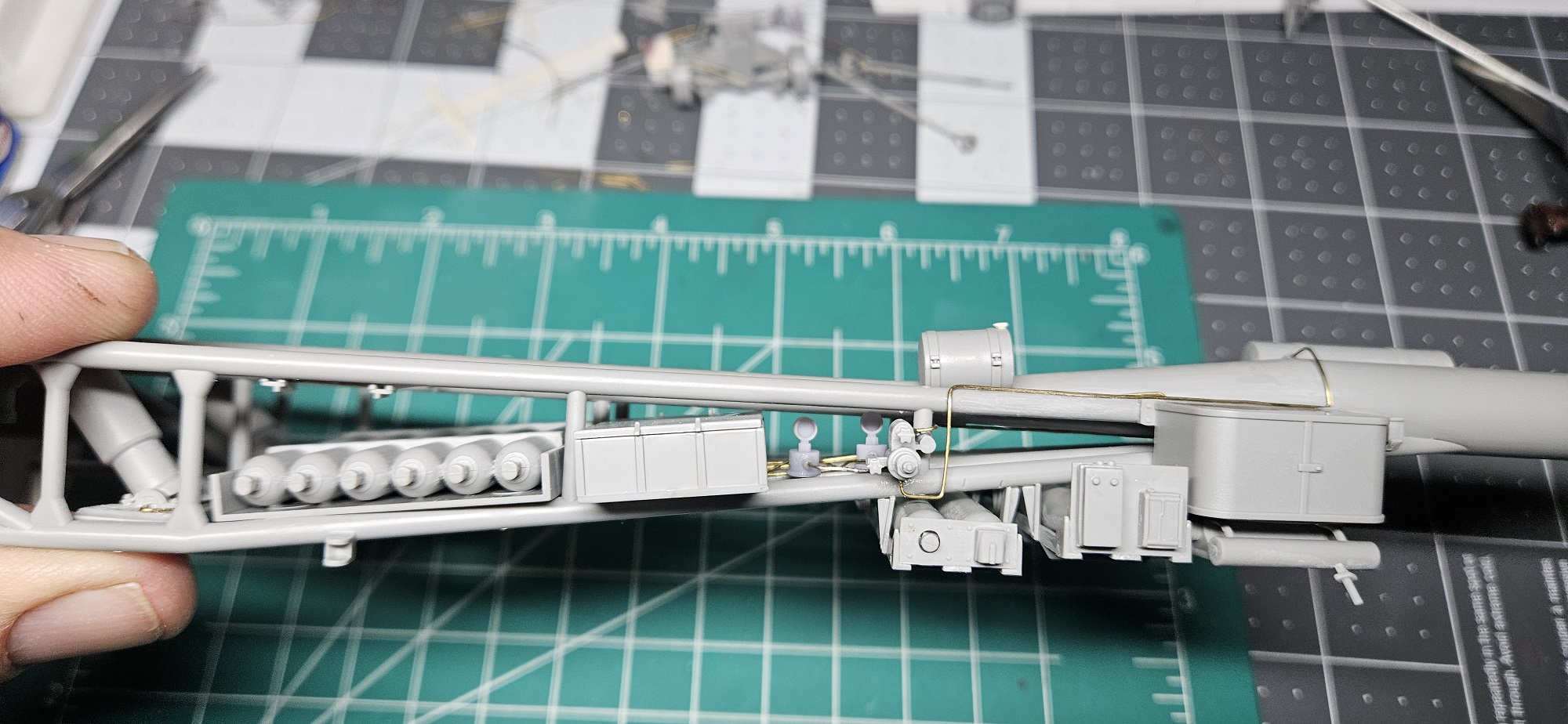

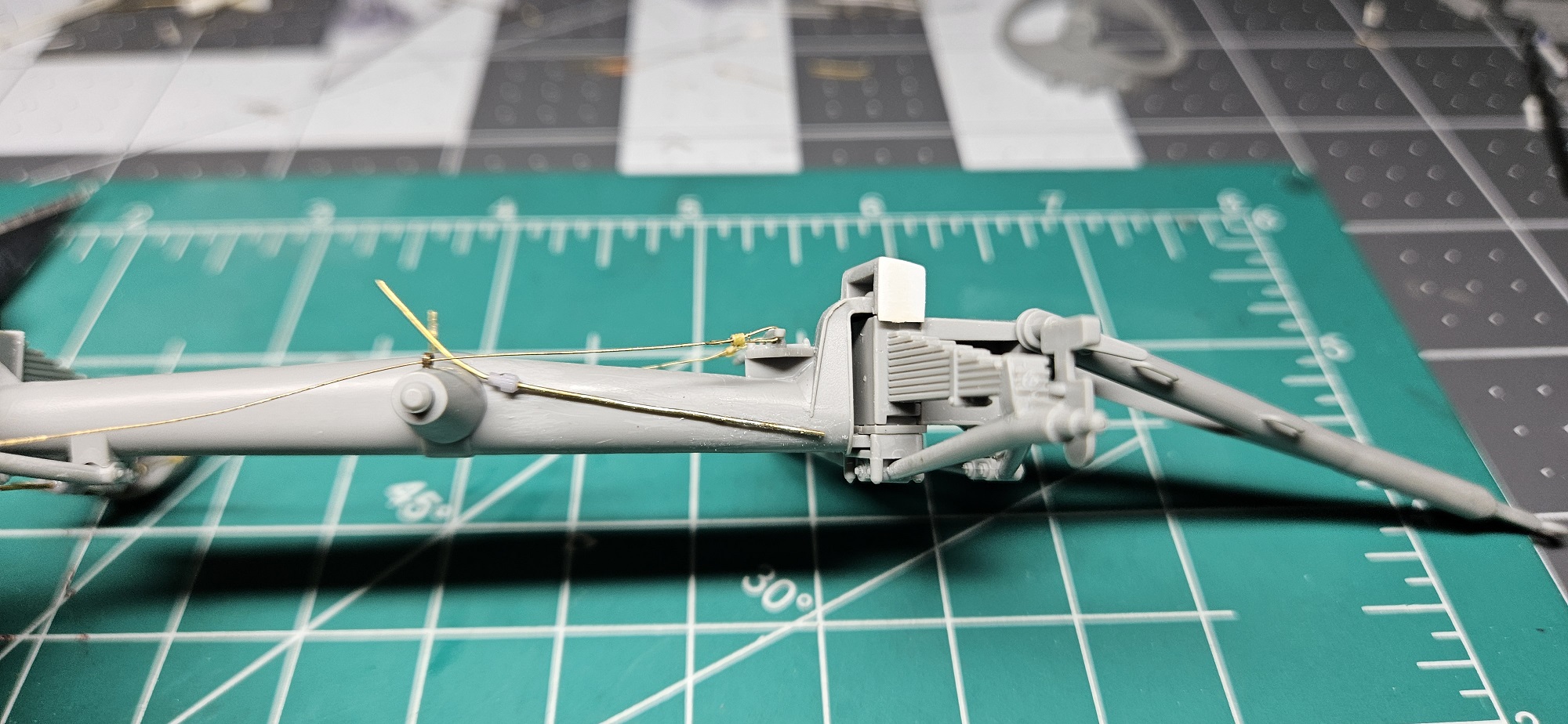

line route to the back

here the connection to the lifting jacks can be seen

and the lines on the jacks

thats all for now, more comming soon.
thanks
Abdin
