E-Type jag, Scale = big.
- Thread starter paddy
- Start date
centaur567
Well-known member
Looks great!!! Gary S.
paddy
Well-known member
Tonight lesson is manifolds
...... don't believe me, I just make it up as i go along ....

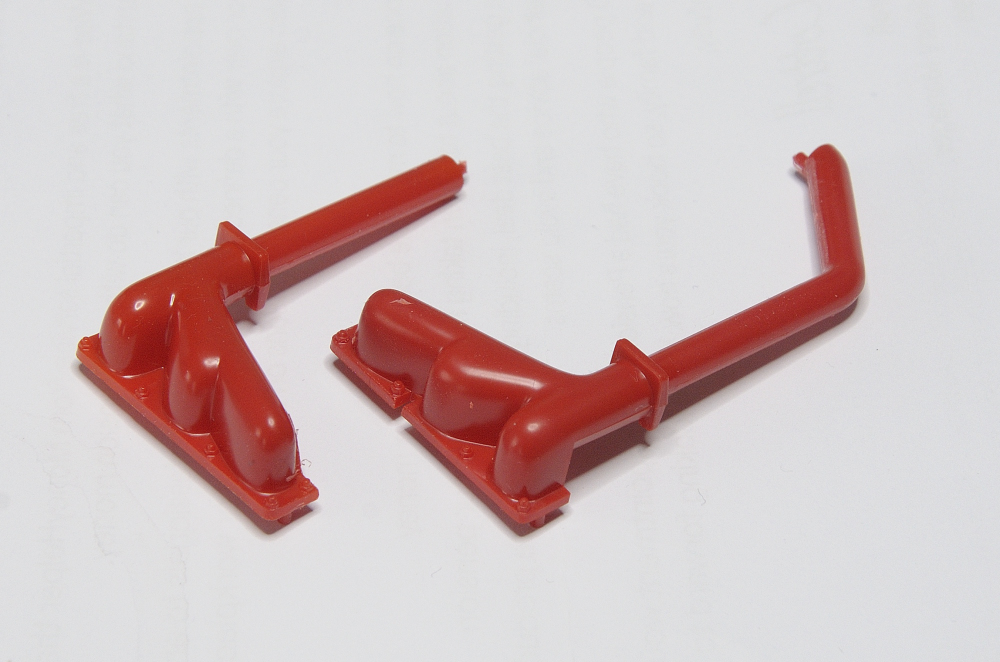

Here are the rather uninspiring kit parts, they do at least have small moulded in nuts but nothing on the flanges. ↑
So this is my answer to the flange bolts, these are plastic moulded nuts that come on a 3D printed sheet at least i think that's what it is.

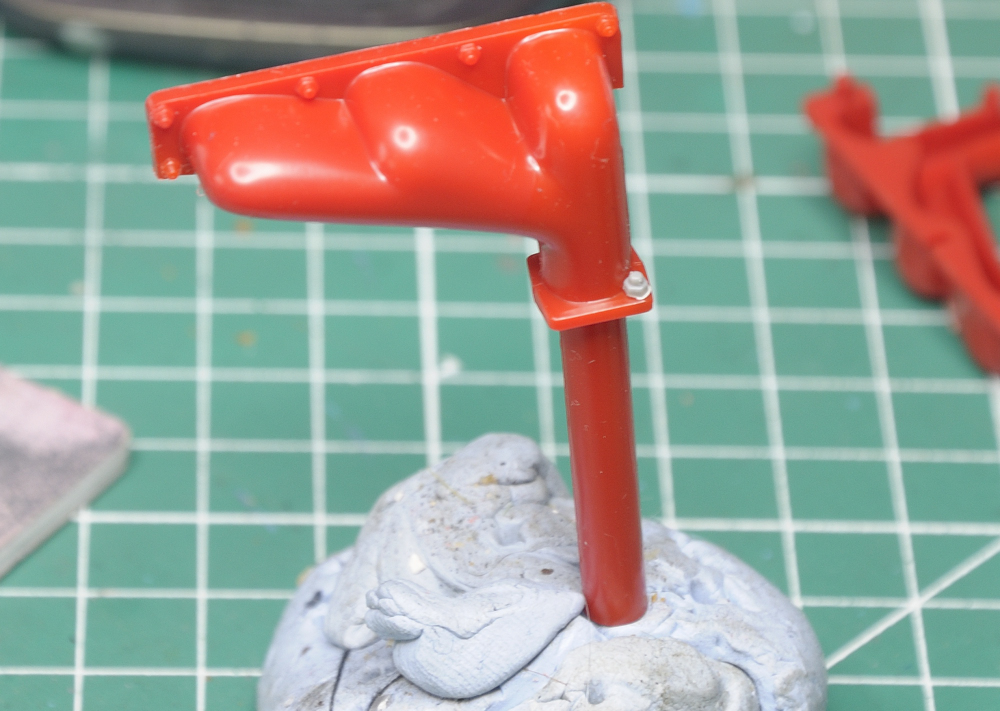

The manifold nuts have been sliced off and i have some small brass nuts and bits of matching threaded stud. this is watch maker stuff

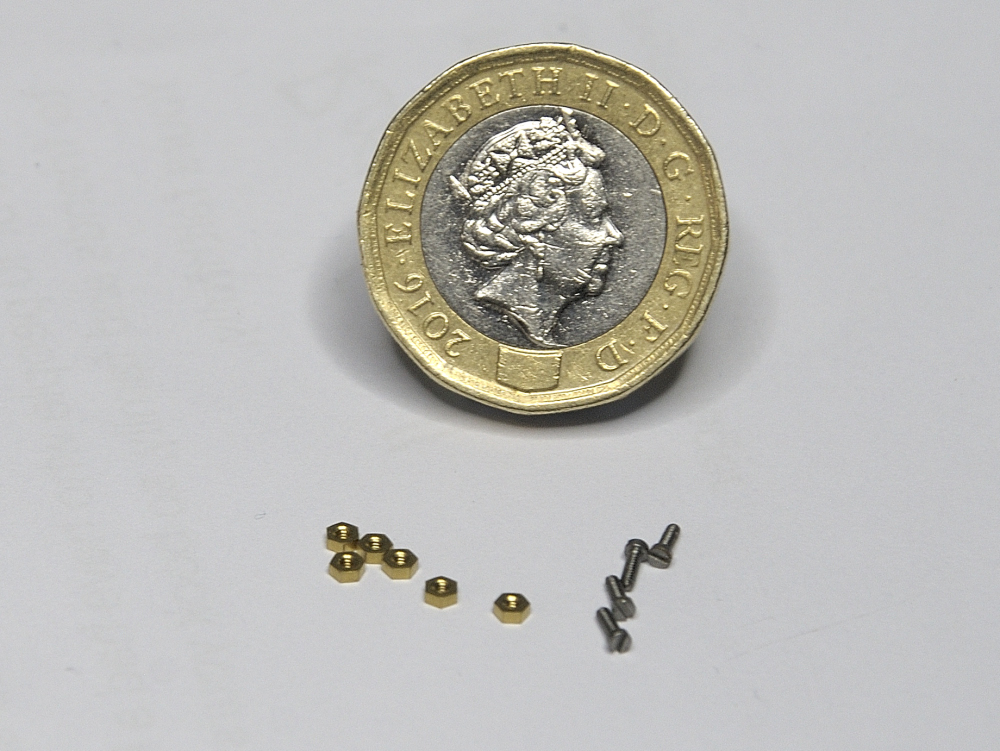

Her majesty demonstrating the size of the nuts. New coins with King Charles are now entering curculation. (14BA) thread dia 0.75mm so about 18 thou

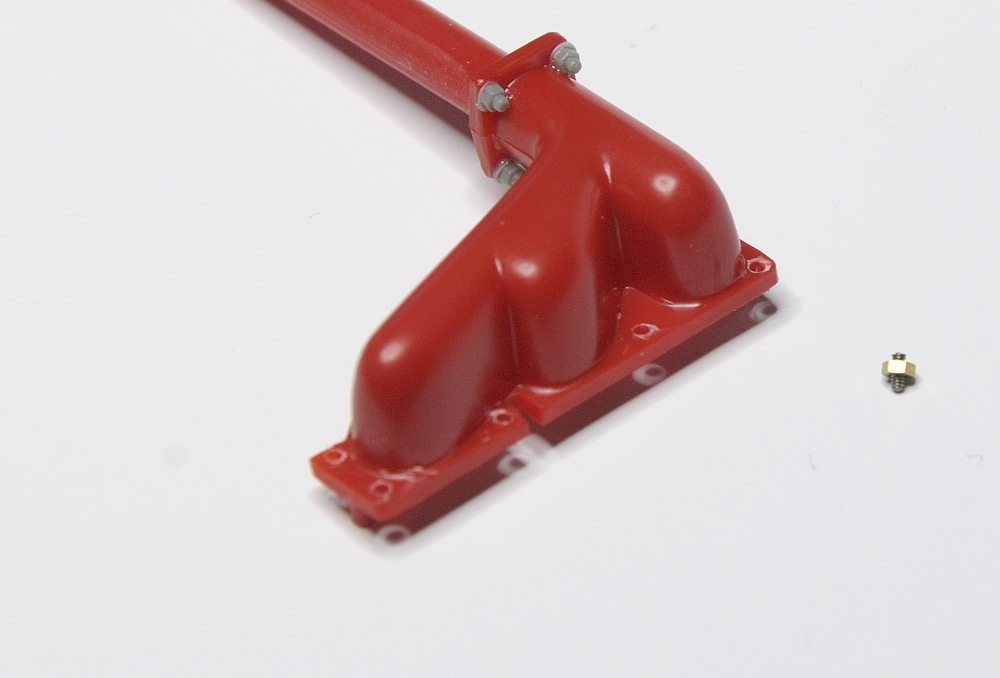

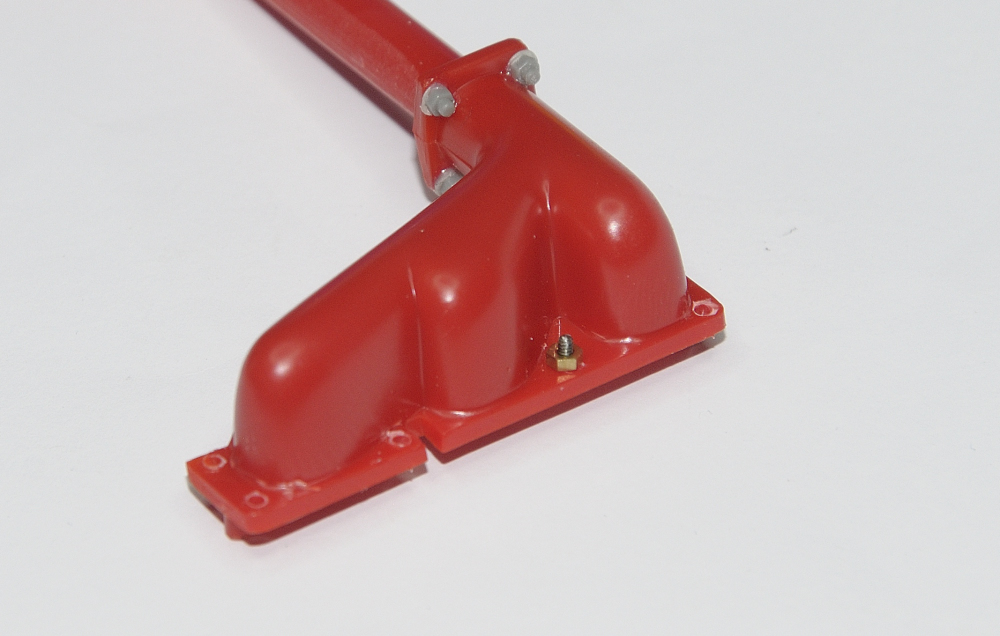

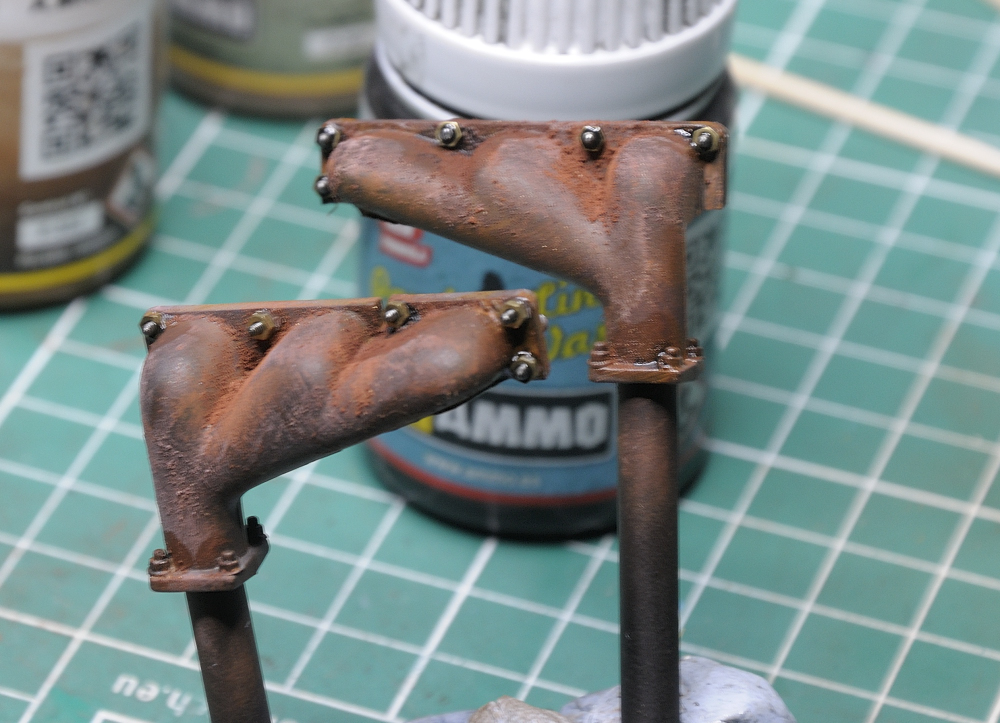

Looks like this will work so better splash some paint on before i go any further.
Please with this
...... don't believe me, I just make it up as i go along ....Here are the rather uninspiring kit parts, they do at least have small moulded in nuts but nothing on the flanges. ↑
So this is my answer to the flange bolts, these are plastic moulded nuts that come on a 3D printed sheet at least i think that's what it is.
The manifold nuts have been sliced off and i have some small brass nuts and bits of matching threaded stud. this is watch maker stuff
Her majesty demonstrating the size of the nuts. New coins with King Charles are now entering curculation. (14BA) thread dia 0.75mm so about 18 thou
Looks like this will work so better splash some paint on before i go any further.
Please with this
Last edited:
Heavens Eagle
Well-known member
Looking great as always Paddy!
Hey Paddy, it is clockmaker or pocket watch stuff.

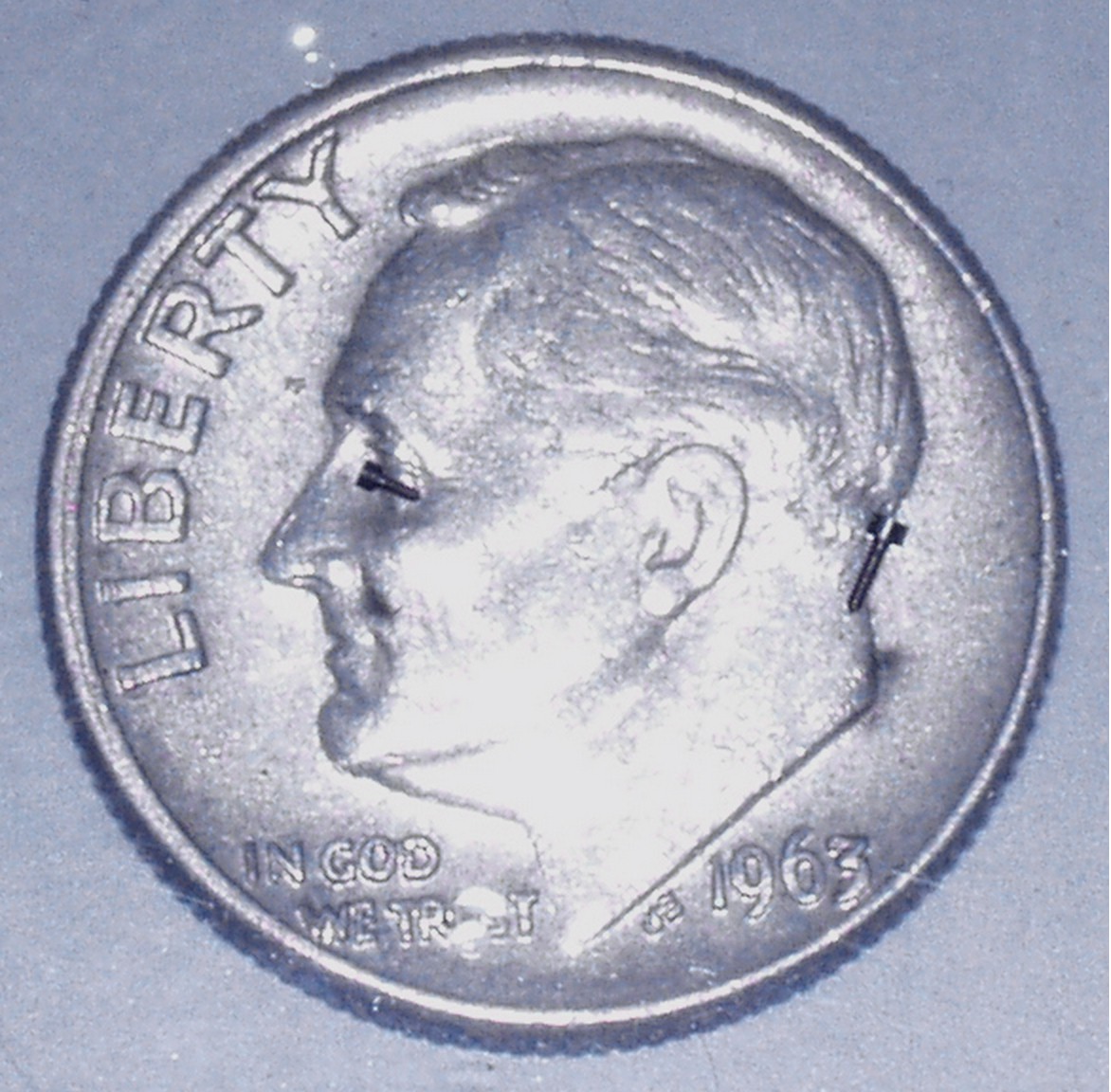

Here is watchmaker stuff.
Hey Paddy, it is clockmaker or pocket watch stuff.
Here is watchmaker stuff.
jeaton01
Well-known member
I always wondered how Jaguar thought the enameled finish on the exhaust manifolds was supposed to last. But at 100,000 miles most of it was still on them on mine. Pretty crackly looking, though, but not rusty that I recall. Pretty impressive as sometimes I could see them glow at night through the louvers. Or was that the turbocharger on the Beech Duke I remember? Maybe both. Might not be the truth but it's a hell of a good memory!
paddy
Well-known member
you have me at a disadvantage John , i have never owned one so i can only go by online pictures and as i mentioned earlier, finding an original is needle in a haystack stuff, i had enough trouble finding one with a dynamo. Most have after market carbs, exhausts, cam covers, air filters, electric fan radiators, uprated brakes and suspension. Basically most E-types have beem modified to make them drivable in the 21 century and i guess you would need to get to a museum to find an original and even then its most likly been restored.

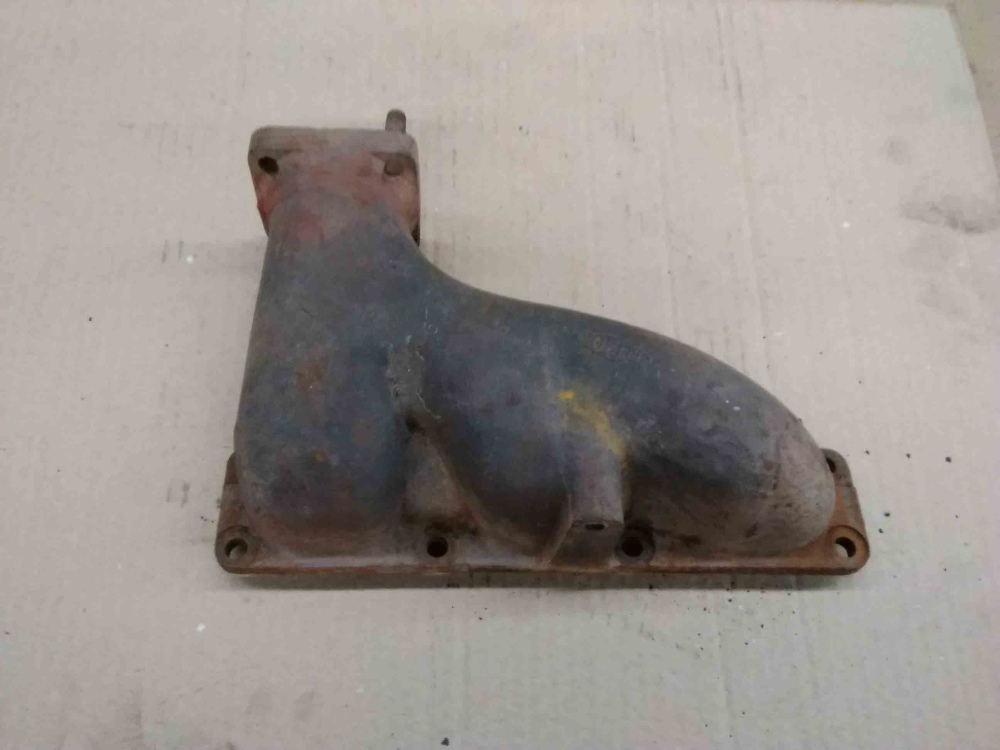

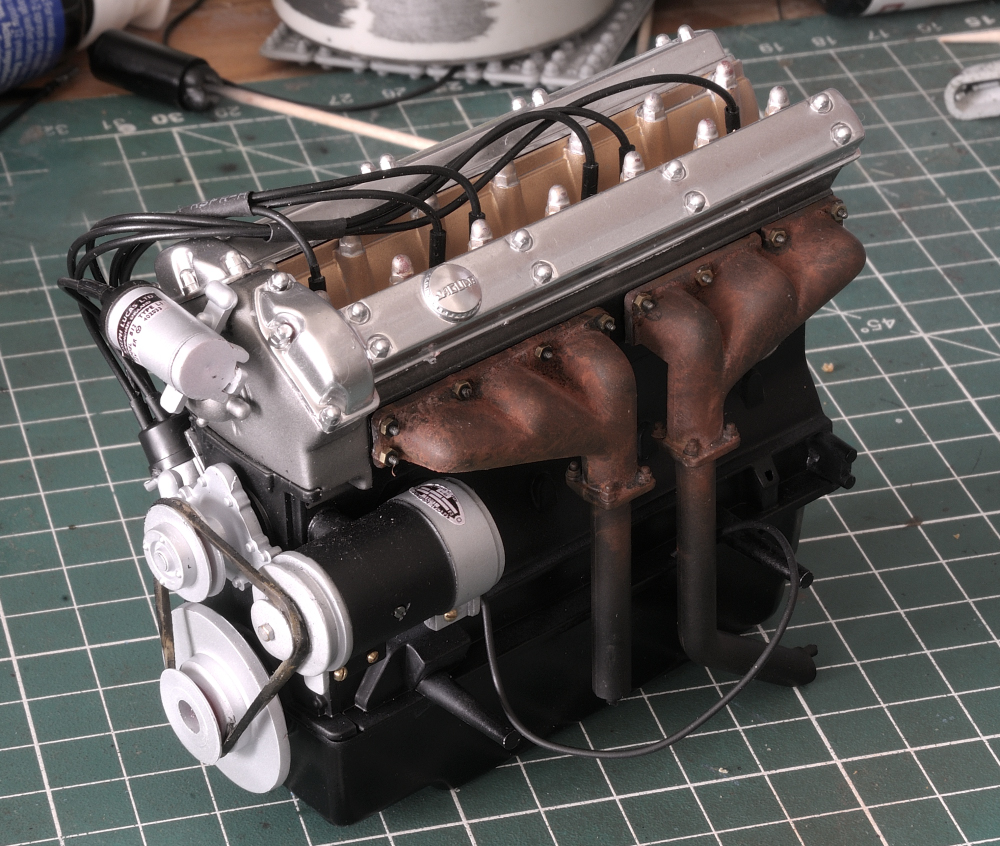

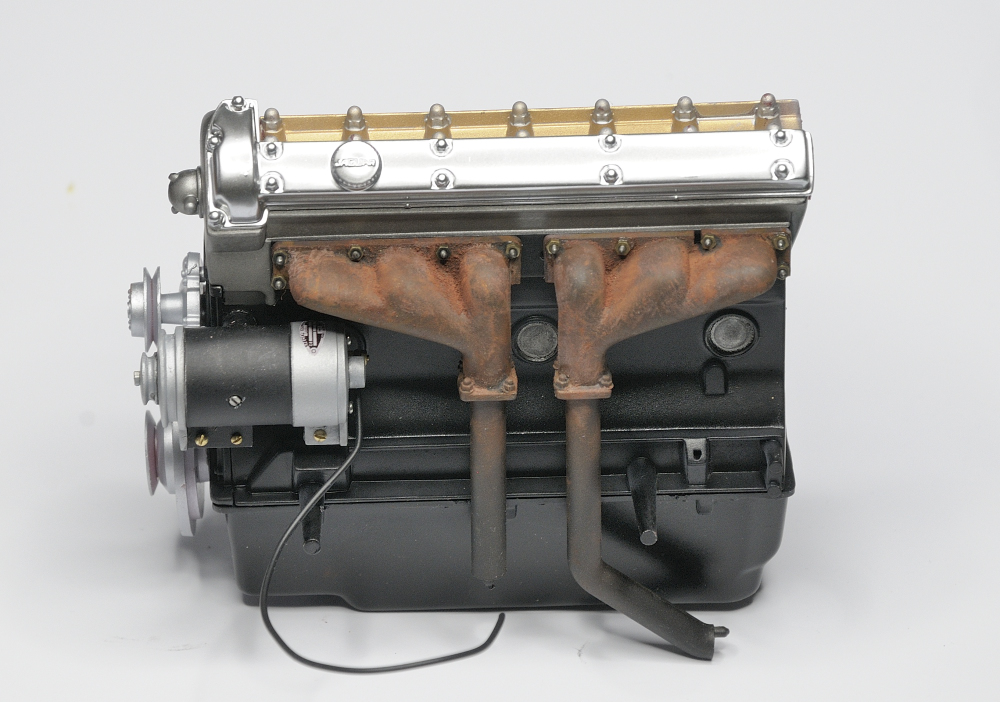

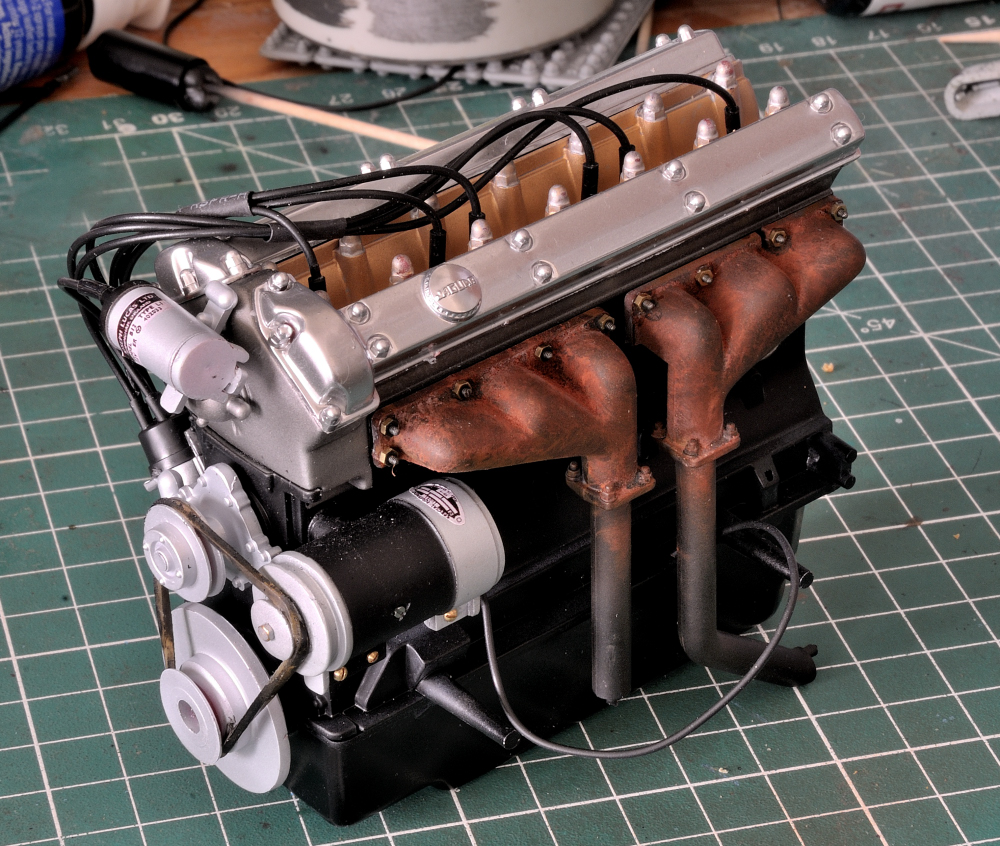

This is what i based it on, you can see the original black but maybe i have overdone the rust a bit
This is what i based it on, you can see the original black but maybe i have overdone the rust a bit
Last edited:
Heavens Eagle
Well-known member
Looking REALLY GOOD Paddy!
Greg Kimsey
Well-known member
Oh, to have these skills and knowledge. Absolutely marvelous Paddy. Just marvelous
jeaton01
Well-known member
I'm sure by now the enamel is all off the ones I used to have, Paddy. Mine maybe ran cooler than others because I frequently set the mixture. I was careful about that because several times when I was at the British Motors dealer there was a hapless individual holding up a piston with a hole in it saying why did my car do this? Setting the mixture for the two middle cylinders was difficult because they were fed from three carburettors but there were only two exhaust notes to listen to.
Brokeneagle
Master at Arms
That looks great Paddy!
What a difference. Looks good.
Heavens Eagle
Well-known member
Looking good!
paddy
Well-known member

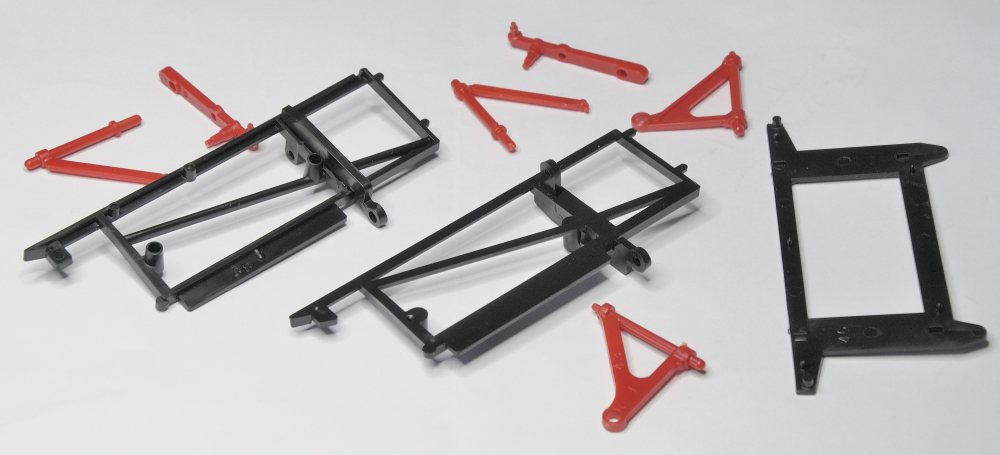

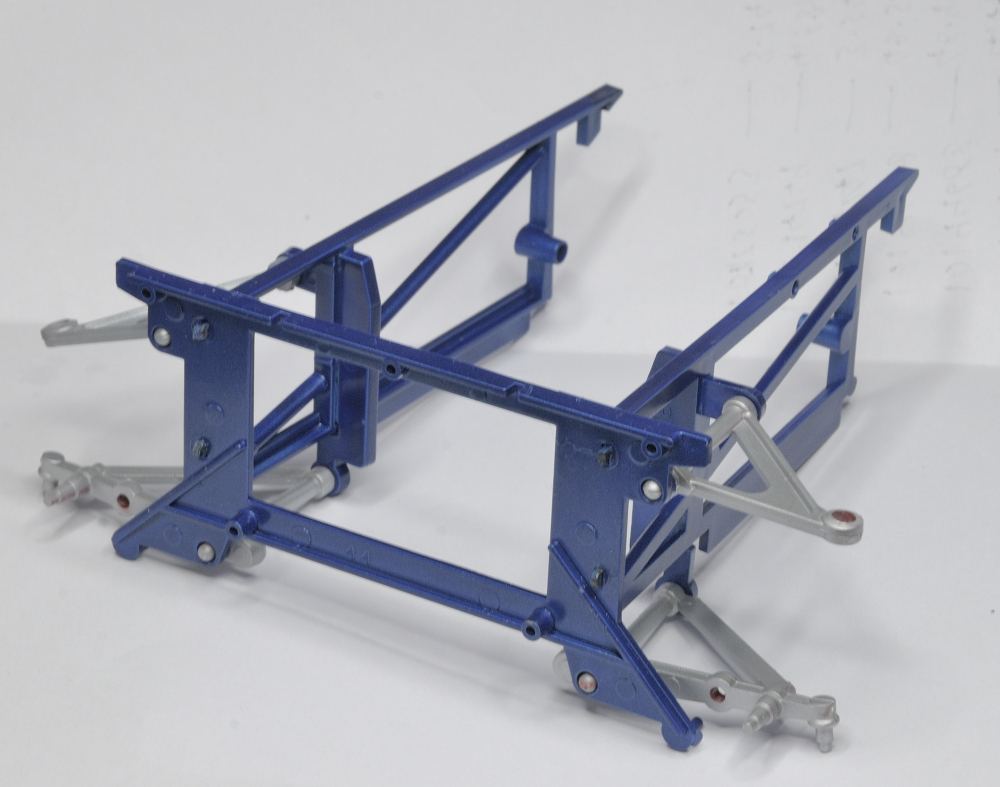

Front Chassis .
My decision to go for Blue does complicate things as Red would be a lot easier on the Red plastic however blue looks better in high gloss i think.....we shall see
Parts are quite nice and do fit well

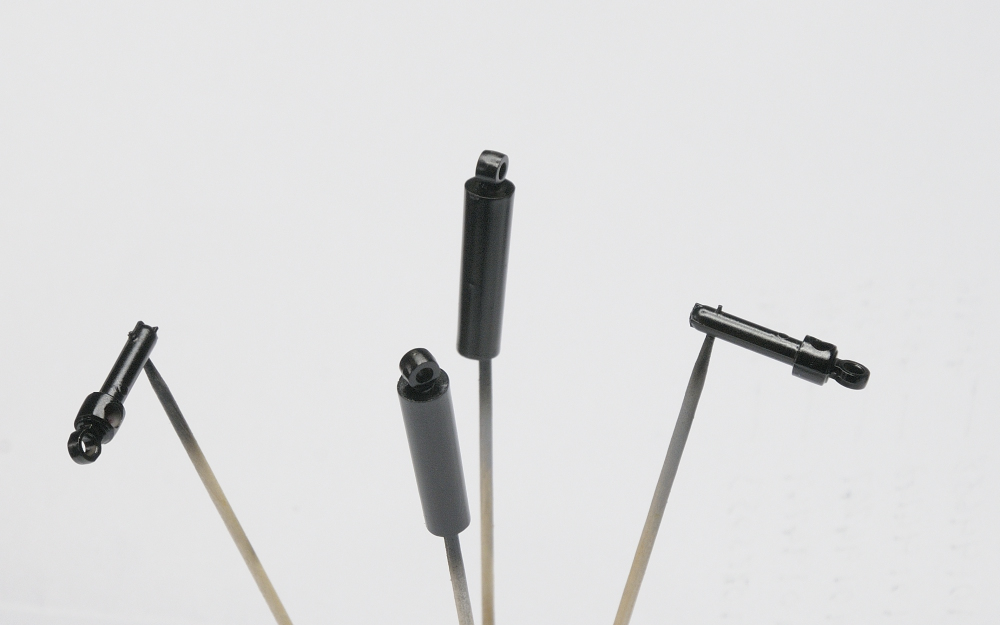

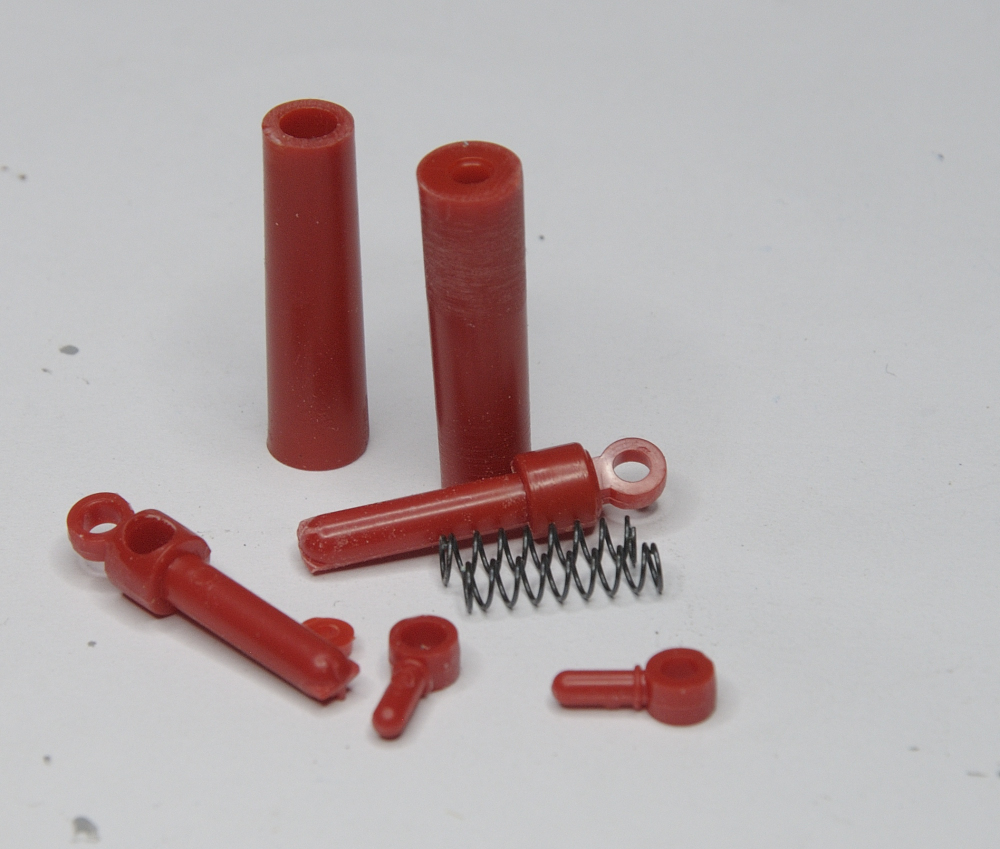

Shocks are basic but when i did a search on the web for E-type shocks...they were very basic. I have to remind myself this was 60 years ago ..

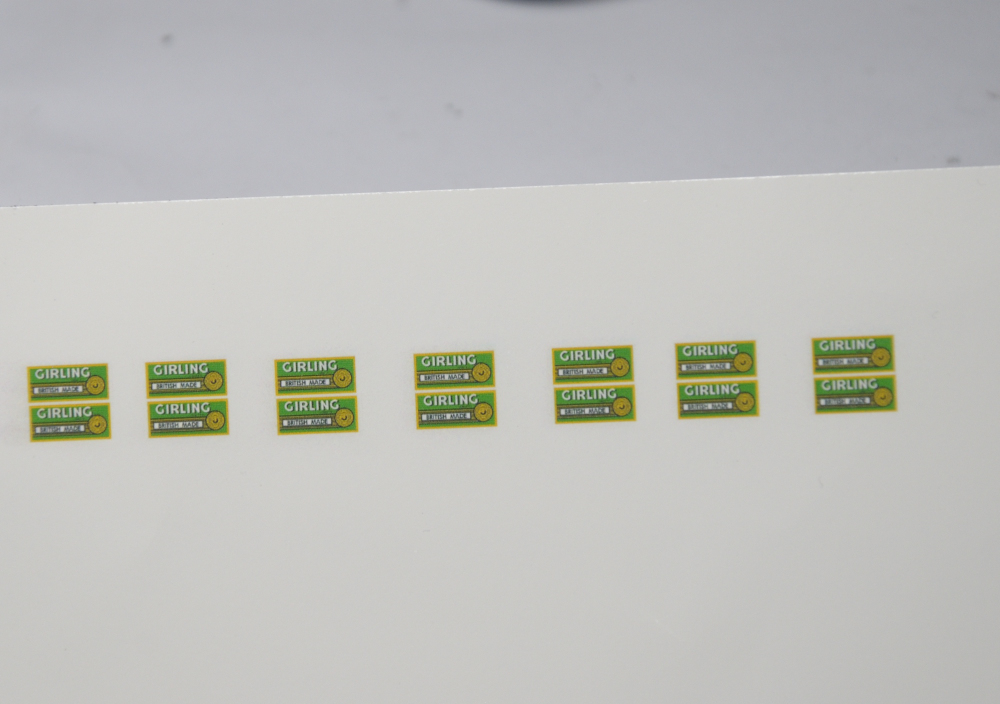

I have made the decals. These are period Girling labels
These are about 6mm long and of course are two per decal. I have some decal fixer from microscale but it doesnt spray well on to this gloss decal paper, tends to bead and looks to thick if you brush it so i need to find a way to get it to sit better after spraying.
My decision to go for Blue does complicate things as Red would be a lot easier on the Red plastic however blue looks better in high gloss i think.....we shall see
Parts are quite nice and do fit well
Shocks are basic but when i did a search on the web for E-type shocks...they were very basic. I have to remind myself this was 60 years ago ..
I have made the decals. These are period Girling labels
These are about 6mm long and of course are two per decal. I have some decal fixer from microscale but it doesnt spray well on to this gloss decal paper, tends to bead and looks to thick if you brush it so i need to find a way to get it to sit better after spraying.
