1/48 Lockheed CP-140 Aurora

paddy said:
What a totally absorbing thread... fantastic. Before i set up on my own with motorcycles i spent 35 years as a tool maker turning mad boffins ideas into reality :)
I look at your dial gauge Vernier's and scribing templates and it brings it all back except i did it in sheet alloy. I am so tempted to give vac a go but maybe i am a little too set in my ways now to start a whole new genera of model making. For example i have never cast anything and filling and sanding is pure witchcraft to me :cool:
Click to expand...
Do it!
if I can build them anyone can.
it does take patience and some planning to not build one’s self into a corner but the nice thing is that if/when a mistake happens…just sheet plastic over it, putty, sand it back and carry on.
oh ya, and have a massive spare parts box(es)

We're on the same page. Mastering an object (sailing ship hull, carburetor, hot food container) is just a matter of geometric shapes in the proper size in different combinations. A scale drawing from a "Mad Boffin" with a scale simplifies that stage immensely. Anyone that wanted to could do it. Making molds and casting is something a smart monkey could easily do. I learn a lot more from failure than I do from success. I like "Success" Better!! Don't we all?
Chris has been building stunning aircraft for AGES. Not so unlike the guys from the dawn of scale modeling, if you will.

Vac-forms? Resin? My unfinished Airmodel 1/72 Super Crusader awaits more attention. The resin Anigrand 1/72 Moonbat is still here. Waiting.
A really devoted modeler would finish both models. I could be getting complacent (lazy?) in my old age.

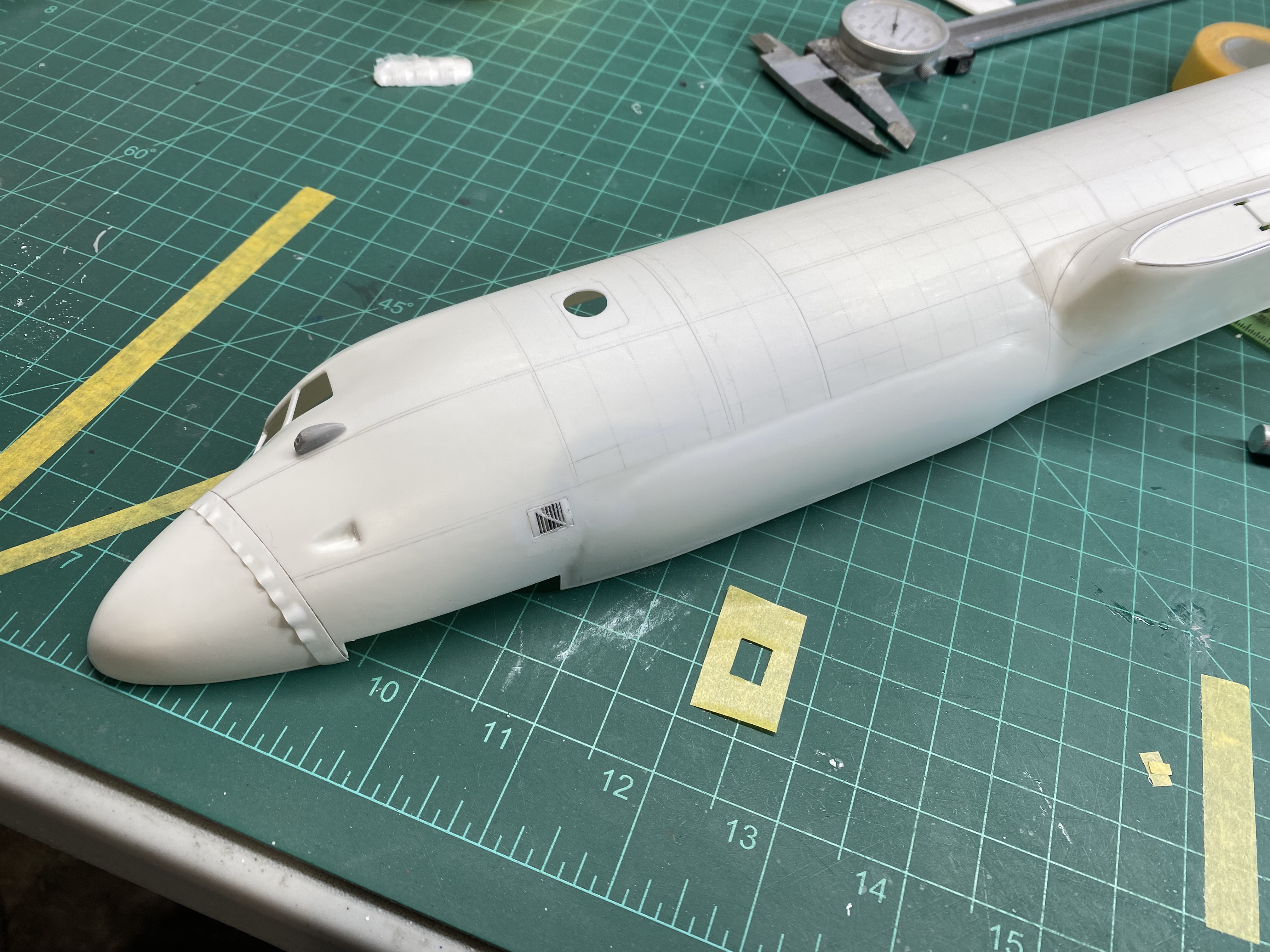

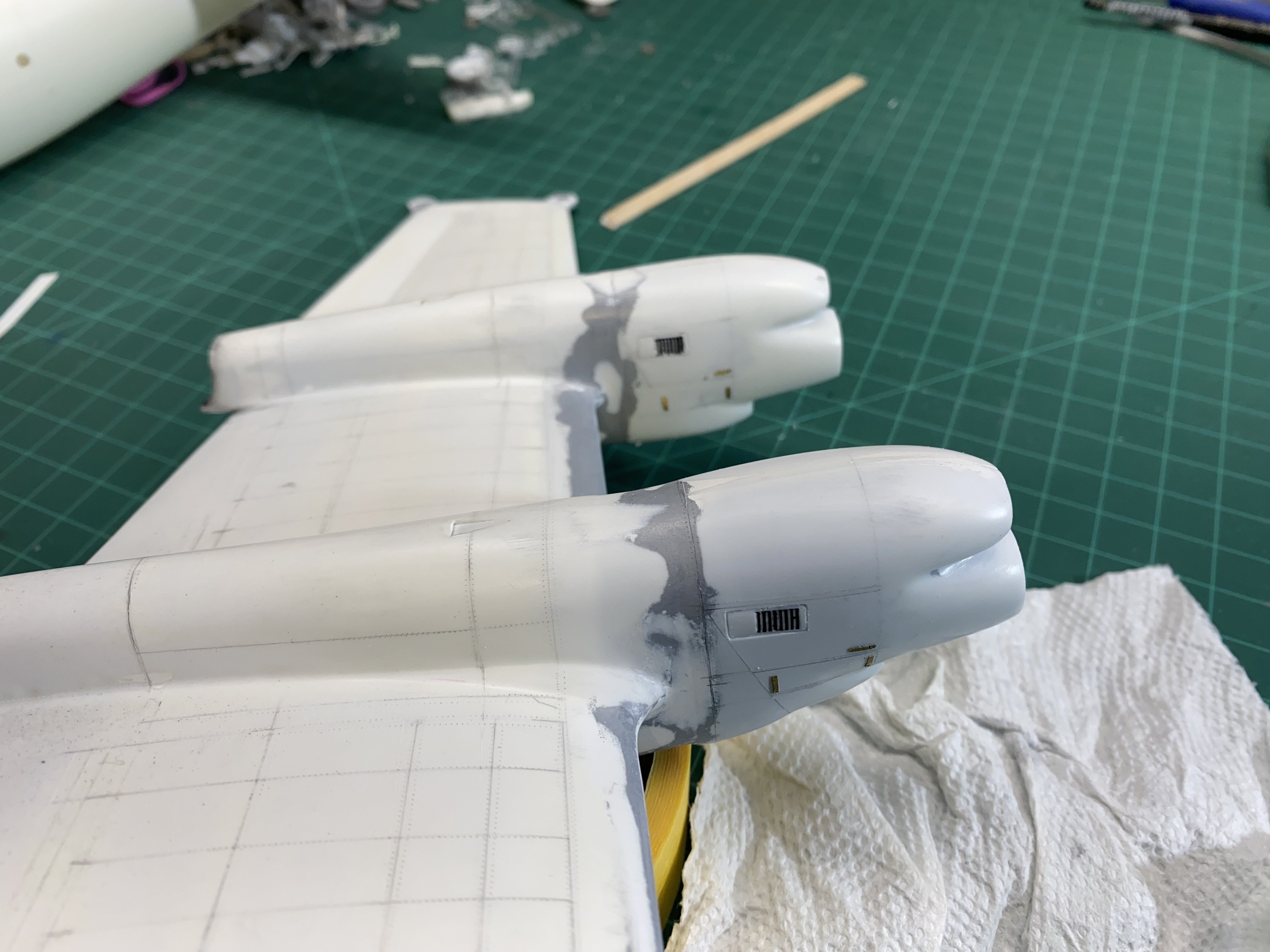

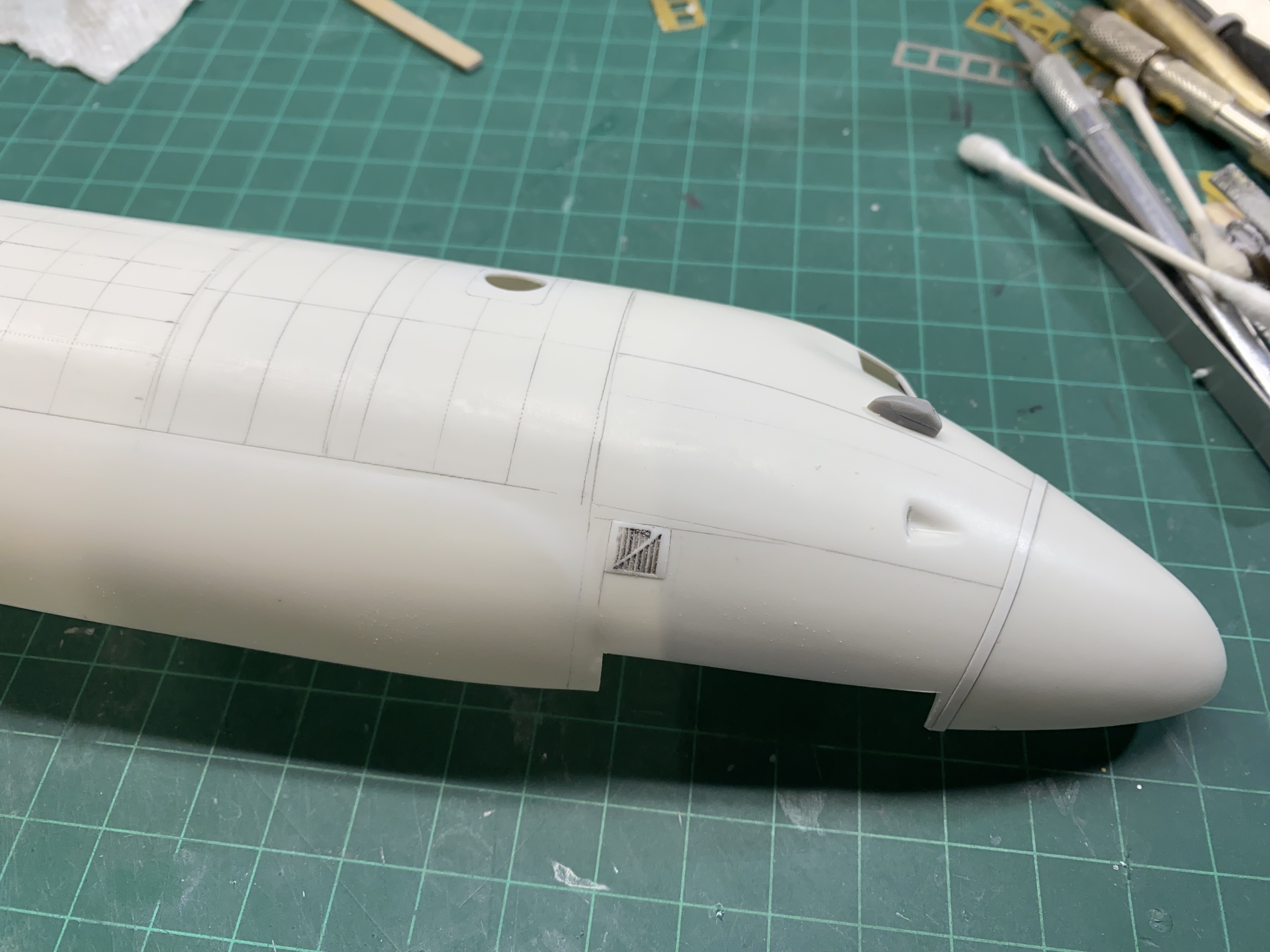

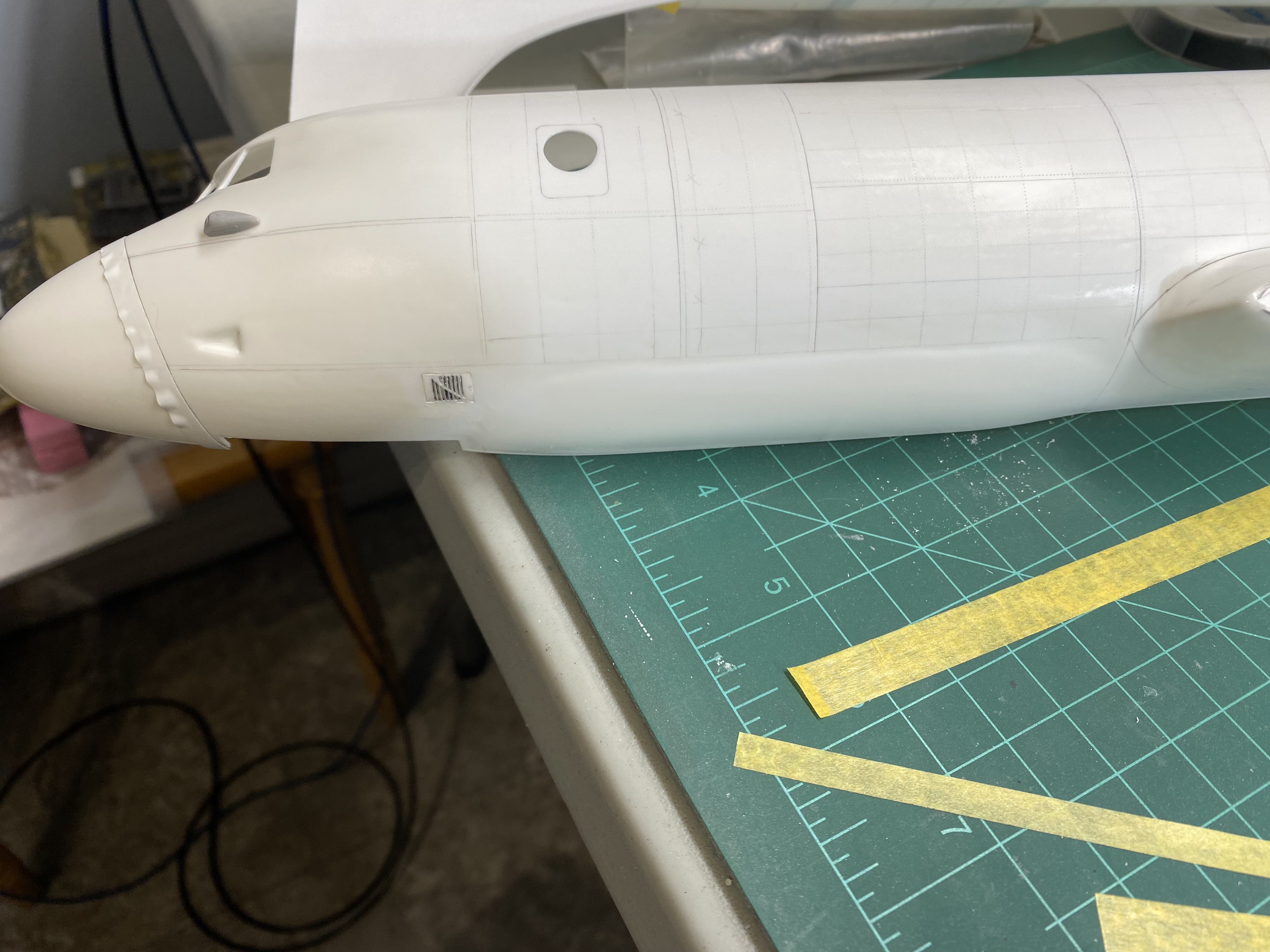

I've made some resin copies of the vents from the F-18, sawed them up and fitted them to the CP-140




Thanks for looking

I’ve begun fitting the “empennage“ this required either sanding the root fairings to an acceptable thickness or increasing the thickness of the horizontal stabilizer about 25% I knew the issue existed earlier and packed the insides of the root fairings with material so I’d be able to sand them thinner. In the end I took an entirely different path, I made a filler to go between the root fairings and the stabilizer out of a shim of .080” thick sheet tapered it and glued it between the fuselage and the stabizer.

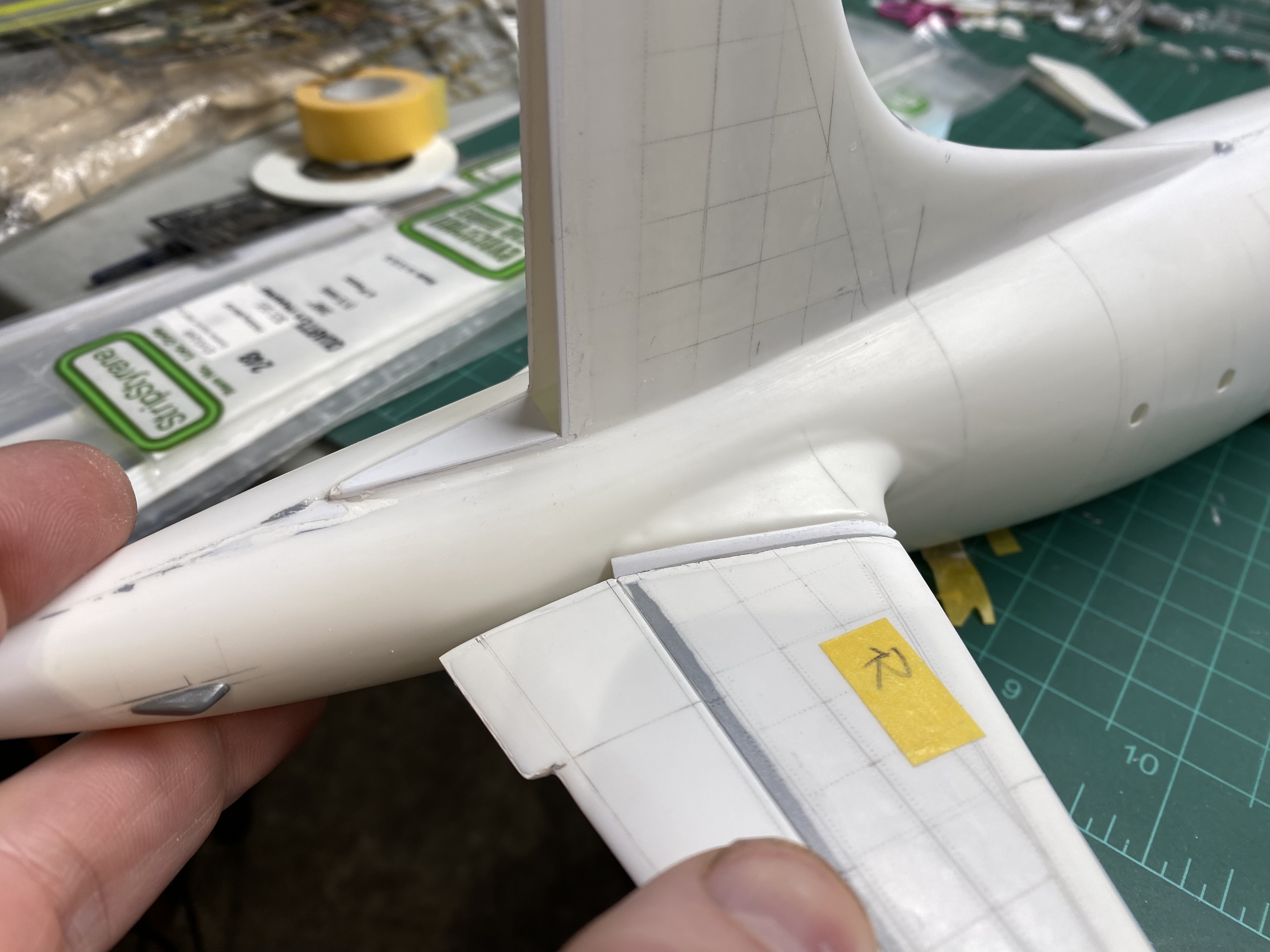

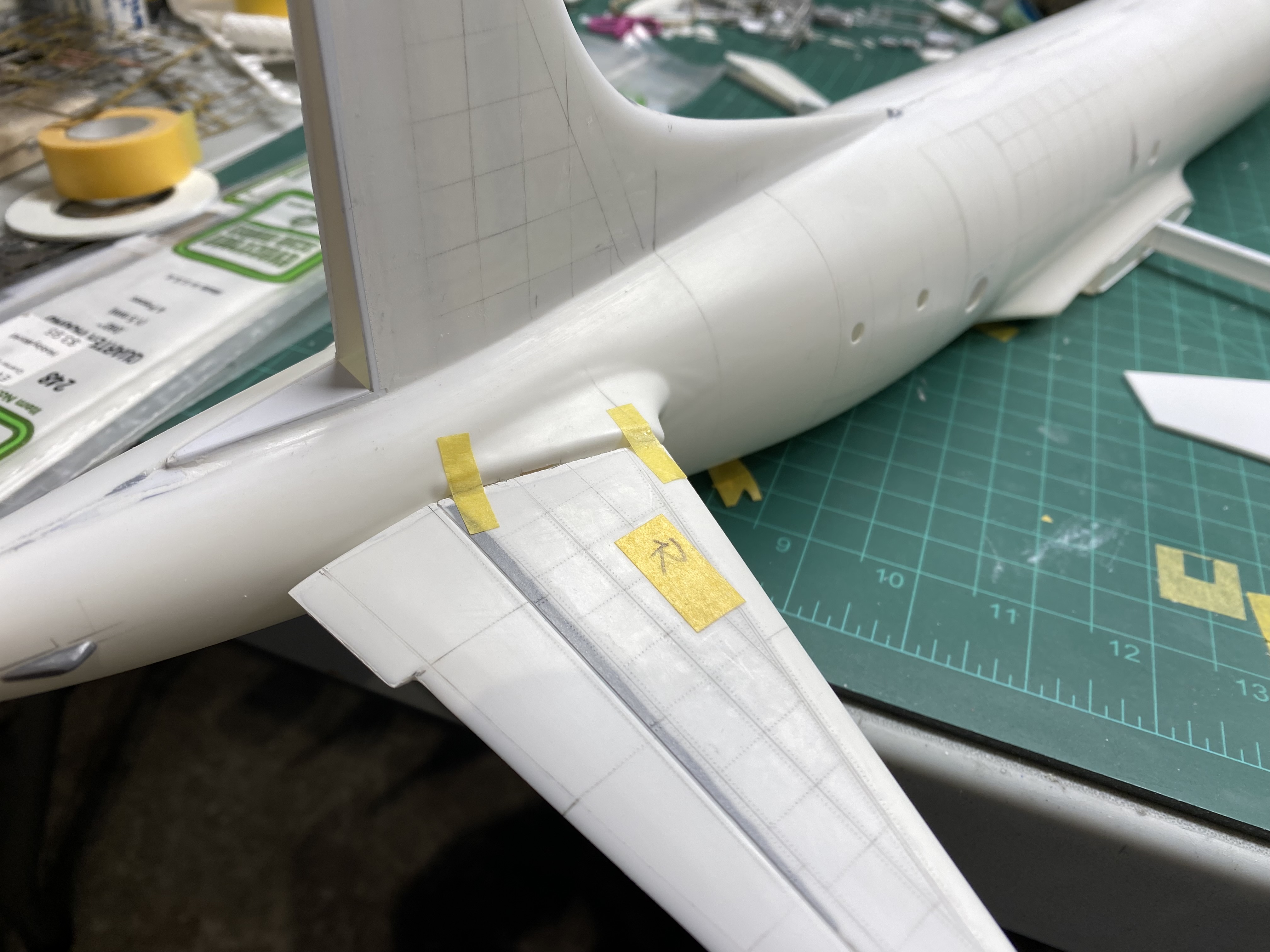

here’s the stab. placed against the root



the filler being worked on

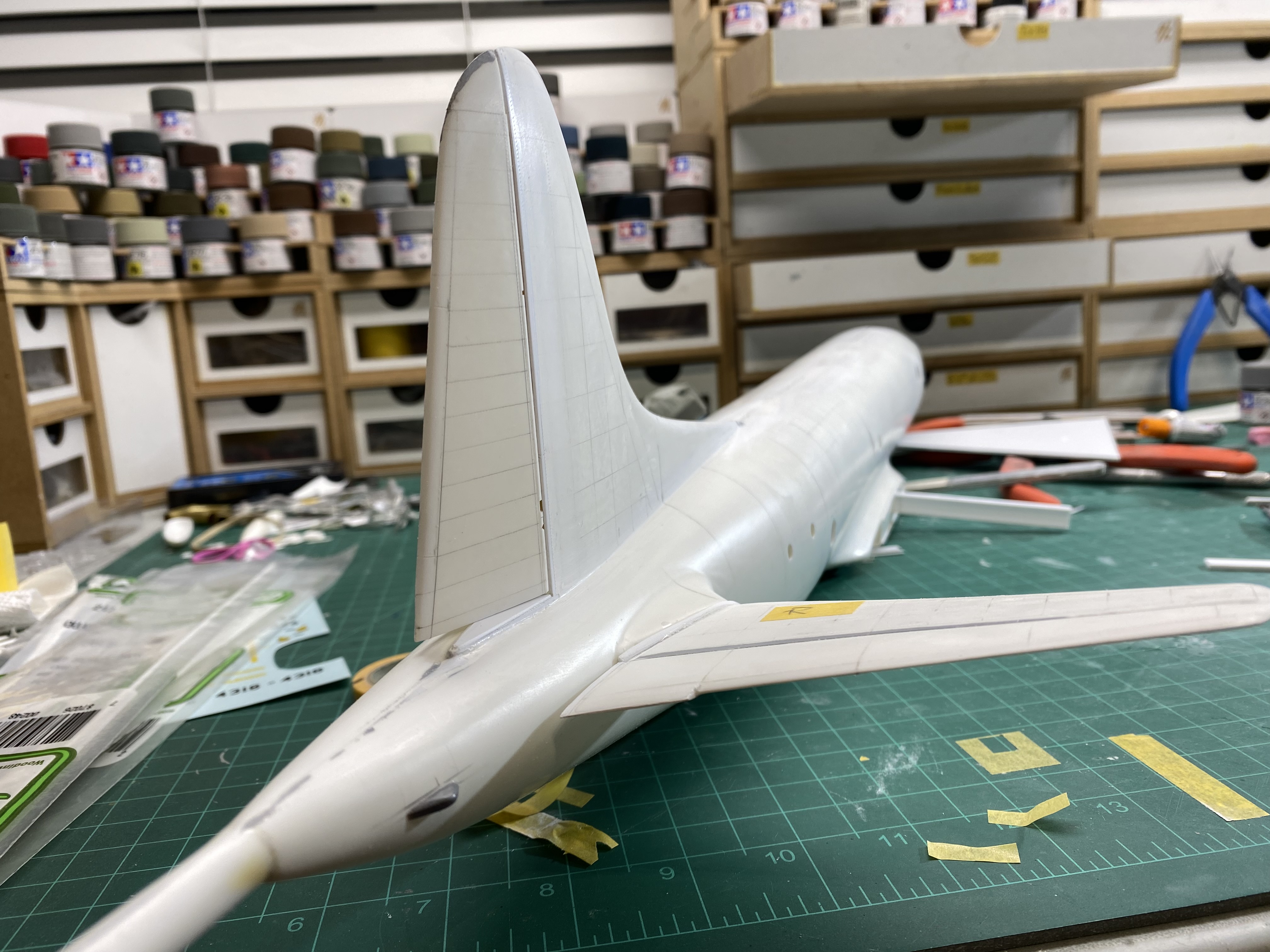

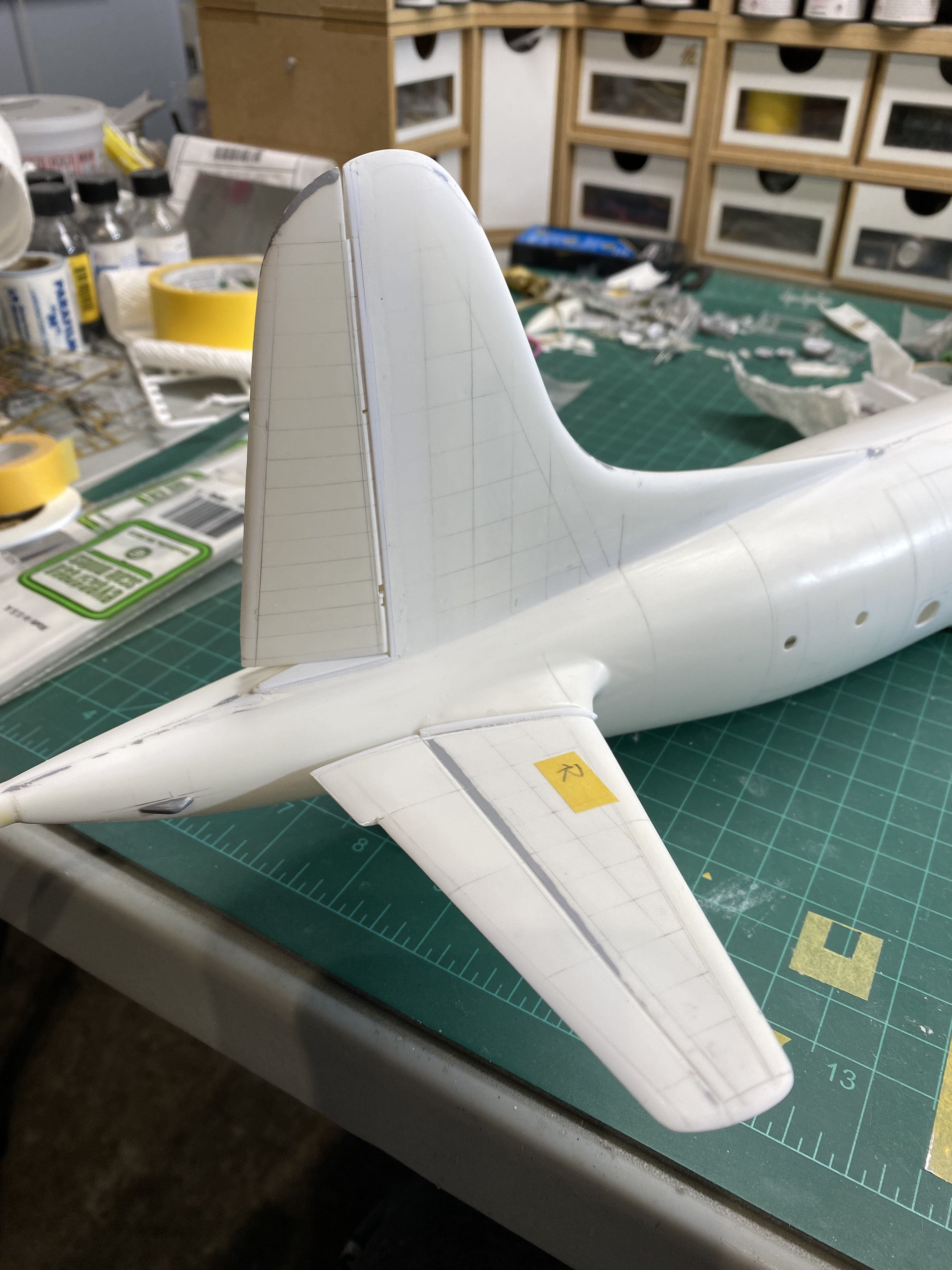

glued in place and filler added


much more to do but it’s progress(ish)
thanks for looking

I do appreciate the "somewhat misplaced" confidence in my modelling. I have in fact managed to fair in the tail feathers. I have also at this time drilled the lower fuselage for the sonobuoy launch tubes, not sure yet weather I'll add tubes to them or just leave the holes and paint them black

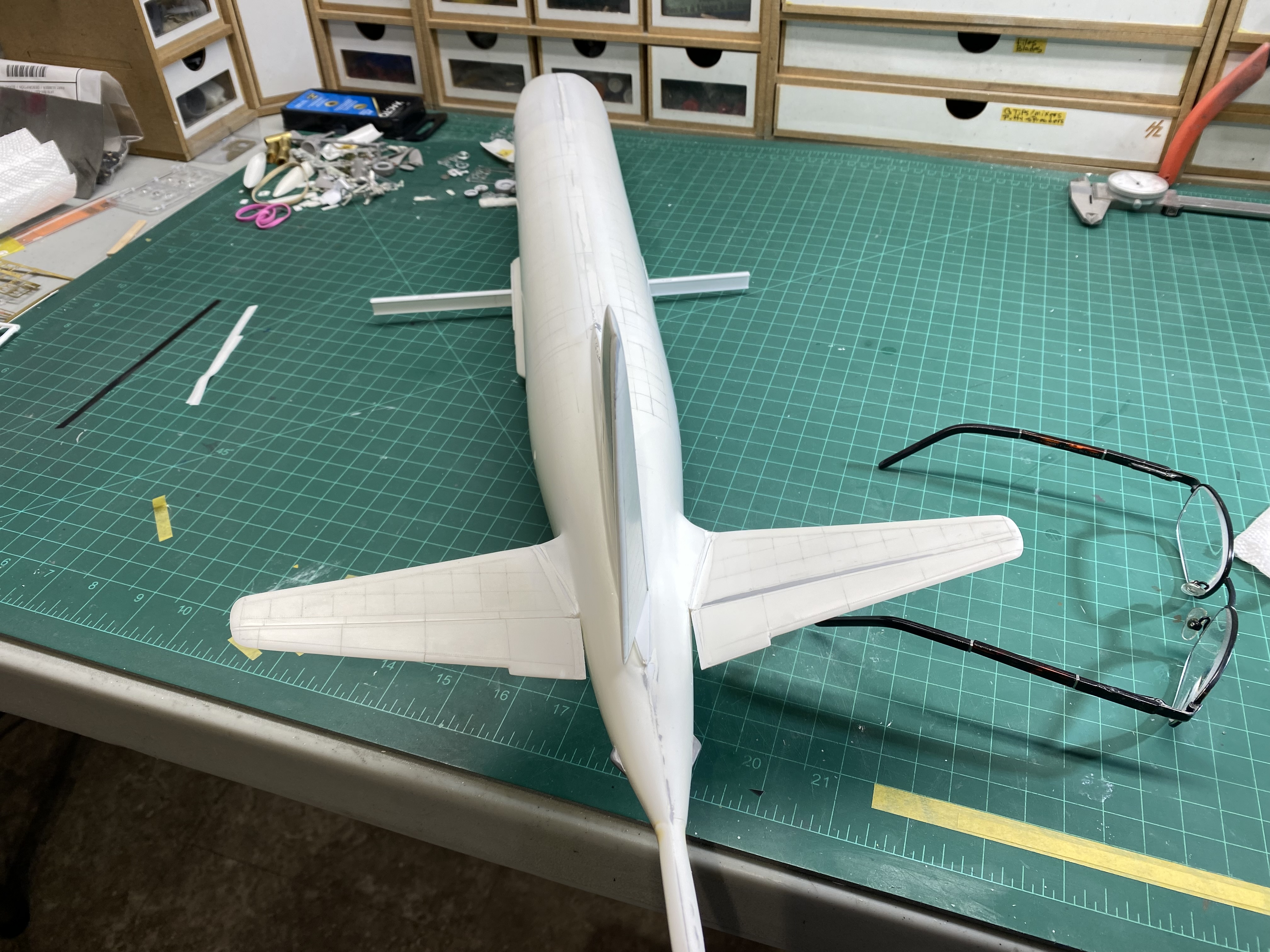

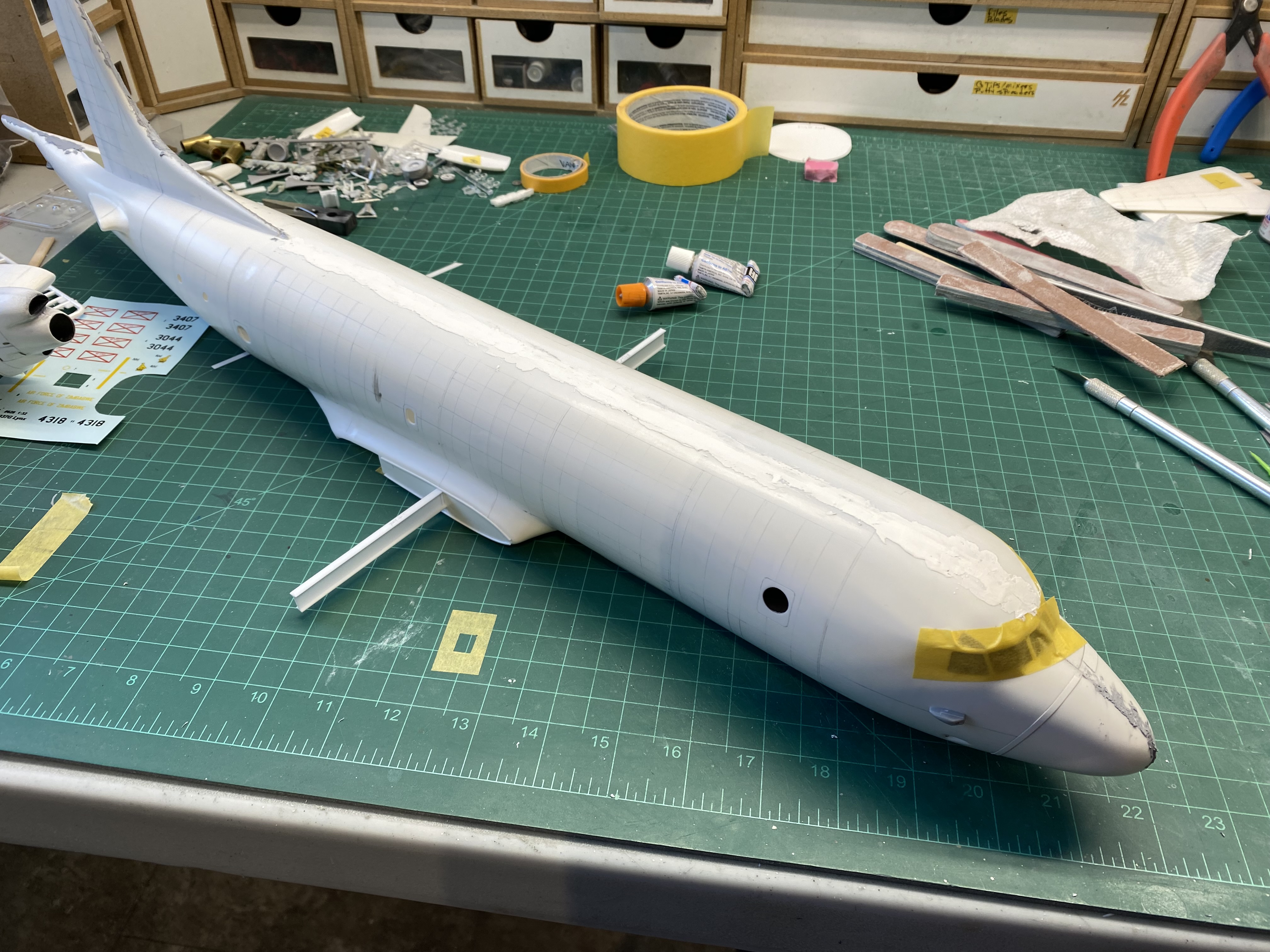

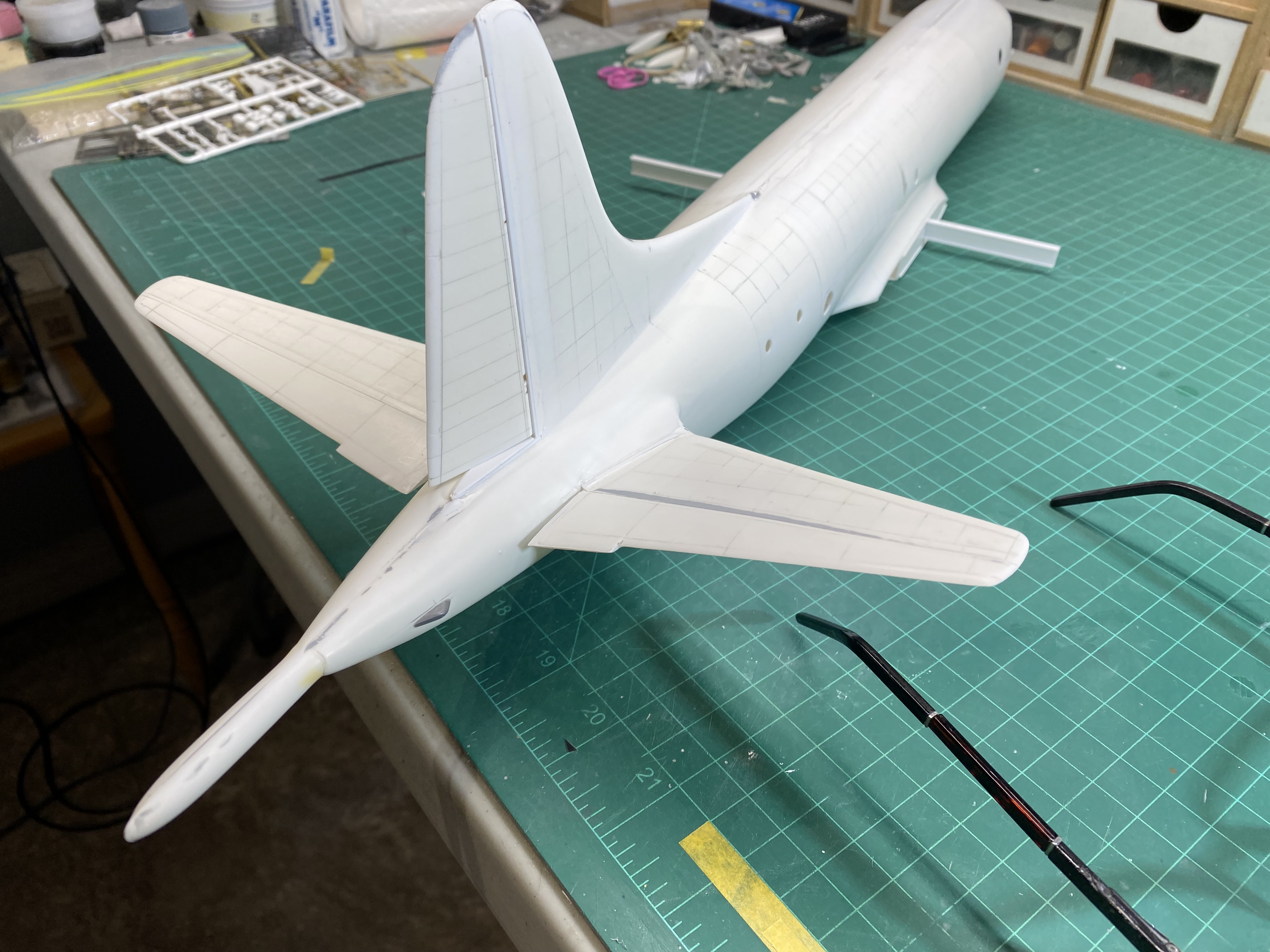

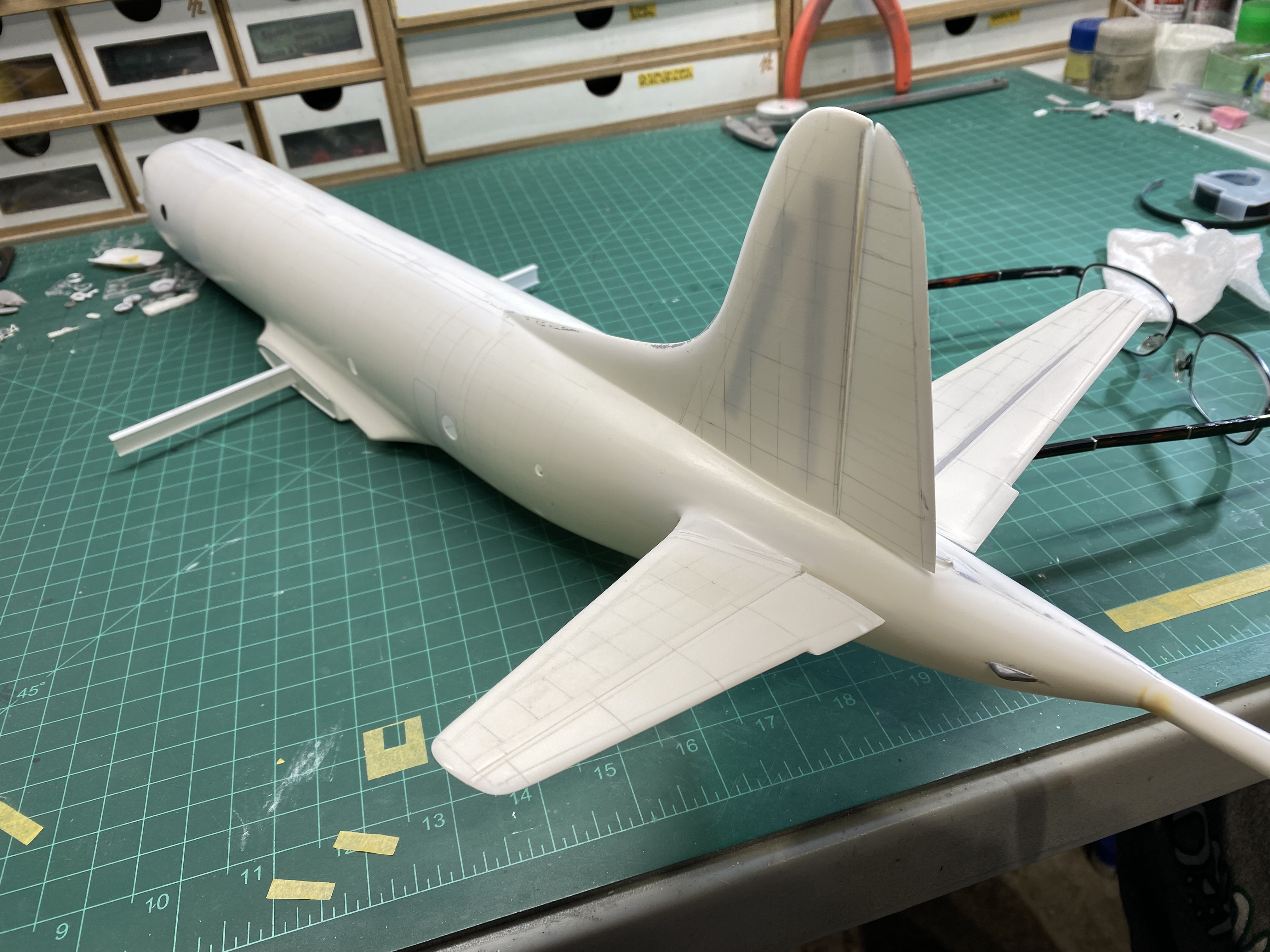

A couple of pics of the project as it stands at quitting time tonight;





Thats all for now
Thanks for looking

Thanks for the encouragement, it really helps push the build ahead!

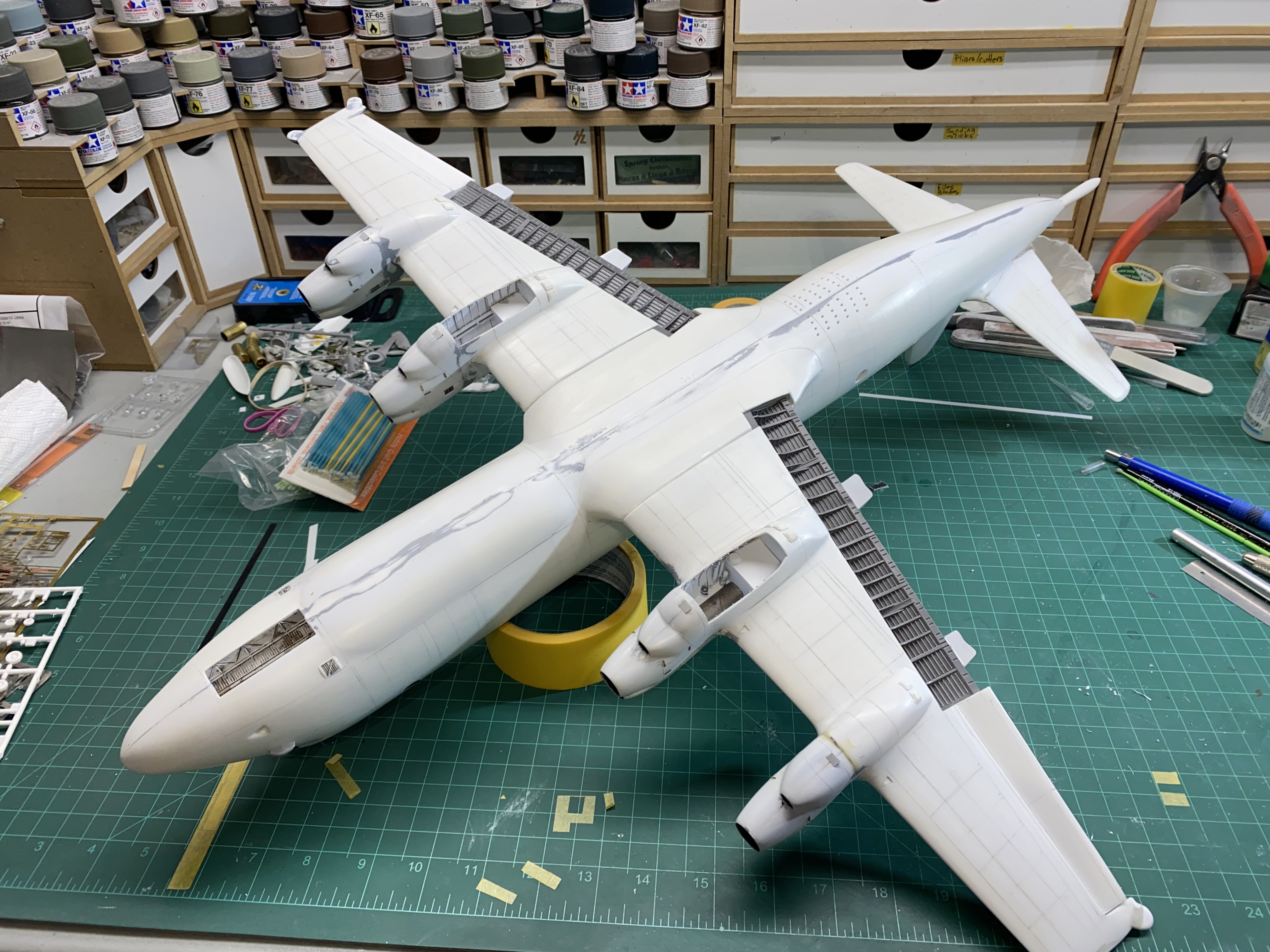

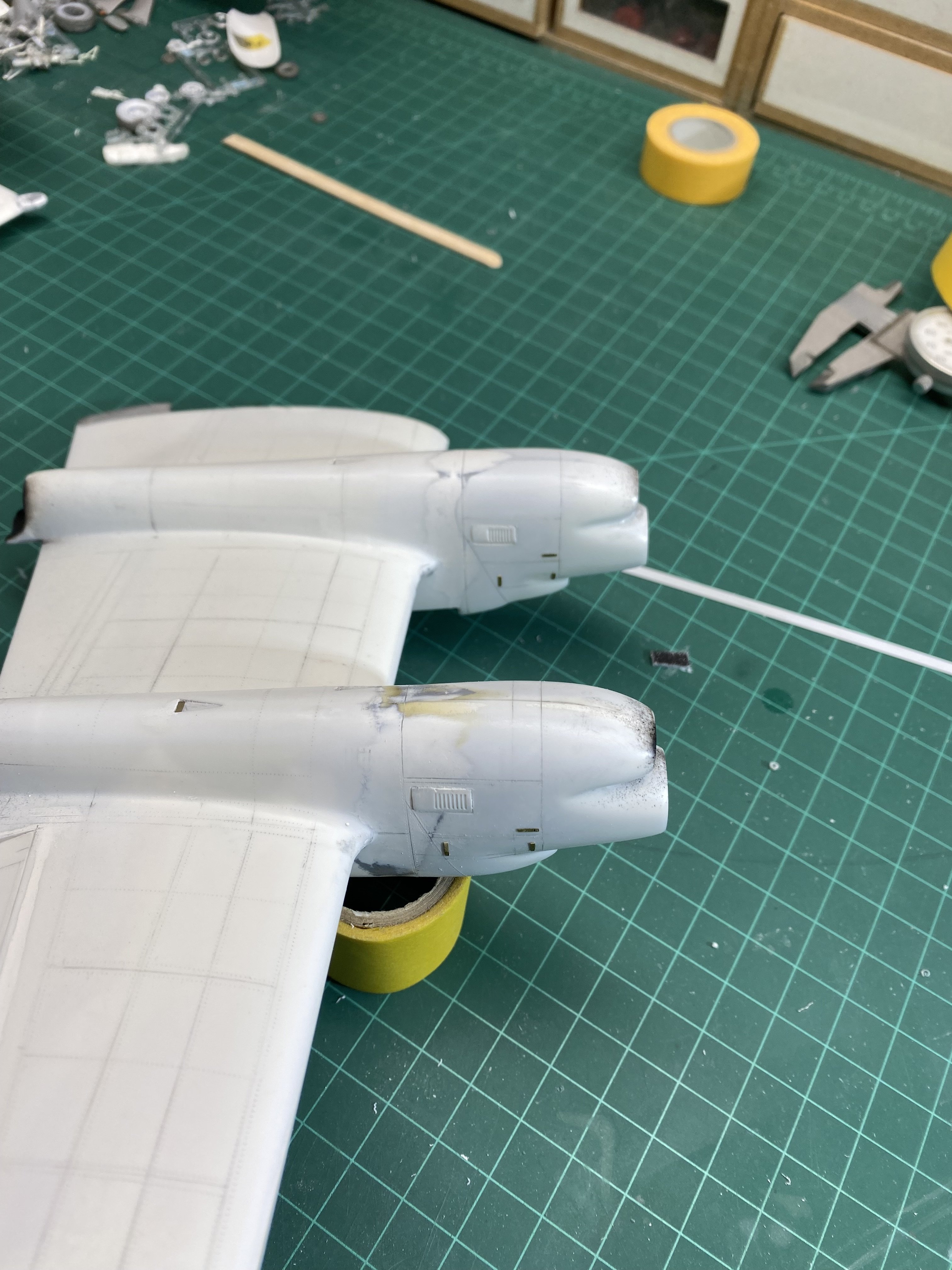

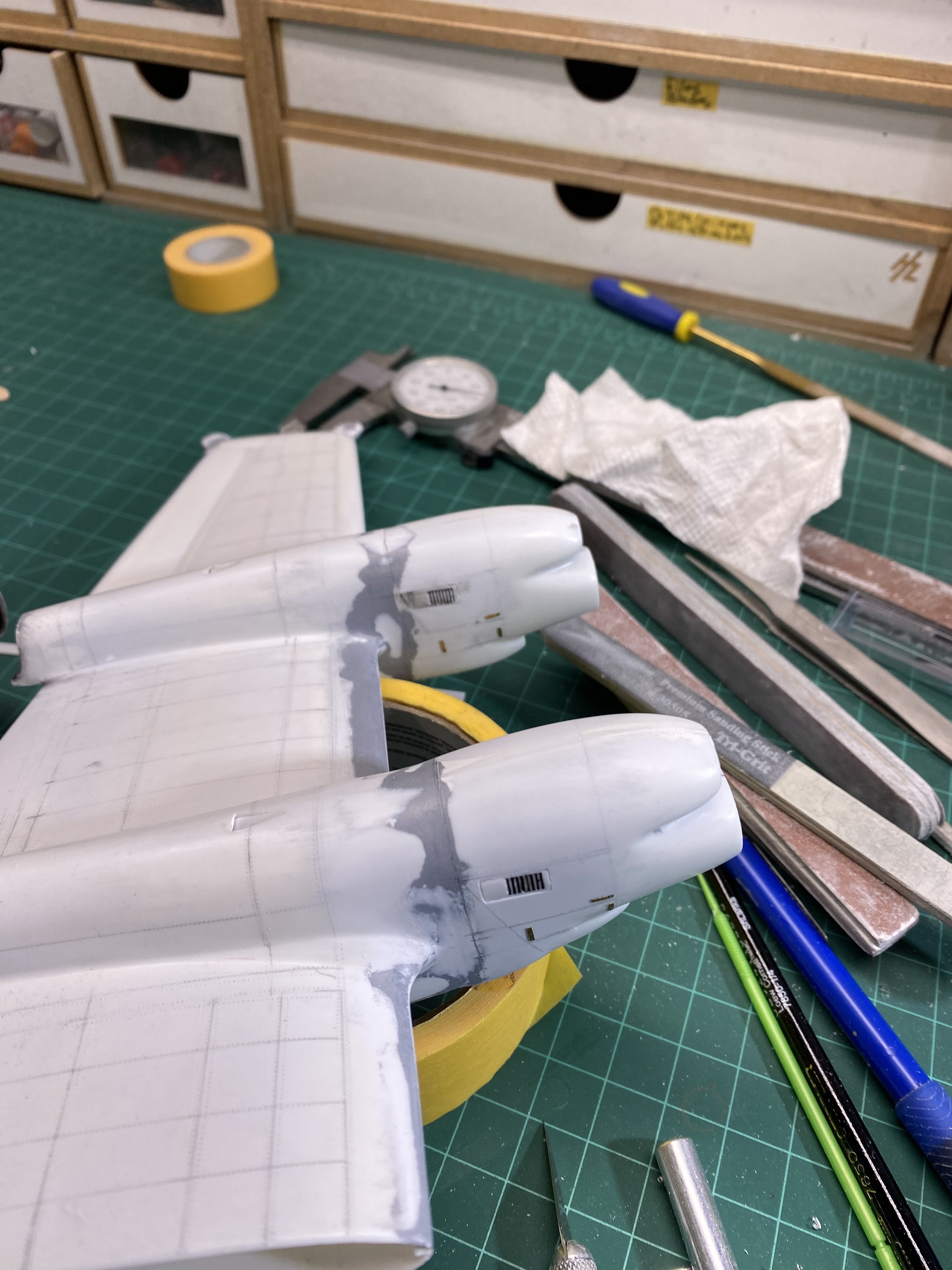

I made a decision to add some vents to the engines, not true to scale but approximately right(ish)

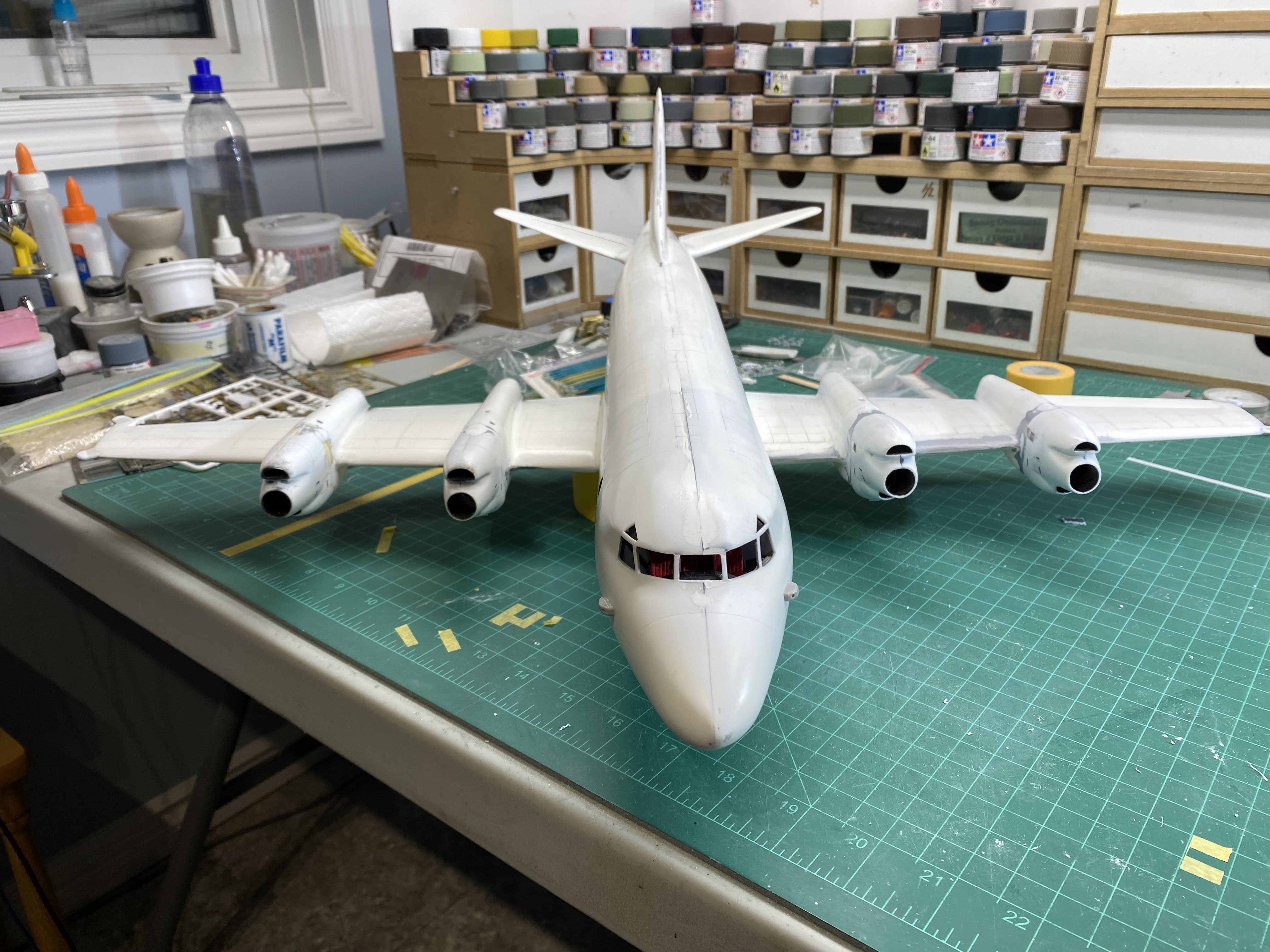

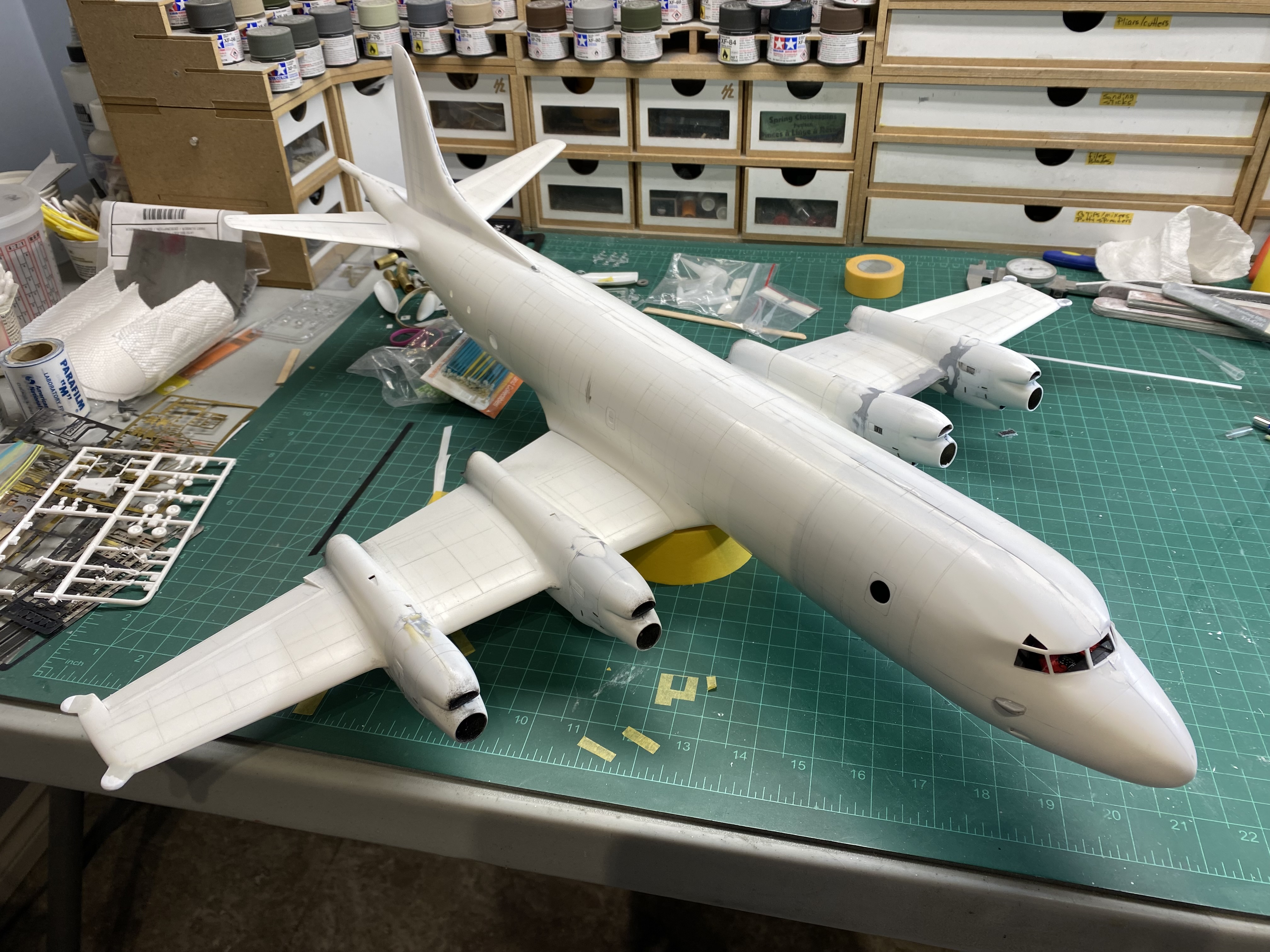

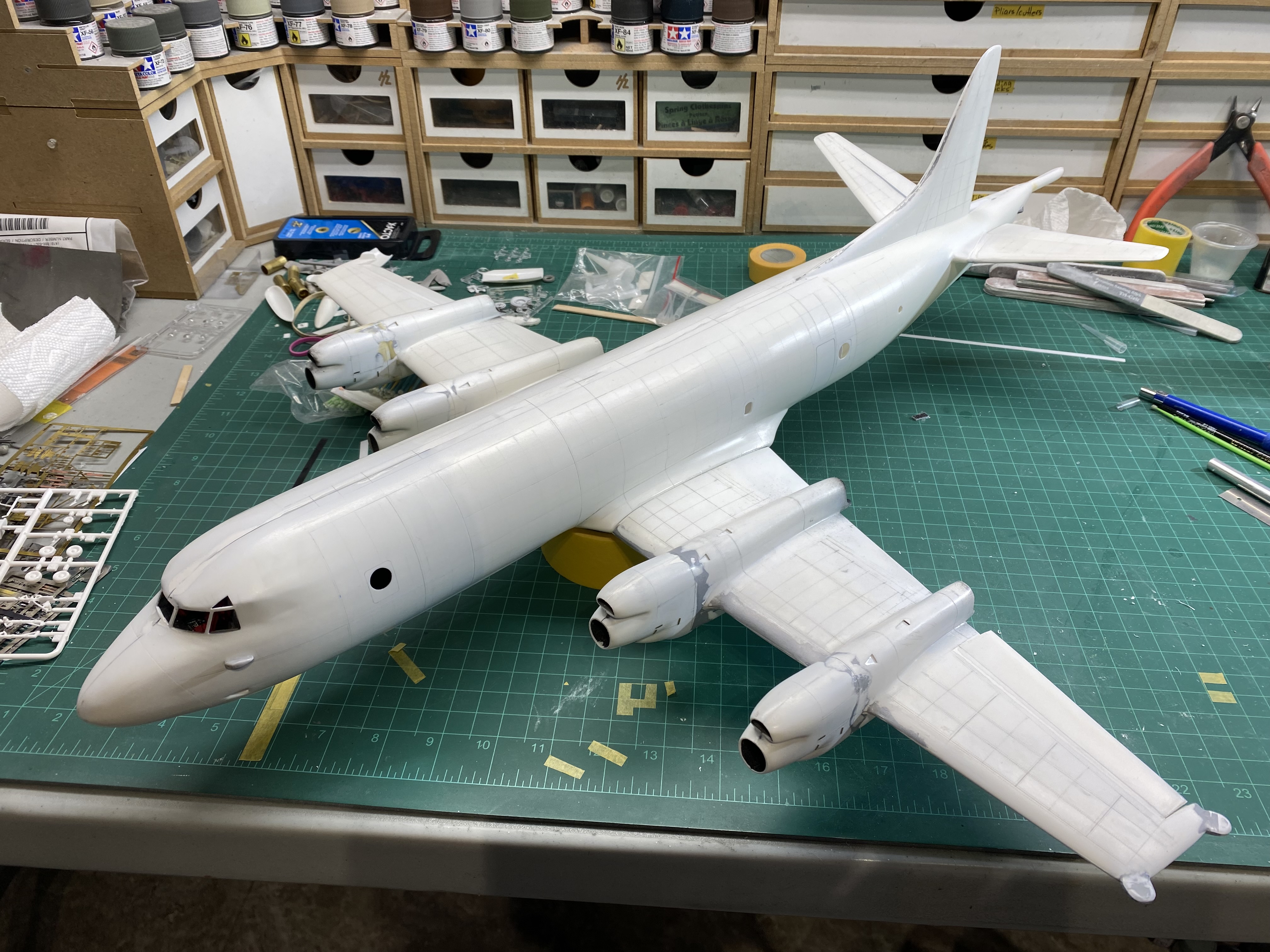

and now the happy (for me anyway) news...she's an assembly;






going to need some filler on the roots but for the most part it's a good fit
Thanks for looking

Rhino said:
Red Boats tremble at the sound of his approach. Very interesting so far! :good:
Click to expand...
It's funny how far you can hear these.
Several years ago when working outside I would hear a very heavy aircraft overhead. Being the guy I am I'd stop and look around and not see anything. Not really a schedule but it was often, most times I was out side. Along comes the internet age and we're able to pull up sites like this

ADS-B Exchange - track aircraft live

ADS-B Exchange - track aircraft live - aircraft flight history
globe.adsbexchange.com globe.adsbexchange.com
So the day came and I heard it flying. I ran inside to see if I could find what was flying. Sure nuff, it was a P3 coming out of the Lockheed Martin depot in Donaldson Center. They regularly service them. Not so much now, seeing the P8s now and you don't hear them.

moon puppy said:
It's funny how far you can hear these.
Several years ago when working outside I would hear a very heavy aircraft overhead. Being the guy I am I'd stop and look around and not see anything. Not really a schedule but it was often, most times I was out side. Along comes the internet age and we're able to pull up sites like this

ADS-B Exchange - track aircraft live

ADS-B Exchange - track aircraft live - aircraft flight history
globe.adsbexchange.com globe.adsbexchange.com
So the day came and I heard it flying. I ran inside to see if I could find what was flying. Sure nuff, it was a P3 coming out of the Lockheed Martin depot in Donaldson Center. They regularly service them. Not so much now, seeing the P8s now and you don't hear them.
Click to expand...
Weird....I was just looking at Big Plane Kits thinking of getting the 1/72 P-8 Poseidon...you reading minds again??
