Do-335 1/48th scale by Tamiya

The USN still uses the HLU-196 Bomb Hoist for loading patrol aircraft and on board carriers. 1500 lbs load with single point lift, 3000 lbs with dual point adaptor.

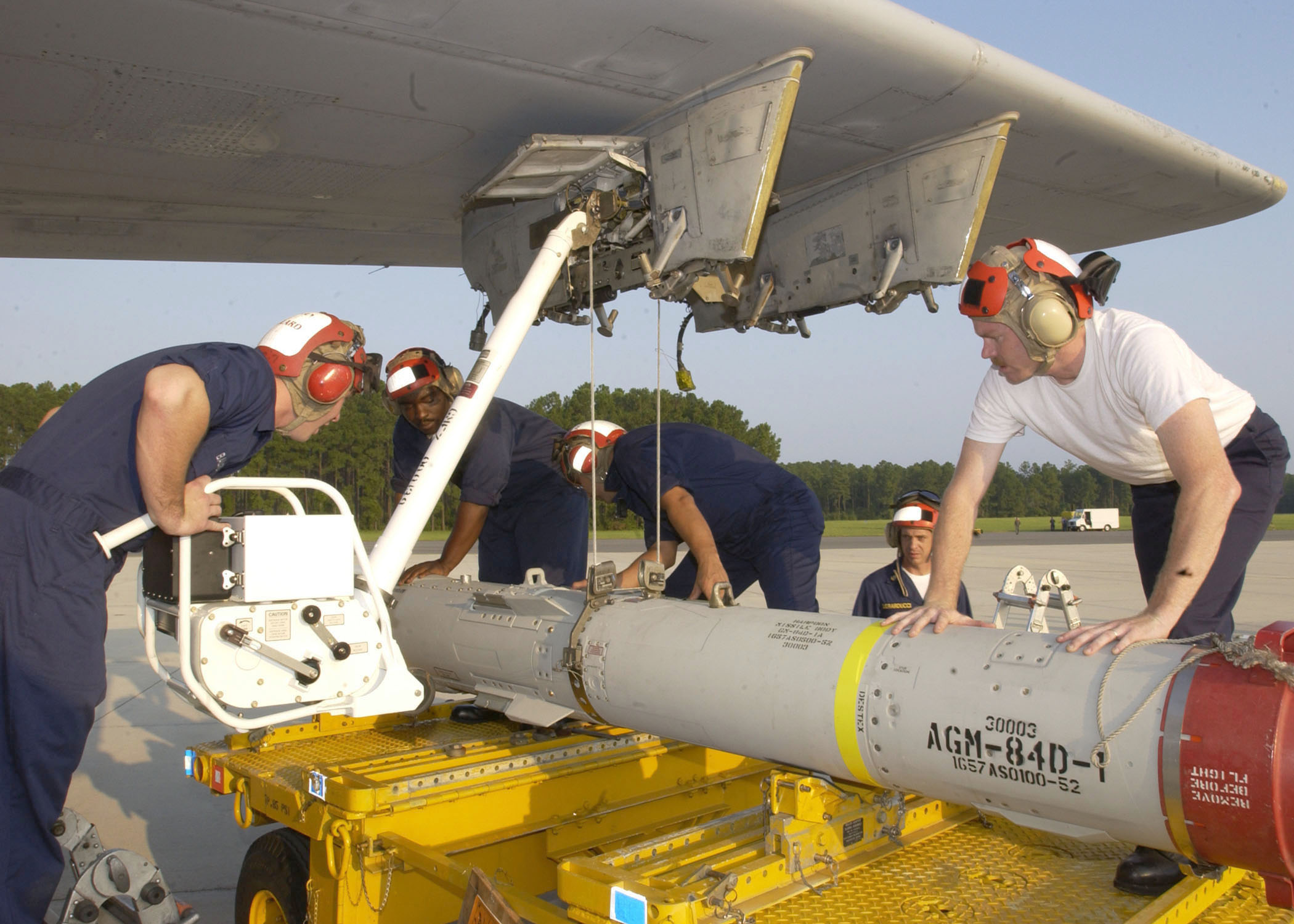

AGM-84 being loaded on a P-3 wing station.

P3 HLU196.jpg

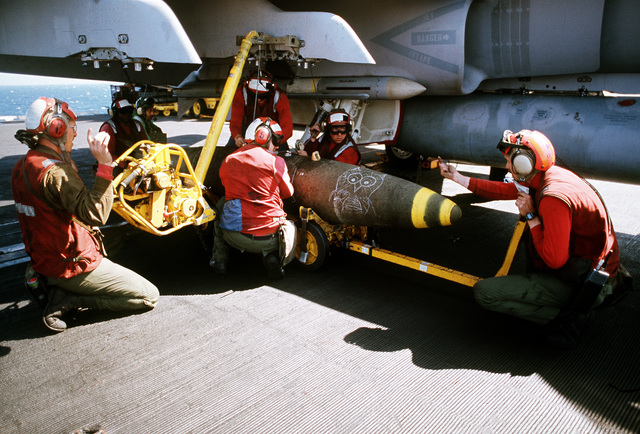

Mk 84 on F/A-18

an-ordnance-crew-member-uses-an-hlu-196-bomb-hoist-to-mount-a-mark-84-2000-183009.jpg


Cheers,
RichB

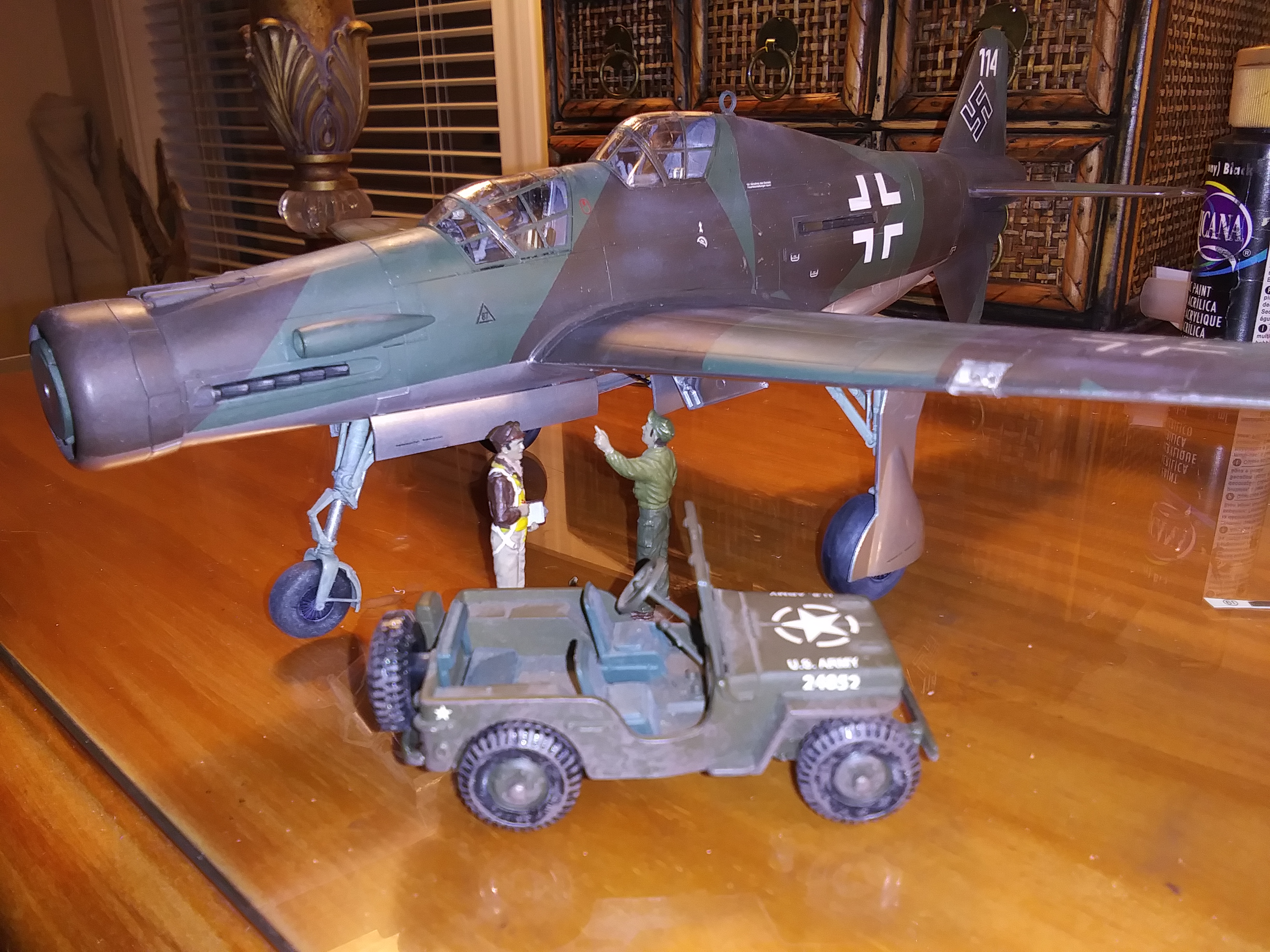

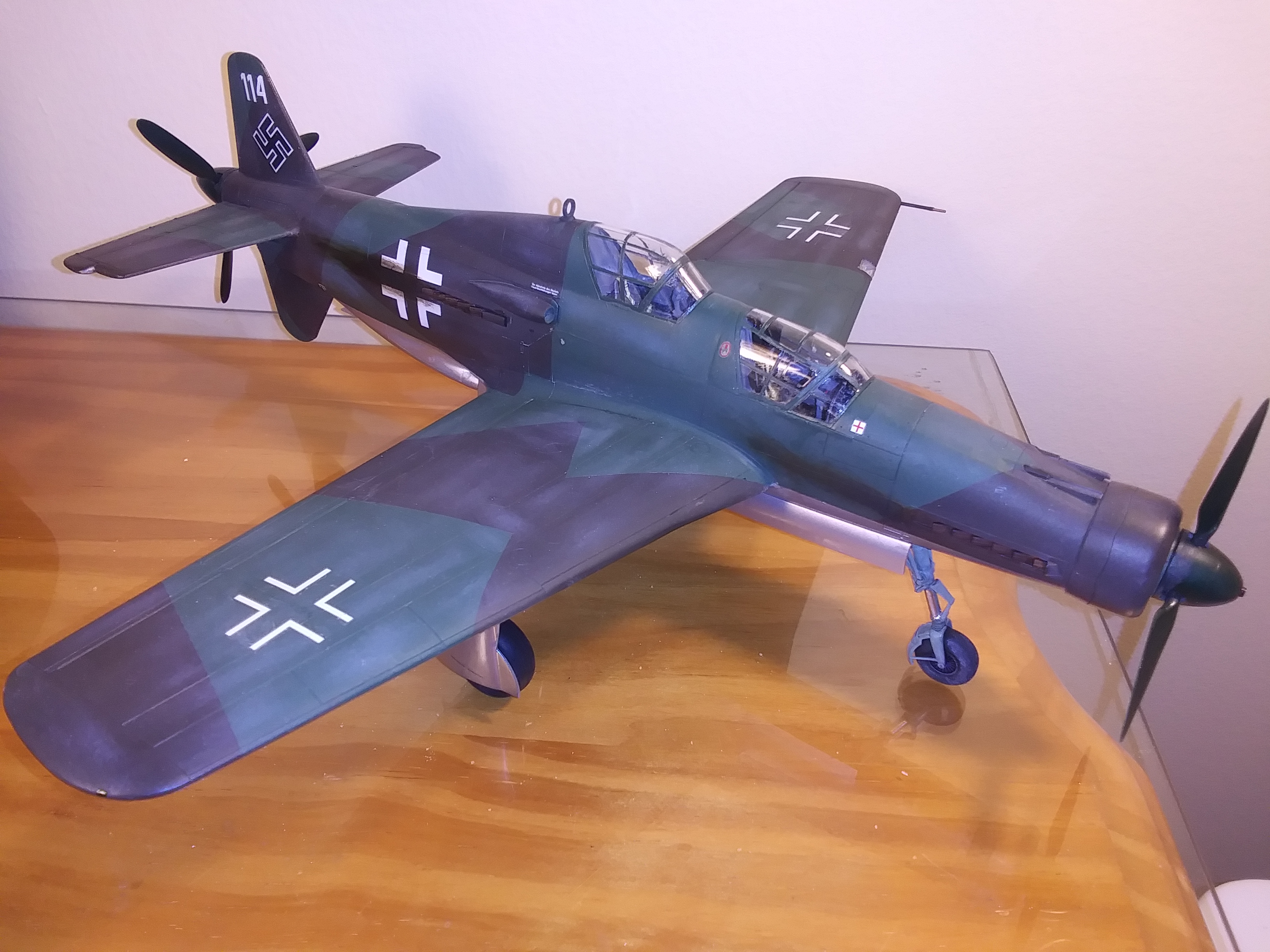

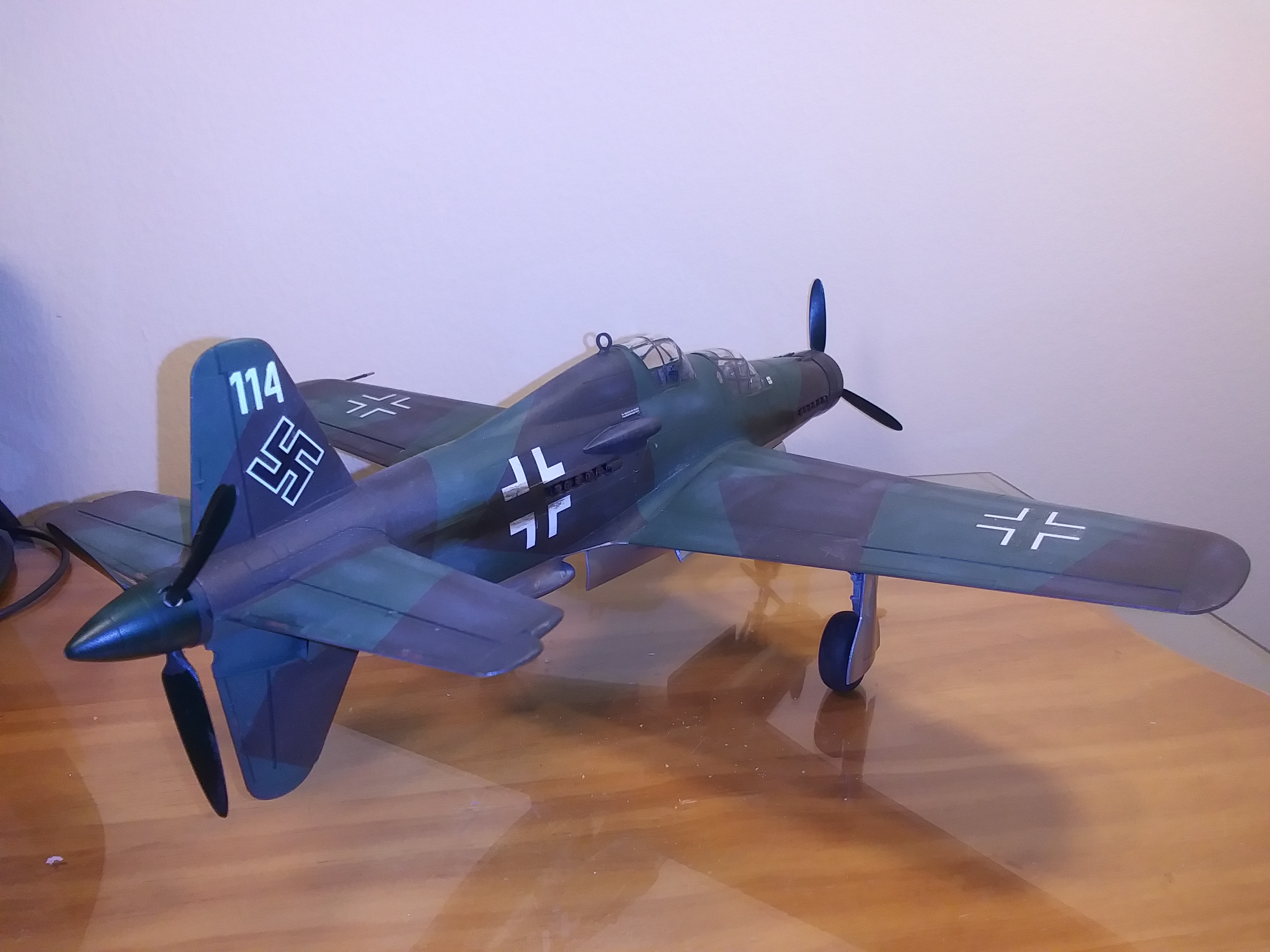

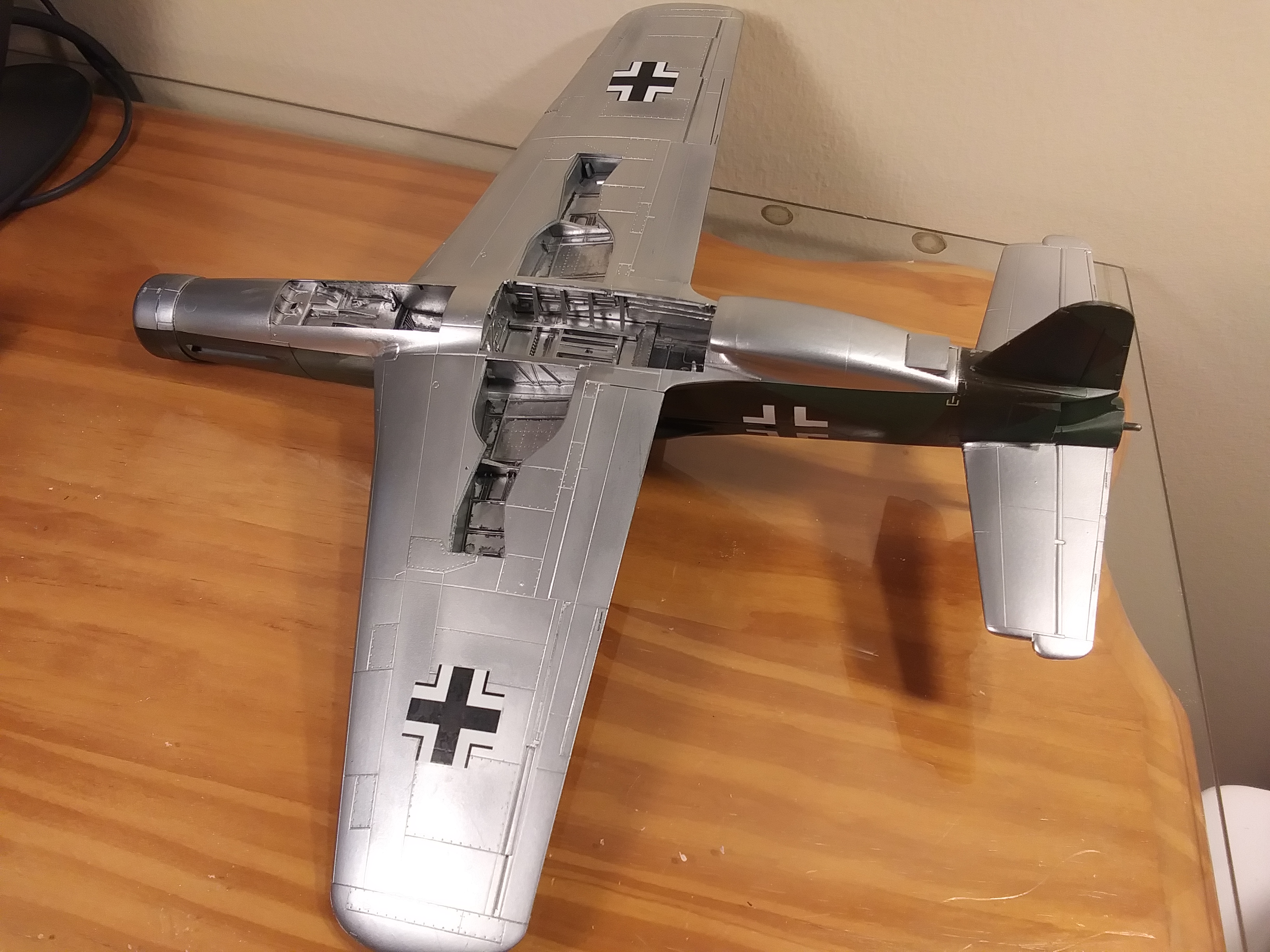

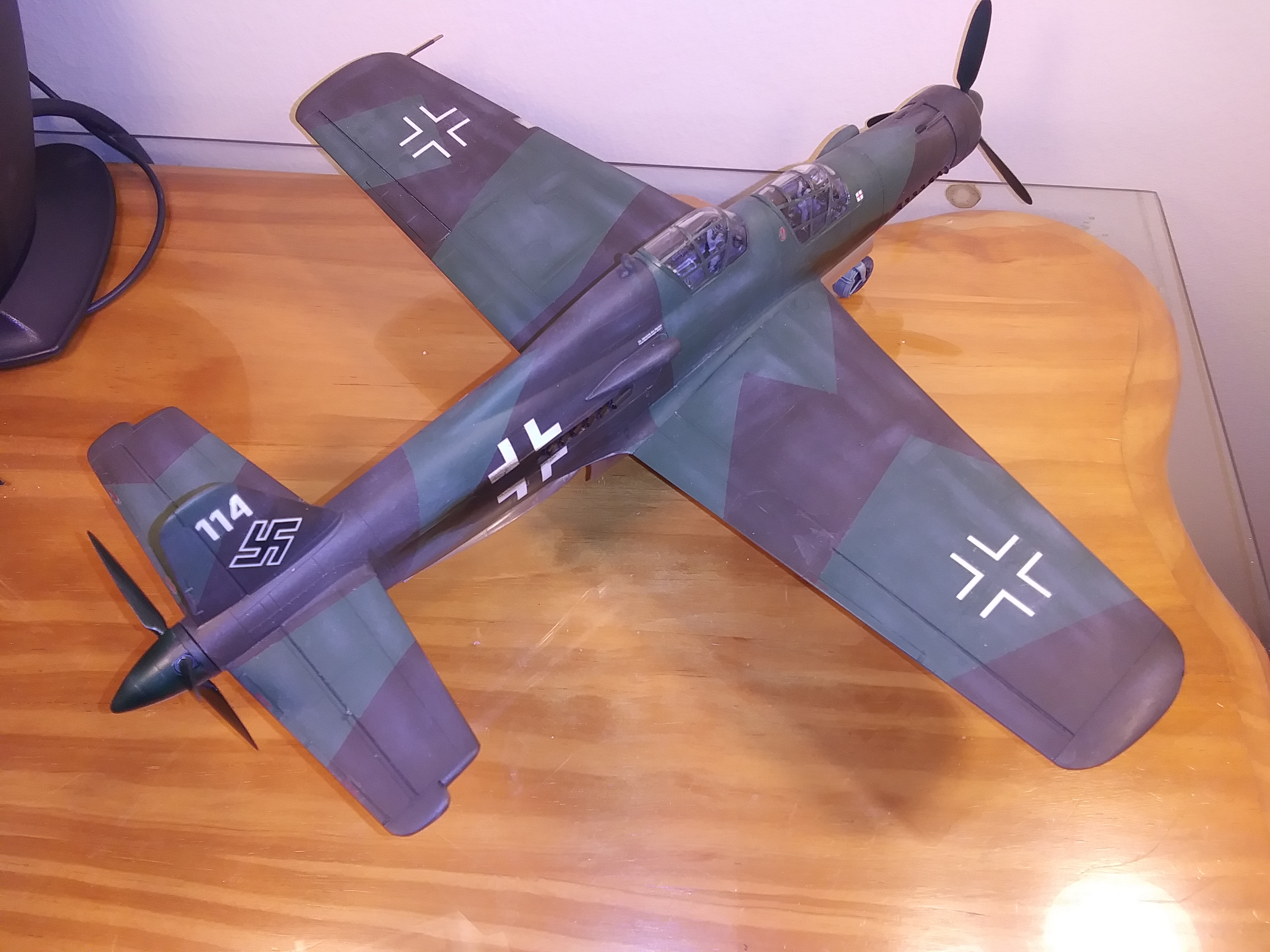

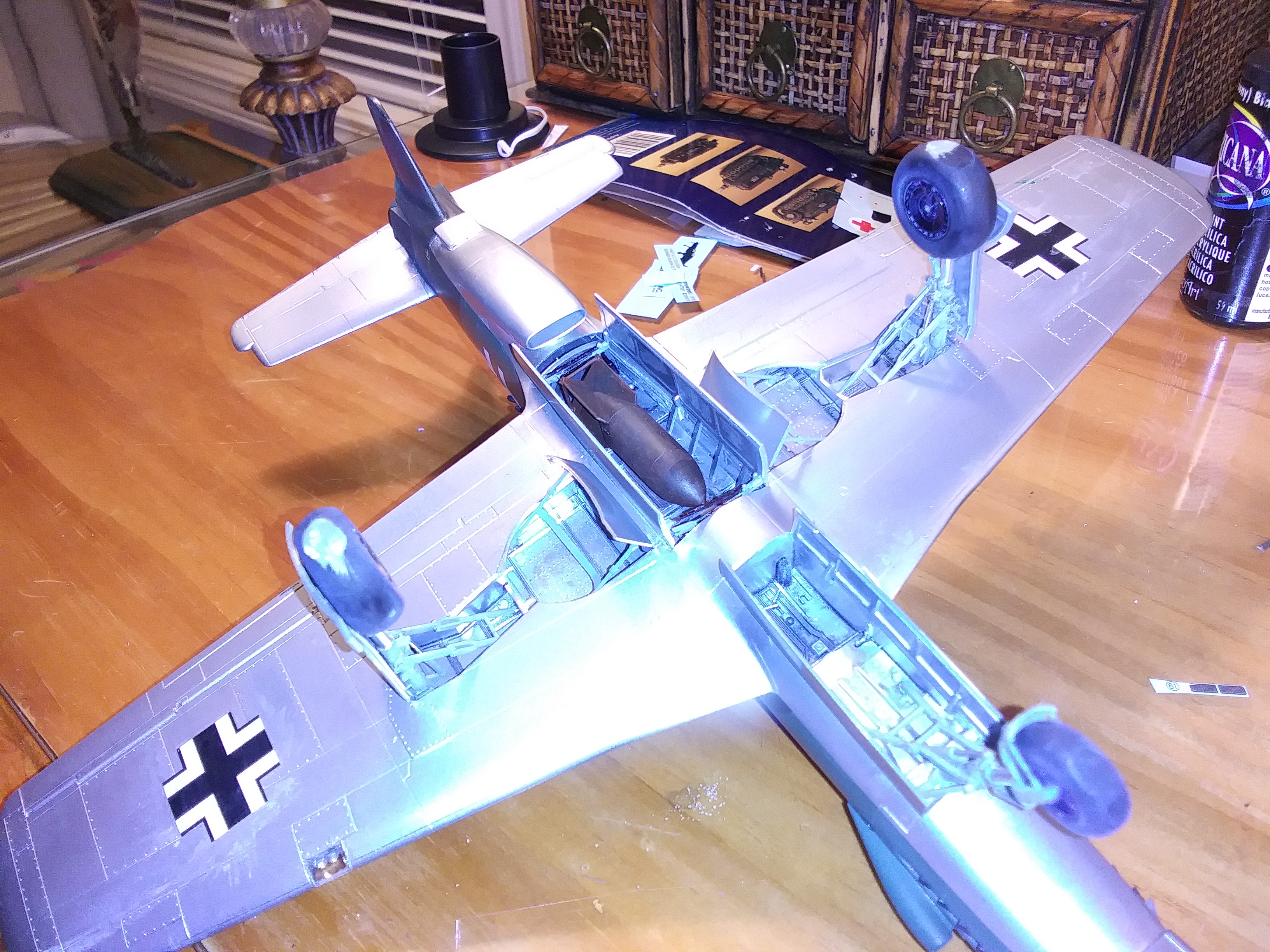

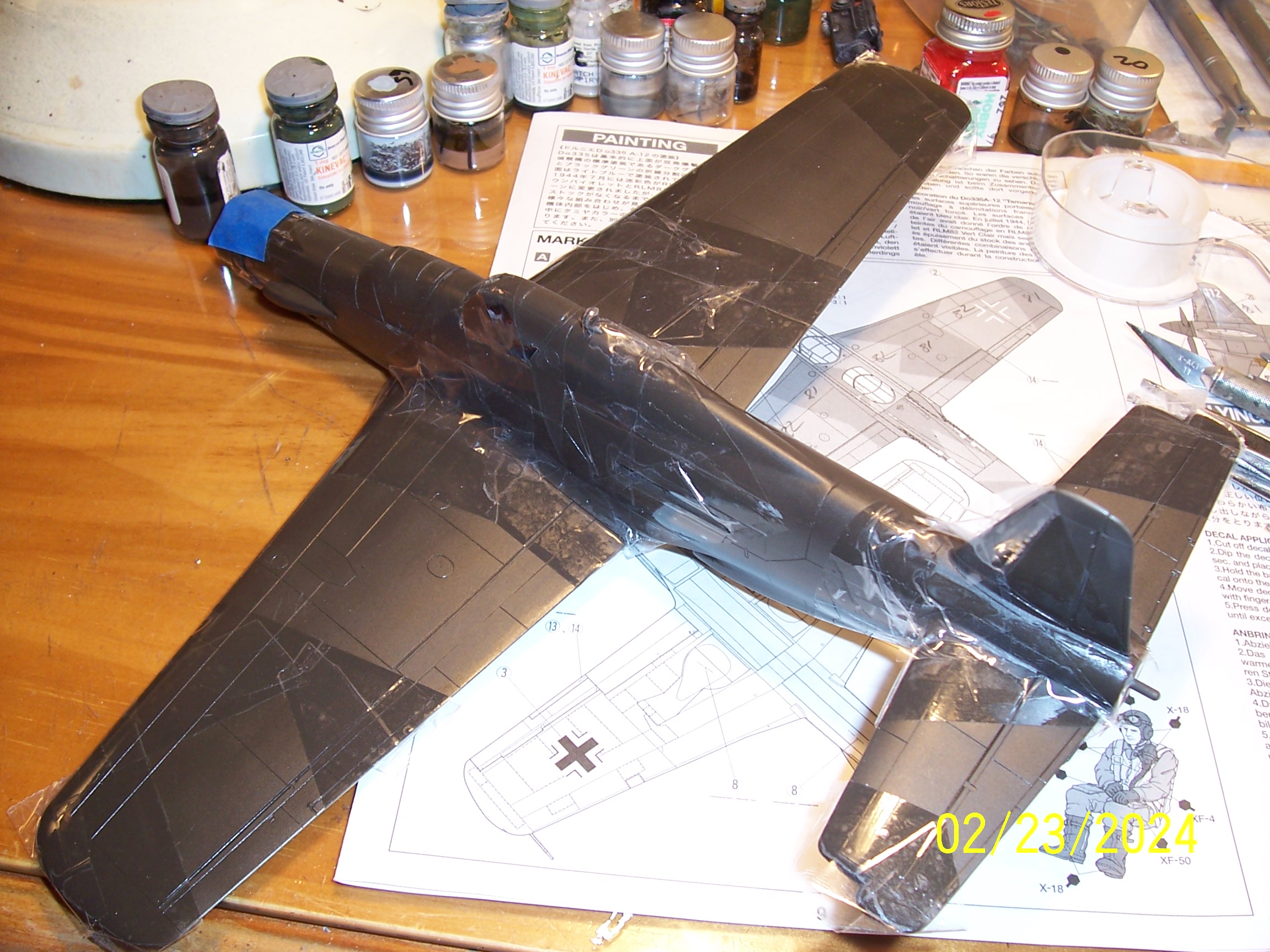

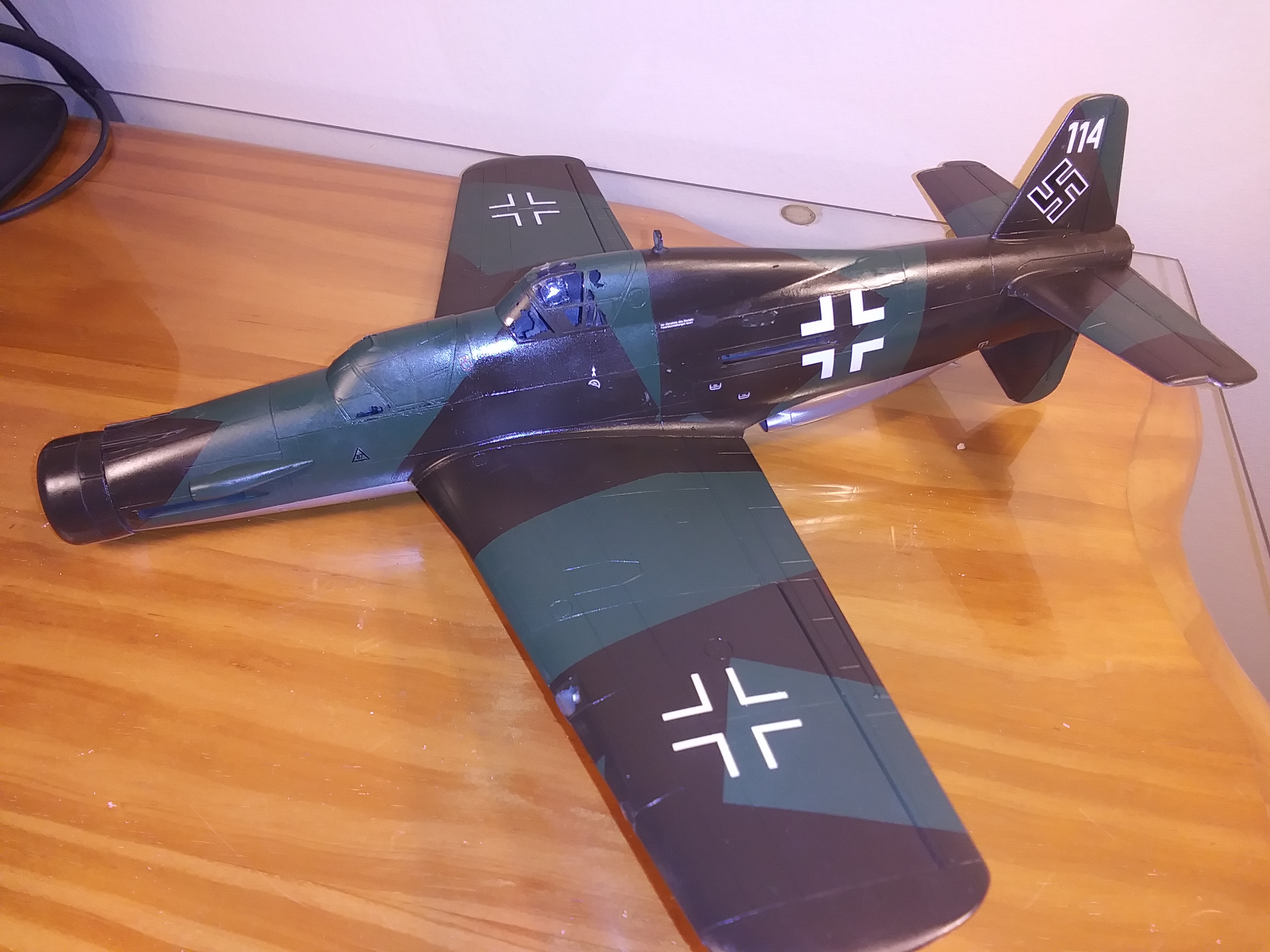

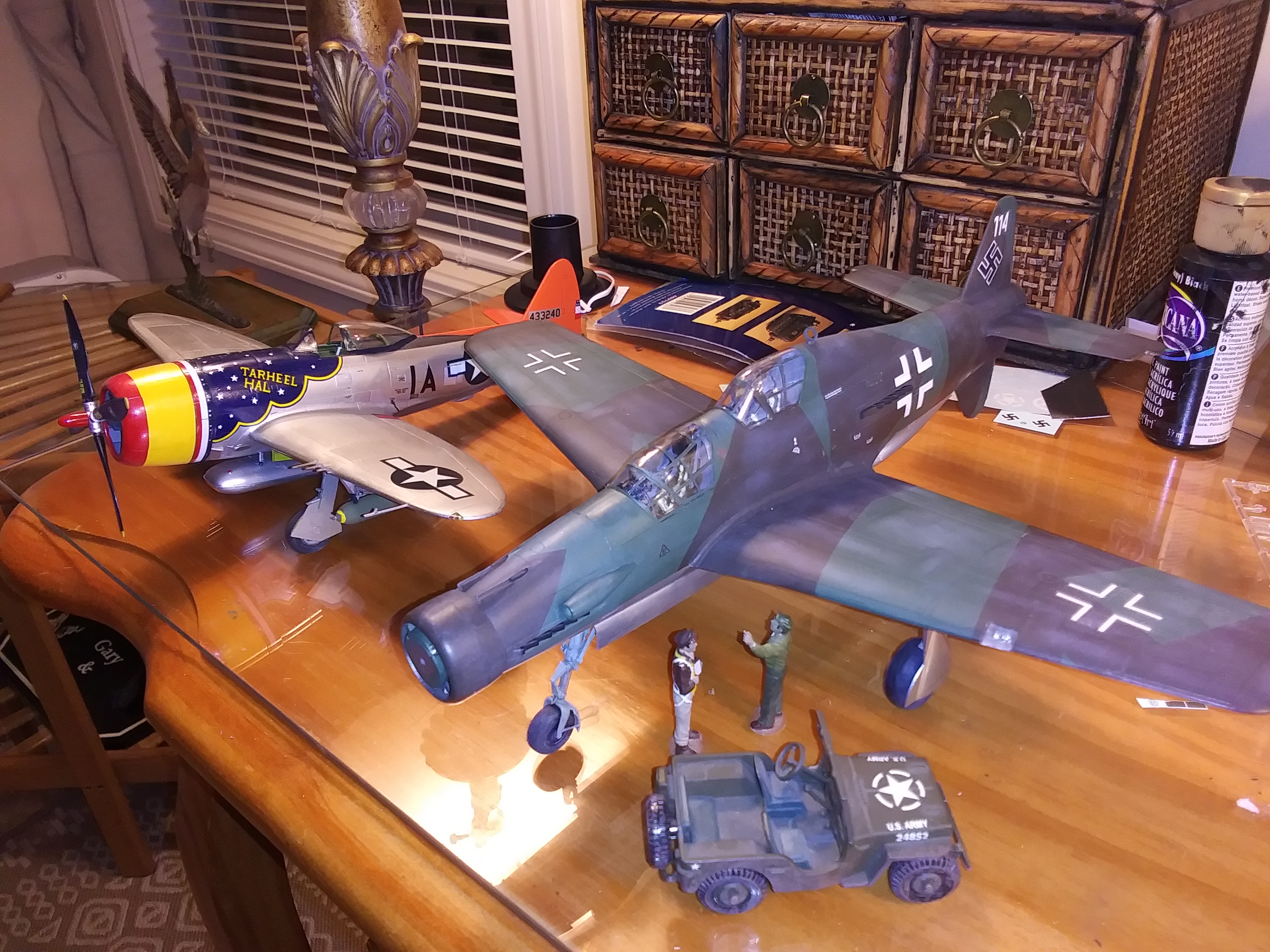

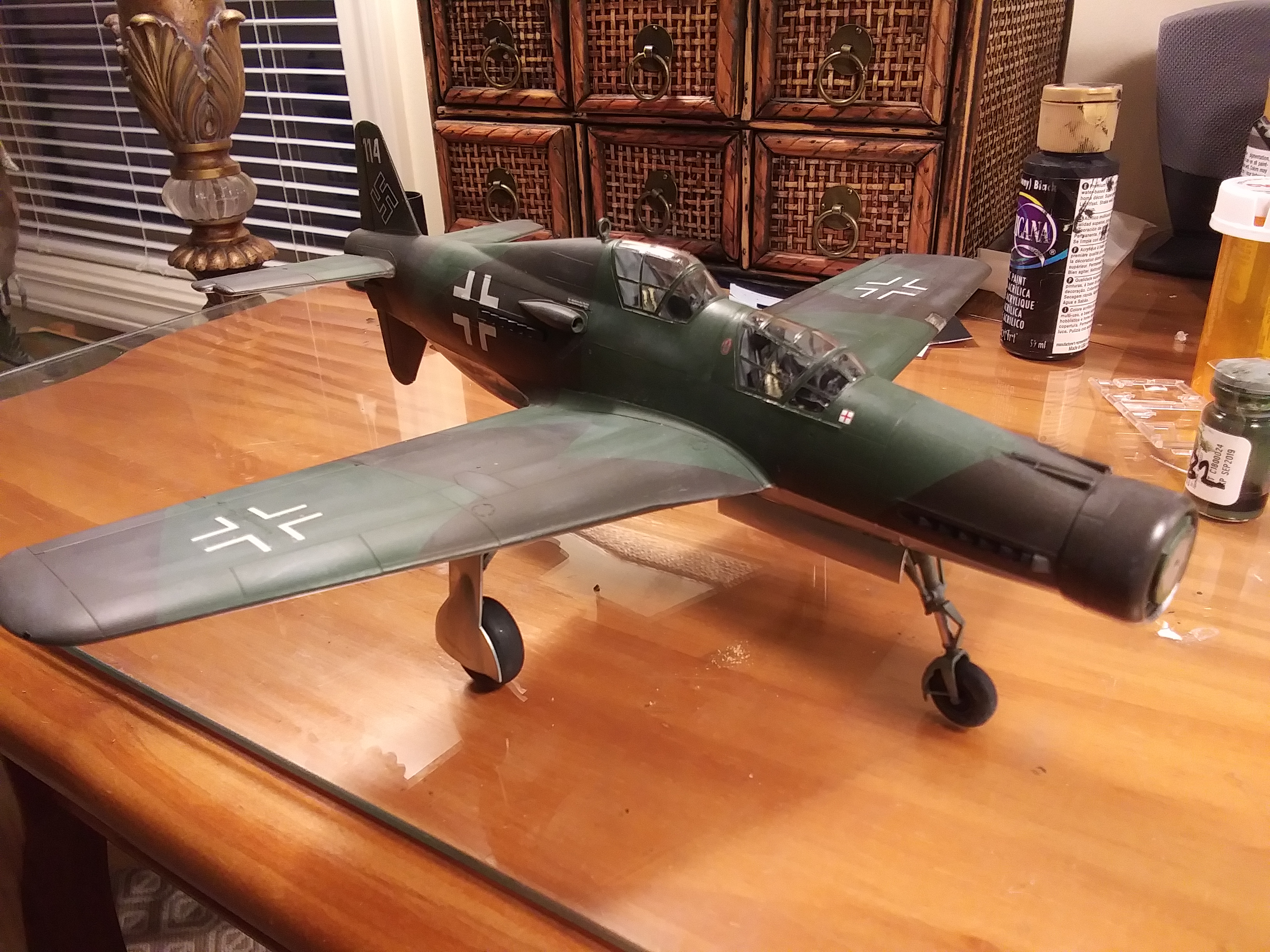

Almost done after all the years of seeing it in my stash. I opened up the bomb bay and added a bomb, even though the instructions had it closed. Just too much detail to ignore. The landing gear is down and locked.Lots of parts there too. Canopy masked removed with no real issues. I posed a jeep and some figures along with a P-47, to show the size of this bird. Gary S.
