Pole Dancer with Double D's... Fixin' Dragon's Mustang Ranch POS

Brokeneagle said:
:popcorn.......and ?
Click to expand...
I don't normally post photos of an in-progress workbench but:

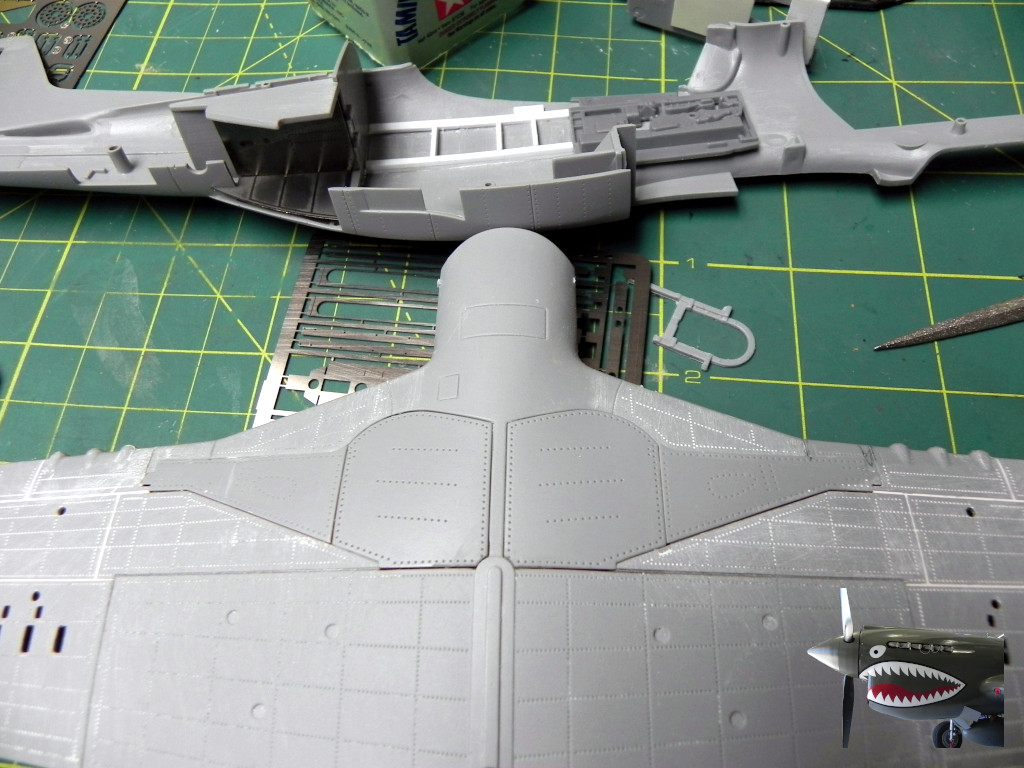

Work has been done on it, although slowly.

Baby steps...

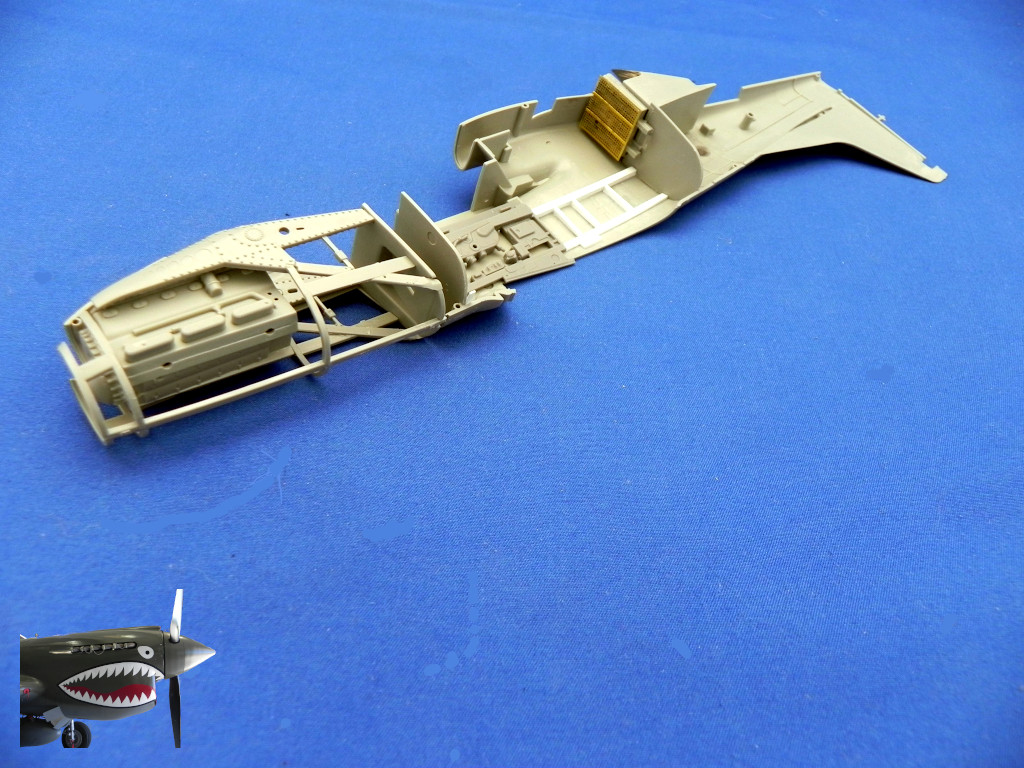

Look how narrow this engine block is!

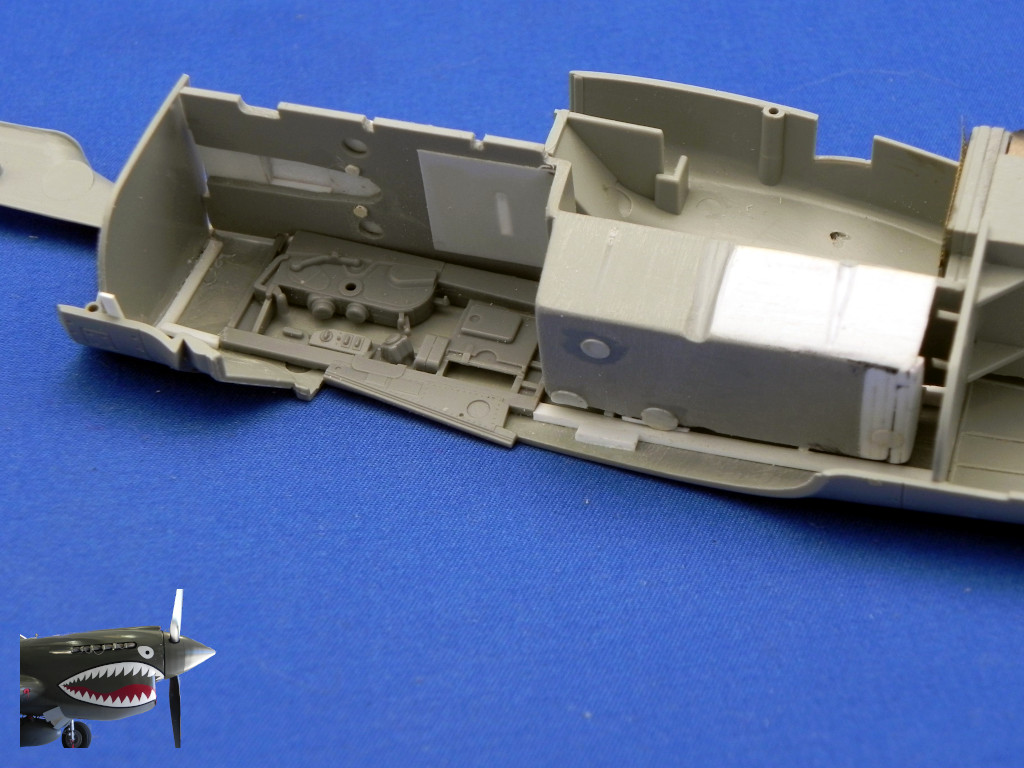

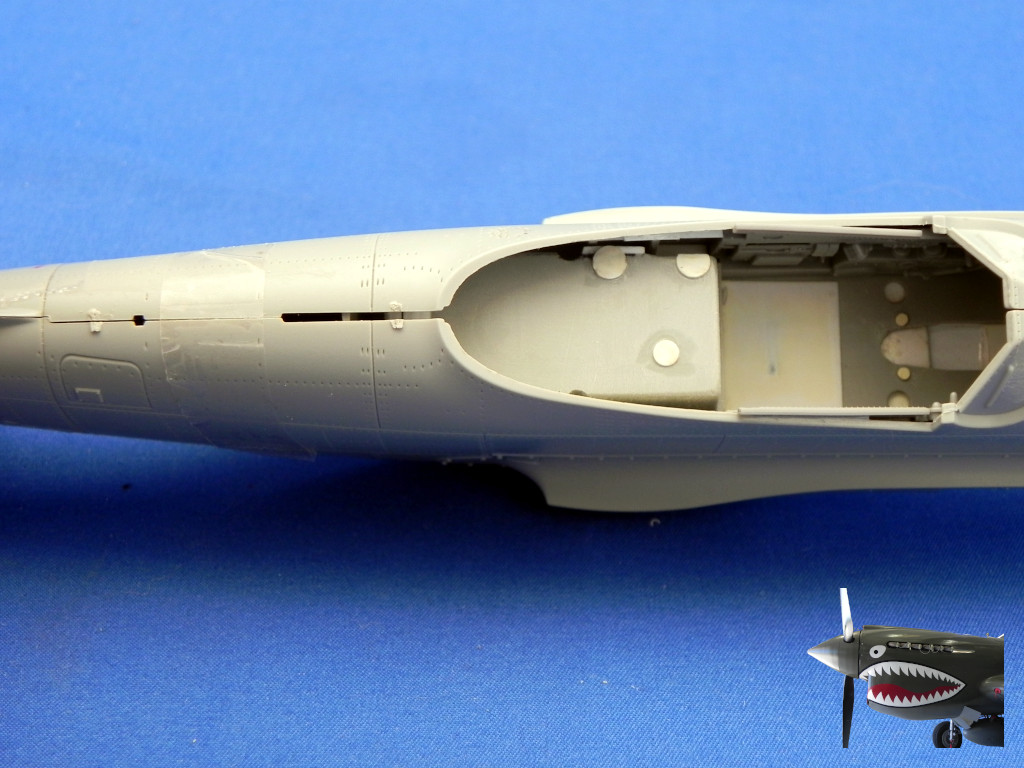

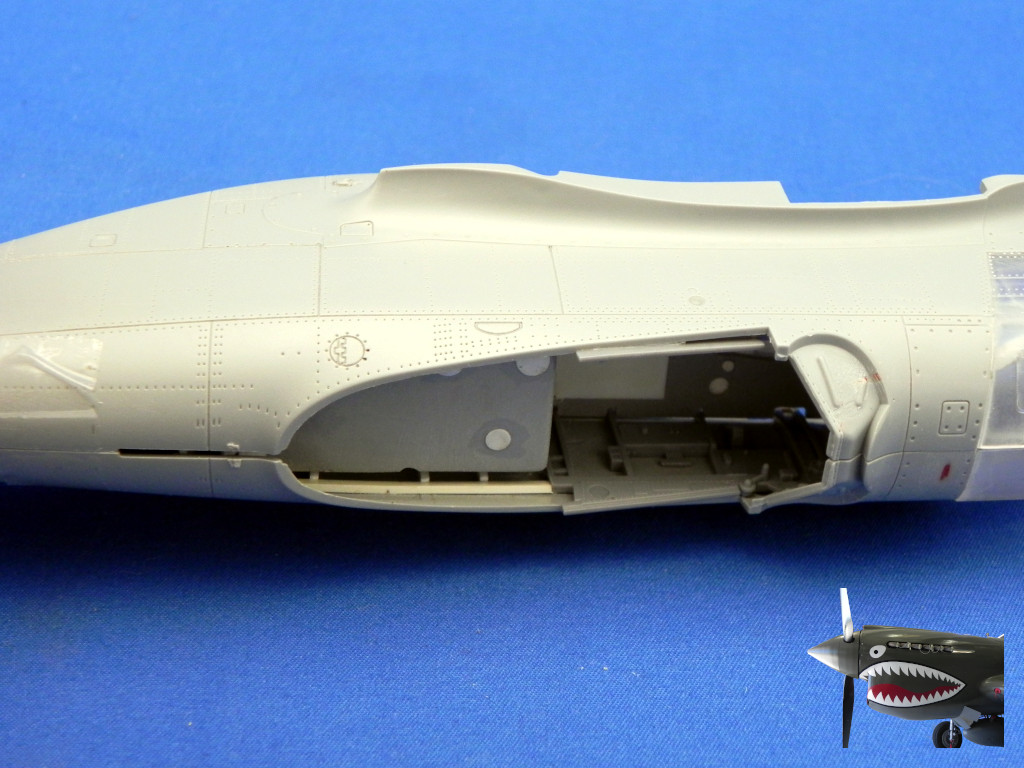

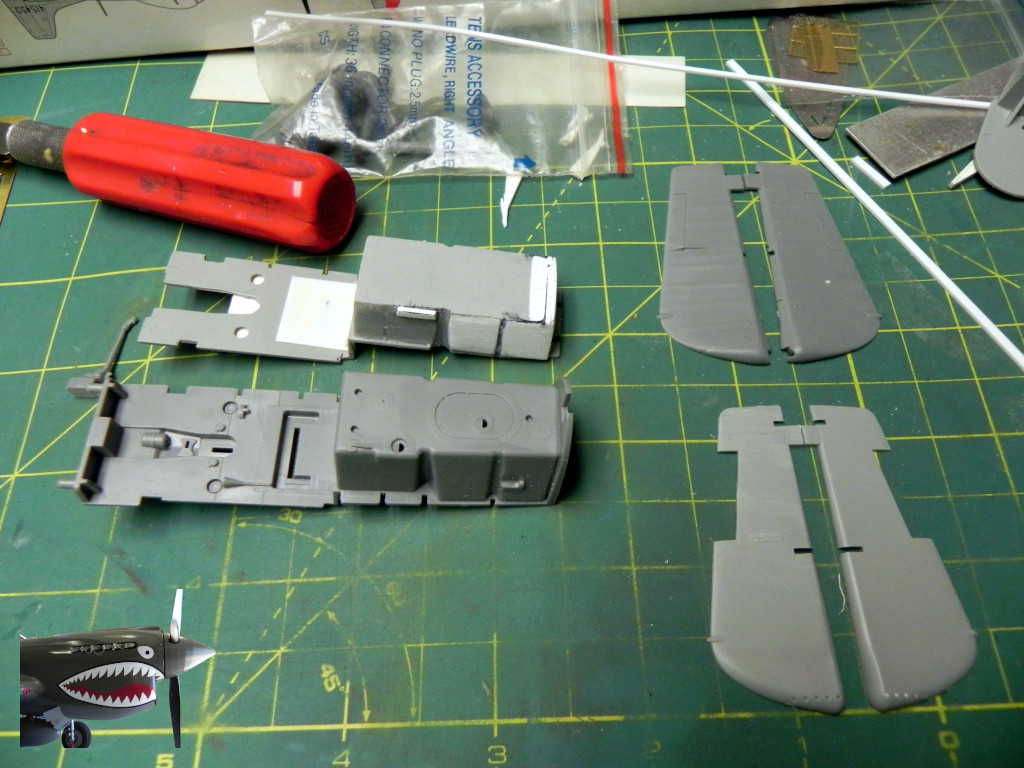

Looking to see how much of the cockpit detail will be visible. A pilot will be in there too. Still have cabling (which will cover the side gaps), relief tube, seat and mount (pilot too), instrument panel with pedals (hides the frontal gap), radios with rack, and control stick:

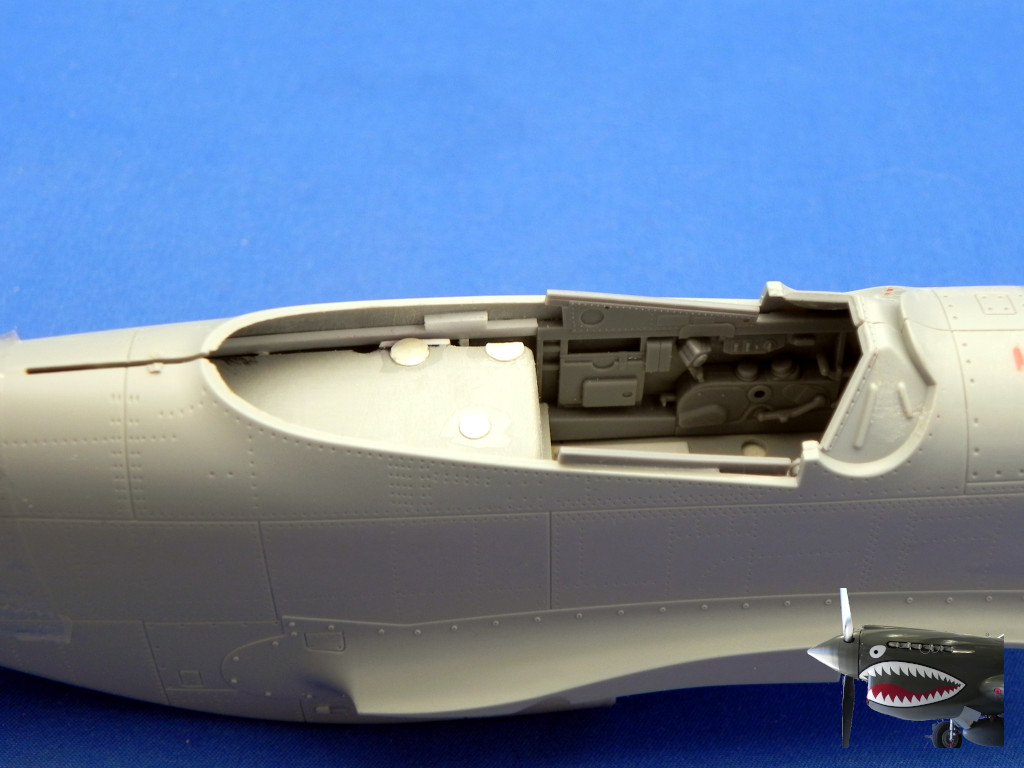

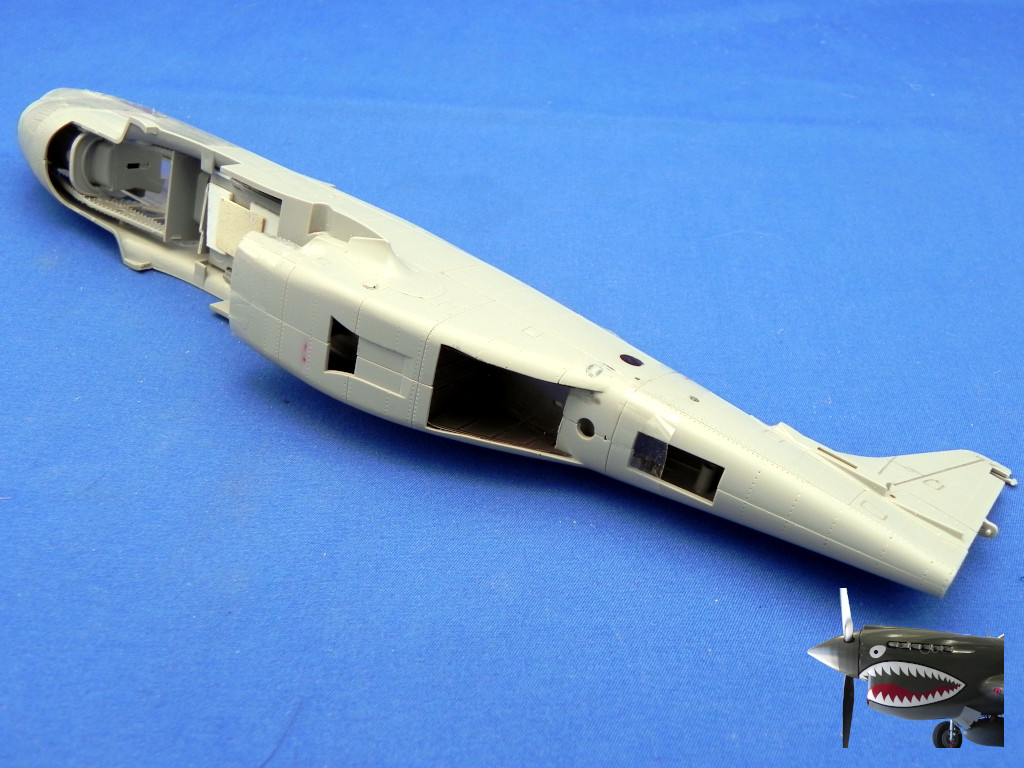

Cabling along the bottom starboard side covers that gap.

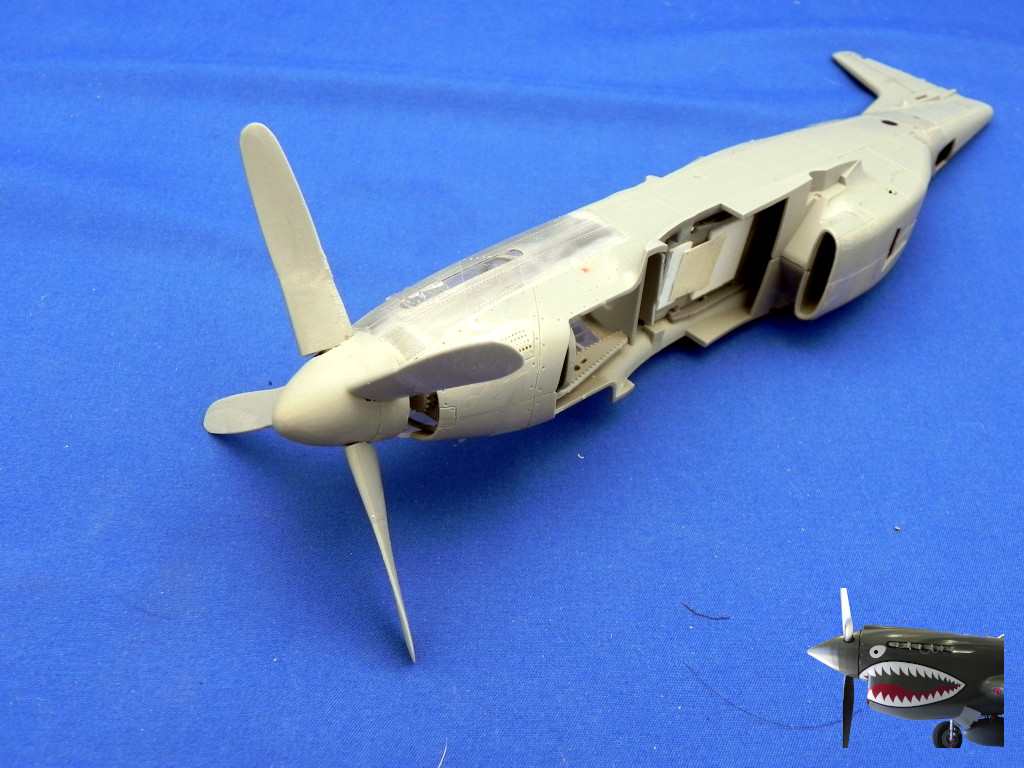

Everything still fits... precariously though.

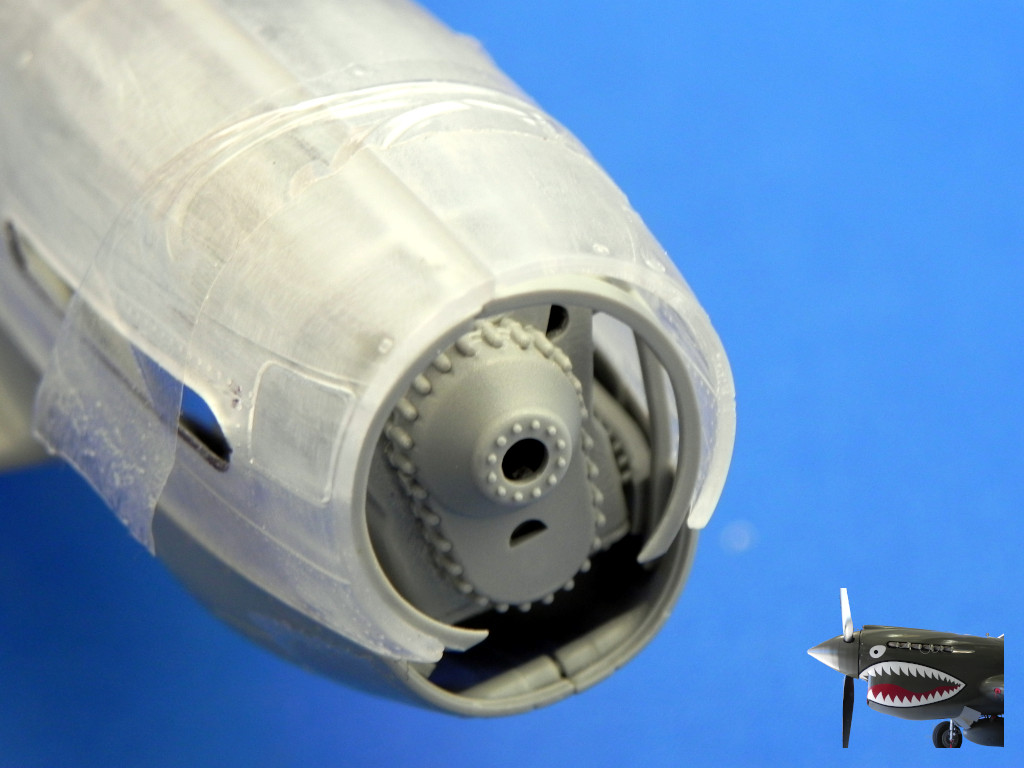

Definitely off! Easy fix though...

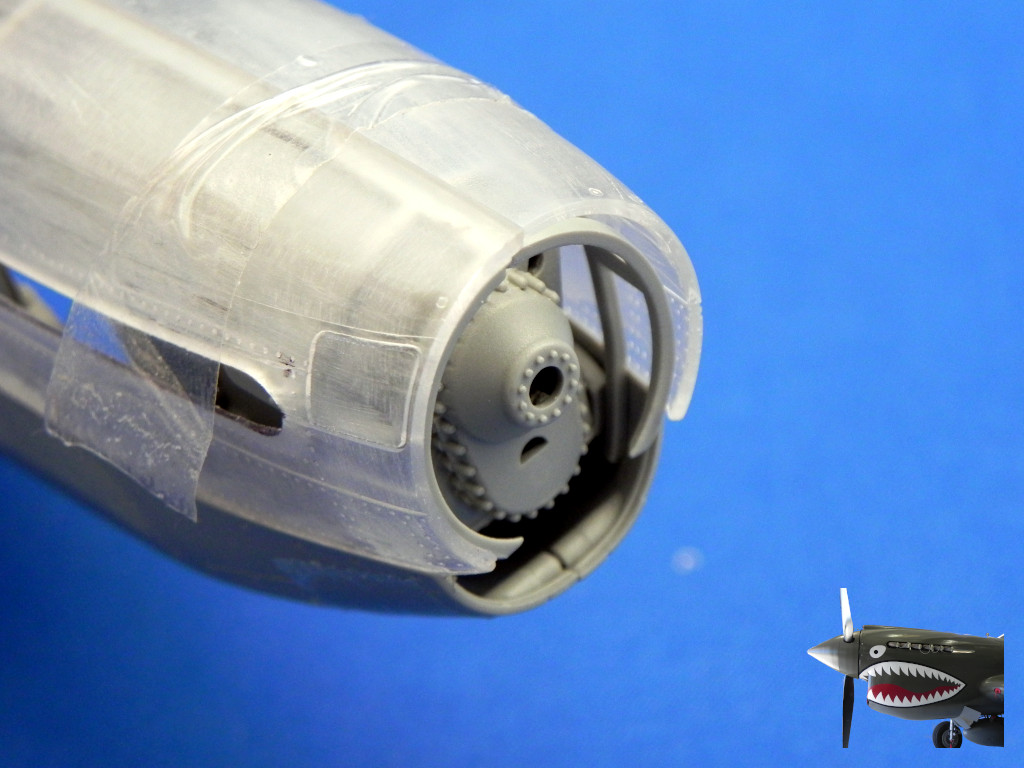

Not mentioned, and barely visible here, are the corrected prop openings on the spinner and an oval hatch added.


moon puppy said:
Think I'd be looking for aftermarket. But that's me. :plane
Click to expand...
No need really as that would put me at a 'prop at rest ' angle. The forward motion implied by mounting it on a pole 'in flight' means the angle needs to decrease to halfway between what it is and the photos of it in the ground. I'll prepare a prop angle jig for myself.

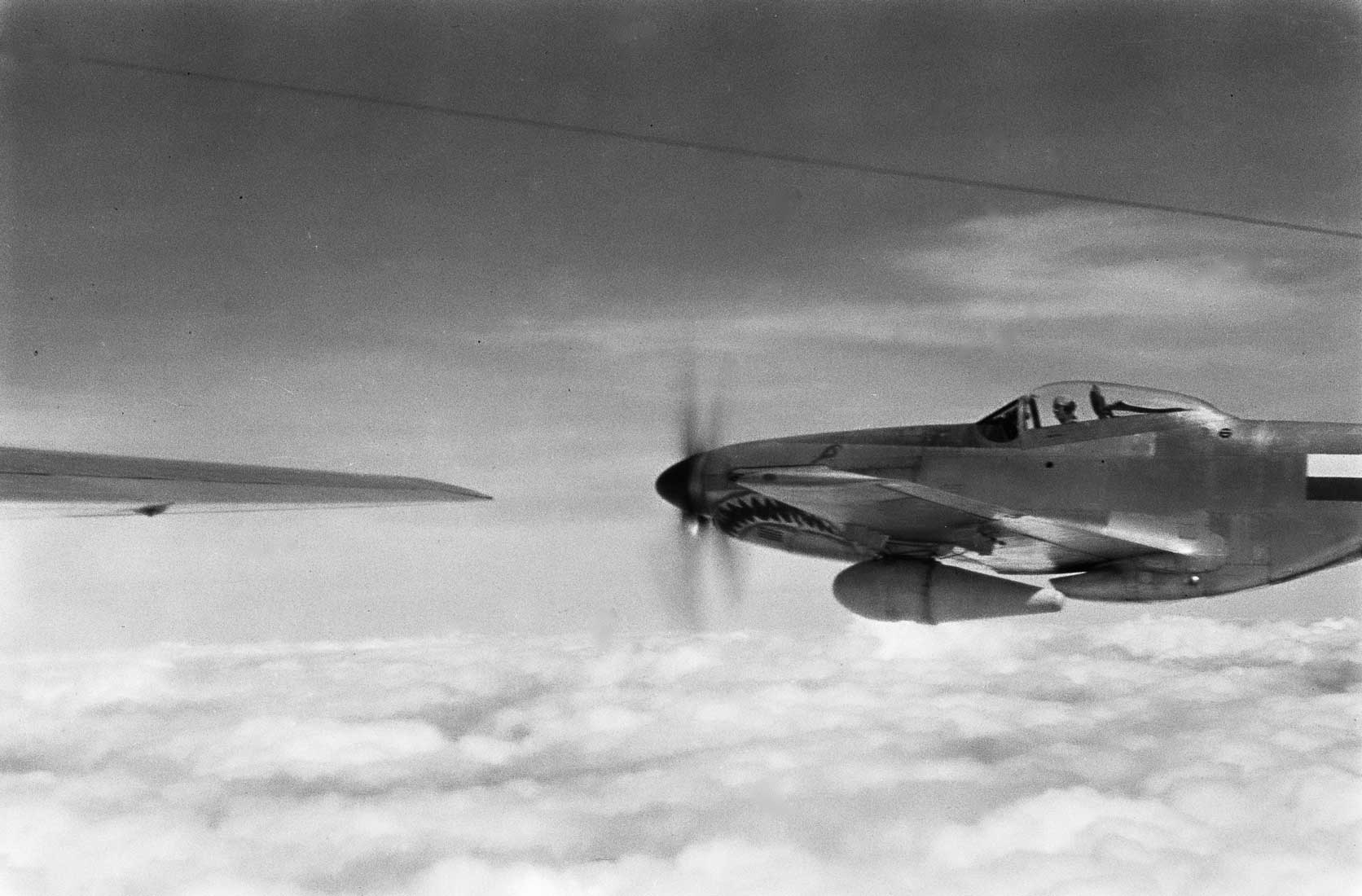

Could you even see the prop angle of a spinning blade?. Have you considered using a prop blur to simulate a turning prop? She's looking good. Looking forward to the finished bird!

Mo_ said:
Could you even see the prop angle of a spinning blade?. Have you considered using a prop blur to simulate a turning prop? She's looking good. Looking forward to the finished bird!
Click to expand...

Having graduated Aviation High School, we changed the pitch angle to reflect different moments in a flight. Nope, I personally wouldn't be able to define an angle other than noting if the base (where the cuffs are) were thicker (increased pitch) or thinner (decreased pitch). I considered adding a motor but decided against it. I may want the prop to turn in a breeze. Thanks to @Big10, I will try to finish my son's F-51D first before tackling NMF on this one using the dry-brush method:

Don't Laugh, I MAY finish! Midget Pole Dancer with Funky Teeth.

Simply a placeholder as I look for a simple tiny kit. Hopefully, less focus on the build and more on (sounds like someone calling me a moron) the finish. @moon puppy, let's see if it is indeed a sticky! Regards,
modelersalliance.org

  • Like
Reactions: Mo_
Sharkmouth said:
Thanks to @Big10, I will try to finish my son's F-51D first before tackling NMF on this one using the dry-brush method:
Click to expand...
Good luck and try the method on a scrap plane first. If it goes on too wet do not continue to brush, let it cook off and this smooth it out with the buff wheel. Its more than likely gonna give you some frustrations as it still does with me from time to time.

At 400 mph or a high speed dive that's about what the blade angle should be. From the P-51B manual the range is from 24 degrees at low (fine) pitch to 65 degrees at high (coarse) pitch. There is a line on the propeller blade indicating the station where pitch should be measured.
