M103A1 HEAVY TANK "I'M DONE!"

[MrT]

Here is my offering for the "Modern Armor" campaign.

This is the M103A1 Heavy Tank from Dragon under the Black Label line.

I started with the turret. It is huge! The fit is good with great cast surface texture.

Next I moved on to the hull. You can see the size comparison between turret and the hull.

Next wheels and details

Terry B)



[Paulw]

M103A1 HEAVY TANK

what size gun was that? It would have to be a big one for that size of turret.



[moon puppy]

M103A1 HEAVY TANK

That's a bigun'

You going to do something about those molded on springs or just go with it?



[MrT]

M103A1 HEAVY TANK

what size gun was that? It would have to be a big one for that size of turret.

It was 120mm so yeah it was big.

B)



[MrT]

M103A1 HEAVY TANK

That's a bigun'

You going to do something about those molded on springs or just go with it?

Oh yeah the springs will be replaced.



[MrT]

M103A1 HEAVY TANK

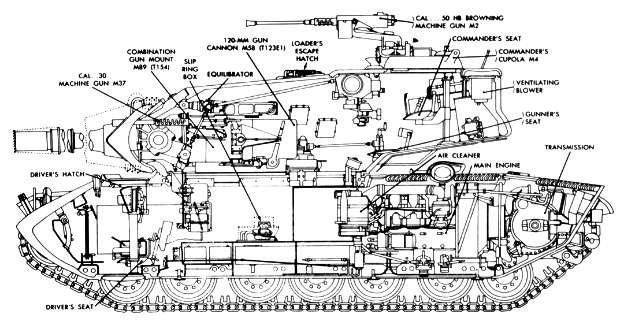

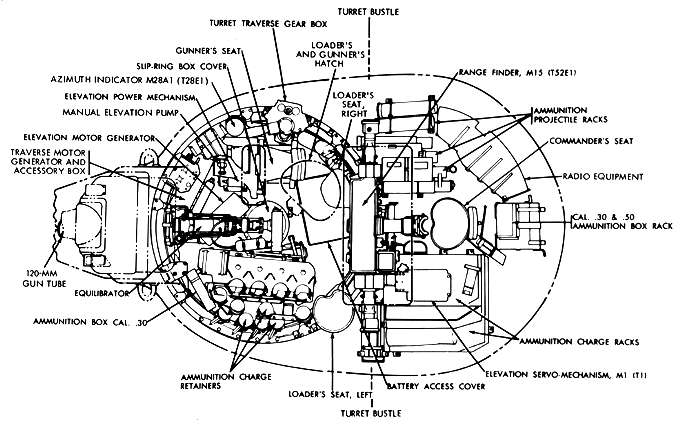

Here are some drawings that will give some idea of how much space the gun takes up in the turret.

Terry B)



[Sherman 18]

M103A1 HEAVY TANK



[lupanzer]

M103A1 HEAVY TANK

...atrue lethal weapon...

Luiz



[cb1]

M103A1 HEAVY TANK

awesome -
I remember seeing this in person at Ft Hood and it was a BIG S.O.B. LOL



[Tony lee]

M103A1 HEAVY TANK



[Skinny_Mike]

M103A1 HEAVY TANK

Interesting subject!



[MrT]

M103A1 HEAVY TANK

Here we go work continues on the lower hull with lots of small parts. The rear hull is a multiple part assemble that needs a lot of sanding. Here is what it looks so far.

Terry B)



[Sherman 18]

M103A1 HEAVY TANK

So Terry are the parts just generic that is causing the sanding or are you doing some correcting of the hull?



[MrT]

M103A1 HEAVY TANK

So Terry are the parts just generic that is causing the sanding or are you doing some correcting of the hull?

Just the generic parts. I wanted to get rid of the seams where the parts join.

B)



[Gator]

M103A1 HEAVY TANK

Man, that thin is a beast. I wonder what it looks like next to an Abrams?



[MrT]

M103A1 HEAVY TANK

Man, that thin is a beast. I wonder what it looks like next to an Abrams?

The Abrams and the up gunned M60 is what replaced it. I don't how they compare size wise.

B)



[MrT]

M103A1 HEAVY TANK

The main part of the lower hull is done and a first coat of paint applied. Next wheels and sprockets.

Terry B)



[ij001]

M103A1 HEAVY TANK

Such a family resemblance with the M48/M60 series, (the drivers hatch, engine deck etc). Looking forward to another 'painting lesson'.

Ian



[Dusan]

M103A1 HEAVY TANK

Great work Terry, impressive turret, look like a Super M60 (like S. Sherman)...

All the best!
Dusan.



[MrT]

M103A1 HEAVY TANK

Thanks guys! They are all in family.

B)
