I Found a discarded Knob......................
- Thread starter Rhino
- Start date
Duke Maddog
Well-known member
I remember those old pressure cookers! Nice repurpose there man! This is so fun to watch...
Heavens Eagle
Well-known member
This has always been a bit of a PUNishing build. Looking forward to seeing the END result.
Rhino
Super Moderator
At 28 Inches of vacuum, for 1/2 an hour, with 40 minutes to decompress, might have been a bit much. The puns/quips are too apparent!!

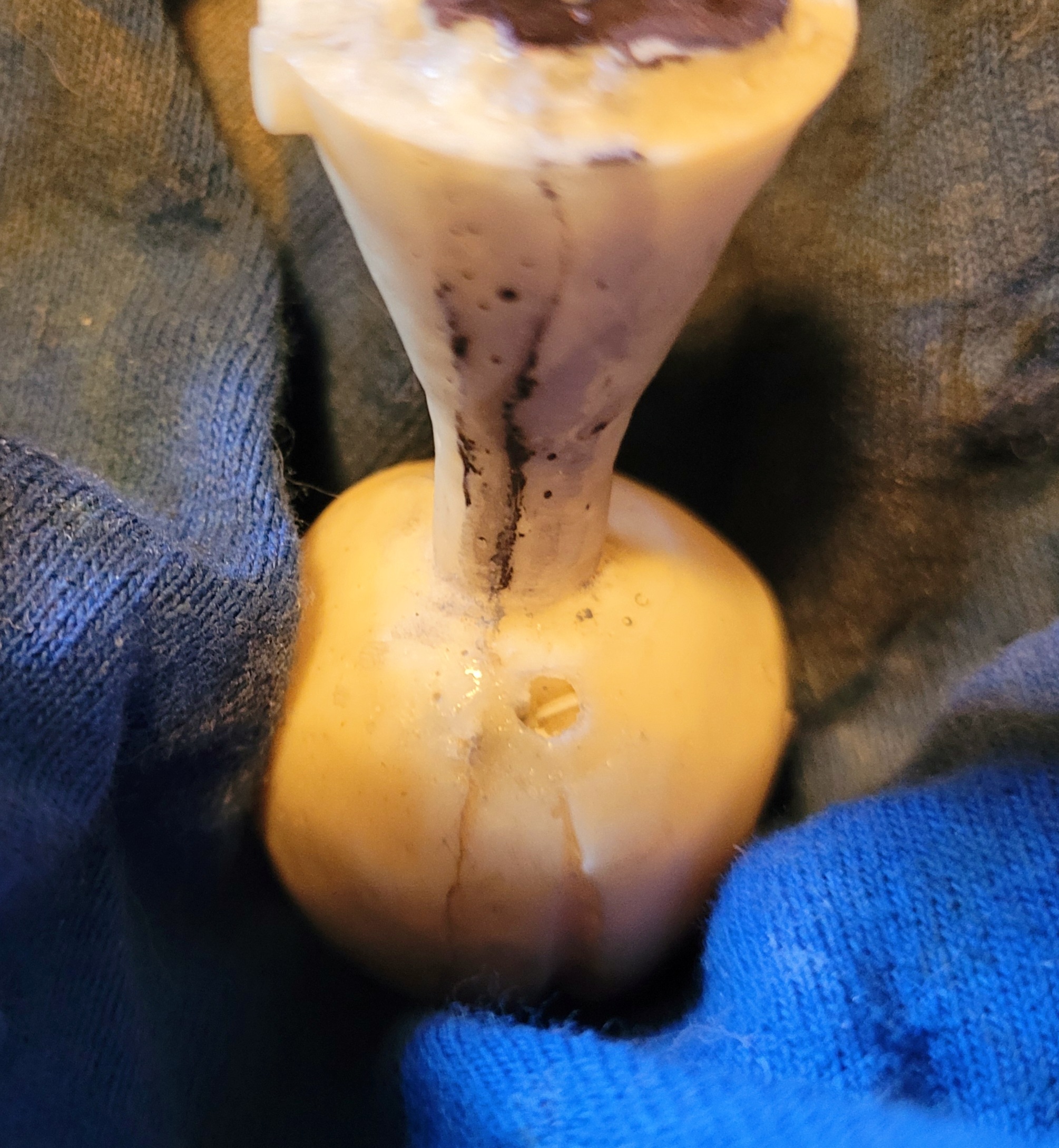

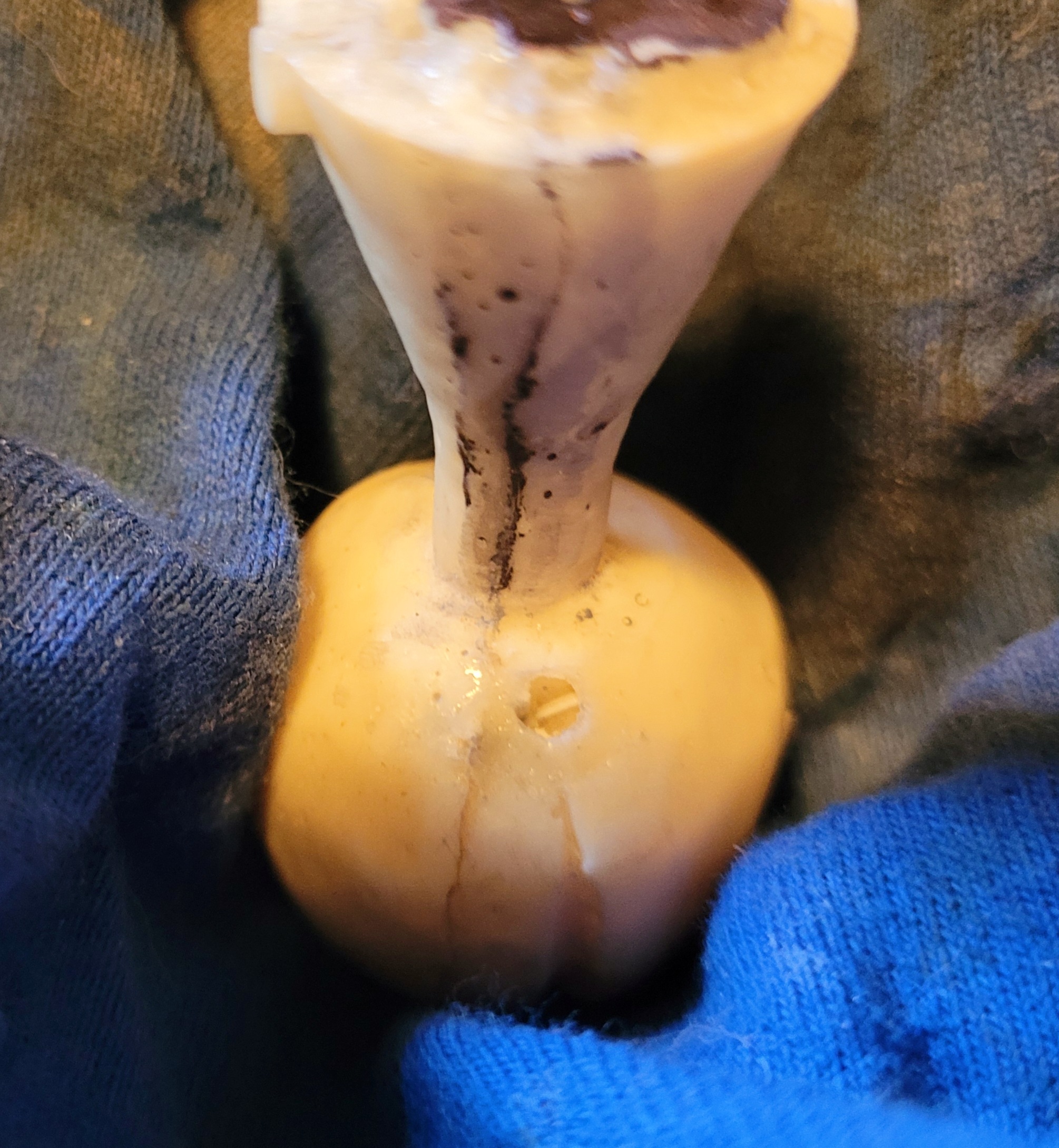

What came out of the mold was a pitted, misshapen, shrunken Peachoid. A rotten Zombie Apocalypse Peachoid? It bears paint and shading. Stay tuned for more developments!!
I've been advised to reduce the vacuum to 15 inches, and 15 minutes for best results with Smooth-on Liquid Plastic. The Research/Experiment continues!!
Thanks for looking in on my ridiculous efforts!!
phantom II
Master at Arms
Holy cow Chris I never thought the Peachoid would generate this kind of excitement :woohoo: EVER ... :idonno
centaur567
Well-known member
Careful!! The NSA and FBI might be looking for you!! LOL Gary
Duke Maddog
Well-known member
At 28 Inches of vacuum, for 1/2 an hour, with 40 minutes to decompress, might have been a bit much. The puns/quips are too apparent!!
What came out of the mold was a pitted, misshapen, shrunken Peachoid. A rotten Zombie Apocalypse Peachoid? It bears paint and shading. Stay tuned for more developments!!
I've been advised to reduce the vacuum to 15 inches, and 15 minutes for best results with Smooth-on Liquid Plastic. The Research/Experiment continues!!
Thanks for looking in on my ridiculous efforts!!
Wow, that looks like how my prostate probably looks right now...
I know you'll get this figured out. I'm looking forward to seeing the next test.
Heavens Eagle
Well-known member
The first question that needs to be asked is, How long is the working time on the resin? Then you should only pull vacuum long enough to enlarge the small air bubbles so they will rise to the surface. I would suggest pull full vacuum for a minute, maybe two or three, then release back to ambient and leave it. Vacuum and pressure will cause the mold to distort.
Once I get my vacuum table rebuilt, I will be experimenting a little. The difference is I will be able to see through the large bell jar and observe what the resin does.
Once I get my vacuum table rebuilt, I will be experimenting a little. The difference is I will be able to see through the large bell jar and observe what the resin does.
Rhino
Super Moderator
In the Olden days ldguy resin casting and vacuum went hand-in-hand. After several email exchanges with the most excellent staff at Reynolds Materials, I've been taught that Smooth Cast 320 is designed to be PRESSURIZED :facepalm @60 PSI. The mold RTV too! Off th the shed I go, to get my old compressor out, and fire it up. I wonder if the ol' Mirro will handle 60 PSI without catastrophic fracture/decompression/ :stinker BOOM!!
Stay tuned for furhter ridiculous developments! Now! it's time for Ice Cream.
ldguy resin casting and vacuum went hand-in-hand. After several email exchanges with the most excellent staff at Reynolds Materials, I've been taught that Smooth Cast 320 is designed to be PRESSURIZED :facepalm @60 PSI. The mold RTV too! Off th the shed I go, to get my old compressor out, and fire it up. I wonder if the ol' Mirro will handle 60 PSI without catastrophic fracture/decompression/ :stinker BOOM!! Stay tuned for furhter ridiculous developments! Now! it's time for Ice Cream.
Rhino
Super Moderator

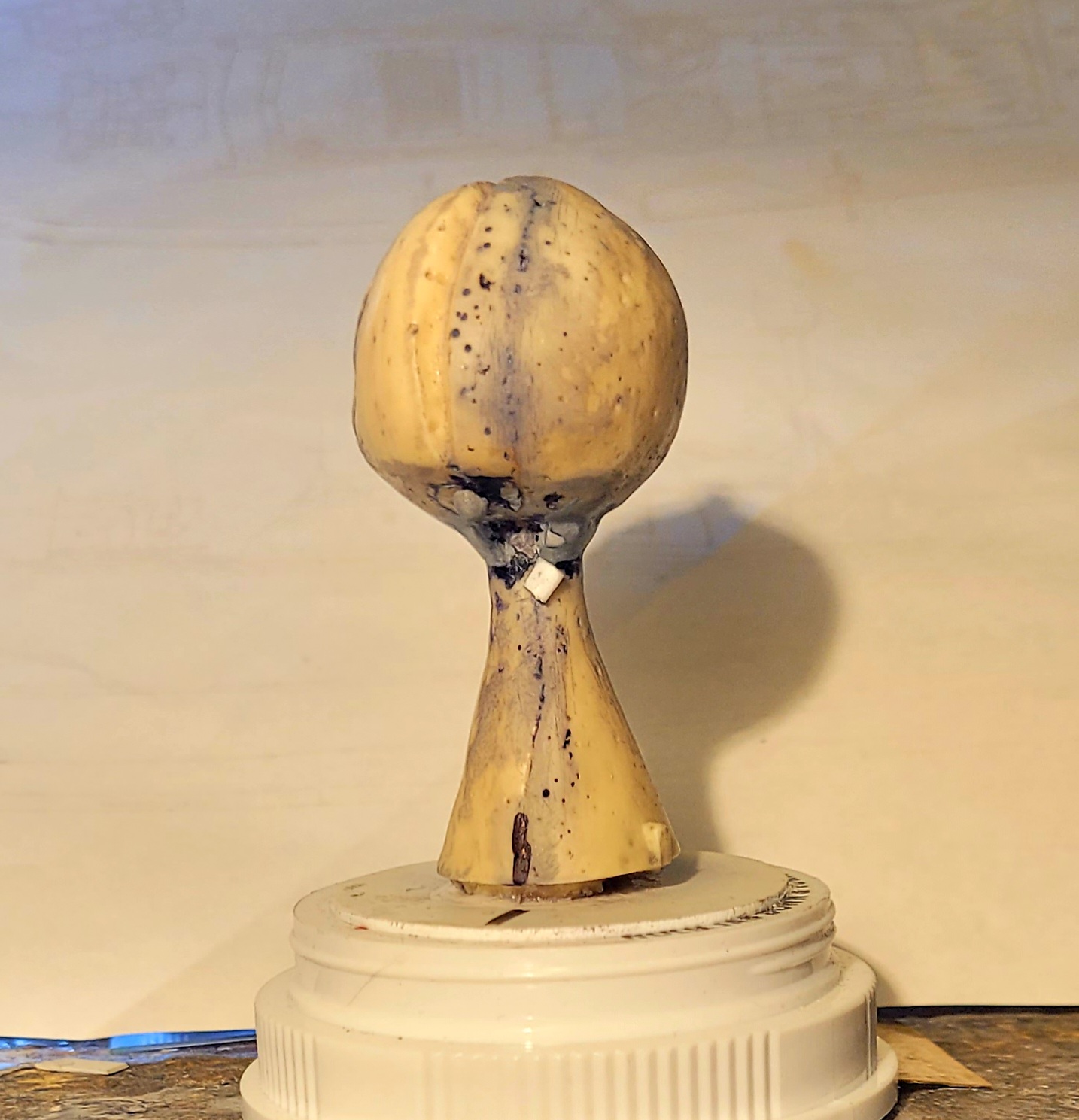

The exposure to vacuum caused this to be hollow in places a guy cain't see. The pedestal is mostly filled. Stuffing scrap everything into the water tower part and putting drops of thin C/A glue to fill the voids. Any trapped air may escape and ruin the mold of the ruined Peachoid (?!?)
"A witness to the ravage of battle in the Carolinas, The gaunt Gaffney Peachoid water tower remains standing near Highway 61. A silent, steadfast, sentinel.
The Swamp Fox militia, Tennessee volunteers, NC National Guard and regular Army units push the enemies of America ever eastward, back toward the Atlantic..........."
Thanks again for looking in!
Please don't resurrect the Gamecocks....
Rhino
Super Moderator
No. No I shouldn't think so.Please don't resurrect the Gamecocks....
Rhino
Super Moderator

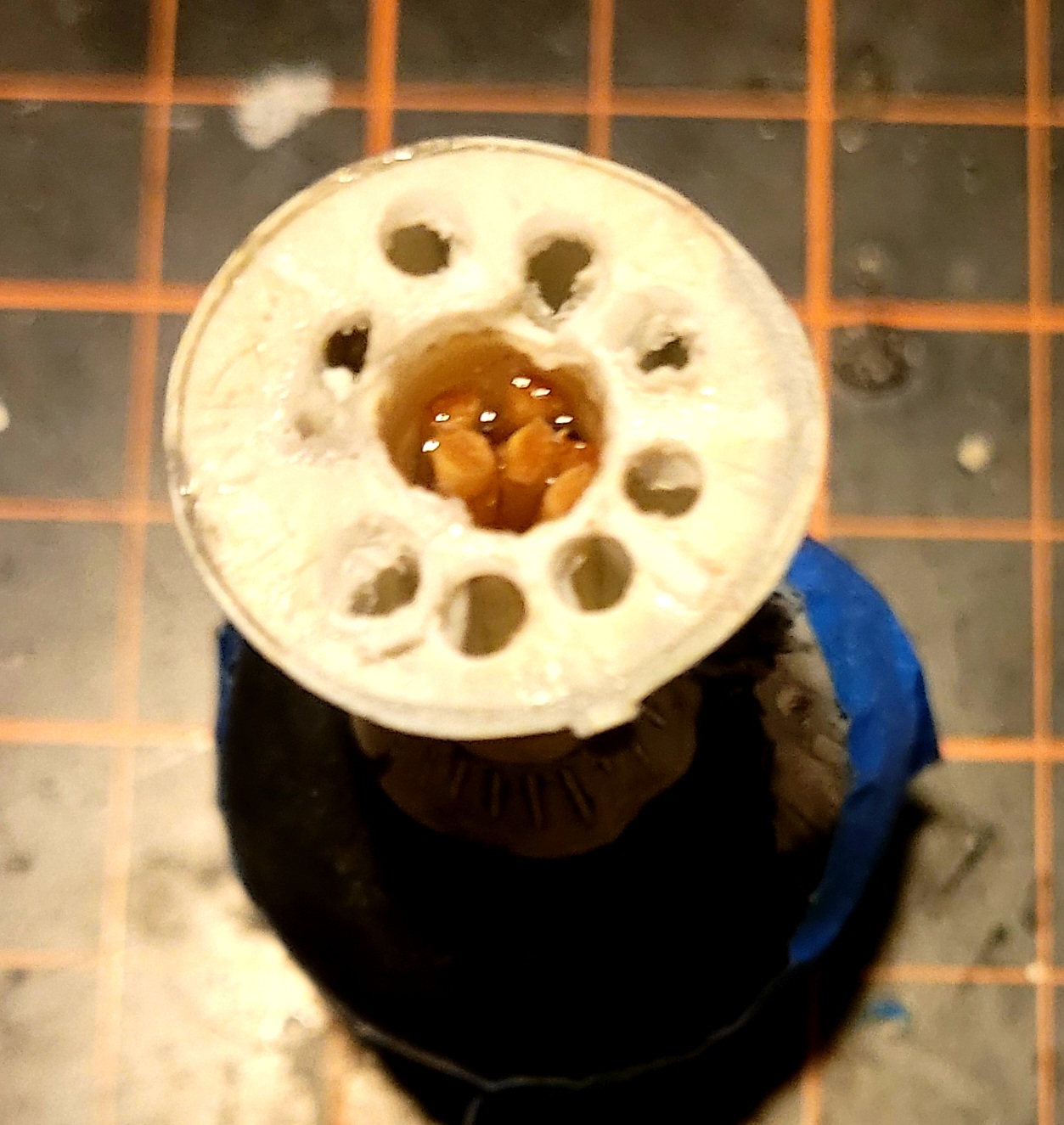

I made this original Master in 2015. Given what I have learned about molding and casting in 7 years, I decided to open and fill the Peach's pedestal. I 'Dremeled" openings in the base, filled it up with toothpicks and thin C/A glue and left it alone! It was hollow clear to the threads in the knob. Any escaping air would have certainly spoiled the new mold.

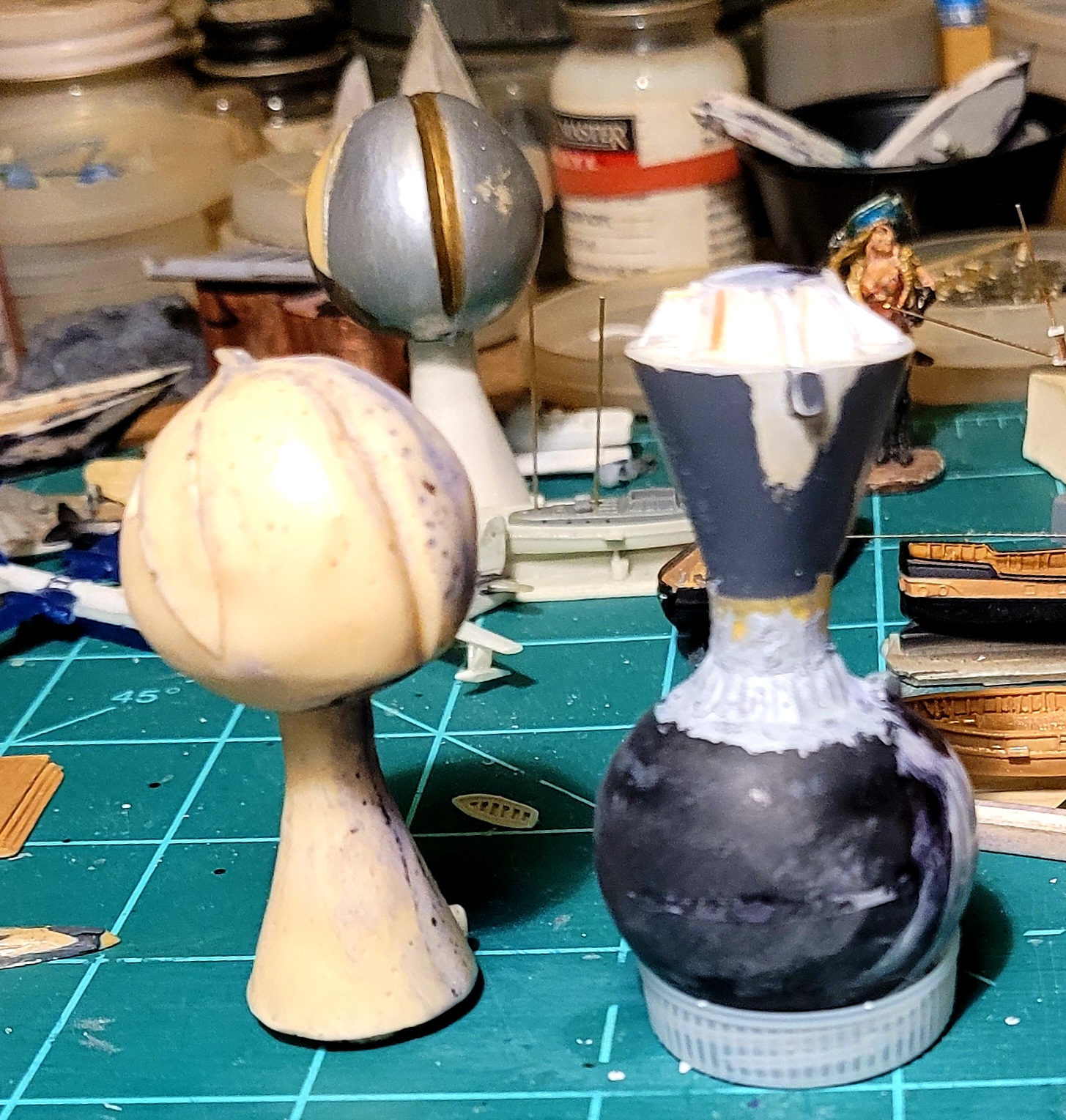

The water tank part of the Peachiod water tower has a taper to the pedestal that I didn't properly model. The taper on the battle blasted Butt Crack will be sectioned. One segment would have come off when the 1,000,000 gallons of water burst forth due to concussion.
A whole lot of surface conditioning isn't necessary on the wounded Peach. It will be purposefully ugly.
Thanks again for looking in!
OK I'll ask. Why the tooth picks and not just CA?
Rhino
Super Moderator
Straight super glue takes eons to cure on it's own. If you accelerate this much c/a glue, the reaction creates quite a lot of heat, possibly damaging the plastic Master. Wood absorbs the c/a and helps reduce the shrinking of the glue by helping fill the void. A hollow Master is sure to ruin the mold under pressure when the air escapes and it WILL. All my Masters are solid.
Howzatt!?!
Howzatt!?!
Duke Maddog
Well-known member
Excellent! I learned something! I had never known this.
Rhino
Super Moderator
I'm not an expert. I don't know everything. Nothing of what I have learned in 7 years are "Corporate secrets".
What you men have witnessed over my molding and casting career PROVES anybody can do this. Reynolds Materials website has a whole shit-ton of excellent tutorials.
www.reynoldsam.com
I've done a few "Special Projects" by request for modelers I respect and admire. It's not Black Magic. There ARE steps to follow and pit-falls to avoid to ensure a quality mold and casting. The are copyrights that must be respected if you plan to sell for profit.
I would be glad to help anyone that wanted to try their hand at creating their very own "Model Nobody Else Makes That I Always Wanted".
What you men have witnessed over my molding and casting career PROVES anybody can do this. Reynolds Materials website has a whole shit-ton of excellent tutorials.
Mold Making & Casting Supplies from Reynolds Advanced Materials
www.reynoldsam.com
I've done a few "Special Projects" by request for modelers I respect and admire. It's not Black Magic. There ARE steps to follow and pit-falls to avoid to ensure a quality mold and casting. The are copyrights that must be respected if you plan to sell for profit.
I would be glad to help anyone that wanted to try their hand at creating their very own "Model Nobody Else Makes That I Always Wanted".
Rhino
Super Moderator

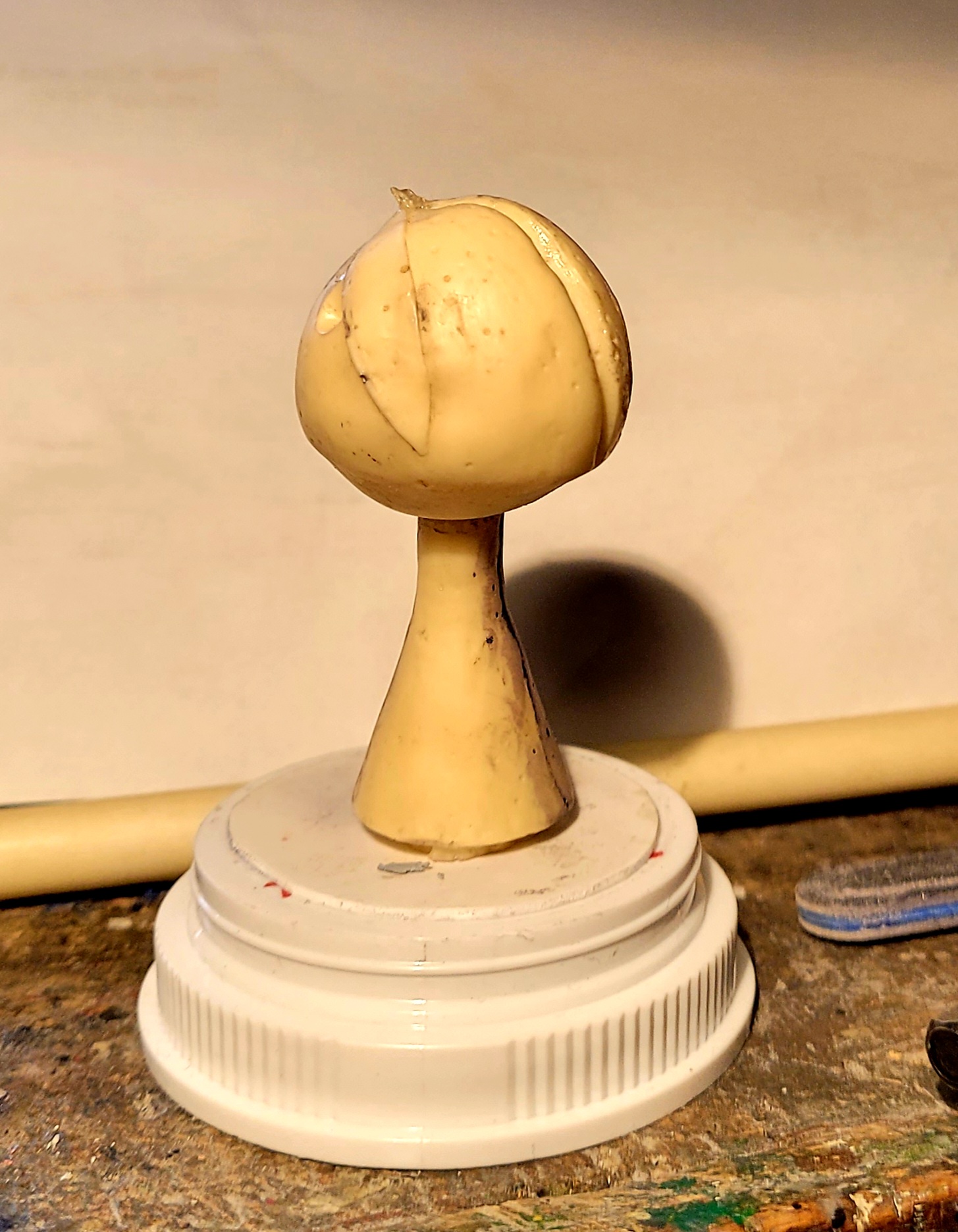

The damaged Peach is ready to mold. I broke off a curved panel and hung it to show how dire the blast effect damage to the Big Butt-crack was. Still, she stands, wounded but stoic and upright in defiance of the best efforts to bring Her down.
"As American units push the enemy back to the Lowlands, David Hetfield brought his band to Gaffney, SC. It seems when the wind is just right, the loose panel on the Peachoid makes a rhythmic clanging sound that emulates the Bell in one of David's older songs. Amps, HUGE speakers and American music spur our forces on as they pass down Highway 85 into battle to crush the enemies of Liberty. Members of local High School bands and orchestras join the rousing salute!
