Trumpeter Ju 87A in 1/32 (Resuming the build)
- Thread starter Heavens Eagle
- Start date
Heavens Eagle
Well-known member
LOL!Yep, Pauls drunk, cut'em off Bartender.
Hey Bob, wanna see a picture of my ass (scar)?
Naw I won't do that to ya
No thanks but hey, thanks for the offer!
Rhino
Super Moderator
Sometimes models frustrate us. Even though I am never surprised when a Trumpeter kit gives a guy fits, there may be a special treat that eases said unhappiness.
It kinda goes with your scar, Paul.
NO. No it don't!
It kinda goes with your scar, Paul.
NO. No it don't!
Heavens Eagle
Well-known member

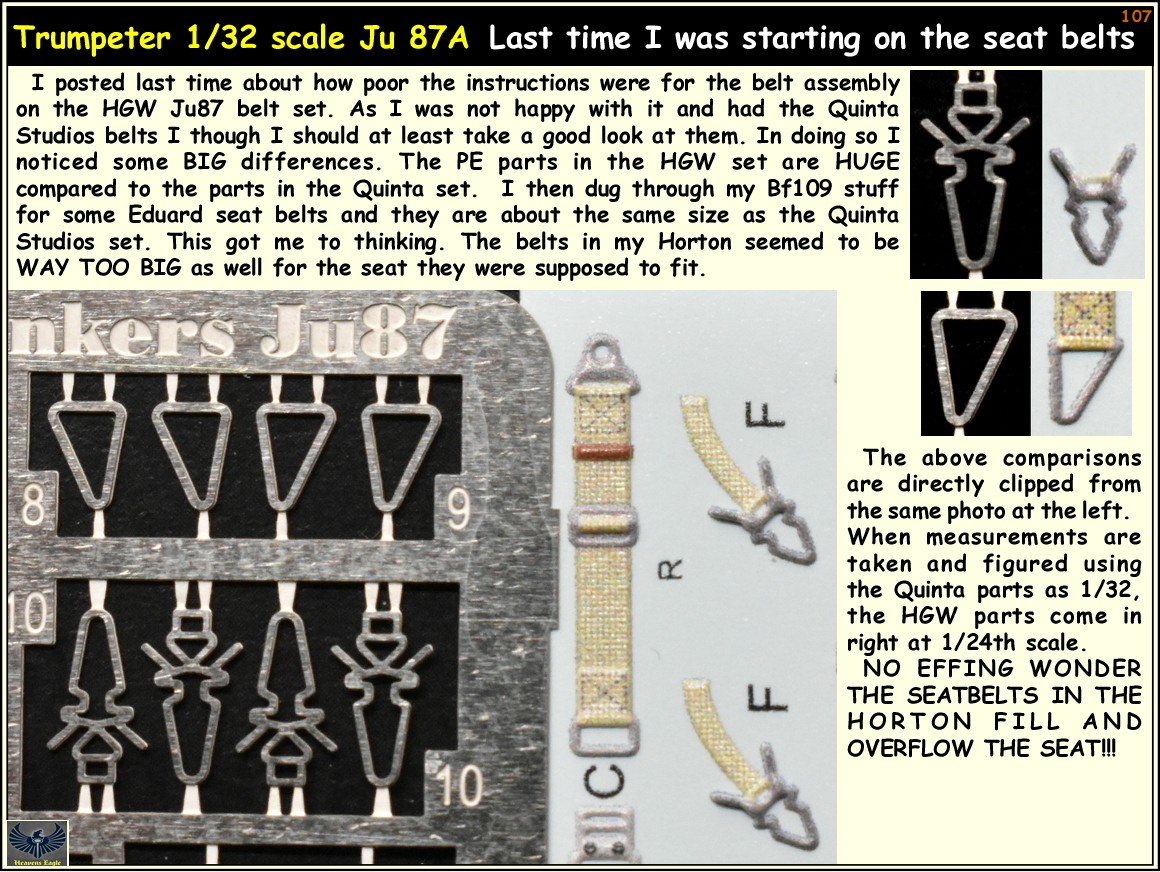

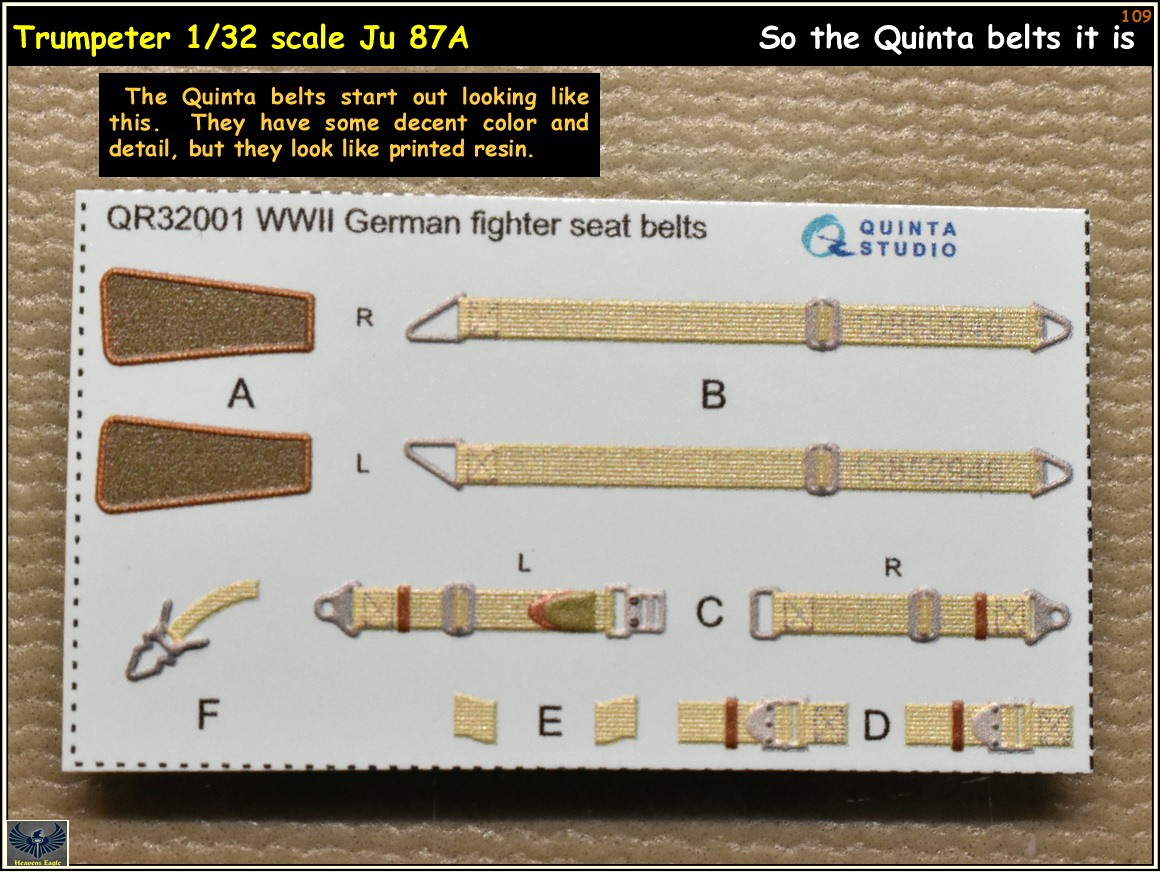

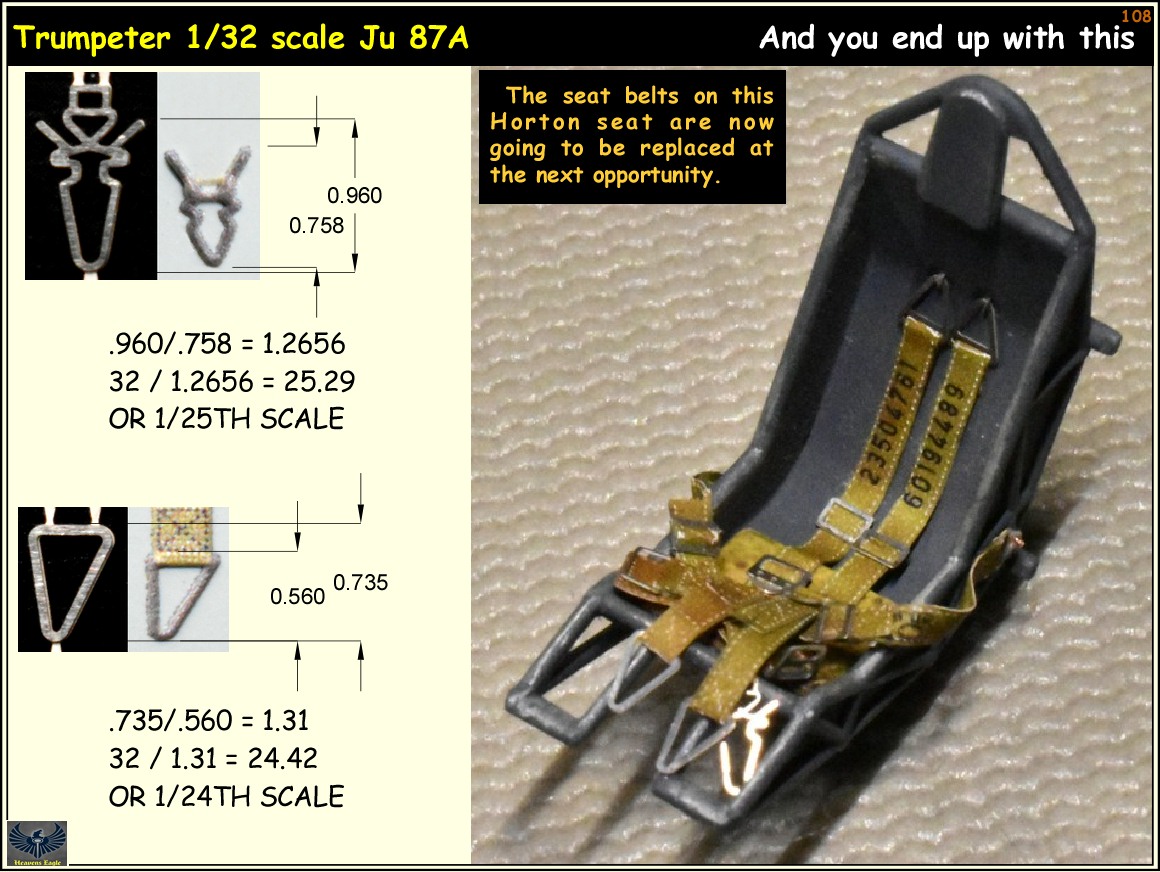

Moving right along now. Tonight I discovered that the HGW seatbelts are complete junk unless you are building a 1/24th scale kit. I had the same problems with the Horton seat belts that I was going to have with the ones for this build. I decided to compare the parts from the HGW and Quinta Studios belts and found that the parts in the HGW PE fret are quite a bit LARGER!

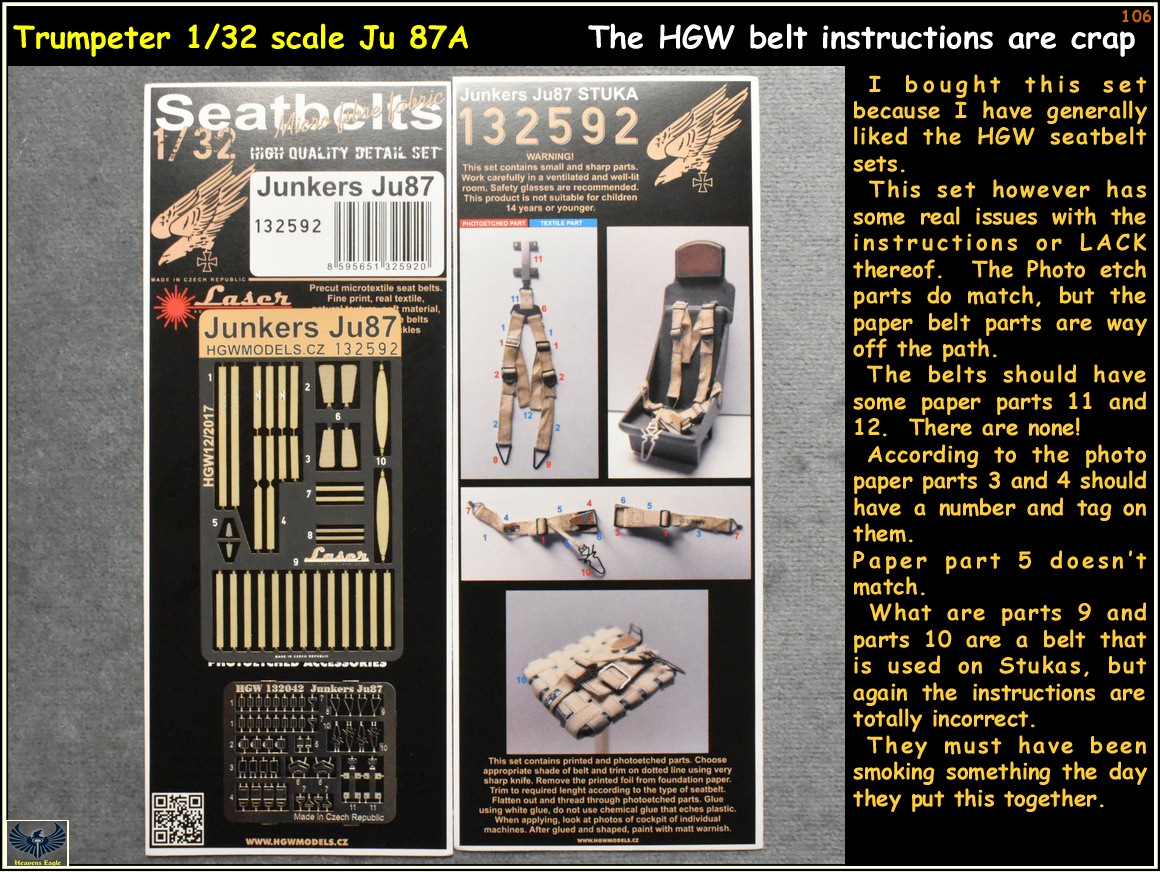

Here is the photo of the HGW belt set and notice that it is marked for 1/32 scale, and the part numbers all start with 132.
So here we go. My belief is that ALL these seat belt sets are way off on sizing and thus won't ever buy another HGW set. Pass this info along.
Note that I also pulled out some Eduard PE belts and they were pretty much the same size as the Quinta Studio sets. Minor differences, but not anything like this ridiculous oversize crap.

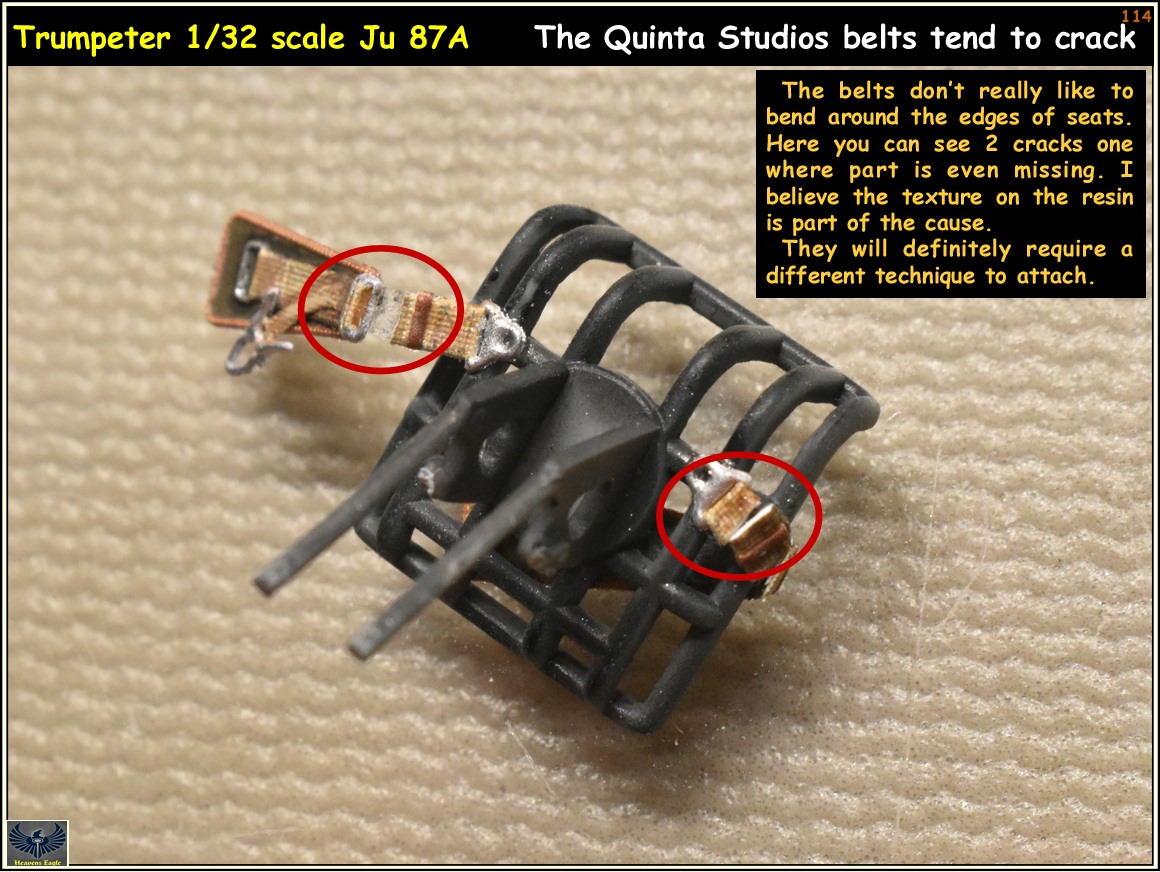

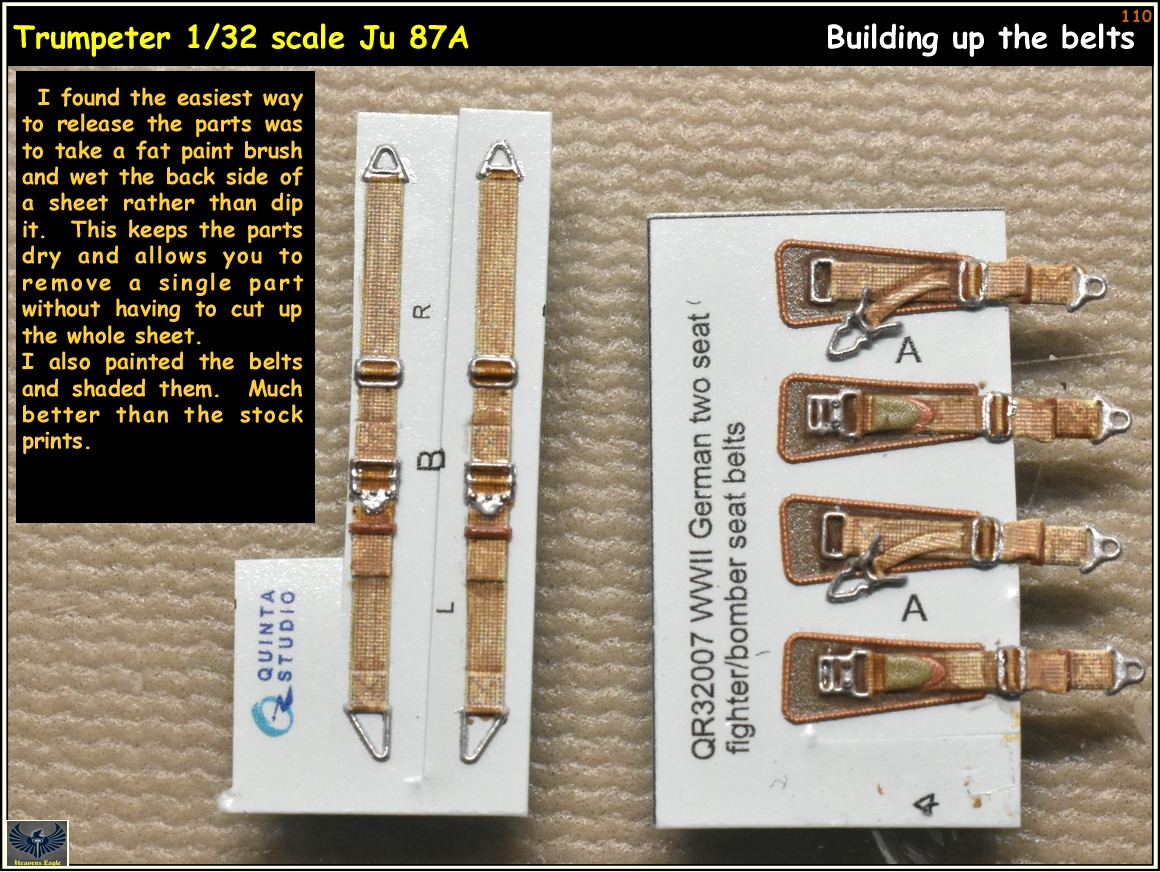

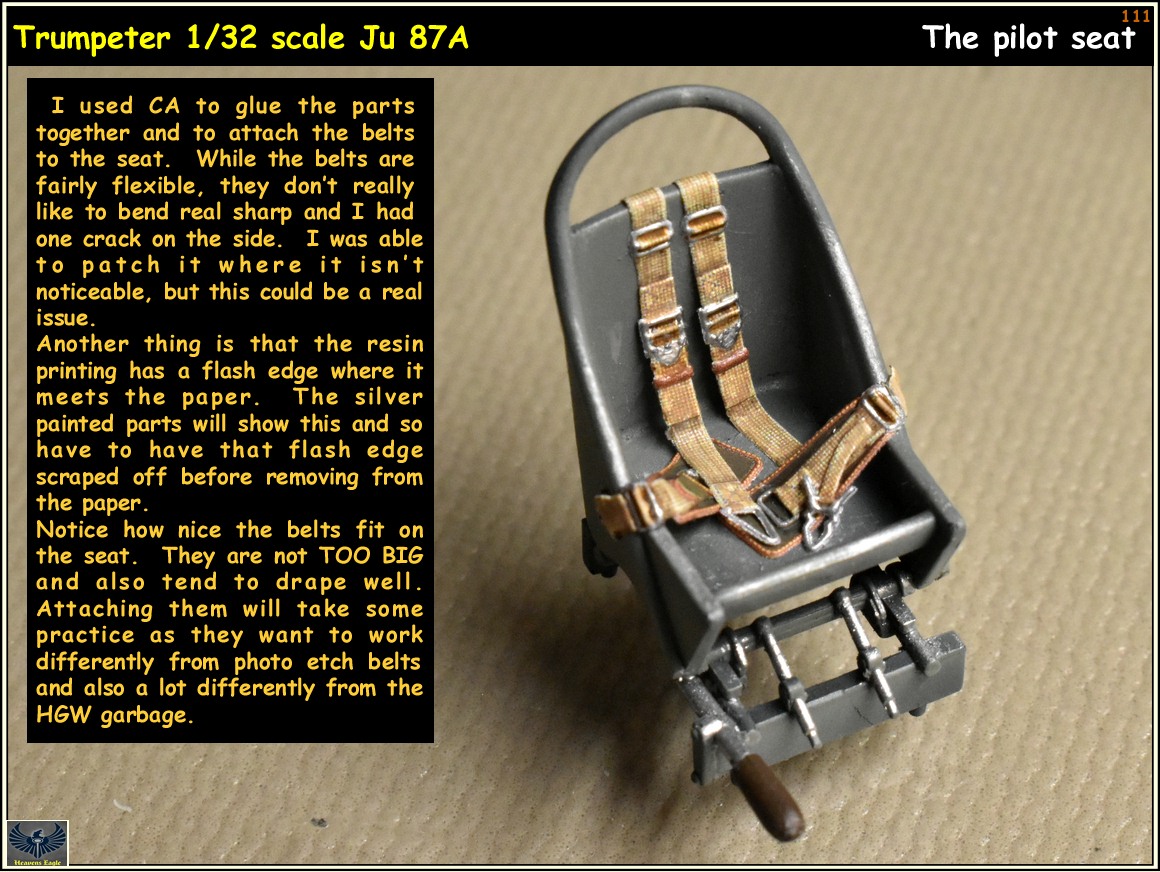

Not bad for a first try on these. I think it might be wise to glue an thin paper strip to the underside of these which should help prevent breakage and hold them together.
I still have to finish up the radio operator seat and do some minor tweaks before placing them. Moving right along.
Here is the photo of the HGW belt set and notice that it is marked for 1/32 scale, and the part numbers all start with 132.
So here we go. My belief is that ALL these seat belt sets are way off on sizing and thus won't ever buy another HGW set. Pass this info along.
Note that I also pulled out some Eduard PE belts and they were pretty much the same size as the Quinta Studio sets. Minor differences, but not anything like this ridiculous oversize crap.
Not bad for a first try on these. I think it might be wise to glue an thin paper strip to the underside of these which should help prevent breakage and hold them together.
I still have to finish up the radio operator seat and do some minor tweaks before placing them. Moving right along.
I liked using Gator Grip for the glue Paul. Gave me more time to position, I think I used CA for the anchor points. Neat trick about releasing them from the paper.
Heavens Eagle
Well-known member
Actually the CA I am using is setting off really slow so plenty of position time. The thick stuff I am using has aged a little bit. I have some newer thin CA and if I mix them it speeds up a little and gives other properties.
Heavens Eagle
Well-known member
Just a quick update. Got some mojo and went in and worked on this beastie this evening. If I just go in and pick up something and work on it, I will get someplace on it. You can see I have been a bit busy.
I will probably get more done as the week goes on. We will see how it goes.
I will probably get more done as the week goes on. We will see how it goes.
Heavens Eagle
Well-known member

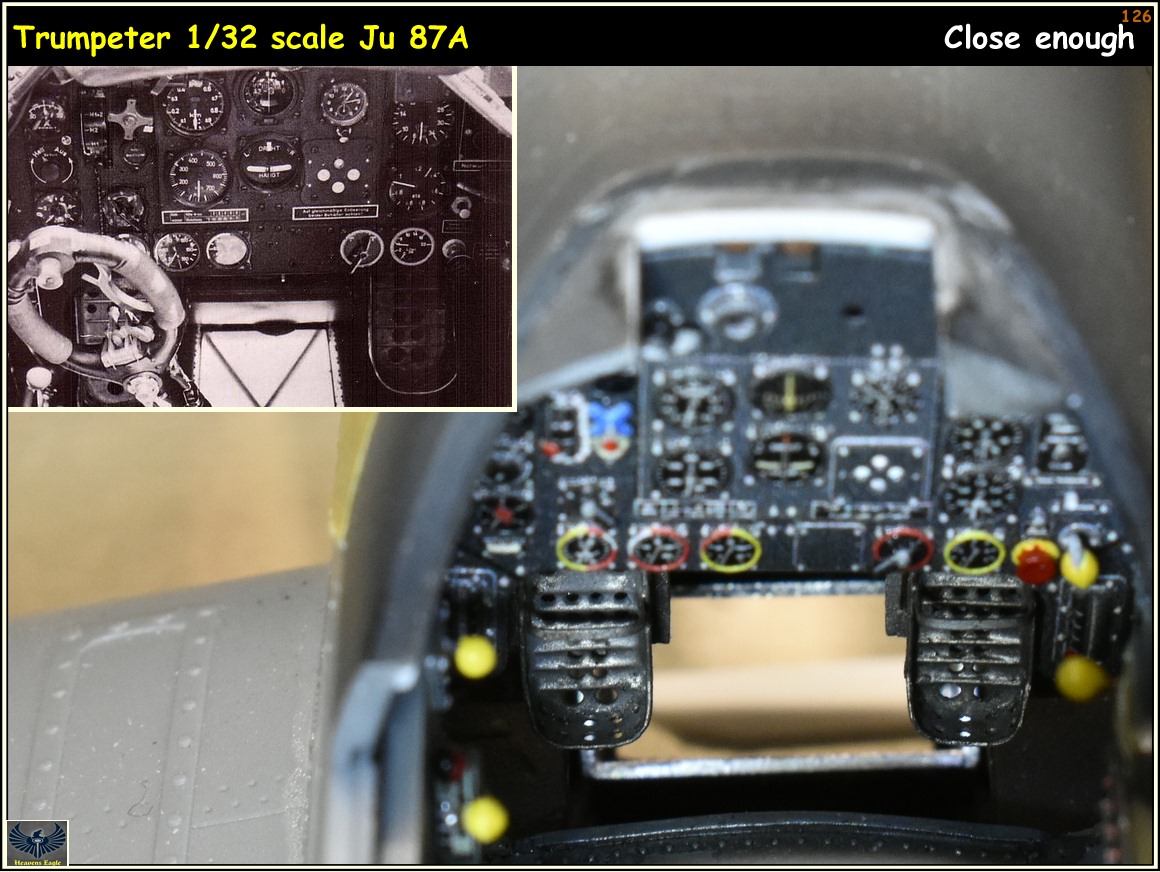

Had some time that I was able to get some work done this weekend. Here is a short update.

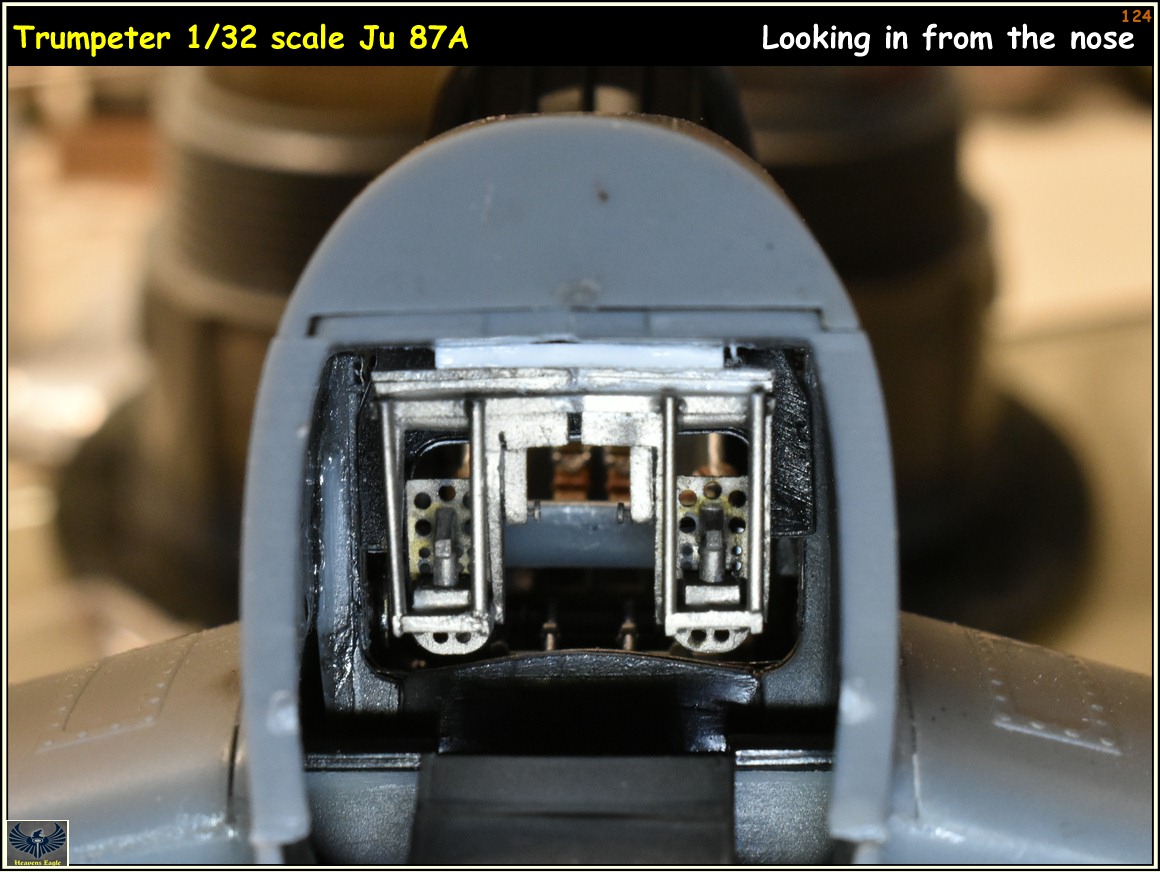

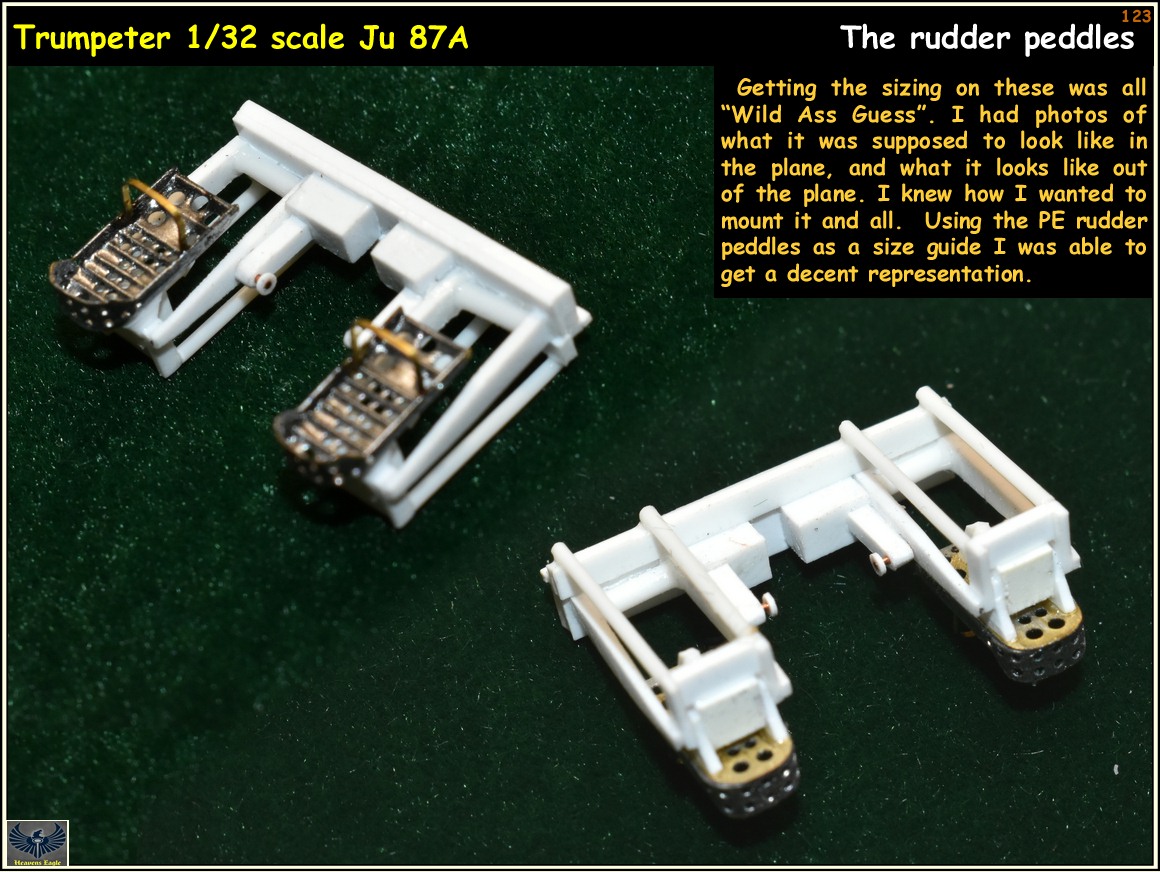

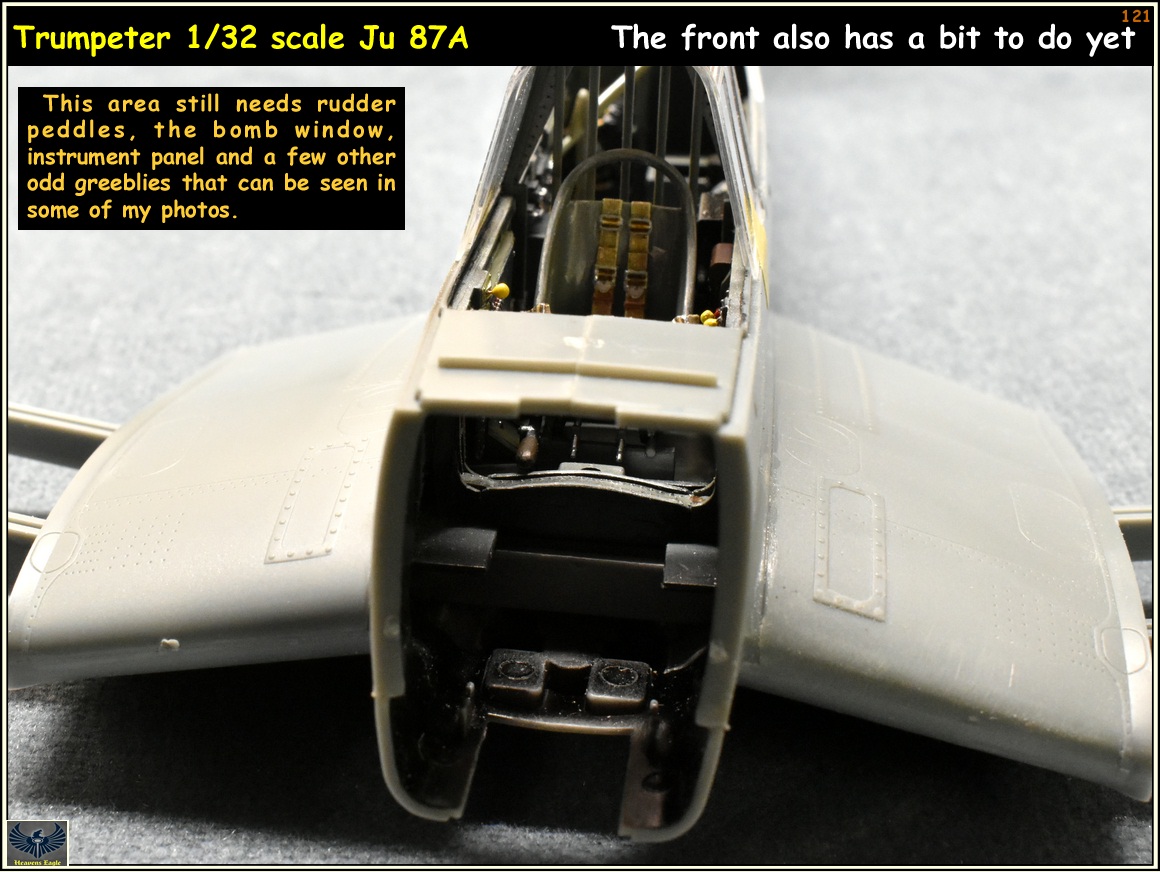

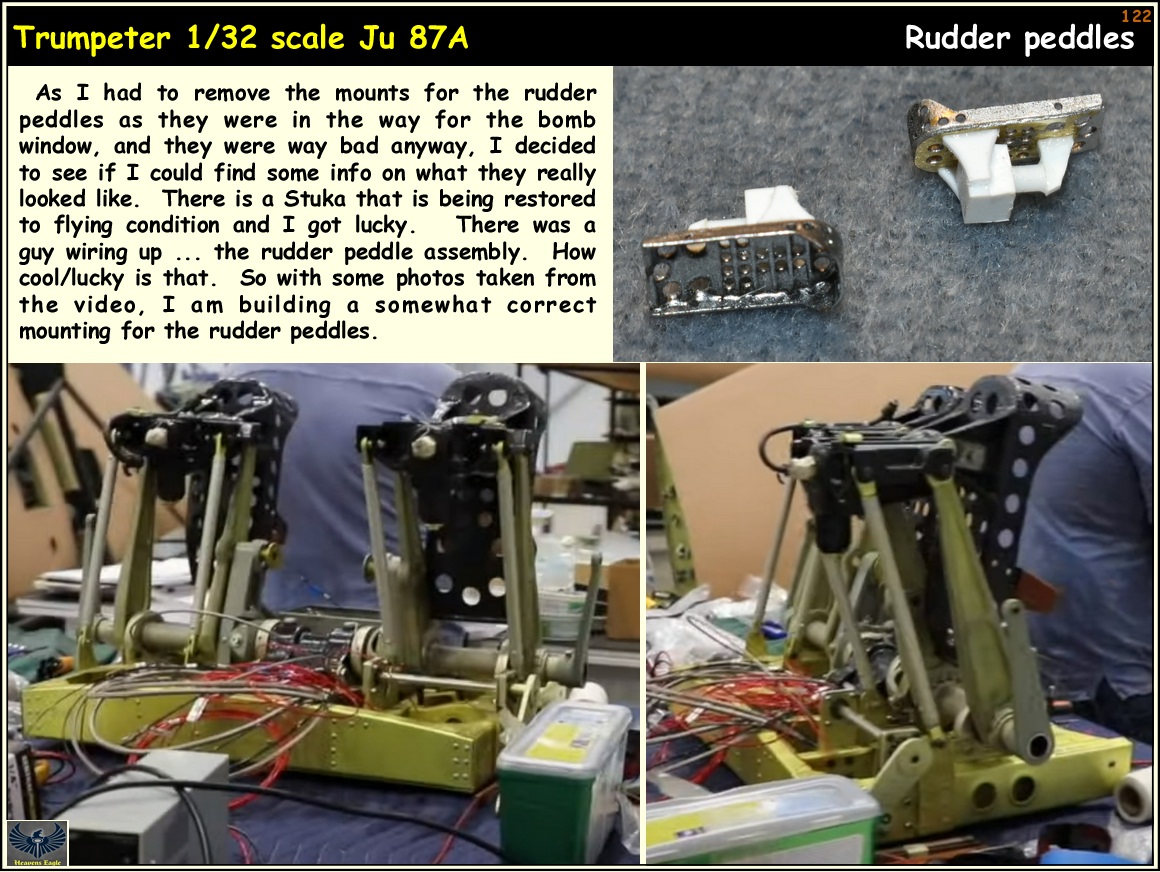

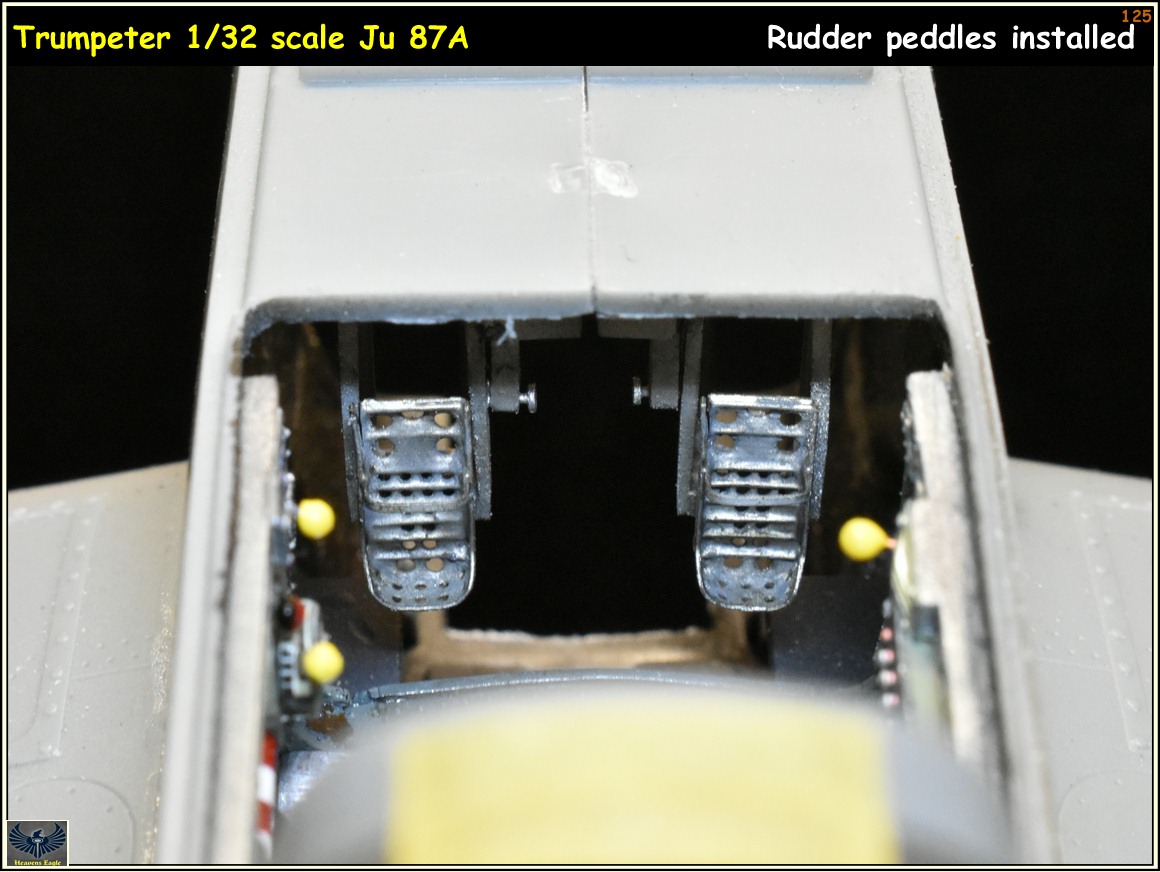

The hard part will be getting the rudder peddles at about the right location. I doubt that it will be any worse than Trumpeter had them. The opening in the front of the fuselage is a little empty at the moment, but there is still a bit of stuff that has to be placed here.
The hard part will be getting the rudder peddles at about the right location. I doubt that it will be any worse than Trumpeter had them. The opening in the front of the fuselage is a little empty at the moment, but there is still a bit of stuff that has to be placed here.
I was about to say the rudder assembly looks upside down then realized THEY ARE!
Good job Paul, nice to see one in real life to see what's going on.
Good job Paul, nice to see one in real life to see what's going on.
Heavens Eagle
Well-known member

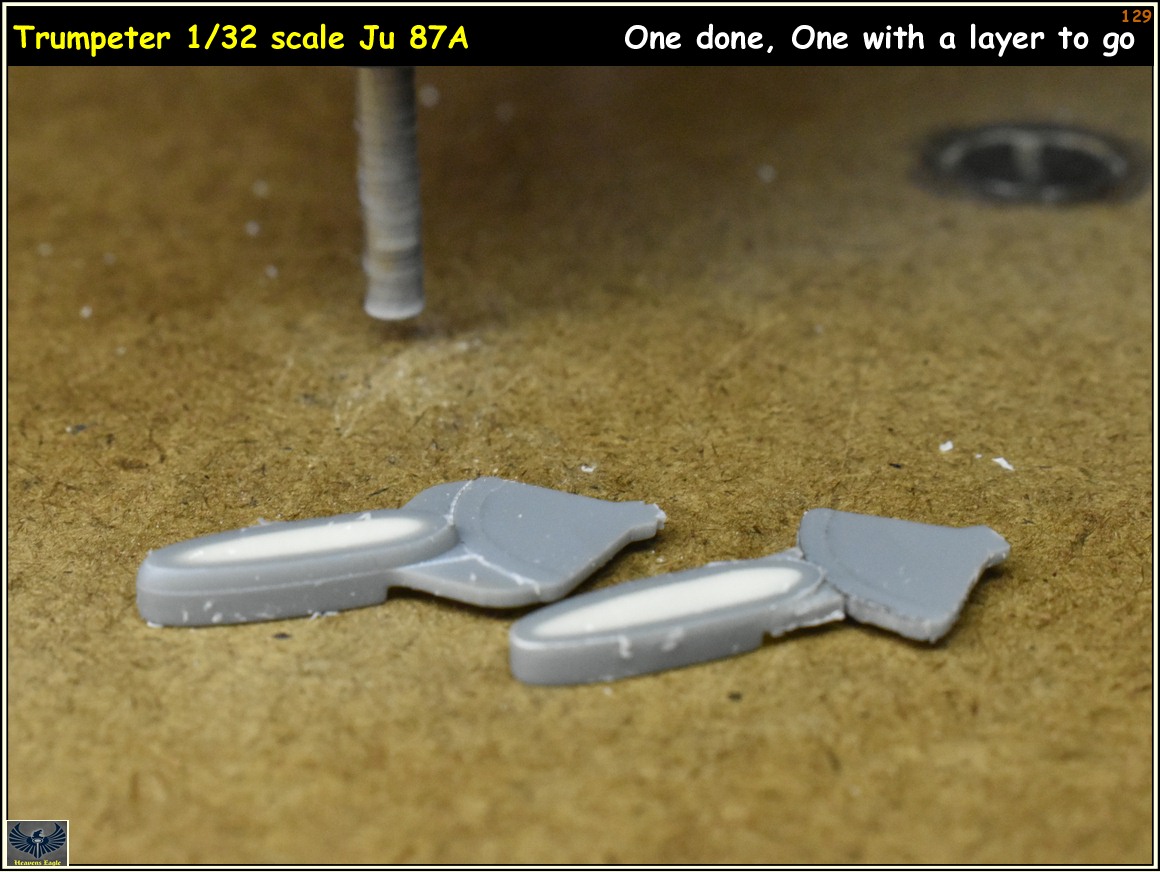

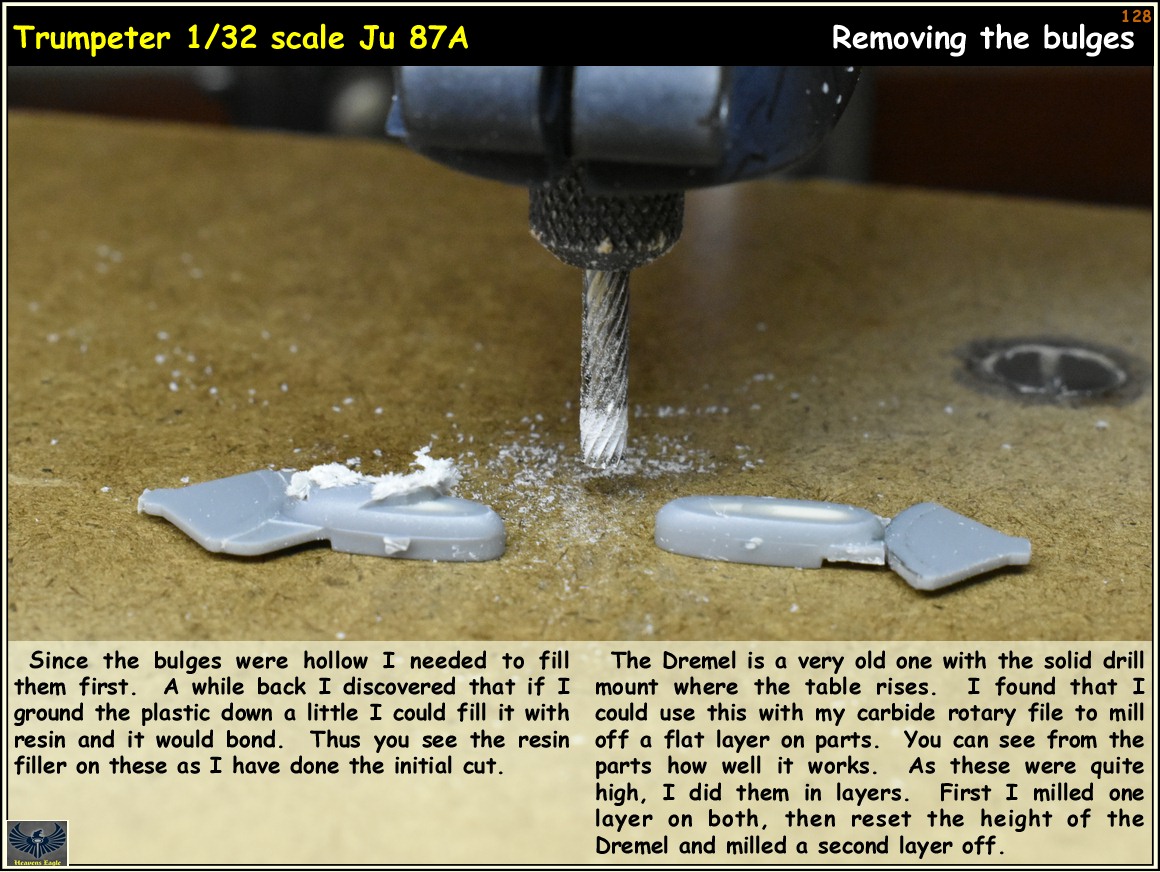

Since we have been on snow days this week and now ICE, I have been home and finally got myself past the doldrums and got back on this. I have been picking at it for a bit, little here and a little there, finally have enough for a nice update.

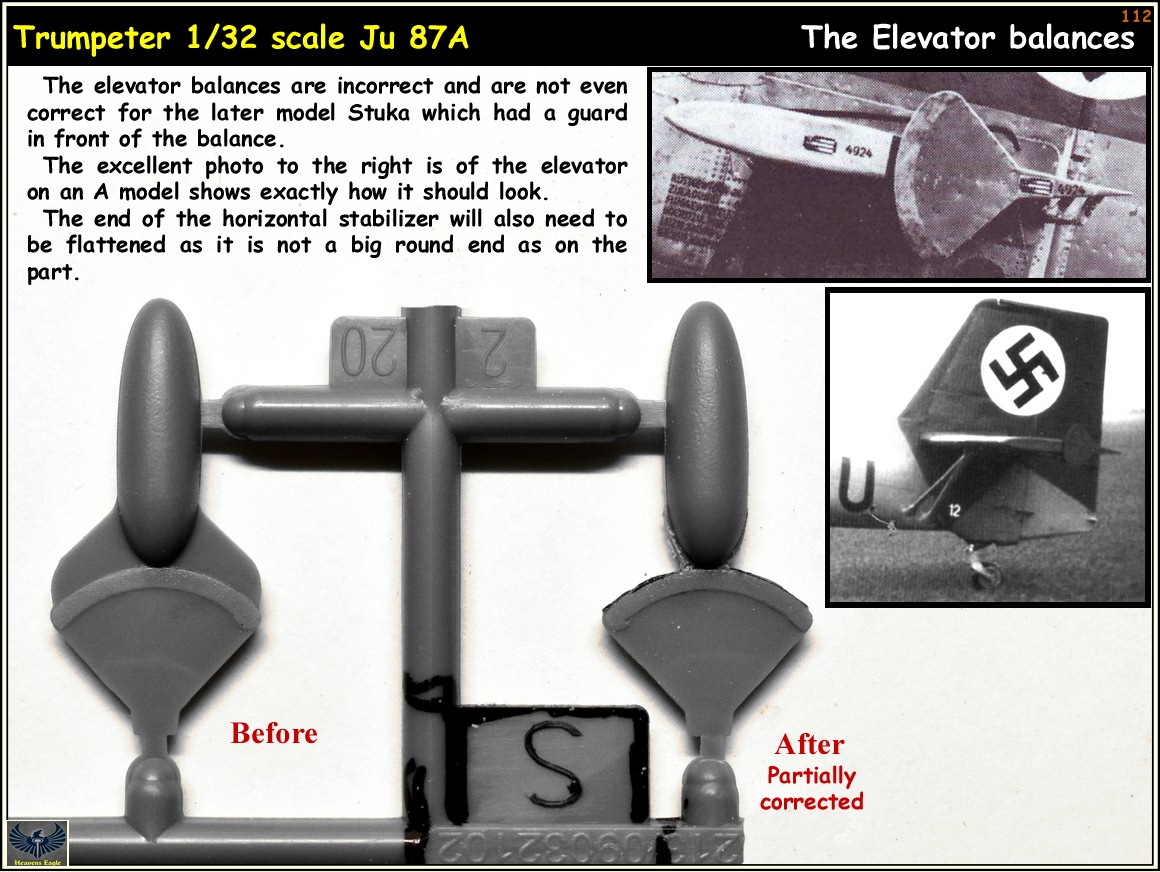

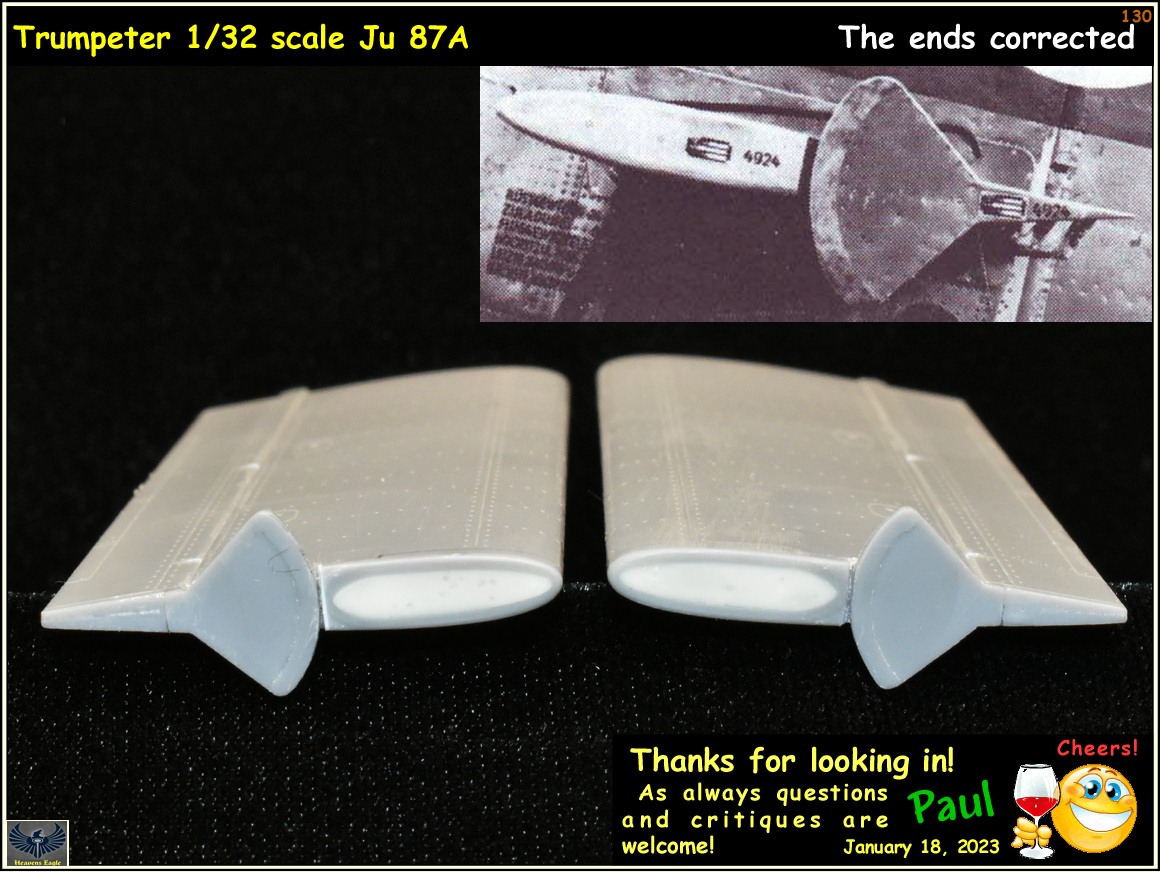

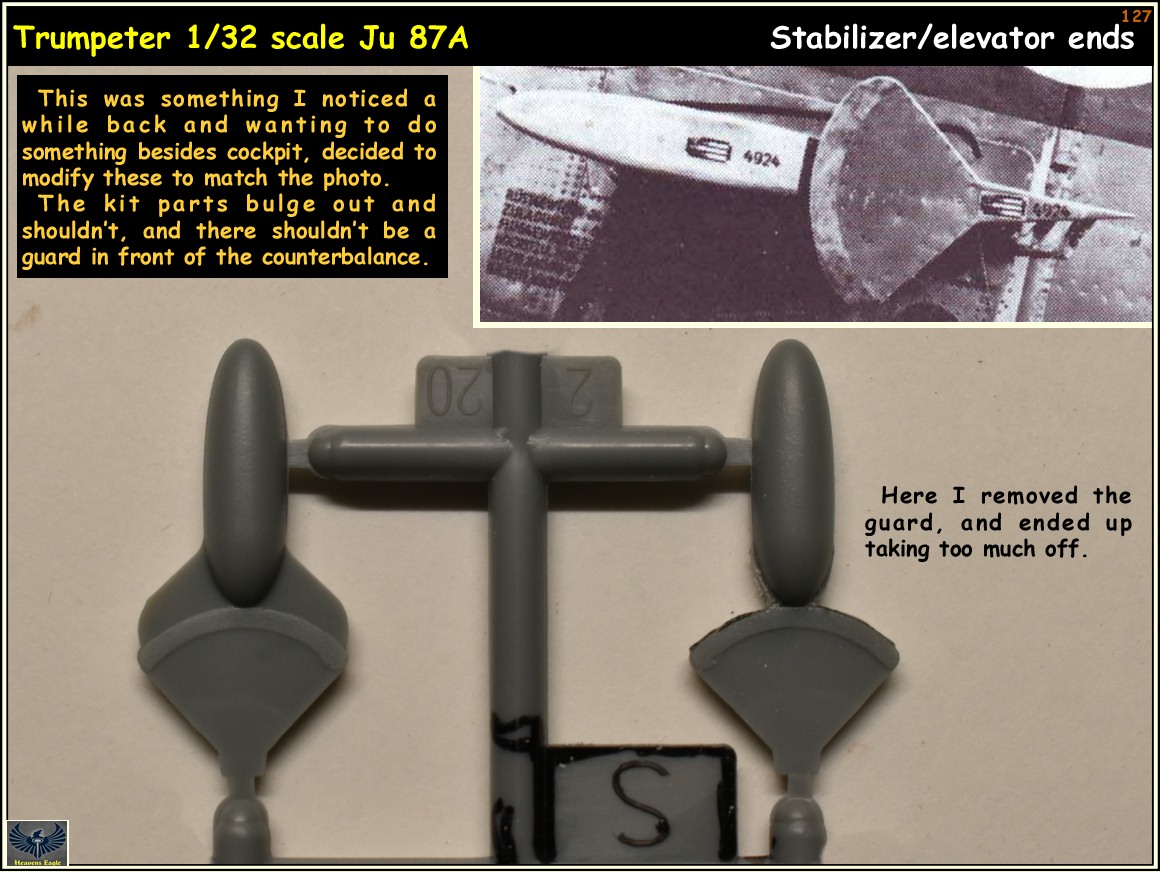

Just realized by looking close at the reference photo and the parts that the elevators should be down to a thin edge instead of the thick edge that they are. I have said it before and here it is again, Trumpeter kits have so many sucky easily fixed inaccuracies that they are almost not worth building. This one is coming along well and is a long way better than it started out, but dang it is a pain in the can.
Just realized by looking close at the reference photo and the parts that the elevators should be down to a thin edge instead of the thick edge that they are. I have said it before and here it is again, Trumpeter kits have so many sucky easily fixed inaccuracies that they are almost not worth building. This one is coming along well and is a long way better than it started out, but dang it is a pain in the can.
Pretty slick surgery Paul.
jeaton01
Well-known member
Yeah, those elevators are out to lunch, but your stabilize fix is nice.
There are a number of instances in full scale where the control surfaces are built that way on purpose, as it reduces deadband around the neutral position. The Vought Cutlass is one. Another example which proves the benefit is the difference between the control response on the Beech Sierra and the Duchess. The Sierra ailerons come to a sharp trailing edge while the Duchess had the same airfoil and aileron but the trailing edge of the aileron had a U-shaped channel inserted to widen the trailing edge. The Sierra autopilot was always hunting in roll and the aileron response was poor near neutral, while the Duchess was nice and crisp.
There are a number of instances in full scale where the control surfaces are built that way on purpose, as it reduces deadband around the neutral position. The Vought Cutlass is one. Another example which proves the benefit is the difference between the control response on the Beech Sierra and the Duchess. The Sierra ailerons come to a sharp trailing edge while the Duchess had the same airfoil and aileron but the trailing edge of the aileron had a U-shaped channel inserted to widen the trailing edge. The Sierra autopilot was always hunting in roll and the aileron response was poor near neutral, while the Duchess was nice and crisp.
Heavens Eagle
Well-known member

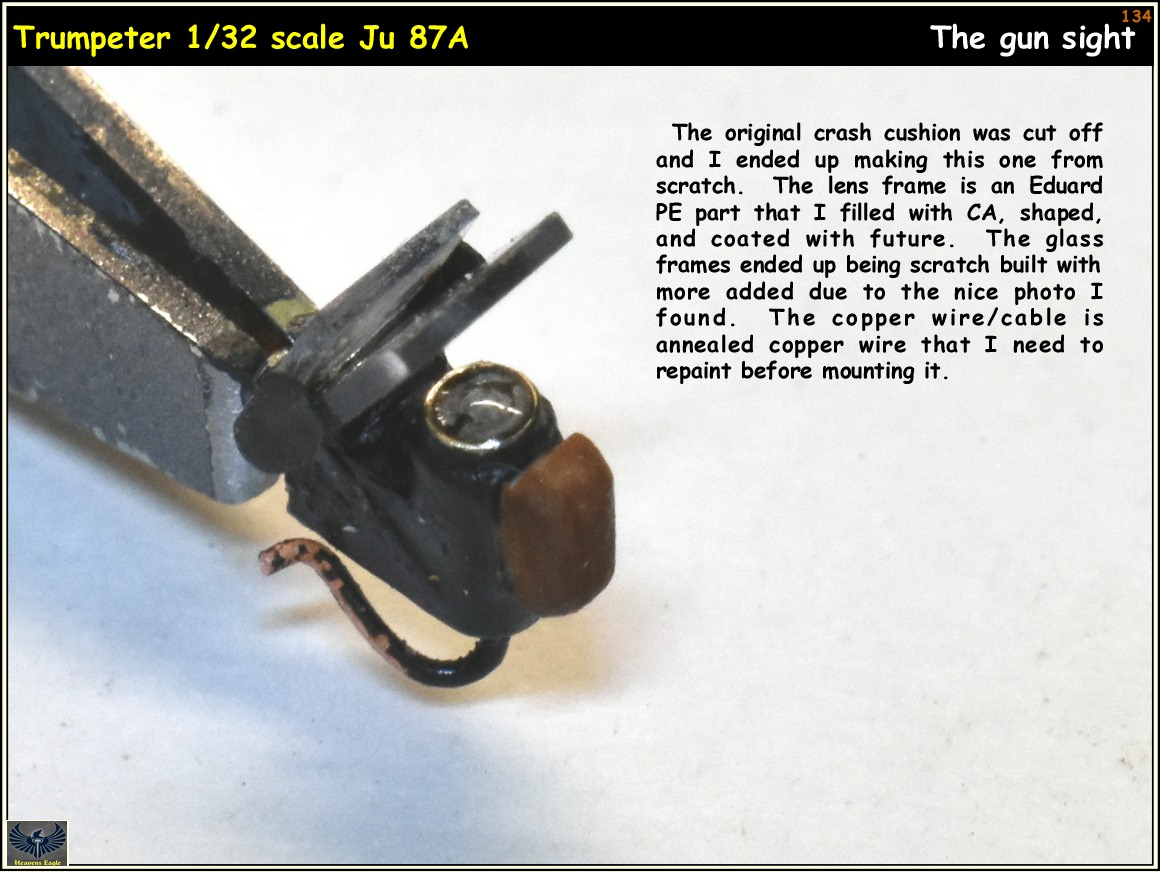

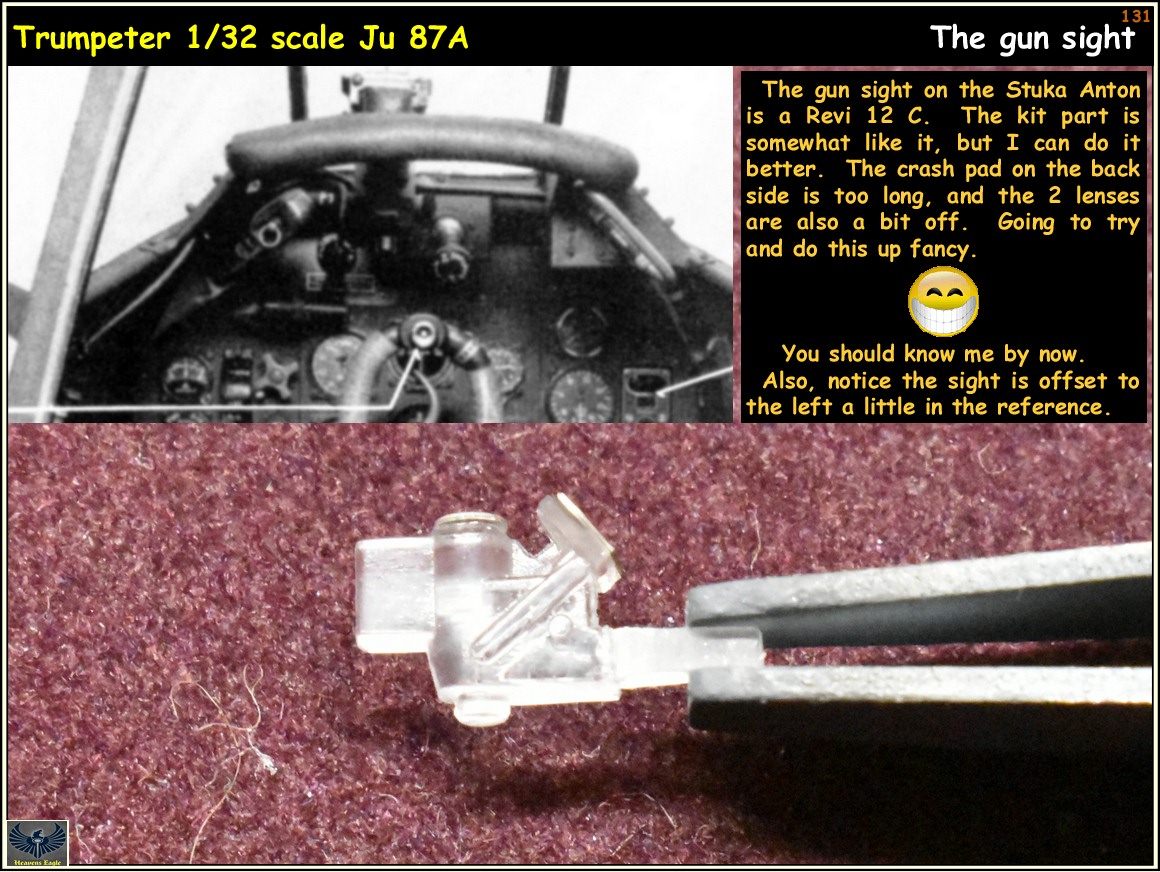

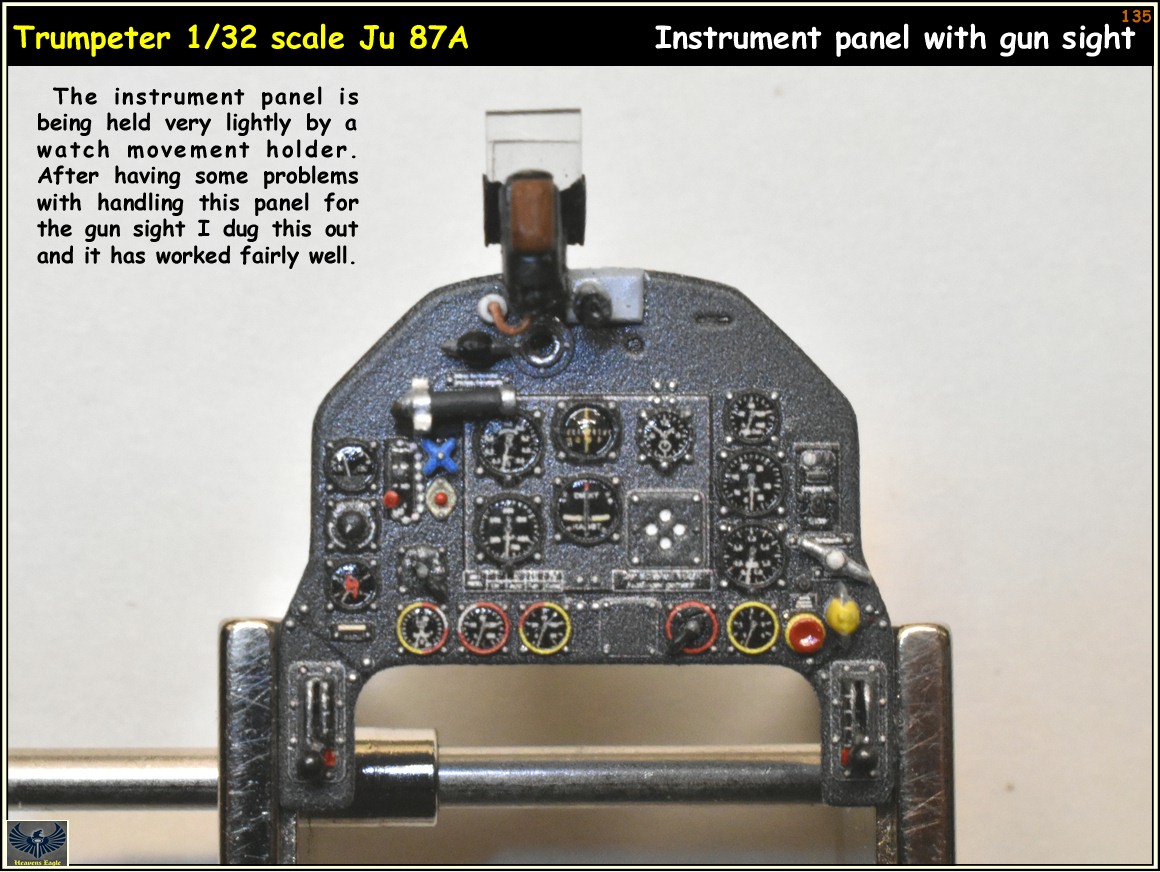

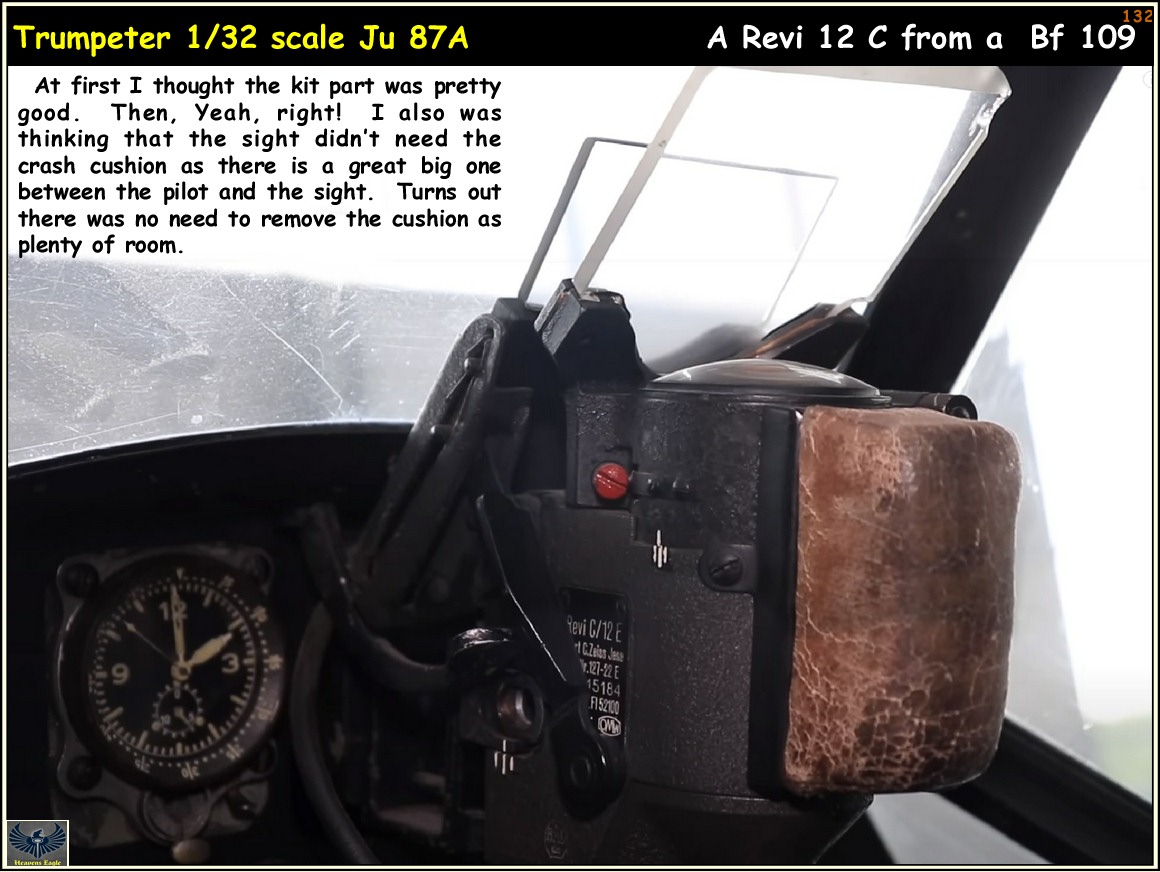

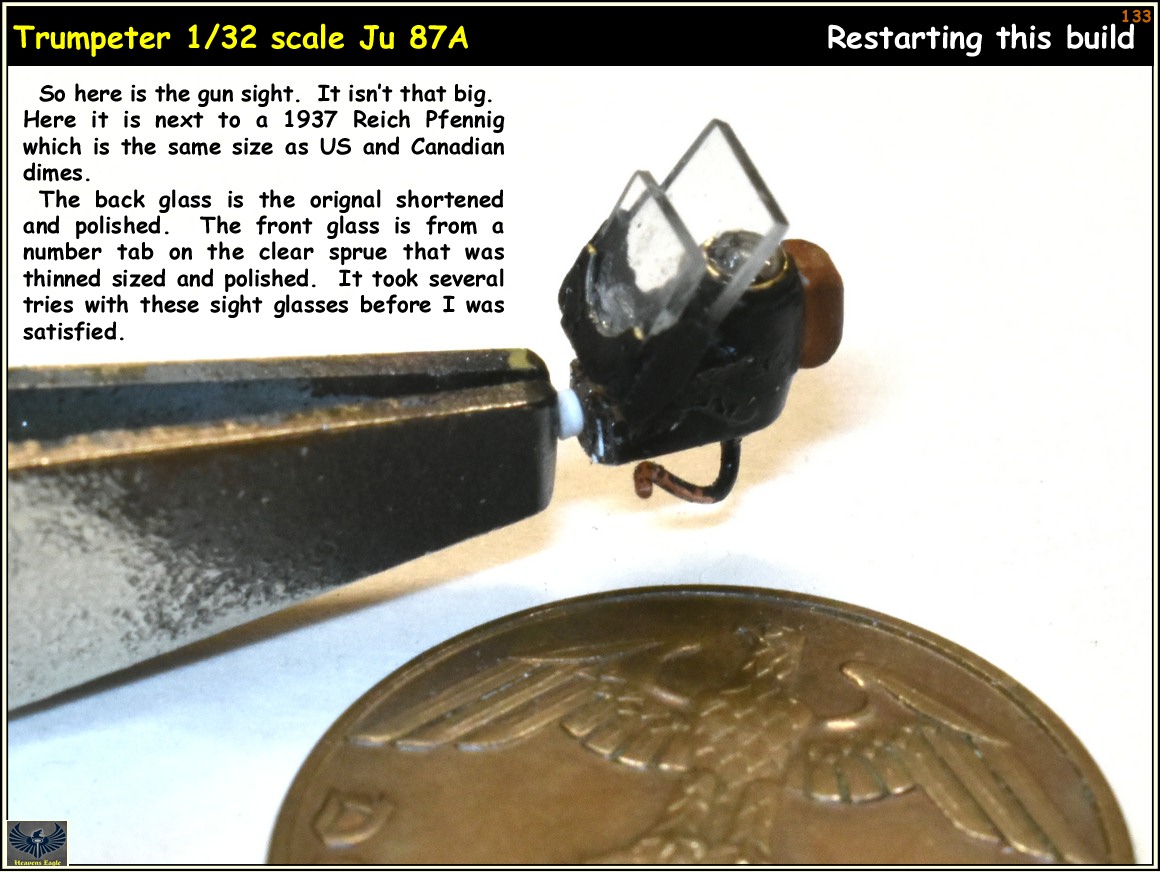

Been working on the gun sight the last several days. Part of this has been how it needs to fit to the instrument panel, and then how that fits to the cowling and windscreen. Too far forward and it interferes with the windscreen, too far back and there is an issue with the cowling and another part that I still have yet to scratch build. I also took detailing the gun sight to an extreme AMS level, but since when is THAT new. HA!
Anyway here is the gun sight, hope you like it.
Yeah, I actually had fun building this little POS. It was a challenge and I used my Future to make things look a bit better and clearer. Still have another couple of cockpit steps to go. This thing is a pain, but it is really looking good, so that is helping to keep some motivation going.
Anyway here is the gun sight, hope you like it.
Yeah, I actually had fun building this little POS. It was a challenge and I used my Future to make things look a bit better and clearer. Still have another couple of cockpit steps to go. This thing is a pain, but it is really looking good, so that is helping to keep some motivation going.
Heavens Eagle
Well-known member

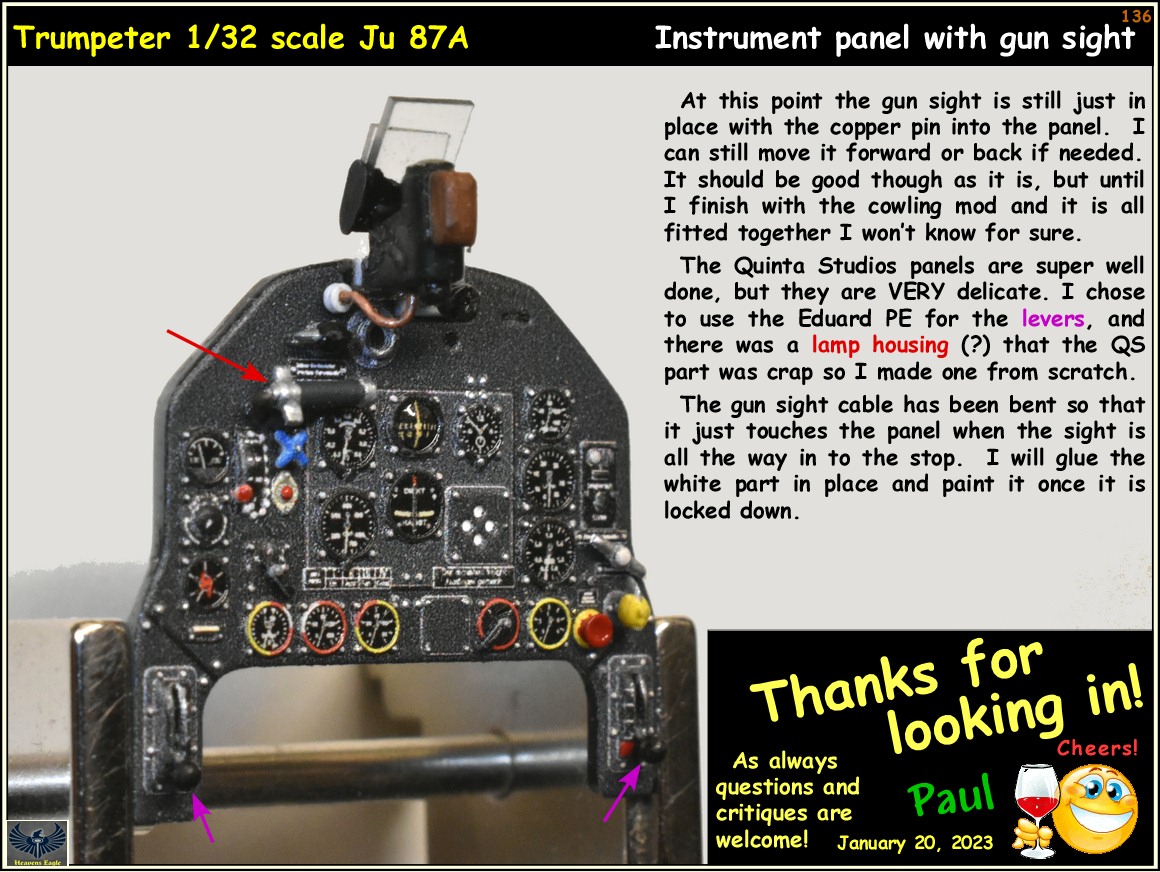

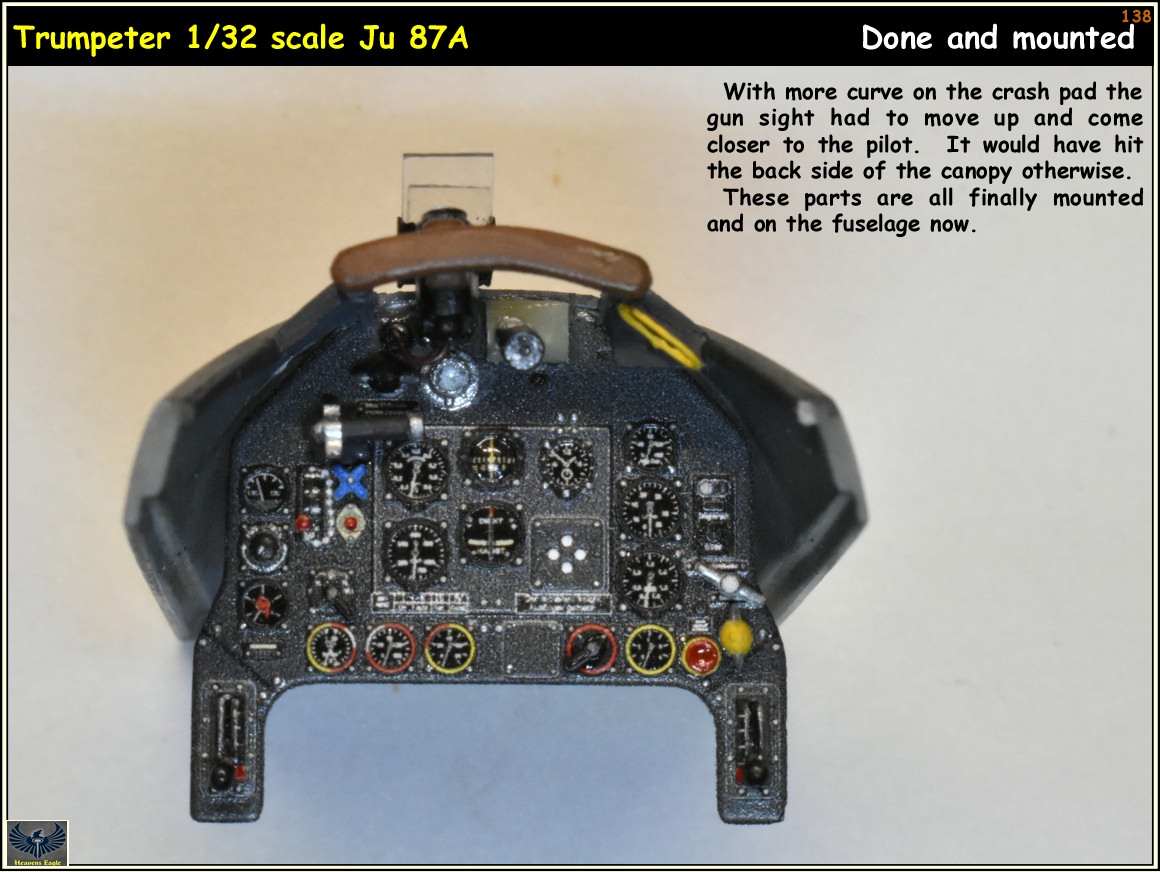

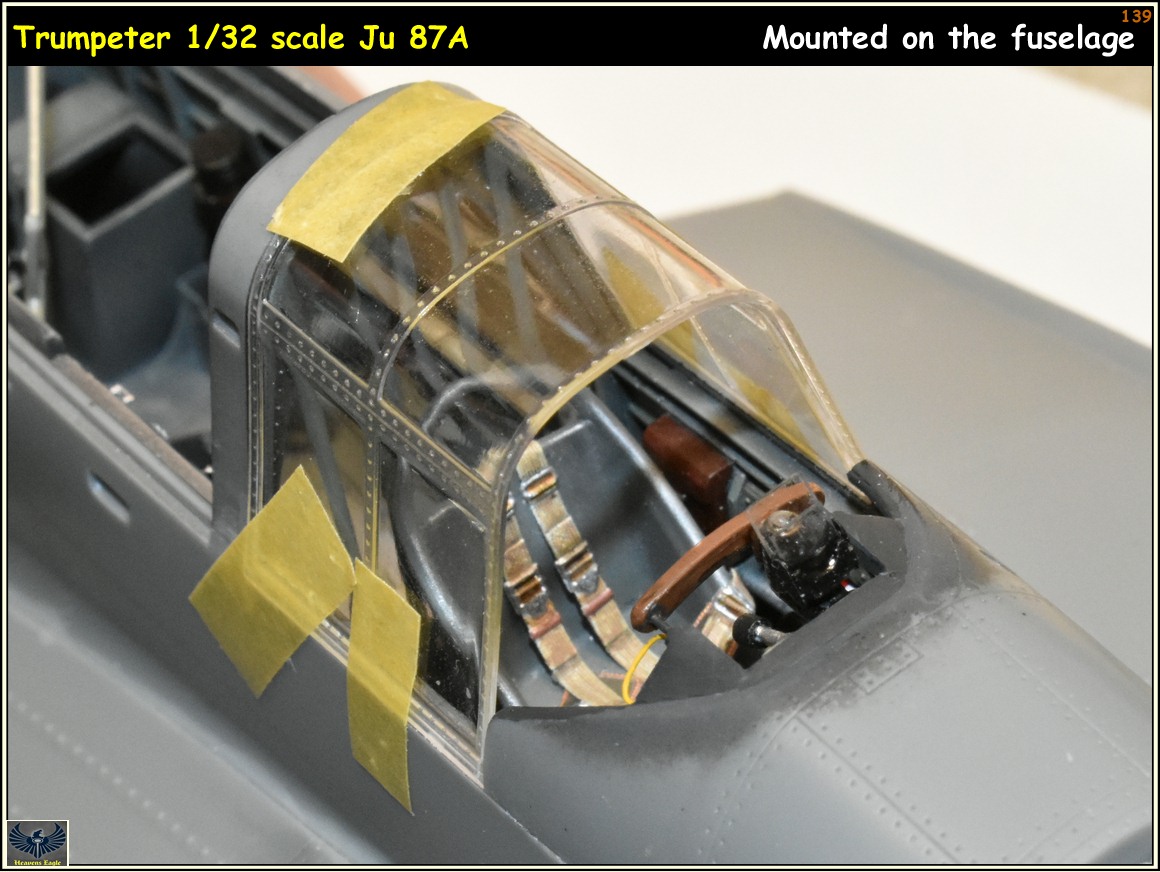

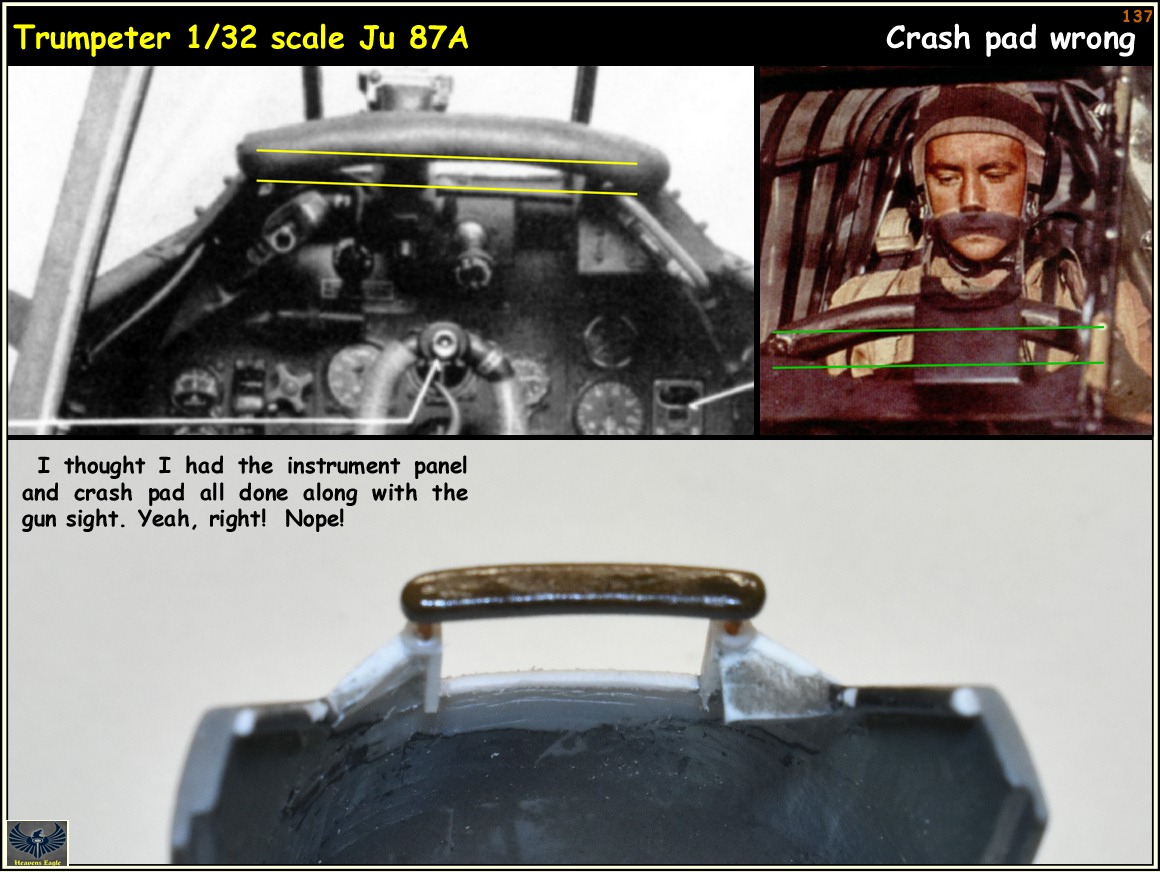

I finally got the gun sight and instrument panel and cowling all the way I wanted them. What a pain in the can, but it looks right.

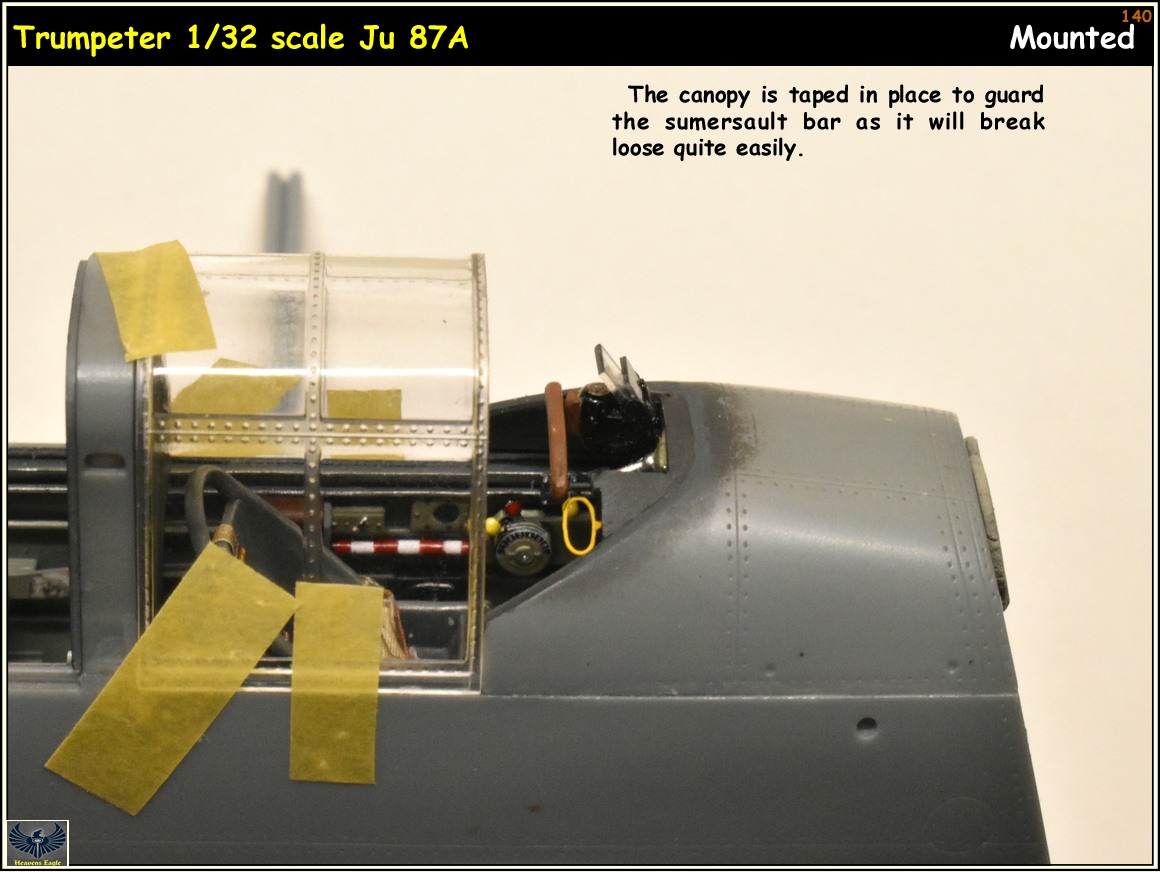

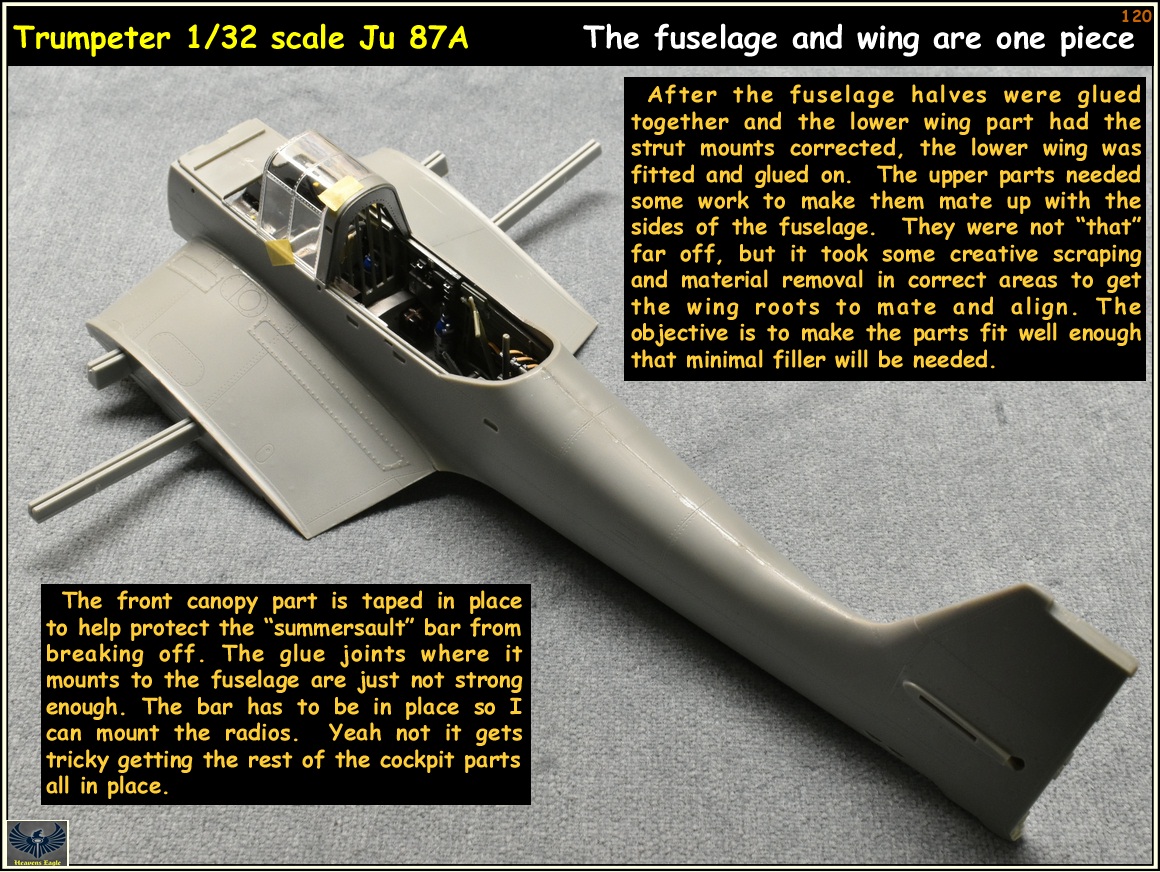

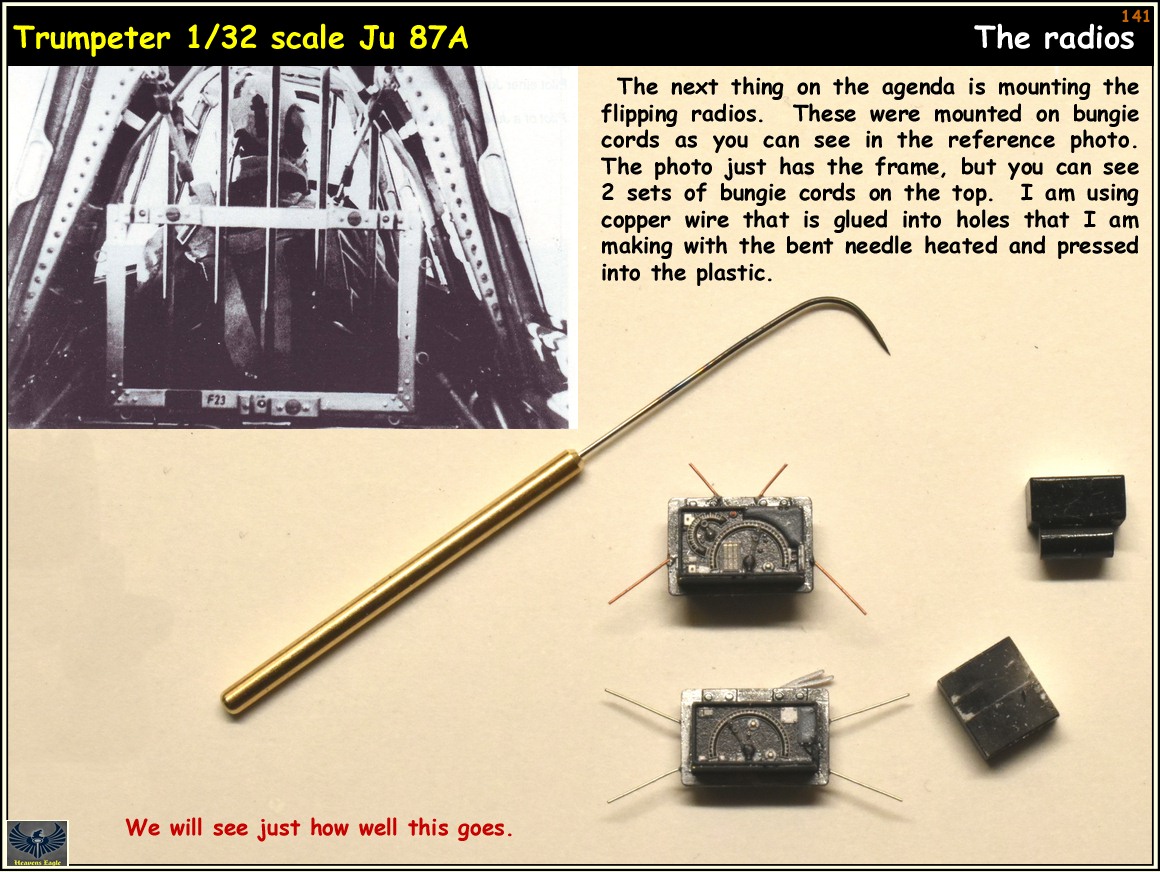

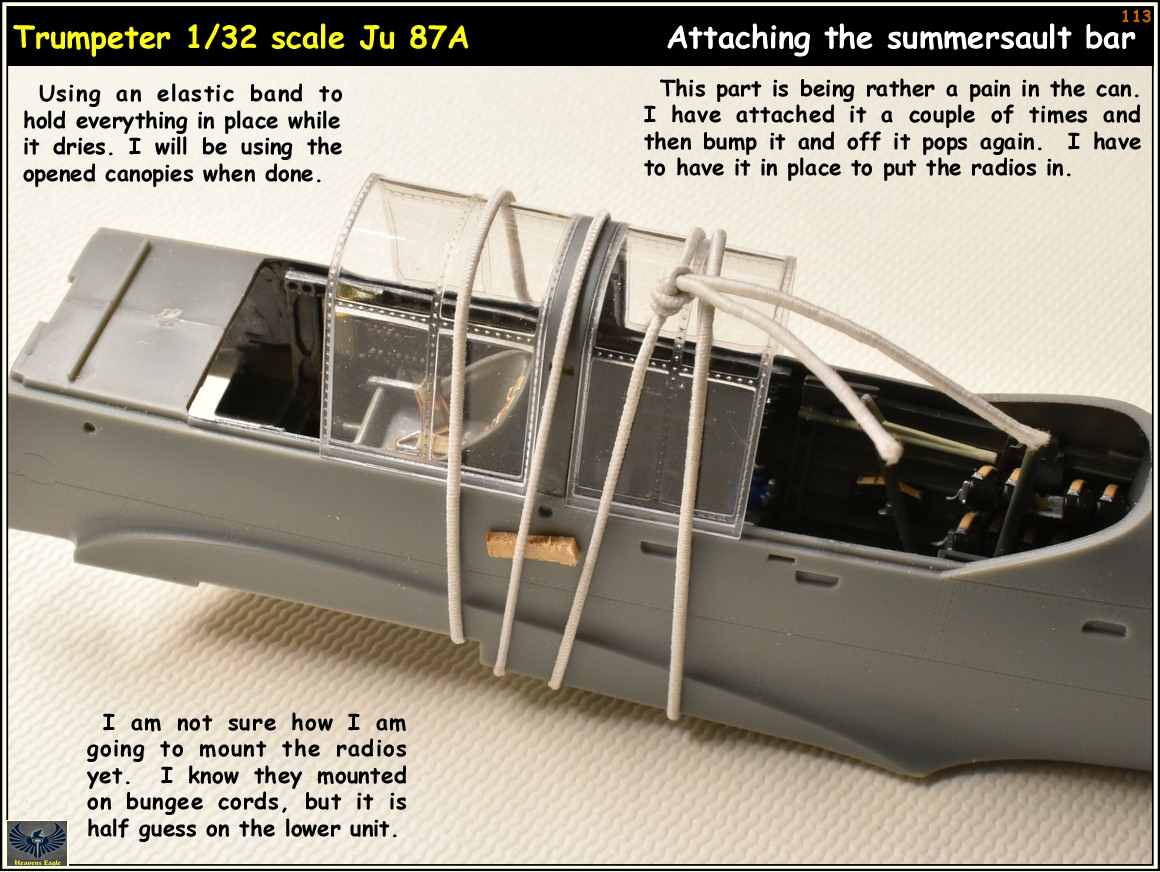

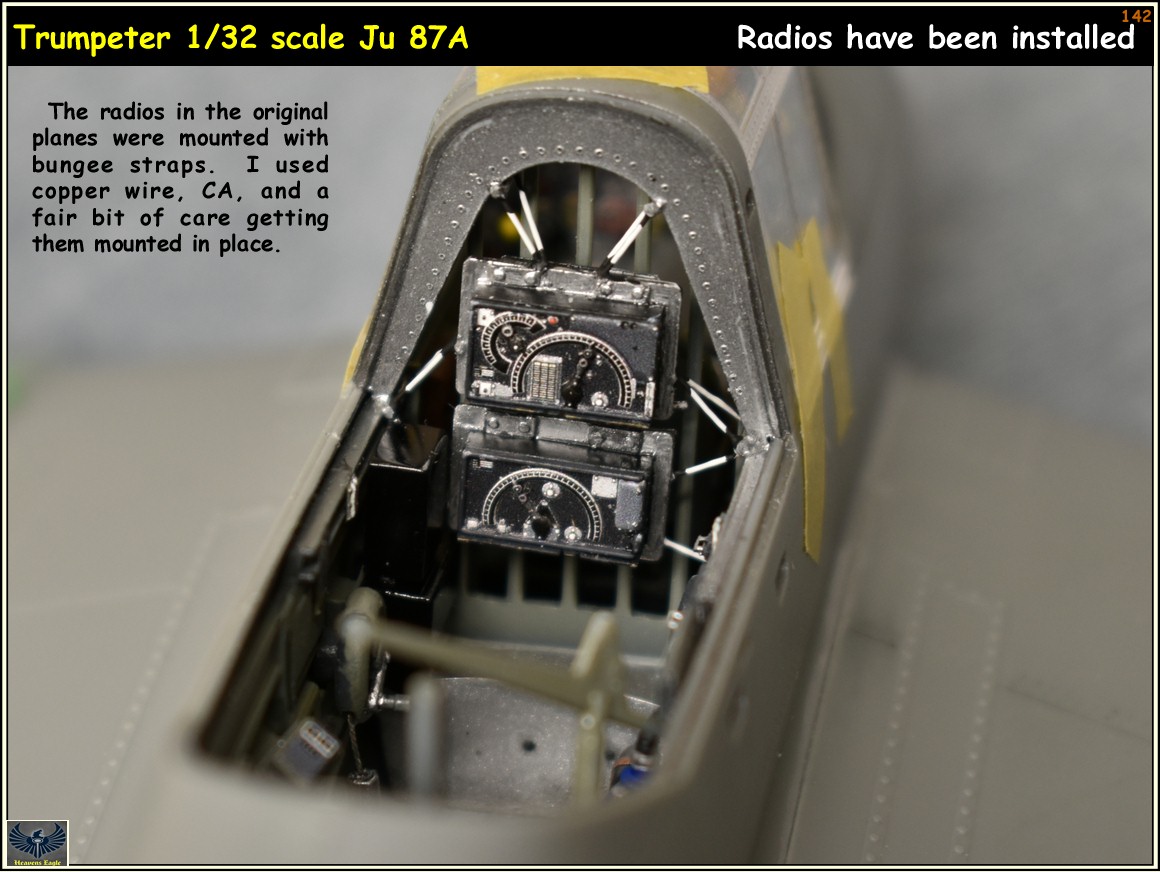

These are going to be so fiddly that it is going to be a fight to get them mounted. The "Sumersault" bar is actually not quite as thick front to back as it appears in the photos, but to fix it would require a lot more work than it would be worth. Thus fitting the radios is going to be a pain. Because of how this thing goes together I couldn't mount them before the fuselage and "BAR" were assembled. I have put this off as long as I can and now it is time to get it done.
These are going to be so fiddly that it is going to be a fight to get them mounted. The "Sumersault" bar is actually not quite as thick front to back as it appears in the photos, but to fix it would require a lot more work than it would be worth. Thus fitting the radios is going to be a pain. Because of how this thing goes together I couldn't mount them before the fuselage and "BAR" were assembled. I have put this off as long as I can and now it is time to get it done.
centaur567
Well-known member
Top notch!! Looking great!! Gary S.
Heavens Eagle
Well-known member

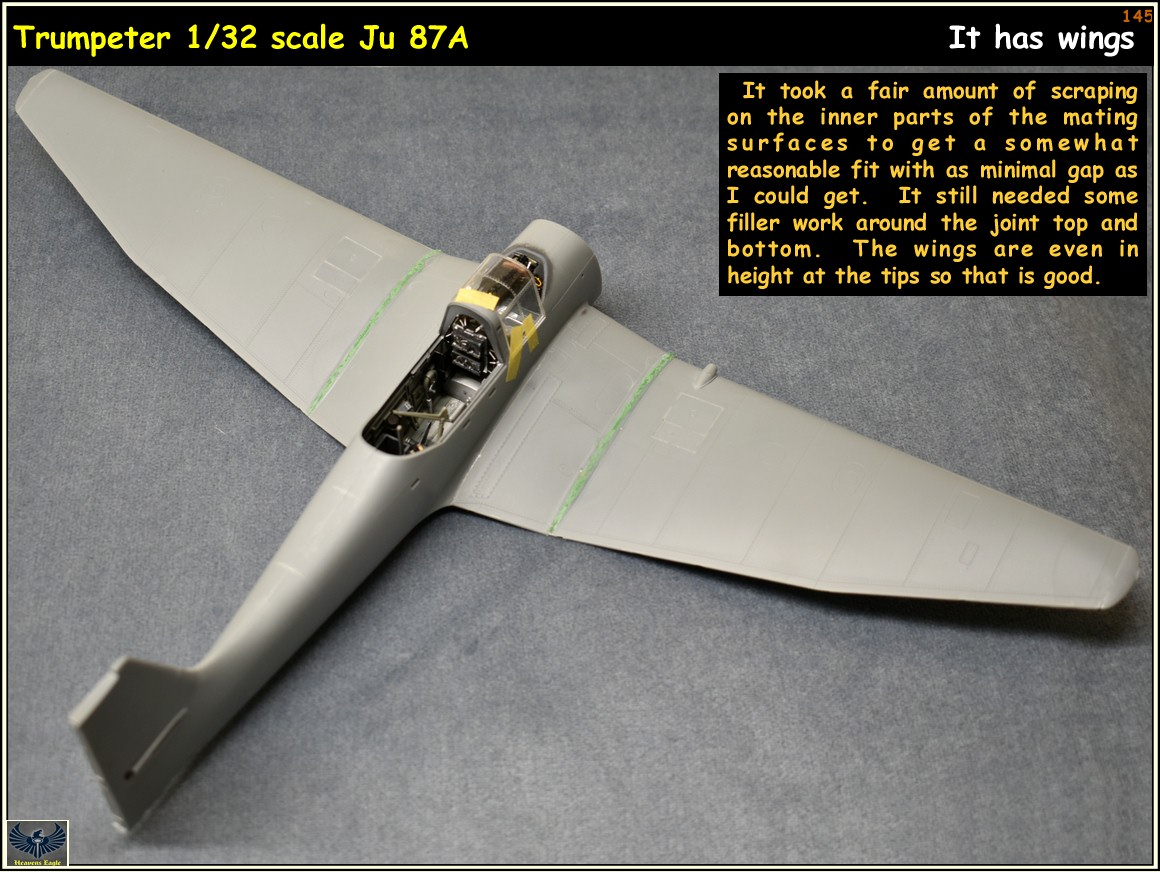

Well guys, it is time for another update. Been trying to work diligently on this beastie, and if I just go in and do something it makes progress. So here is the update.
I am a little further along on it than this, but don't have any photos of those parts yet. It also looks like another Trumpeter FUBAR in the rear cockpit section that interferes with the machine gun. Yeah I built it the way they said, No it is their screw up and I will need to figure out just what they were thinking.
I am a little further along on it than this, but don't have any photos of those parts yet. It also looks like another Trumpeter FUBAR in the rear cockpit section that interferes with the machine gun. Yeah I built it the way they said, No it is their screw up and I will need to figure out just what they were thinking.
Looks great Paul
