Are the tirme downs OK before I add them down the sides. And I think what is confusing is being able to see the lines. They don't print but are part of the geometry.



[moon puppy]

Works for me!
So are those objects already defined in Blender or are you creating the D ring from scratch?



[Greg Kimsey]

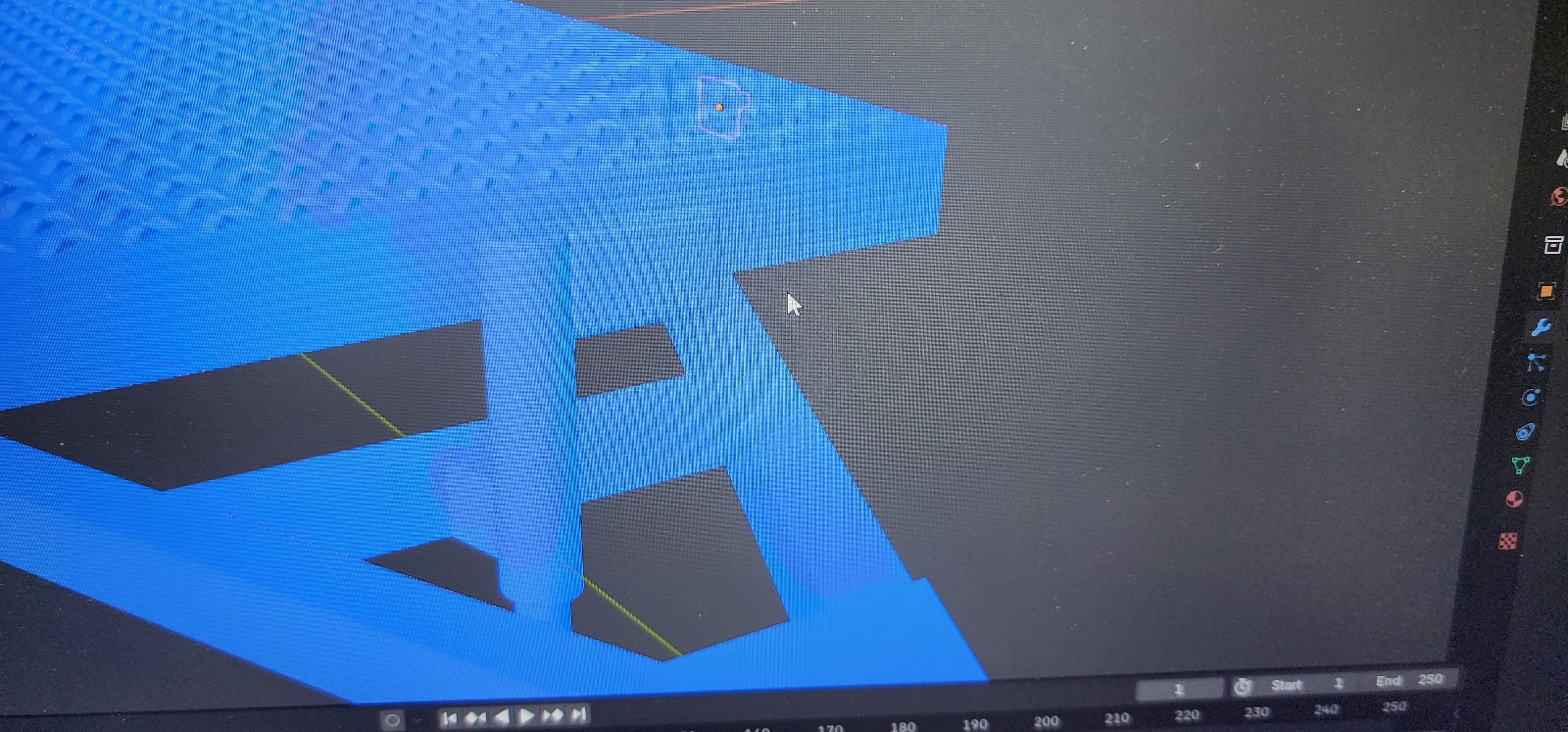

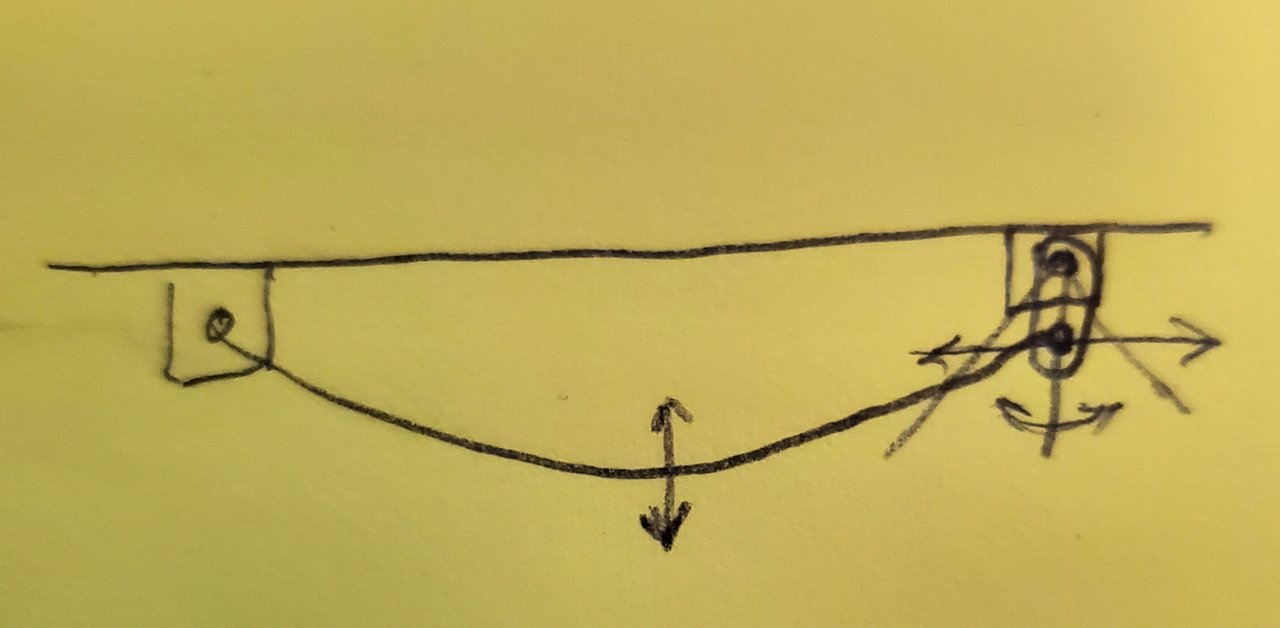

The cross members and side rails would also probably be channel steel, or I beam style, not solid rectangular cross section bars. (welded together of course) The cross members would not have the holes in them that you have. If you are going for accuracy, the springs would not go into blocks on the underside. The front attachment would be between two supports so it could pivot a little, the rear would have a set of levers that would pivot and allow the spring to lengthen and shorten as it flexed. I can sketch it later if you need.

The square design is for printing strength as channel or I beam would be mighty thin but I can look at it again. The spring blocks instead of two supports are for printing strength as well. I thought about the wiring holes for a while befire putting them in. I know they wouldn't be on the real thing but though ,"Man, wouldn't it be nice to be able to run wire and brake lines easier". I may make it with and without.



[Greg Kimsey]

Works for me!

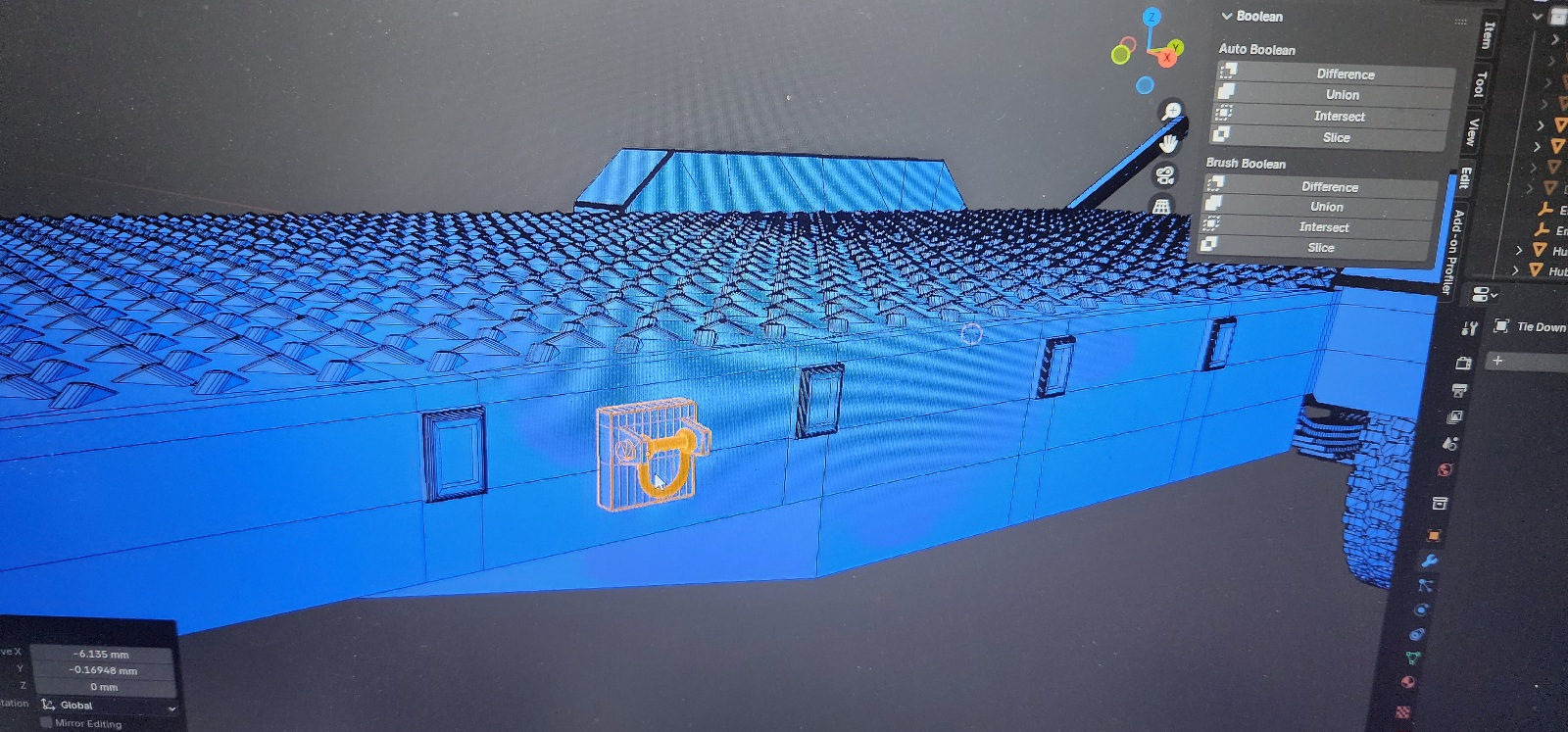

So are those objects already defined in Blender or are you creating the D ring from scratch?

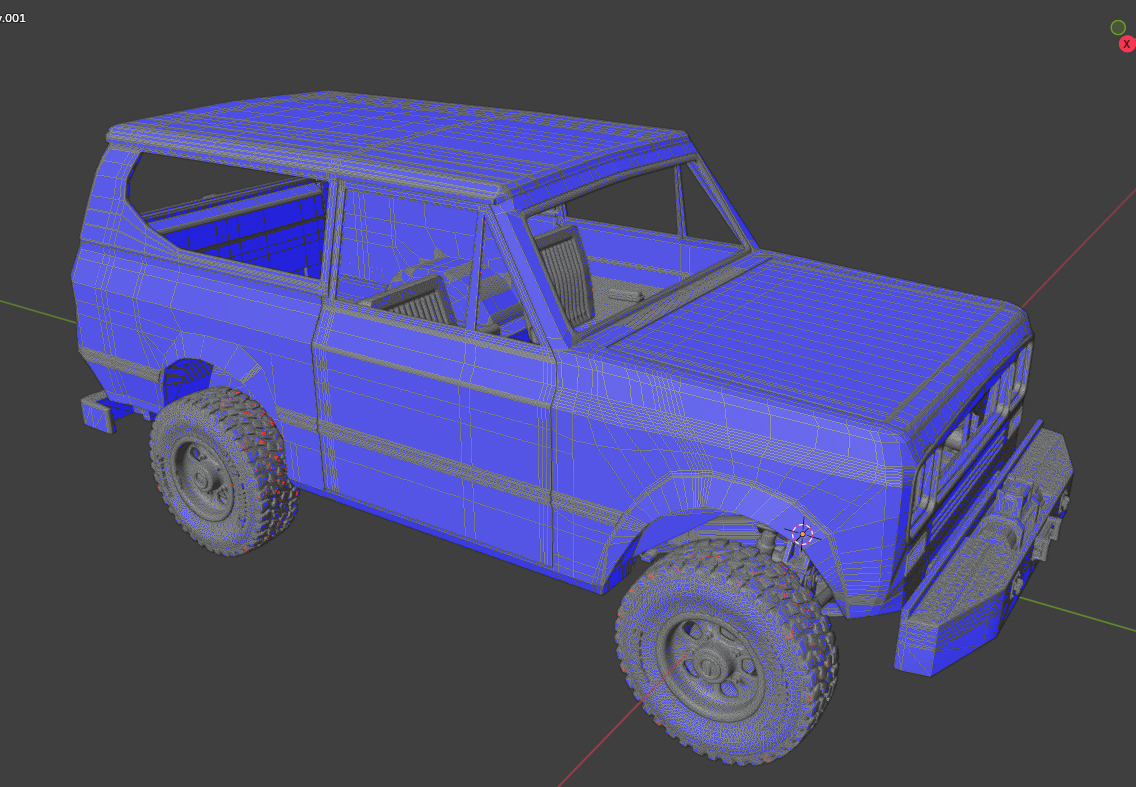

D ring from scratch. I cheated though and used the spring U bolt and indivudual bolt heads I had already created for the Scout. I just had to make a plate and add the bolt eyes then resize pieces and join it all together.



[moon puppy]

That's not a cheat!



[Greg Kimsey]

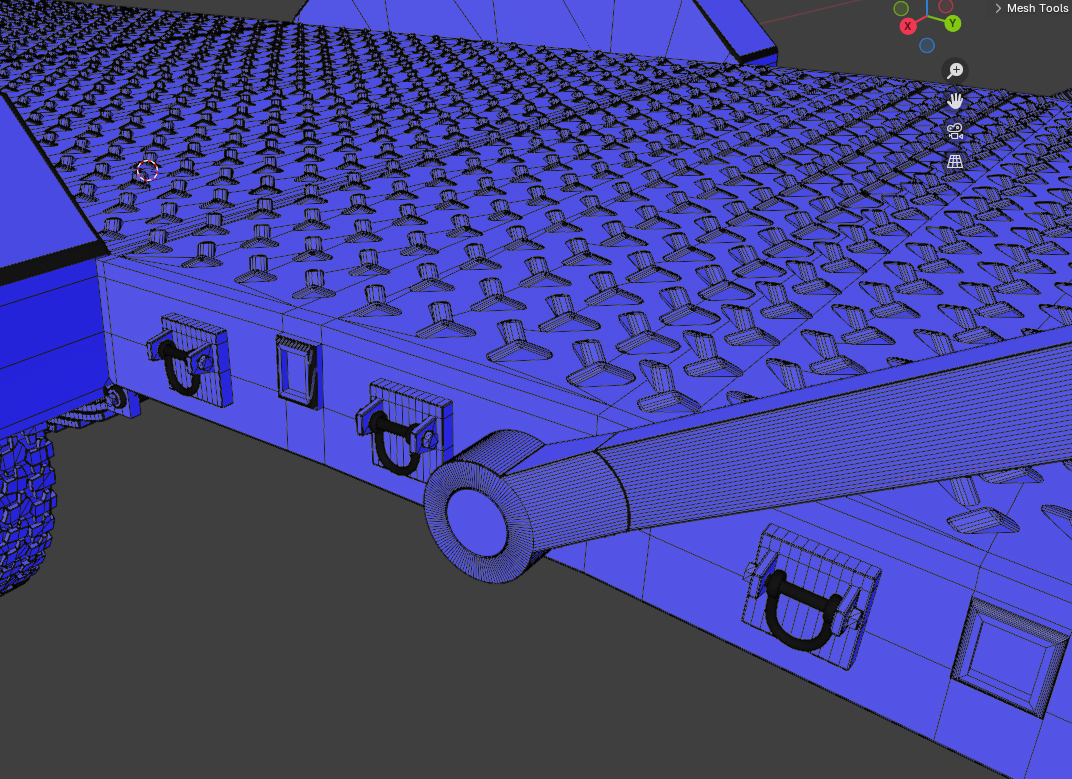

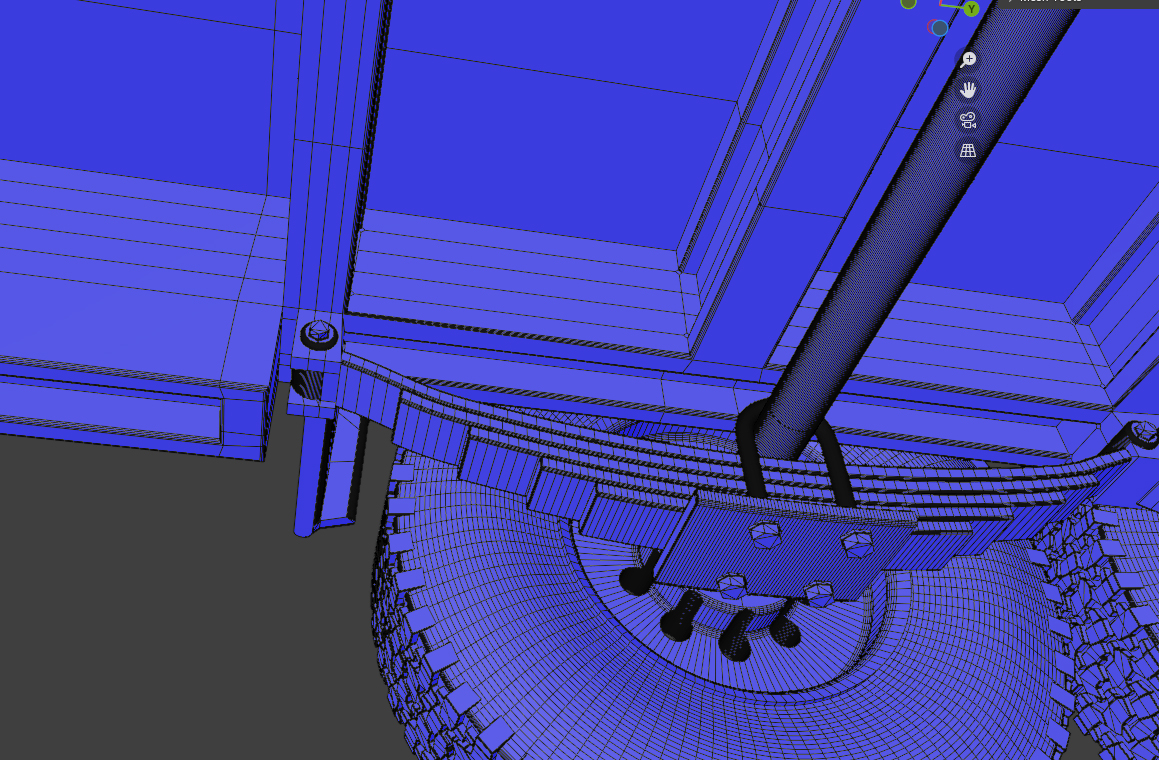

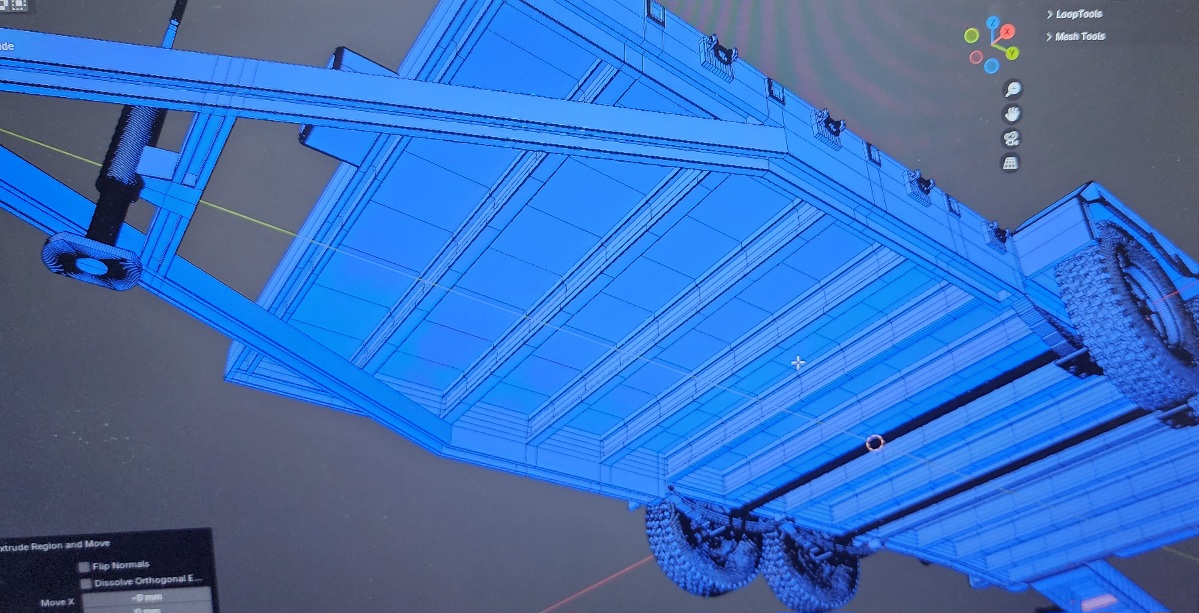

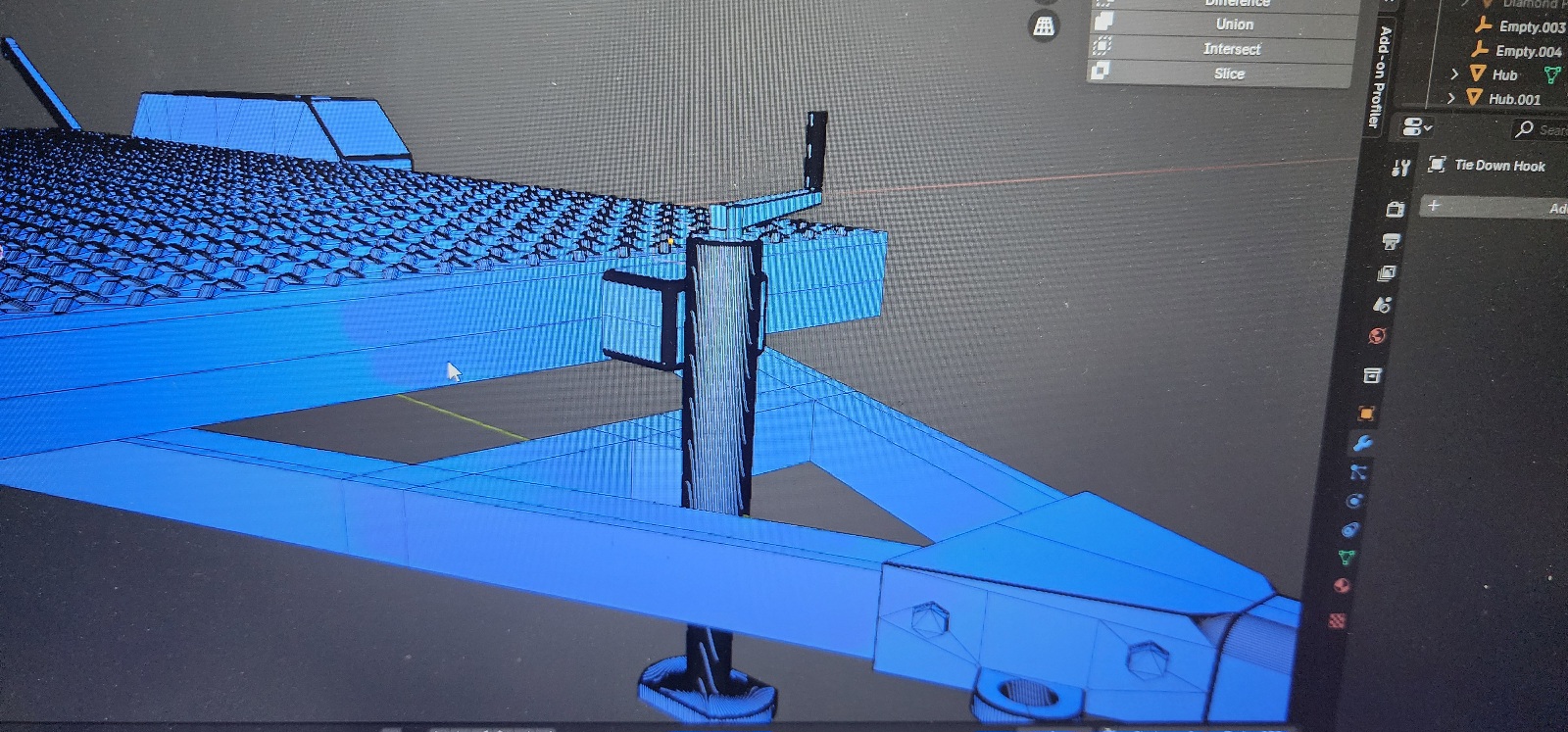

Ok, I beams and Channels as thin as I dared. Tie down hooks in place all around. The end blocks for the springs are modified some but still a little unrealistic for strength.



[Greg Kimsey]

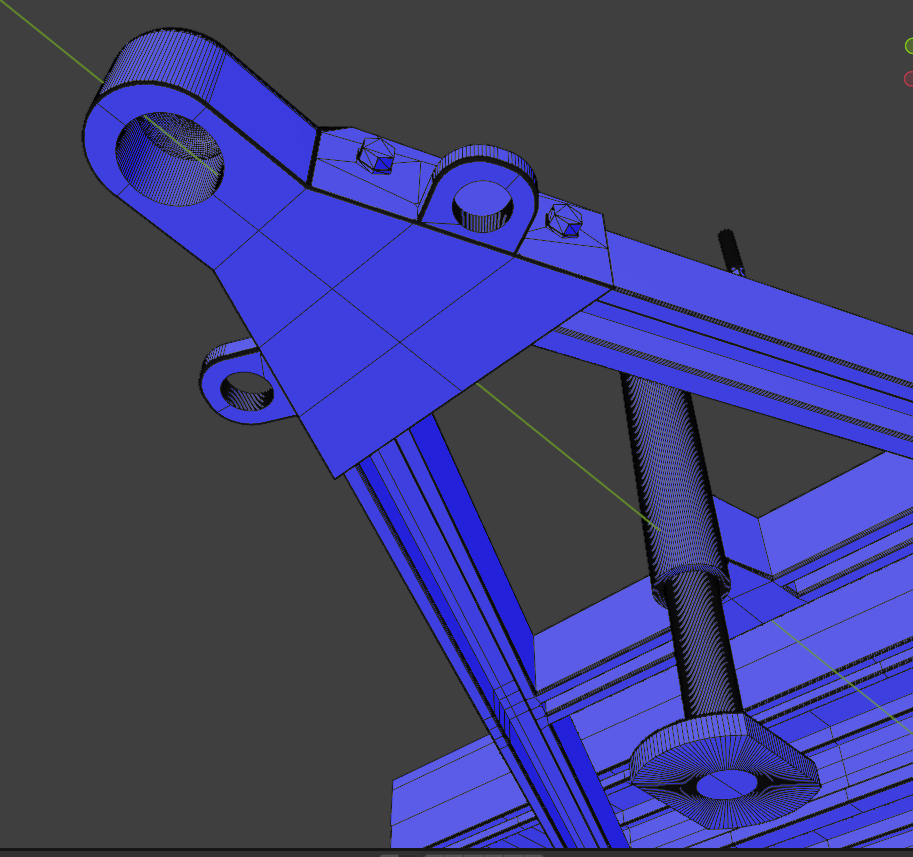

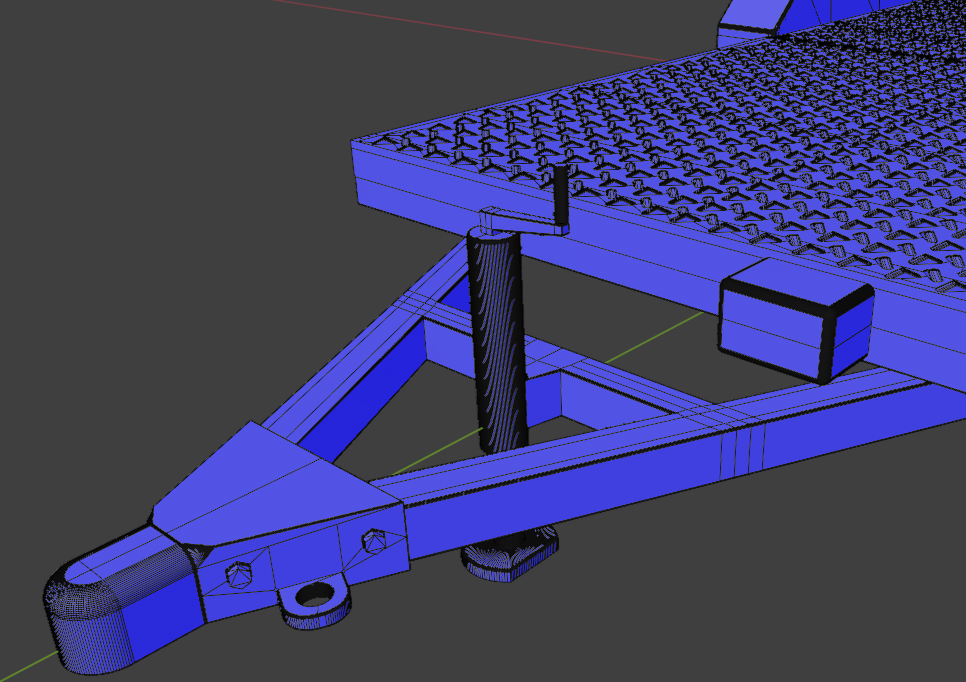

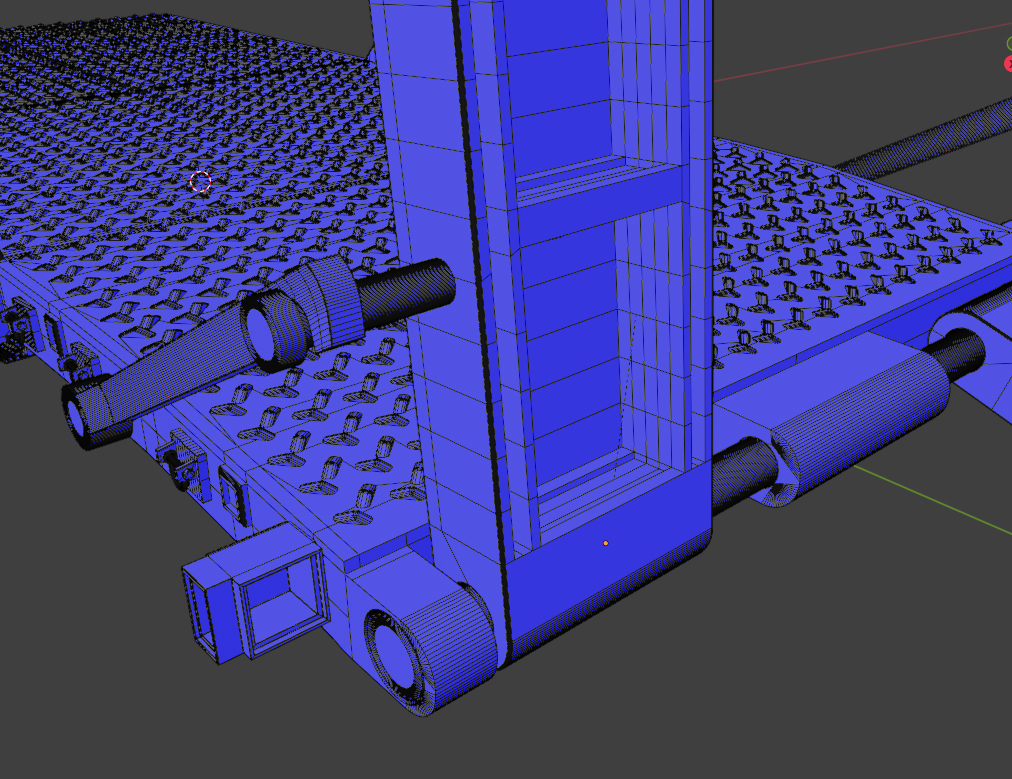

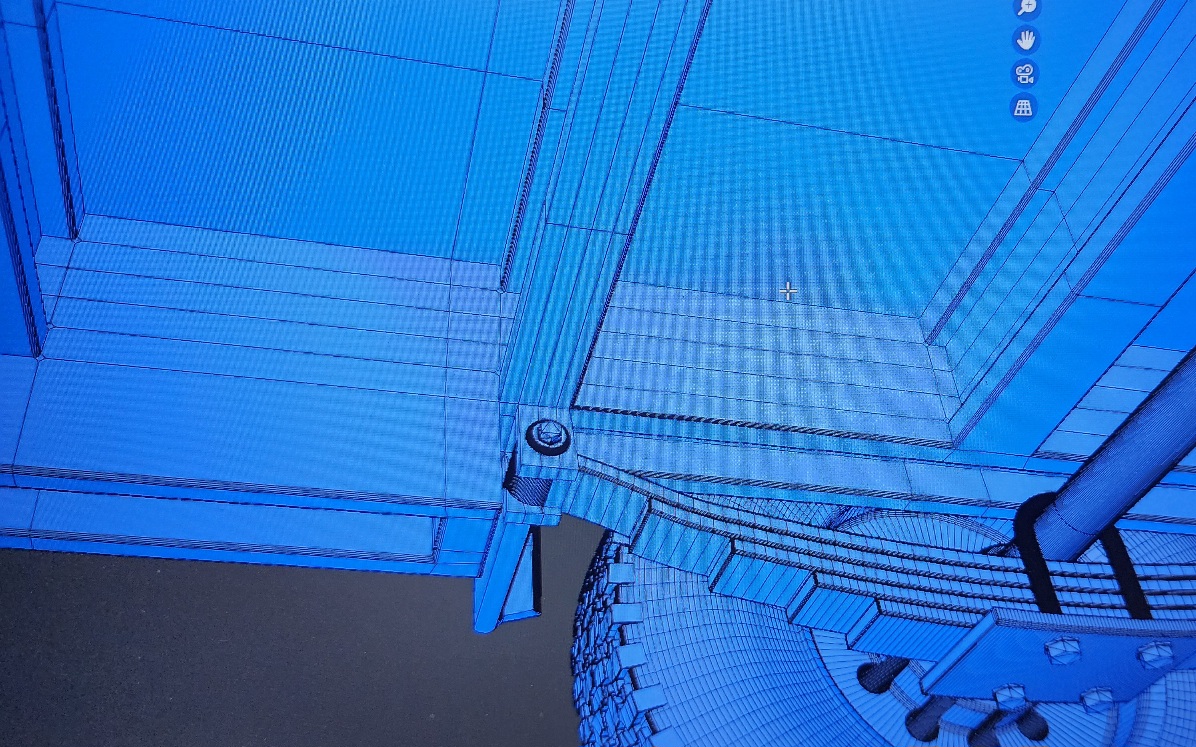

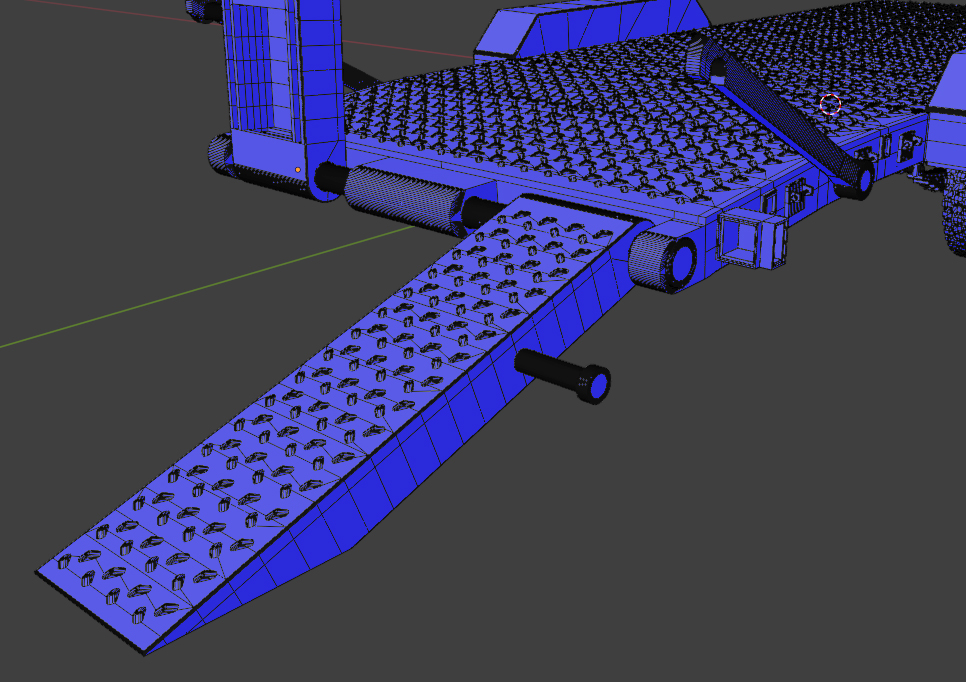

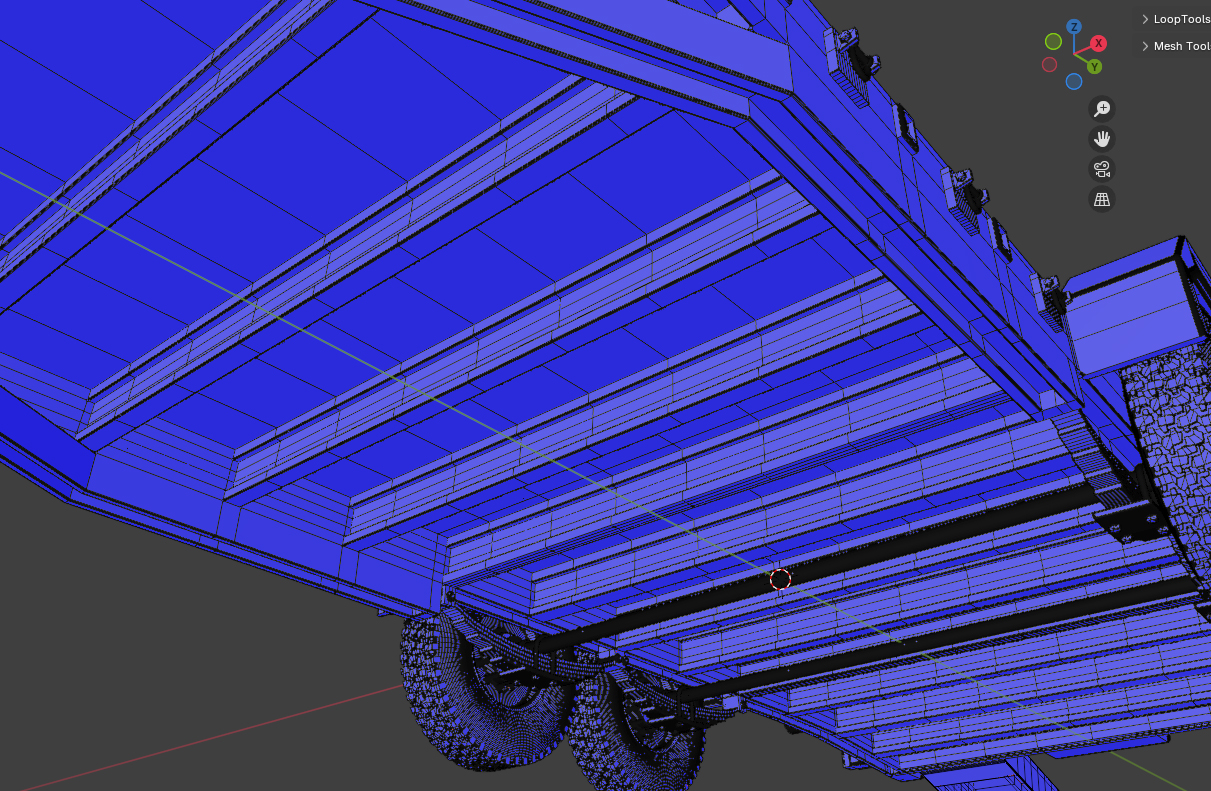

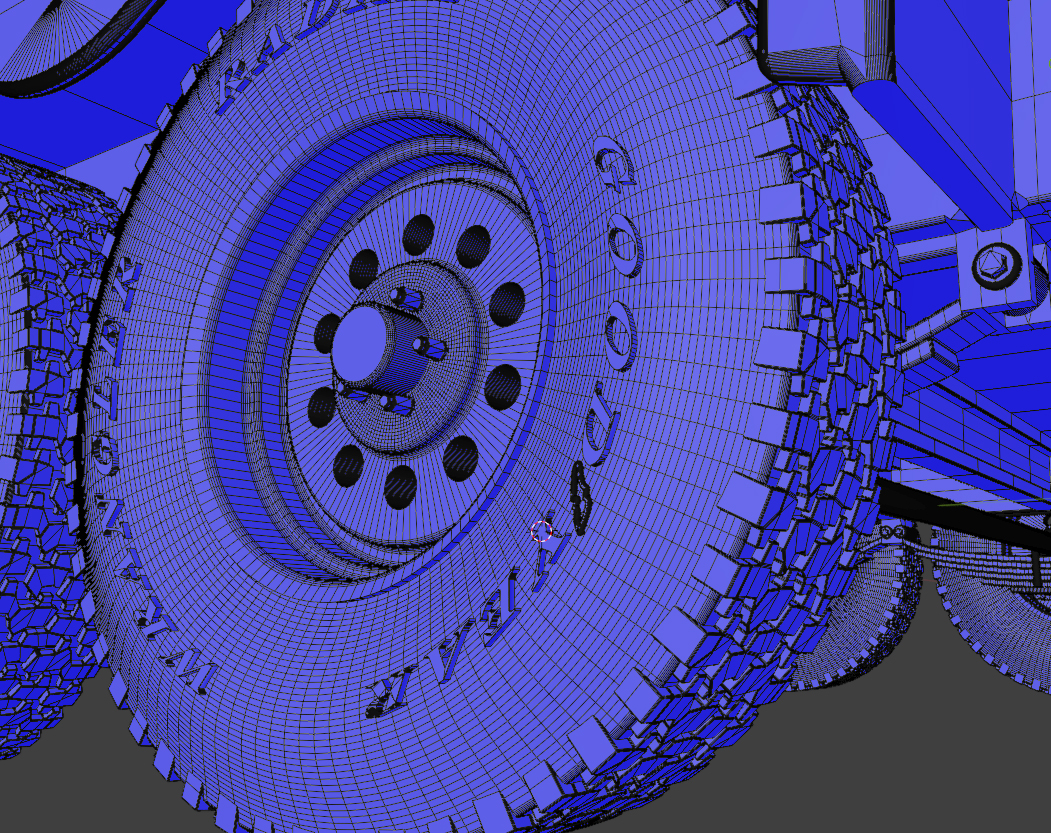

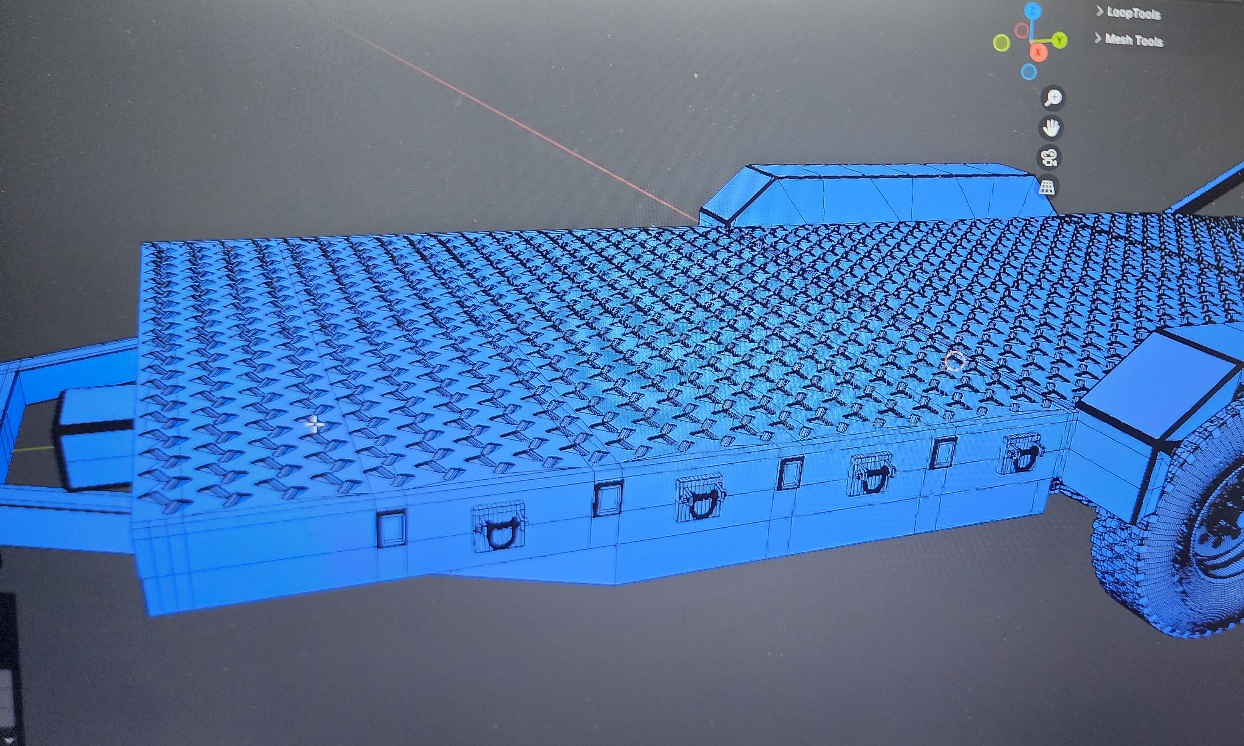

Ok, better photos here showing more detail.



[moon puppy]

I'd buy it if I needed one!
