Pauls HL-10 lifting body

Heavens Eagle

Heavens Eagle

Well-known member
I have a small box of rather interesting vac kits. One is of the HL-10 lifting body and is about 60-70% done. Hard part was coming up with landing gear and trying to find cockpit photos for it. (Another 80's build that stalled from lack of info) I also have the other lifting body X-planes in 1/72 but never started them. The kits were super sharp and crisp with reasonably thick/thin plastic At this point I could probably finish it in a reasonable time frame If I could come up with cockpit info. (Saul?)

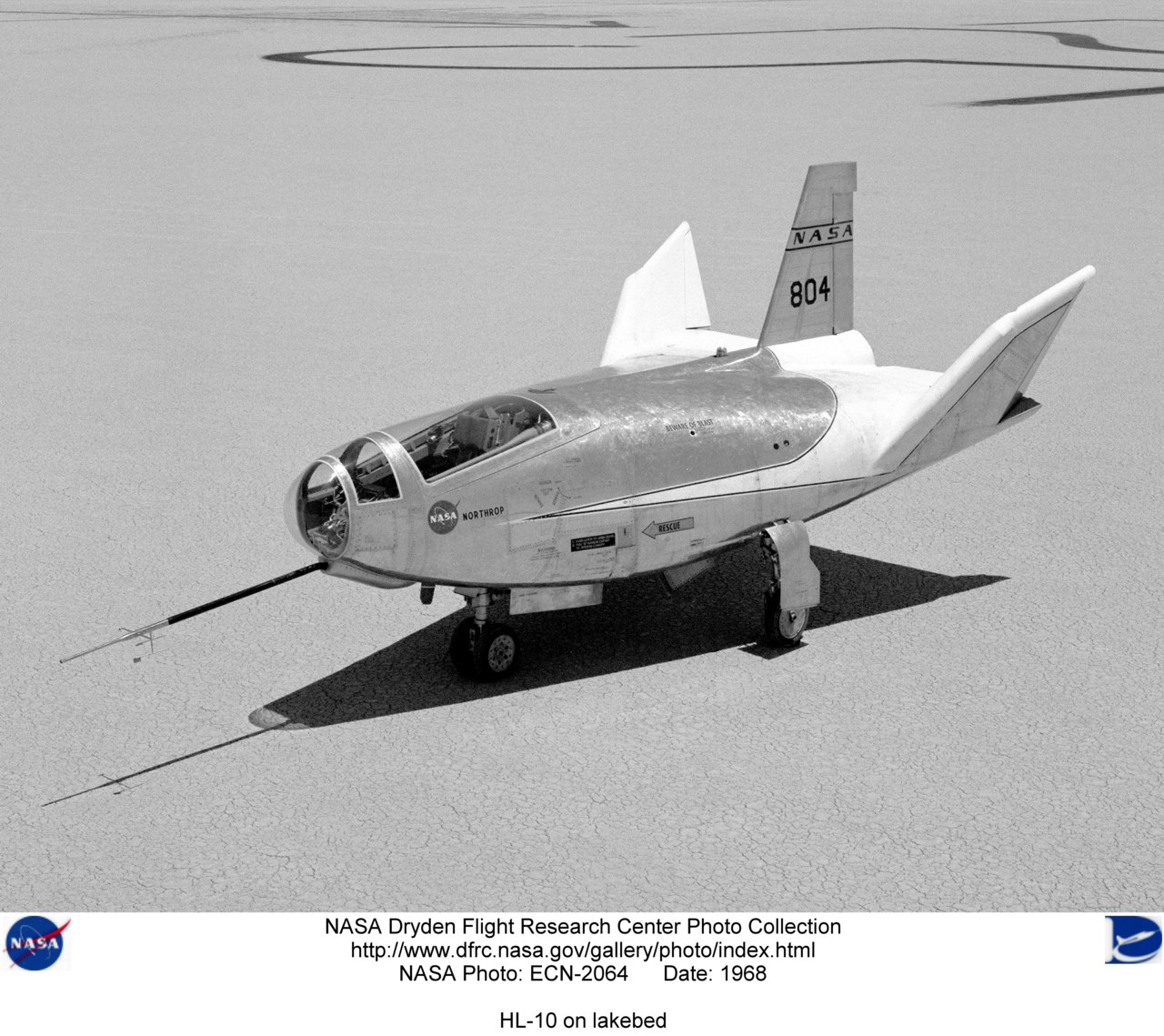

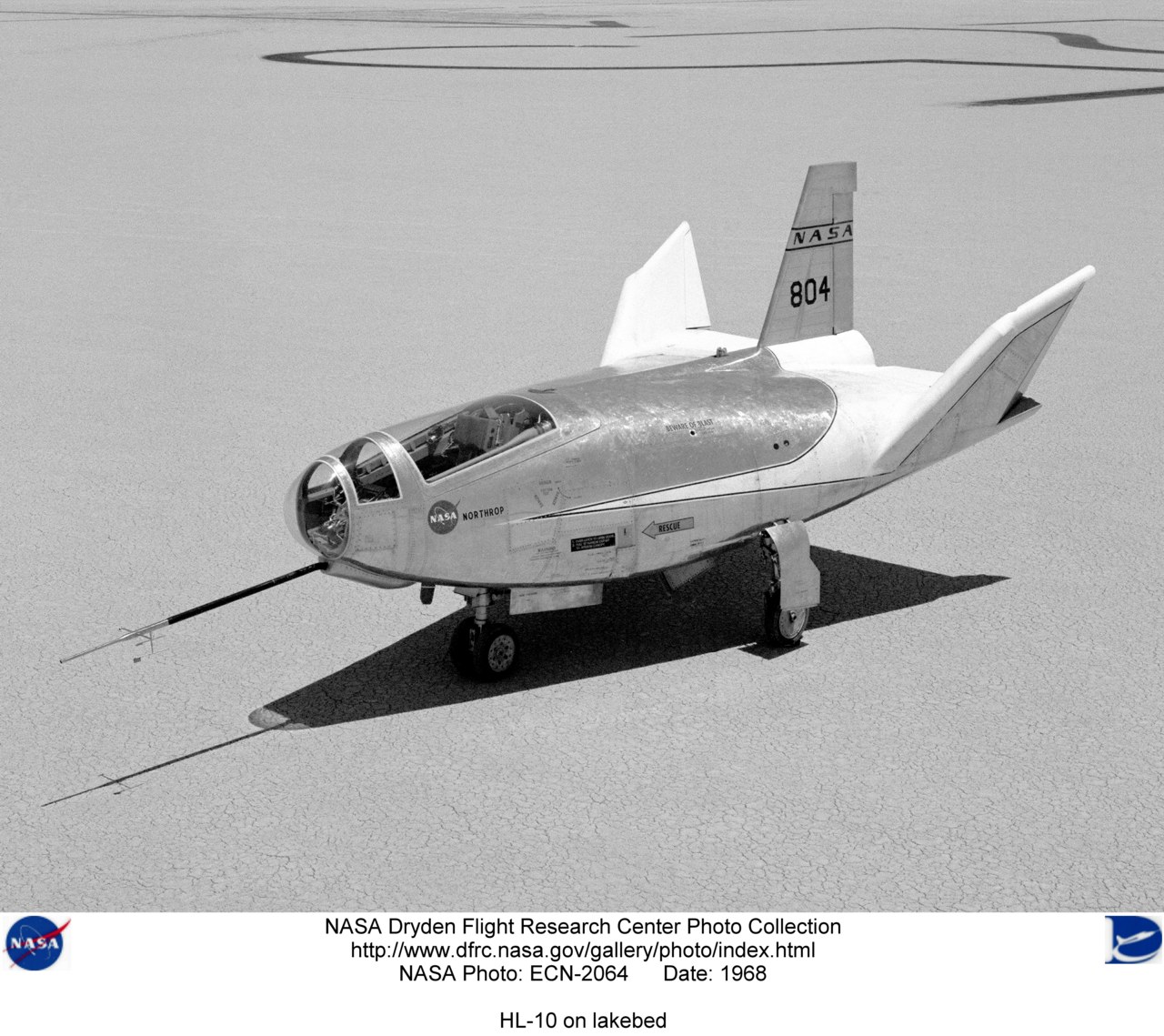

HL-10 on dry lake.jpg

Last edited:
Heavens Eagle said:
I have a small box of rather interesting vac kits. One is of the HL-10 lifting body and is about 60-70% done. Hard part was coming up with landing gear and trying to find cockpit photos for it. (Another 80's build that stalled from lack of info) I also have the other lifting body X-planes in 1/72 but never started them. The kits were super sharp and crisp with reasonably thick/thin plastic At this point I could probably finish it in a reasonable time frame If I could come up with cockpit info. (Saul?)

View attachment 155775
Click to expand...
You just need to find a donor T-38 for the landing gear and then throw a tarp over the canopy to protect the cockpit from snoops :)
James

jknaus said:
You just need to find a donor T-38 for the landing gear and then throw a tarp over the canopy to protect the cockpit from snoops :)
James
Click to expand...
  • Landing Gear: Main gear was a modified T-38 system that retracted manually and lowered by nitrogen pressure. Nose gear was a modified T-39 nose gear that retracted manually and lowered with nitrogen pressure.
  • Pilot Ejection System: Modified F-106 system.

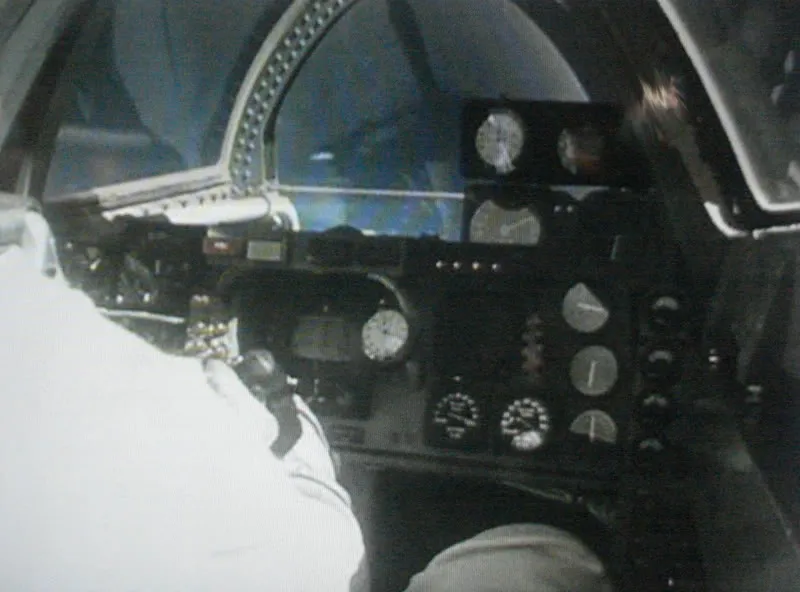

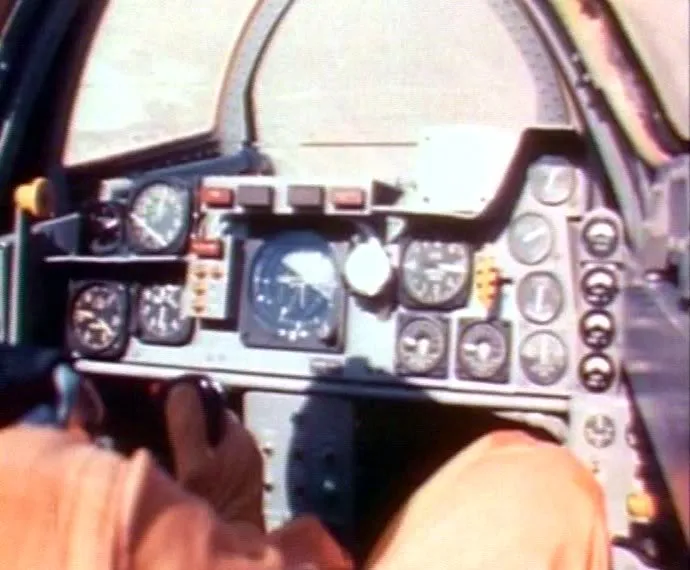

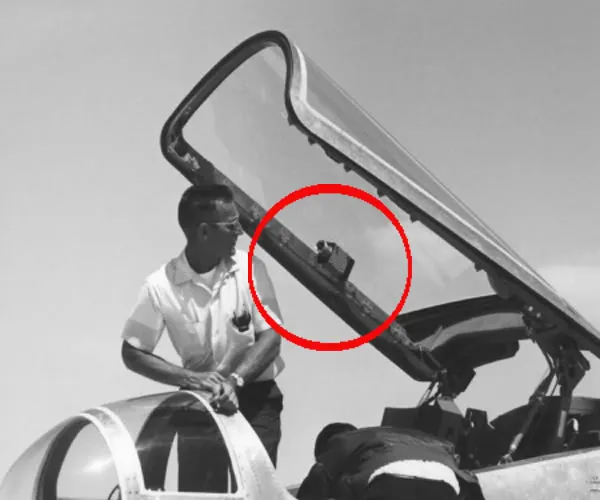

Note camera added to canopy for filming:

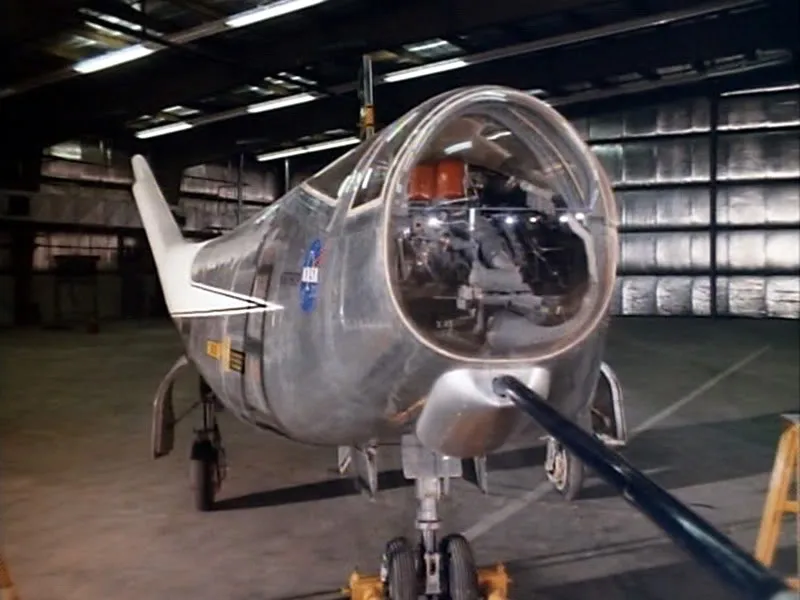

The real deal NASA's HL-10 was pulled out for storage for this:

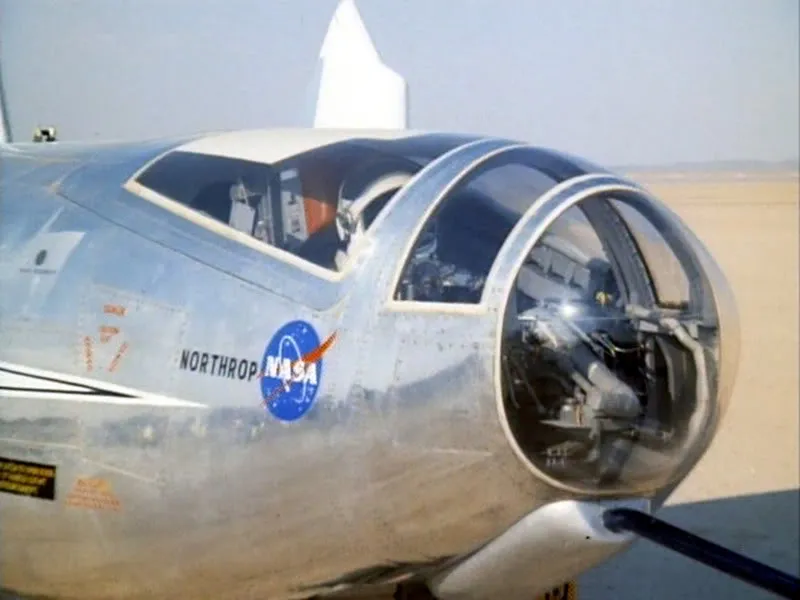

Real Deal used by NASA

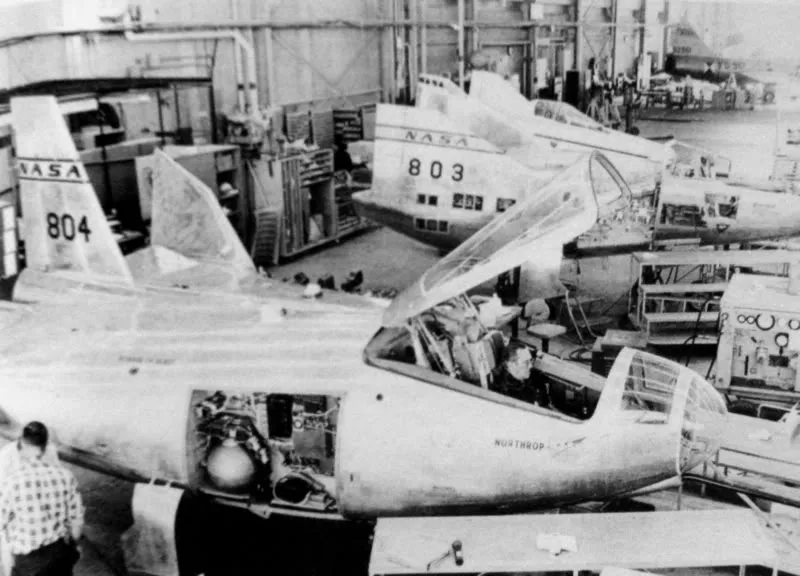

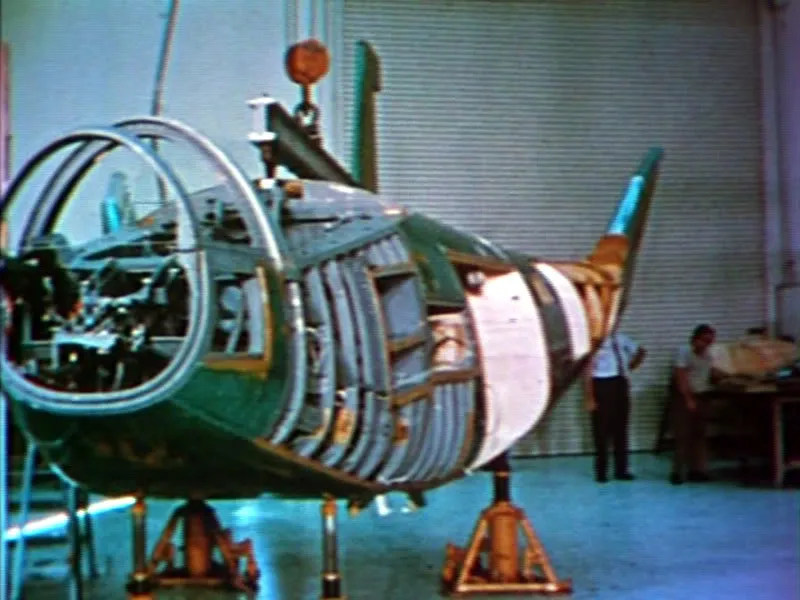

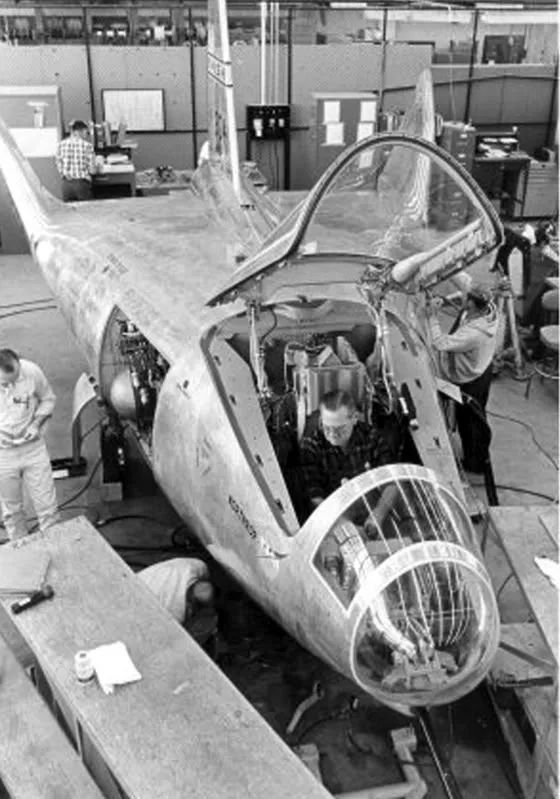

Under construction


LOL! I will have to do some digging as I am not real sure what old box it is in. Also going to be sometime in late Jan before I even think about kit building. Still working on emptying a storage building and getting a car moved to Memphrica. This weekend is going to be removing some more stuff from the storage, and moving the car from the corner to the center so it can have the wheels removed and I can get tires installed. The $200+ a month drain has to be plugged. Once that is done I am free to do whatever.
Thanks for moving this section Bob! I didn't intend for it to hijack Chis' thread.
