50 cal question.
- Thread starter ausf
- Start date
I think it's a trick of the light. Afterall doesn't the cooling jacket attach to the muzzle?
On second look, wonder if they had removed the barrels, doesn't look like the muzzle is there.
On second look, wonder if they had removed the barrels, doesn't look like the muzzle is there.
ausf
Master at Arms
I think the barrels are removed too, but it doesn't jibe with the way I understand how they were equipped. They didn't swap out barrels like the German did with MG42s, right? I thought the gunners grabbed the guns from the armorer pre flight, put 'em in and off they went.

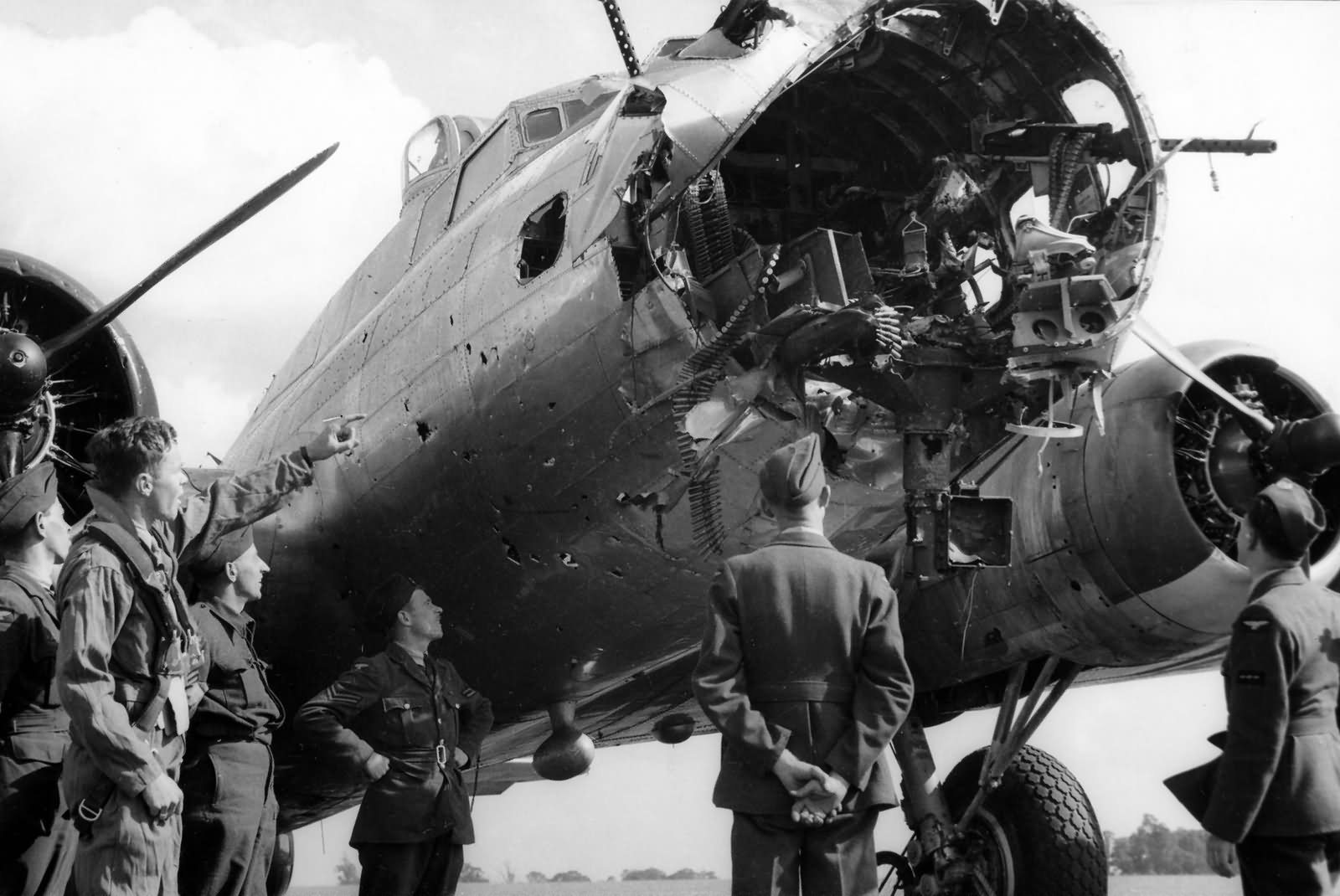

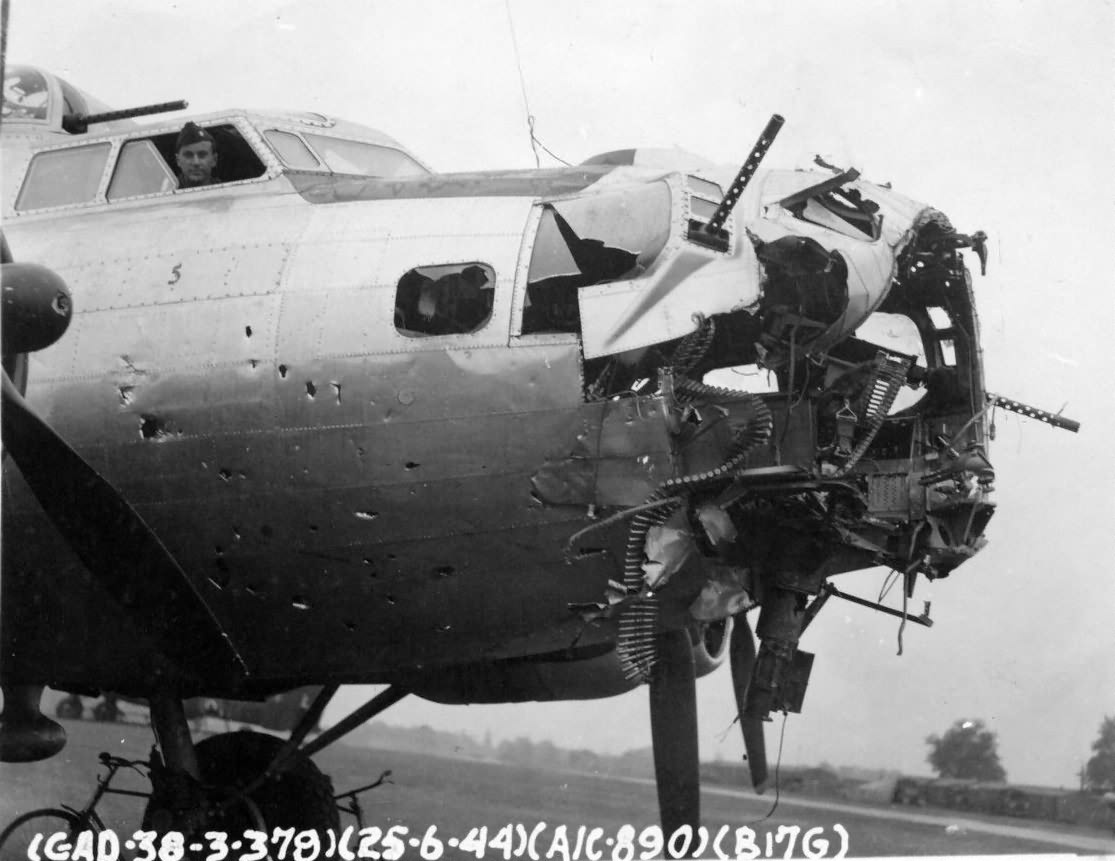

If you look at these, the cheek gun has a barrel:

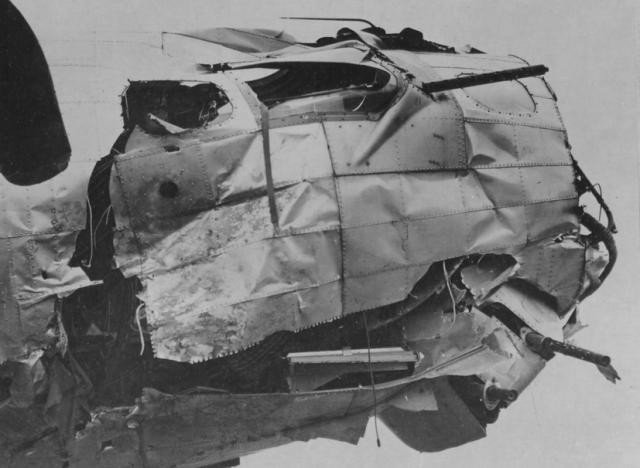

But look at this one, how could they pull the barrel after that mess?
If you look at these, the cheek gun has a barrel:
But look at this one, how could they pull the barrel after that mess?
Paulw
Well-known member
The M2 is a beast. We referred the aircraft version as the light barrel and the field and maritime versions as the heavy barrel. The barrels are still there as the light plays tricks. The whole receiver would be removed along with the barrel so there would be nothing to mount a cooling shroud to. Before you remount the gun after servicing you would have to time it and headspace it then it can be remounted.
jknaus
Administrator
Just a trick of light. As Paul said you cant remove just the barrel without removing the cooling jacket. Once upon a time in a world long past I carried a couple of 50 cals at a time up from the armoury to the trucks and jeeps. Couldn't manage to carry the tripods, just to heavy to carry 2 guns and their tripods up a flight of stairs. Maybe that6s why my back is buggered now??
James
James
Paulw
Well-known member
If memory serves me right the Ma deuce was actually a crew served weapon up to three personnel. Barrel was just shy of 30 lbs, receiver was 68 and tripod and pintle assembly was a whopping 130. You just don't sling that on your hip no matter how hefty you are.
@sharkmouth where's Saul and his technical manuals?

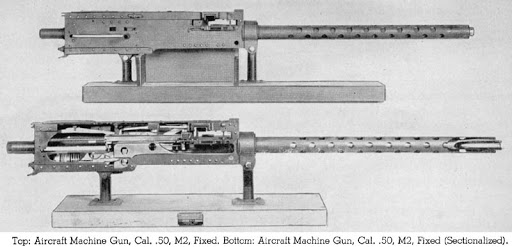

Between this
and this
www.pt103.com
and this
http://www.nj7p.org/Manuals/PDFs/Military/TM 9-225 28-Jan-47 Google.pdf

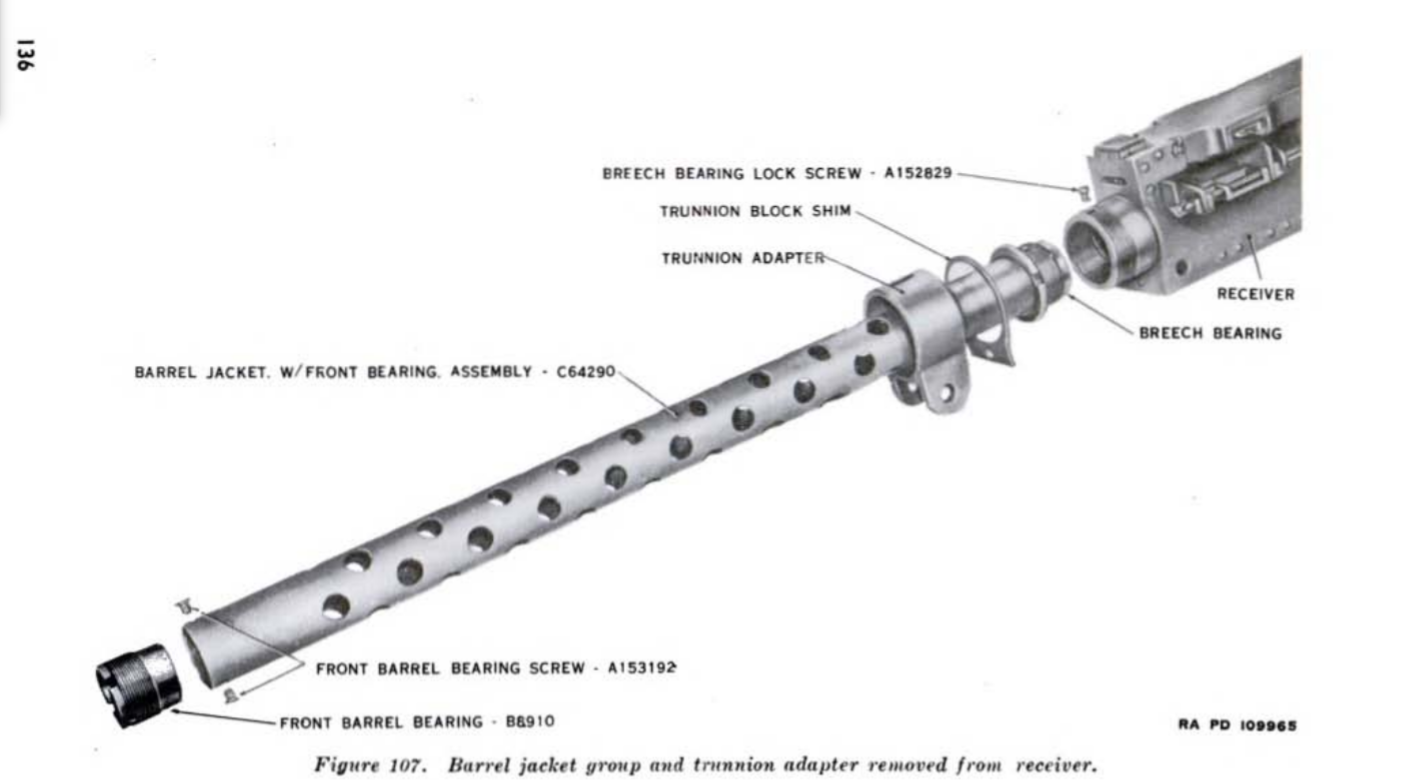

It appears to me that the barrel and the Barrel Jacket are independent
and this
PT Boat Browning Machine Gun .50 Caliber M2 Aircraft Dimensions
PT Boat Browning .50 Cal M2 Aircraft Dimensions
http://www.nj7p.org/Manuals/PDFs/Military/TM 9-225 28-Jan-47 Google.pdf

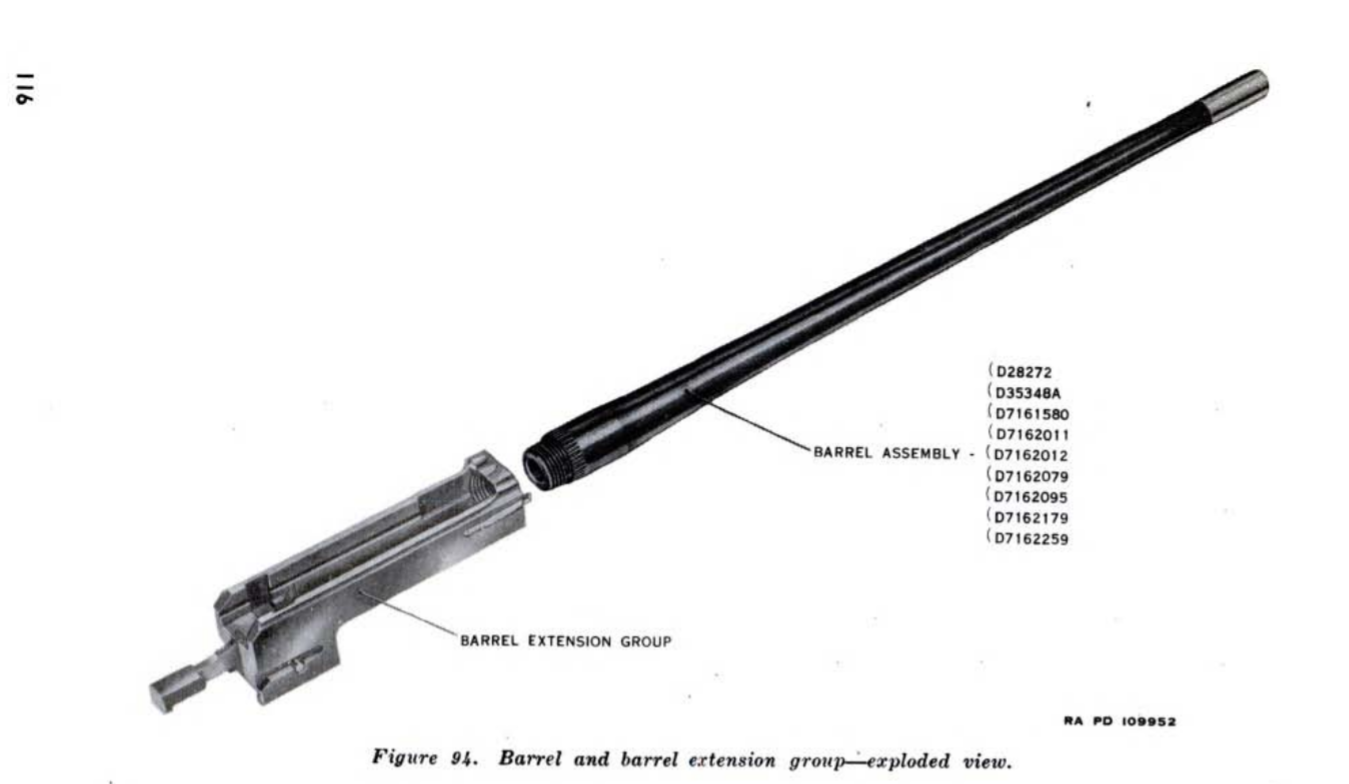

It appears to me that the barrel and the Barrel Jacket are independent

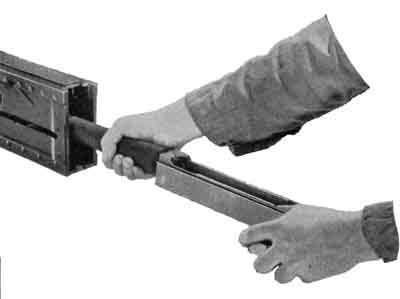

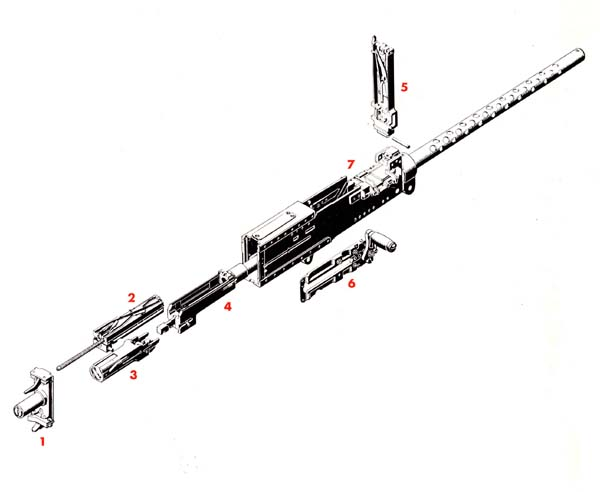

The barrel could be removed from the rear as a group (4):
Process is here:
Regards,
Process is here:
Regards,
jknaus
Administrator
Well thats interesting. Thanks Saul.
