Swann Morten Scalpel Blade tools

[jknaus]

For those who like using the Swann Morten Scalpels I found some nice little tools that can be printed with an FDM printer. SLA might work, but I think FDM might be better. There is a cover for the blade and handle and 2 different blade removal tools. One which incorporates a disposal box in its design.

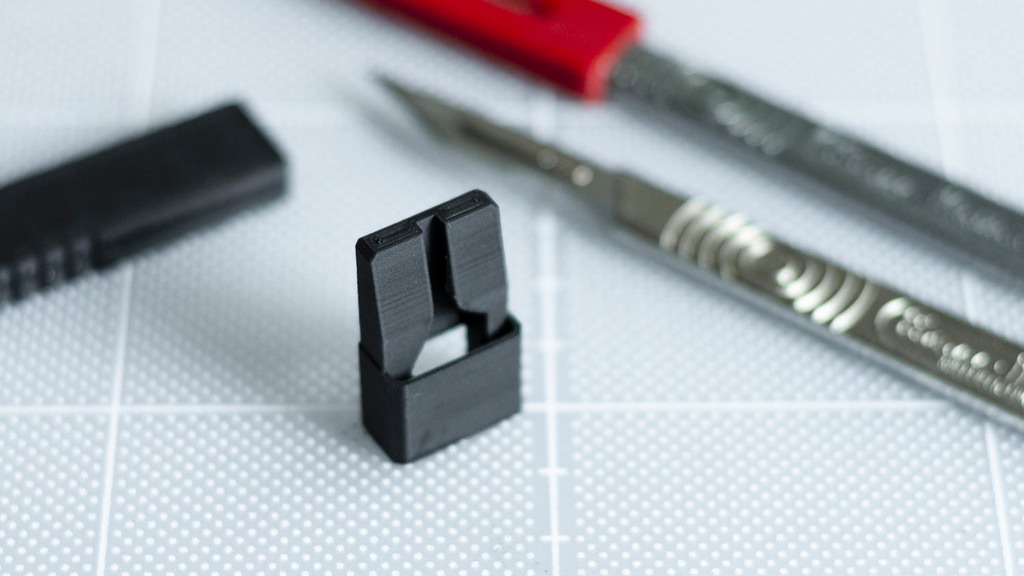

Swann Morton Scalpel Blade Extractor by goee

Just increase wall thickness and add some clearance to fits #10A blade. The original design from M600.Notes::I print with some brim to increase first layer adhesion.I only test with blade that I have (#10A and #11).Filament I Use::eSun ABS+ (Fire Engine Red and Black)Usage Video::YOUTUBE...

www.thingiverse.com

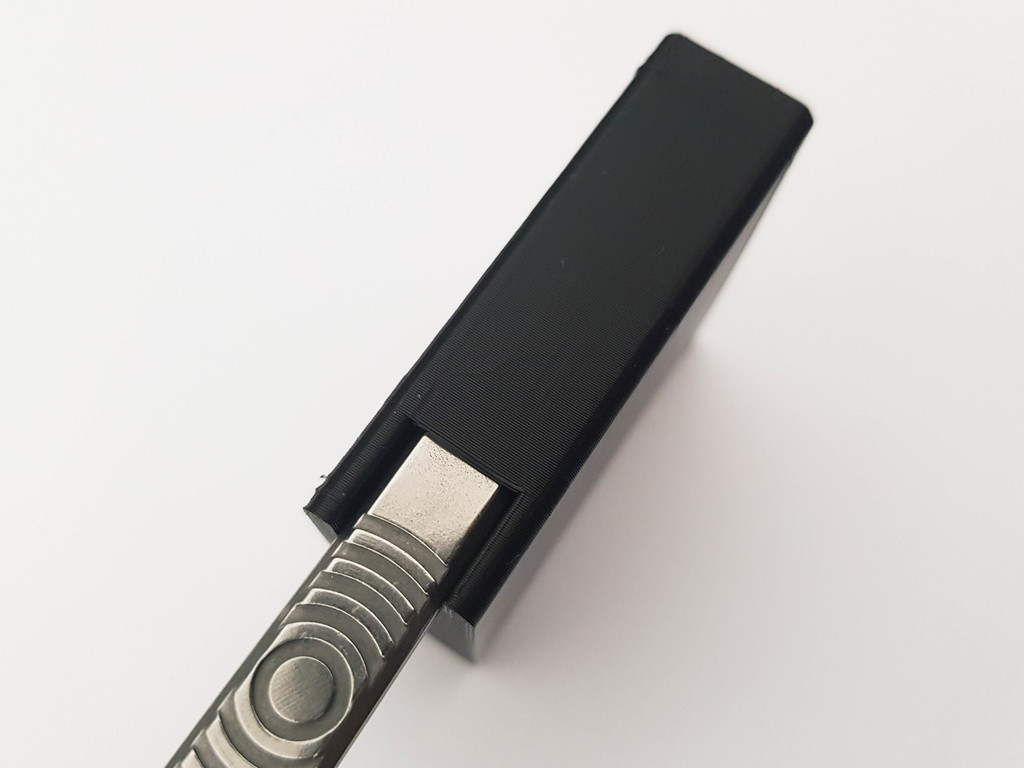

Swann Morton scalpel blade extractor (single and box) by M600

Made for Swann Morton no3 handle scalpel. Might fit other brand but I don't have them so I can't be sure.Two versions:Single to just push the blade out.Box to extract and collect the blade in a sealed container. (you can't retrieve the blade!).Instructions:Insert at an angleAlign and pullDone

www.thingiverse.com

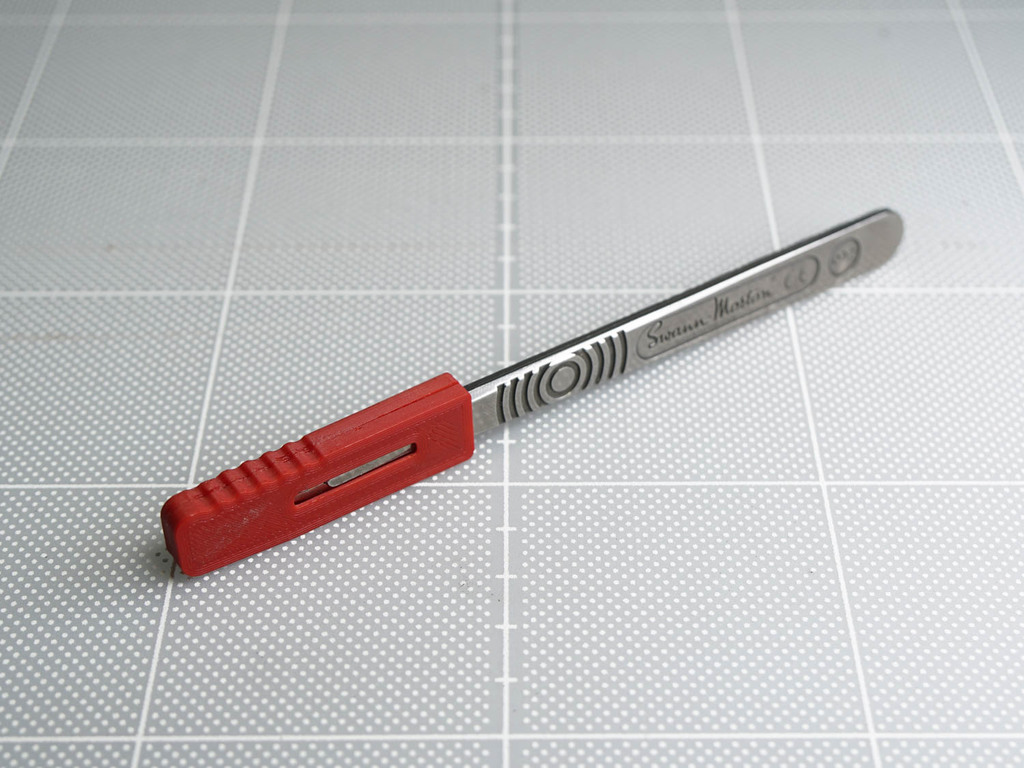

Swann-Morton Scalpel No.3 with #11 Blade Cover Caps by goee

Swann-Morton Scalpel No.3 with #11 Blade Cover Caps.Included 2 versions (Spitted and Full). The split version can lay flat on a printer. So it can print faster and a lot easier. The parts are also stronger when printed this way. But they need to glue together after print. For full version can...

www.thingiverse.com

James



[Paulw]

I could use a couple of those blade protectors for mine as well. Ill have to get a friend of mine to print a couple.



[Robertp]

This is one of those things you didn't know you needed it until you see it. Interesting too is the instructions say print as is. No supports or raft. I will be printing one when my present print is through



[jknaus]

This is one of those things you didn't know you needed it until you see it. Interesting too is the instructions say print as is. No supports or raft. I will be printing one when my present print is through

The printing instructions for this are for an FDM printer. If I did this in resin I would use supports.
James
