Semovente El Alamein circa 1942 COMPLETE!

Semovente El Alamein circa 1942 Flat and Dirty!

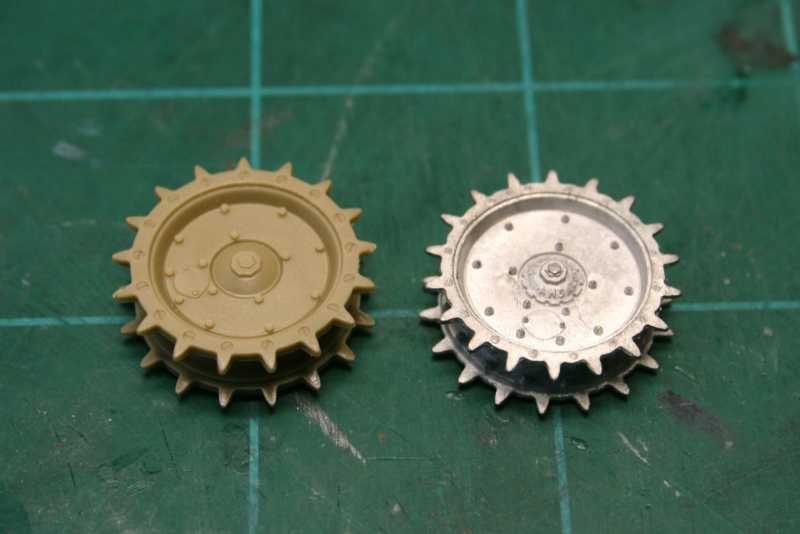

Thanks, guys! Moving forward, I added a dark wash to the recesses and removed the excess. While that was drying, I broke out the tracks. Friul provides drive sprockets in the package, I like the extra detail on them and the kit sprockets don't fit the metal tracks.





I consulted the Book of Armaments, Chapter 2, Verses 9 to 21 for the number of links per side. "And the number of the counting shall be 87, no more, no less and blow thine enemies to tiny bits, in thy mercy." Oh wait, I've gotten a bit silly...

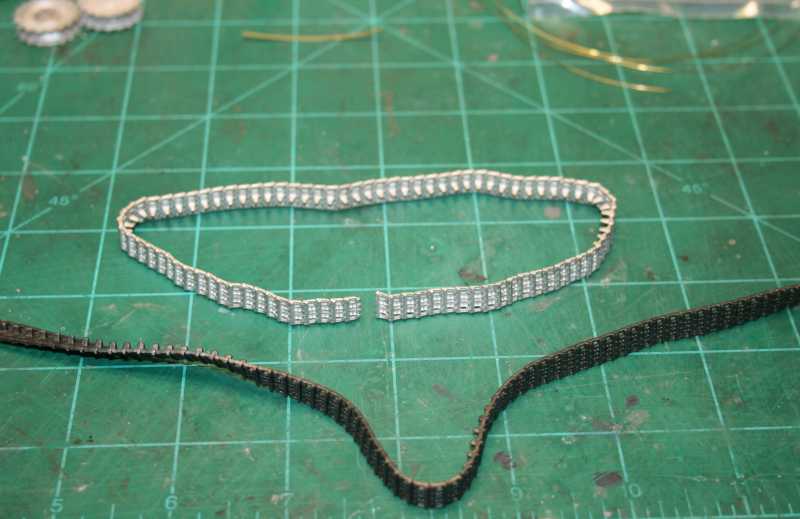

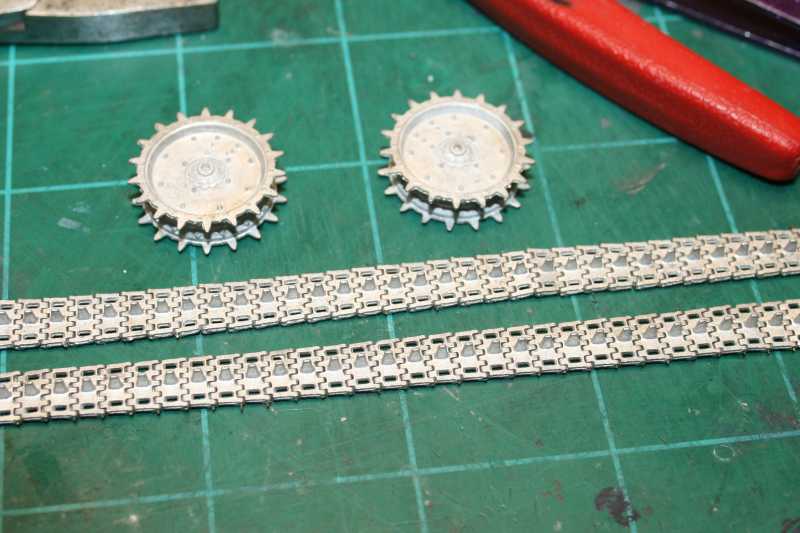

First run as compared to the kit tracks.



On to the second run!

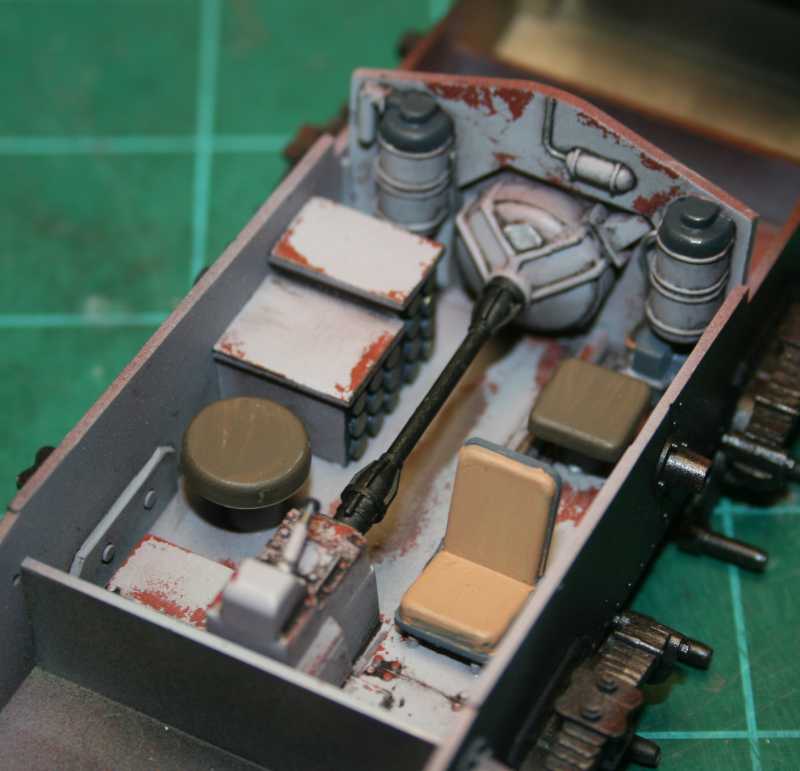

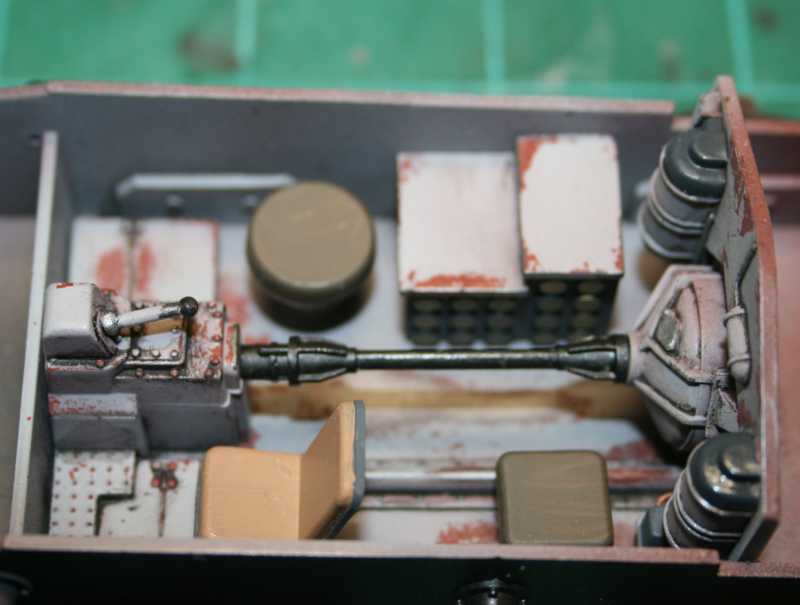

I did like the way the wash looked, so I shot a flat coat over the interior, added some bare metal spots with pigments and graphite pencil. Seats are just a first coat of paints and mocked up for photos.








Having all the fun one guy should have. :frantic

Thanks for coming by.

:drinks

Semovente El Alamein circa 1942 Flat and Dirty!

https://www.youtube.com/watch?v=qRo9m2vSChw
Awesome tracks! Bonus on the drive sprockets!

I do not believe I could top Brother Maynard's Book of Armaments. I try!
Awesome build so far!

Ciao, bella carro armato! (Carrot tomato?)
:rotf

Semovente El Alamein circa 1942 Flat and Dirty!

And to think that guy ranks one of the best actors today. :rotf

Chip away! (y)

Semovente El Alamein circa 1942 Flat and Dirty!

Looking very cool Mike. (y)

I' m thinking that pulling out those lower shells must have been dicey.

Cheers, Christian B)

Semovente El Alamein circa 1942 Flat and Dirty!

Thanks guys!

Yeah, that bottom row doesn't look to be too well thought out. :idonno :laugh:

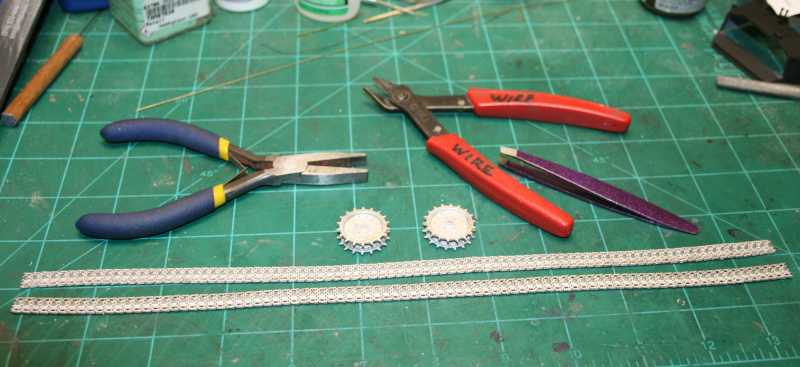

I finished the second run. Friulmodel gives you 220 links, but not enough wire to assemble the 174 required. :idonno I had saved wire from past projects, so I could finish, but it seems they'd have that worked out by now. I usually replace their wire with .20 brass wire, but these links are smaller and the holes would have to be redrilled to accept the larger wire. :pp I'll say this set was well molded, not a lot of nubs to remove like on some of their other tracks.






OK boys, it's past 5 and you know what that means. Until next time.

:drinks

Semovente El Alamein circa 1942 Flat and Dirty!

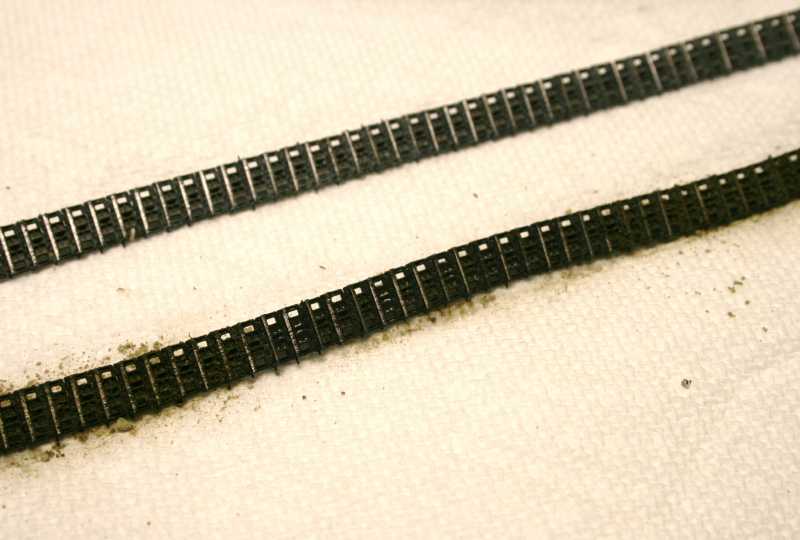

Thanks Chris and Piet! Had to work yesterday morning and wasn't feeling like modeling yesterday afternoon, so i took the rest of the day off. :laugh: I got up feeling it this morning so I charged into tracks and running gear. After a dip in the Black 4 Tracks, they look pretty good.

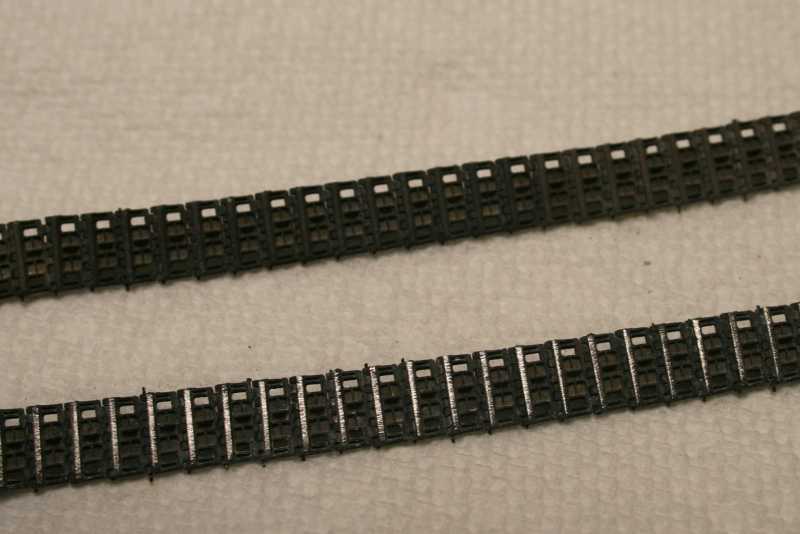

A quick pass with the sanding stick polishes the wear surfaces.




I hit the other side and mixed up a sandy looking batch of Vallejo pigments.





distribute the pigment over the tracks as randomly as you like, then apply a little pigment fixer, alcohol or acrylic thinner to set the mix.






I like to add some over the top by tapping the brush and letting the pigments fall. Hard to tell what the finished product looks like when it's wet, so you may have to add more or another color to get it right.

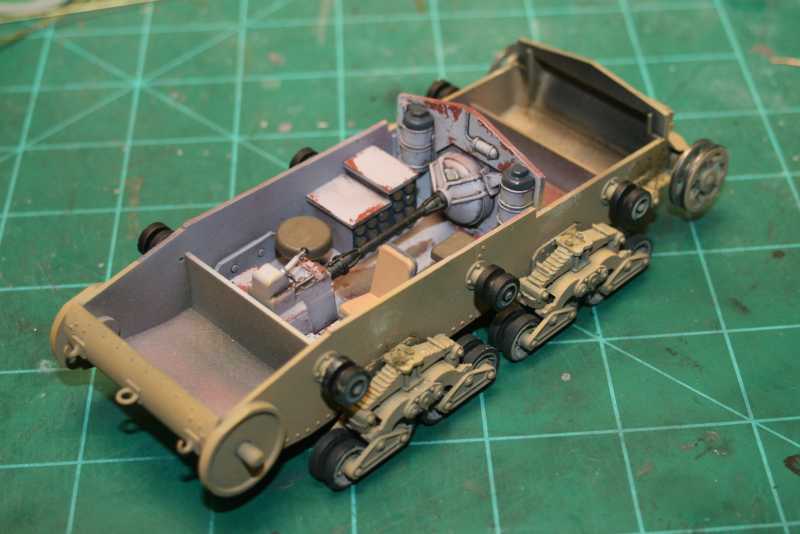

While those were drying, I went to the garage to get base color on the lower hull and wheels. Tamiya Desert Yellow thinned with Tamiya Lacquer Thinner.









And here's a taste of what I'm gunning for.




Until next time, thanks for coming by.

:drinks

Semovente El Alamein circa 1942 Flat and Dirty!

Wow , that's looking pretty sharp so far Mike (y)

Cheers, Christian B)

Semovente El Alamein circa 1942 Flat and Dirty!

Trabisimo! Excelente'! Lasagna! Parmigiana!
:salute :soldier

Semovente El Alamein circa 1942 Flat and Dirty!

Iron Mike said:
Thanks Chris and Piet! Had to work yesterday morning and wasn't feeling like modeling yesterday afternoon, so i took the rest of the day off. :laugh: I got up feeling it this morning so I charged into tracks and running gear. After a dip in the Black 4 Tracks, they look pretty good.





A quick pass with the sanding stick polishes the wear surfaces.




I hit the other side and mixed up a sandy looking batch of Vallejo pigments.


[attachment=28779]hf7b0b4f_2018-01-21.JPG[/attachment]

distribute the pigment over the tracks as randomly as you like, then apply a little pigment fixer, alcohol or acrylic thinner to set the mix.






I like to add some over the top by tapping the brush and letting the pigments fall. Hard to tell what the finished product looks like when it's wet, so you may have to add more or another color to get it right.

While those were drying, I went to the garage to get base color on the lower hull and wheels. Tamiya Desert Yellow thinned with Tamiya Lacquer Thinner.









And here's a taste of what I'm gunning for.




Until next time, thanks for coming by.

:drinks
Click to expand...

Nice job. :soldier

Semovente El Alamein circa 1942 Flat and Dirty!

Thanks guys! Well, it was bound to happen. Between my wife getting sick last month and working around the public, the crud has finally caught up to me. Was looking forward to some bench time, it's been rainy and overcast here, but I am just not making much progress and might as well go watch a movie.

Here's why I said it's hard to judge your color when using pigments. When they dry, they are considerably lighter.

STILL WET FROM FIXER




ONE WEEK DRY




Just what I was hoping for, a dusty, sandy sort of shade.

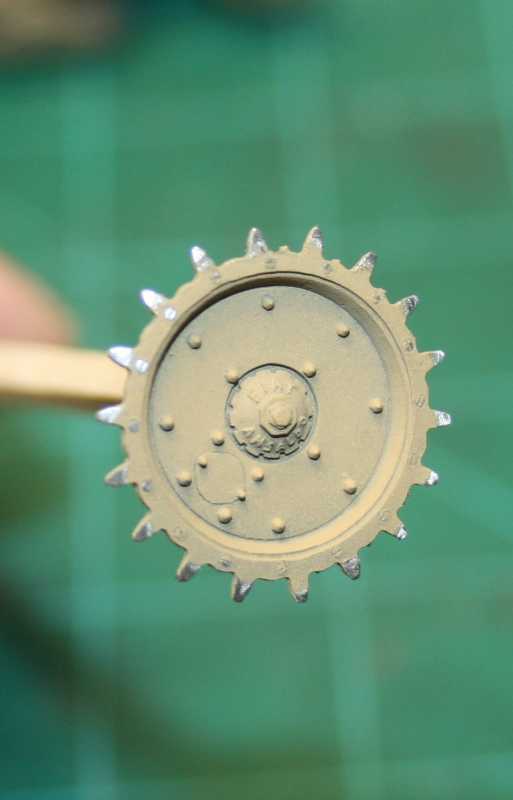

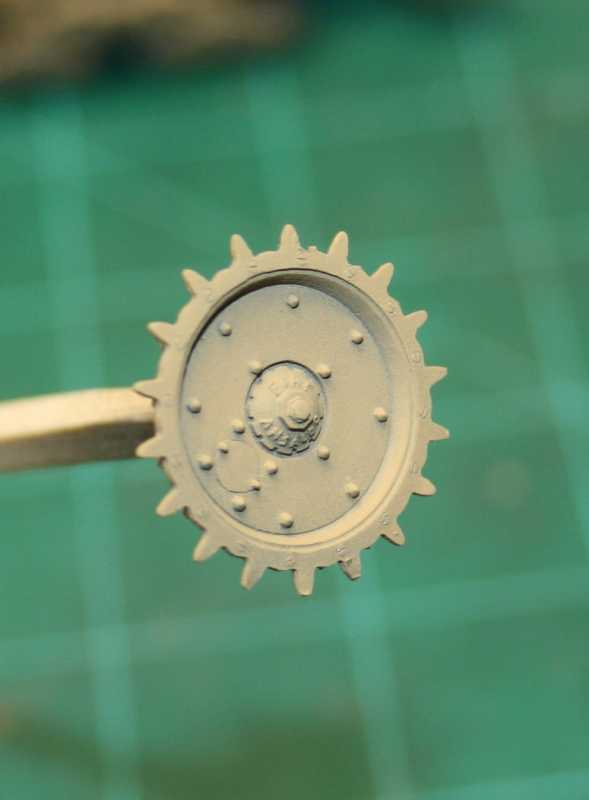

The cool thing about the white metal sprockets is a light pass of the sanding stick wears the paint off the teeth.

BEFORE



AFTER



Looks good to my eye.

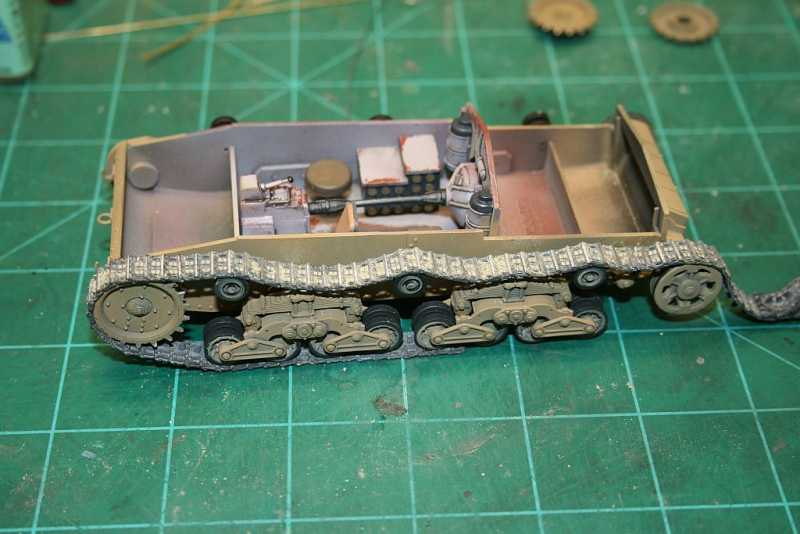

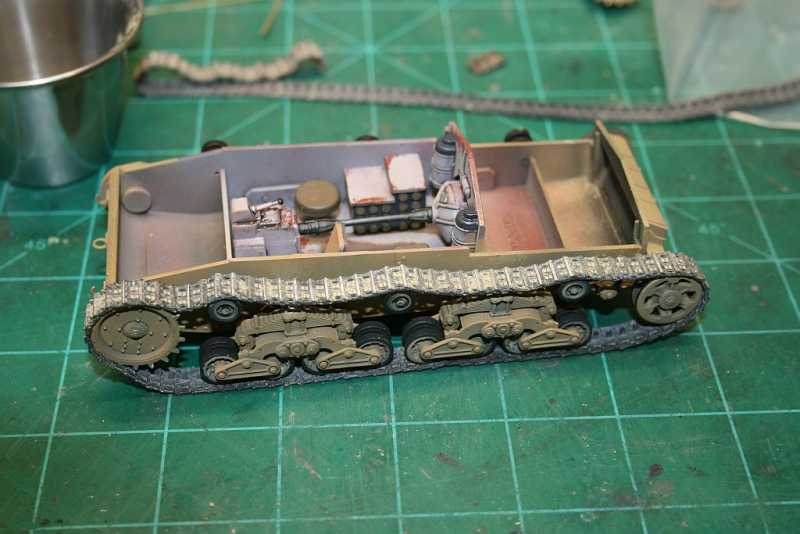

Installing the tracks is pretty simple, I wrapped the tracks around the sprocket, making sure the teeth were engaged and then spread the run over the returns.



I flipped the hull over and added the last pin.



I've exaggerated the sag a little, but being an old Tamiya kit, there's no take up to the track. It will look good when the upper hull is installed.

More to come, if I ever get over this junk. Thanks for coming by!

:drinks

Semovente El Alamein circa 1942 Flat and Dirty!

Thanks guys, I sure didn't make much progress this weekend, but got to feeling good enough to go to work today. Oh course, there was the fact that my car wouldn't start and had to get my boss to pick me up. :bang head Has a new battery and it wasn't cold either, has to be in the ignition switch. Seventeen years old and just getting broken in, you know. :eek:ldguy

Semovente El Alamein circa 1942 Flat and Dirty!

Feel your pain, just rolled 200k on the pickup and it's in the shop once a month. REALLY don't want to get another.
